Exterior Trim - Bodyside & Quarter Trim , Coupe of Aston Martin Aston Martin GT DBS (2007-2012)

すべて見る

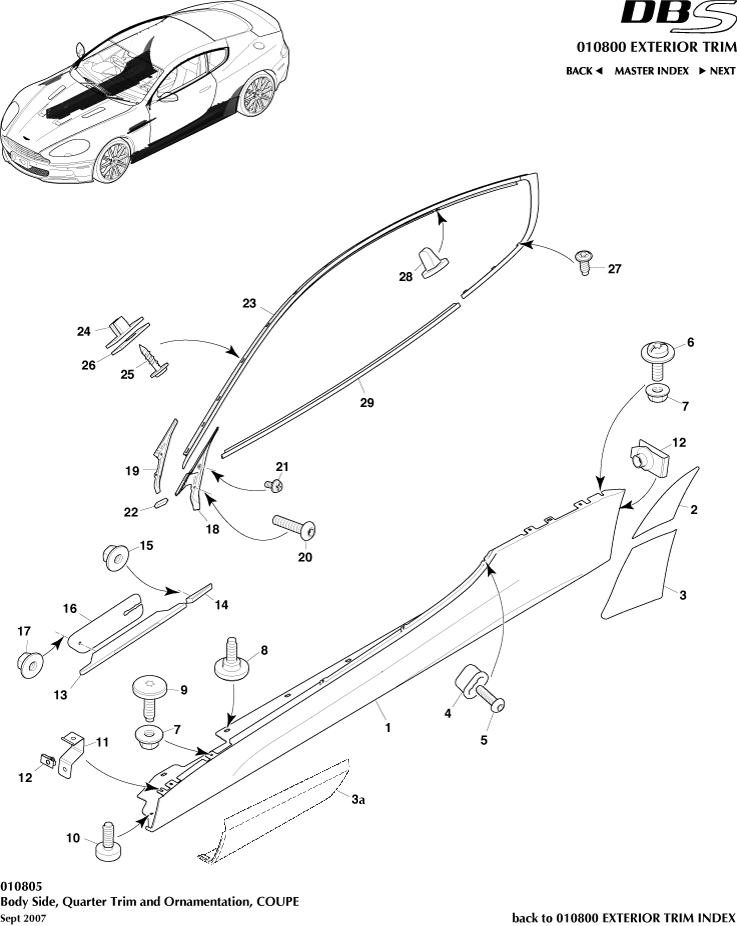

Aston Martin GT DBS (2007-2012) - Exterior Trim - Bodyside & Quarter Trim , Coupe

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	8D3310608AE	敷居アップリケ、右側	8D3310608AE 敷居アップリケ、右側 -	-	1	Enquire
-	8D3310631AB	テープ、リアクォーター、左側 IN STOCK	8D3310631AB テープ、リアクォーター、左側 From 08MY IN STOCK	$39.47	1
-	4G4310630AB	テープ、リアクォーター、右側	4G4310630AB テープ、リアクォーター、右側 Up To 08MY	-	1	Enquire
-	8D3310630AB	テープ、リアクォーター、右側 IN STOCK	8D3310630AB テープ、リアクォーター、右側 From 08MY IN STOCK	$39.47	1
-	8D3310626AD	Tape, Rear sill, RH	8D3310626AD Tape, Rear sill, RH From 07MY	$96.21	1
-	8G4310627AA	Tape, front sill, LH	8G4310627AA Tape, front sill, LH From 09MY	-	1	Enquire
-	4G4310626AA	Tape, front sill, RH IN STOCK	4G4310626AA Tape, front sill, RH Up To 09MY IN STOCK	$72.77	1
-	8G4310626AB	Tape, front sill, RH	8G4310626AB Tape, front sill, RH From 09MY	$60.25	1
-	8D33280B62AE	Side strake fender assy, RH	8D33280B62AE Side strake fender assy, RH -	$423.68	1
-	8D33018K28AC	Side Strake Door Assy, RH	8D33018K28AC Side Strake Door Assy, RH -	$387.50	1
-	BD33280B84AA	Strake, mesh assy, LH	BD33280B84AA Strake, mesh assy, LH Carbon Edition, DBS Ultimate	$294.72	1
-	8D33280B83AC	Strake, mesh assy, RH	8D33280B83AC Strake, mesh assy, RH -	$149.98	1
-	BD33280B83AA	Strake, mesh assy, RH	BD33280B83AA Strake, mesh assy, RH Carbon Edition, DBS Ultimate	$294.72	1
-	4G43C02564BD	Cover, retainer assy, body pillar, RH IN STOCK	4G43C02564BD Cover, retainer assy, body pillar, RH - IN STOCK	$34.58	1
-	4G43C02564AC	Retainer assy, RH	4G43C02564AC Retainer assy, RH -	$58.31	1
-	4G43519A37AL	Finisher, roof side glass, RH	4G43519A37AL Finisher, roof side glass, RH -	-	1	Enquire
-	4G43F20562AG	Seal, Door Waist, RH	4G43F20562AG Seal, Door Waist, RH -	-	1	Enquire
1	8D3310609AE	敷居アップリケ、左側	8D3310609AE 敷居アップリケ、左側 -	-	1	Enquire
2	4G4310631AB	テープ、リアクォーター、左側	4G4310631AB テープ、リアクォーター、左側 Up To 08MY	-	1	Enquire
3	8D3310627AD	Tape, Rear sill, LH	8D3310627AD Tape, Rear sill, LH From 07MY	$96.21	1
3a	4G4310627AA	Tape, front sill, LH IN STOCK	4G4310627AA Tape, front sill, LH Up To 09MY IN STOCK	$72.77	1
4	4G4348954AA	Nut, Locking, Sill Anti Strip IN STOCK	4G4348954AA Nut, Locking, Sill Anti Strip - IN STOCK	$0.86	1
5	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 - IN STOCK	$3.07	6
6	703743	SCREW/WASHER, M6x18	703743 SCREW/WASHER, M6x18 -	-	2	Enquire
7	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd - IN STOCK	$1.28	4
8	701567	SCREW, M6x16, PAN IN STOCK	701567 SCREW, M6x16, PAN - IN STOCK	$3.74	14
9	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 - IN STOCK	$24.50	4
10	6G430516BBA	Screw, M6 IN STOCK	6G430516BBA Screw, M6 - IN STOCK	$5.77	14
11	8D3316586AA	Bracket, front wheel shield assy	8D3316586AA Bracket, front wheel shield assy -	$18.32	2
12	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 - IN STOCK	$12.50	2
13	8D33280B63AE	Side strake fender assy, LH	8D33280B63AE Side strake fender assy, LH -	$423.68	1
14	8D33018K29AC	Side strake door assy, LH	8D33018K29AC Side strake door assy, LH -	$387.50	1
15	703165	Nut, M05 IN STOCK	703165 Nut, M05 - IN STOCK	$0.34	4
16	8D33280B84AC	Strake, mesh assy, LH	8D33280B84AC Strake, mesh assy, LH -	$149.98	1
17	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg - IN STOCK	$1.83	4
18	4G43C02565BD	Cover, retainer assy, body pillar, LH	4G43C02565BD Cover, retainer assy, body pillar, LH -	$34.37	1
19	4G43C02565AC	Retainer assy, LH	4G43C02565AC Retainer assy, LH -	$46.71	1
20	702217	SCREW, M5x16, BUTTON HEAD IN STOCK	702217 SCREW, M5x16, BUTTON HEAD - IN STOCK	$0.68	2
21	700235	Screw, 4.2x9.5 washer head	700235 Screw, 4.2x9.5 washer head -	$4.62	2
22	4G43C47775BA	粘着フォームストリップ	4G43C47775BA 粘着フォームストリップ -	$4.33	2
23	4G43519A36AL	Finisher, roof side glass, LH	4G43519A36AL Finisher, roof side glass, LH -	-	1	Enquire
24	7G43143002AA	Nut, Grommet	7G43143002AA Nut, Grommet -	$0.79	26
25	703104	Screw, M4 x 16, air intake duct IN STOCK	703104 Screw, M4 x 16, air intake duct - IN STOCK	$1.08	36
26	8G434999AA	ワッシャ、パッキング	8G434999AA ワッシャ、パッキング -	$0.54	16
28	701656PK	Nut, plastic low cut	701656PK Nut, plastic low cut -	$3.22	36
29	4G43F20563AG	Seal, Door Waist, LH	4G43F20563AG Seal, Door Waist, LH -	-	1	Enquire
