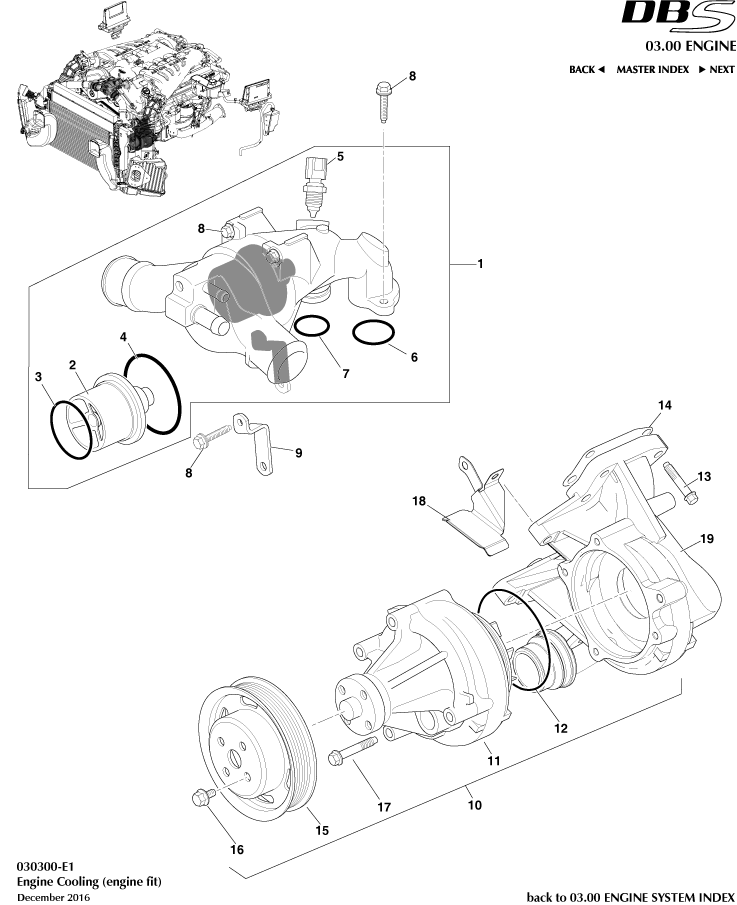

| # | 部品詳細 | 価格 （各） | 図の数量 | カートに追加 |
|---|---|---|---|---|
| - |
702842 Bolt, flg, M8x41 - |
$0.37 | 3 | |
| 1 |
8G438A586AA サーモスタットおよびハウジング - |
- | 1 | Enquire |
| 2 |
4G4E8575AB サーモスタットアセンブリ - ARRIVING SOON |
$322.52 | 1 | |
| 3 |
3285116 シール、サーモスタット - ARRIVING SOON |
$162.76 | 1 | |
| 4 |
3285114 O RING,L HOUSING - |
$2.73 | 1 | |
| 5 |
6G433910080 Sensor, Engine Cool Temperature - ARRIVING SOON |
$443.24 | 1 | |
| 6 |
3285112 O RING, WATER OUTLET - |
$6.06 | 1 | |
| 7 |
3285113 O RING, OUTLET - ARRIVING SOON |
$1.34 | 1 | |
| 8 |
702855 Bolt and Washer, M6x30 - |
$2.83 | 6 | |
| 9 |
7G438A588AA Bracket, Engine Thermostat Connection - |
$94.62 | 1 | |
| 10 |
8G438K168BA Pump and Cover Assy - |
- | 1 | Enquire |
| 11 |
XR1E-8501-DC ポンプアッシー - |
- | 1 | Enquire |
| 12 |
1R123210531 O RING, 4.0x0.139 - |
$34.16 | 1 | |
| 13 |
703694 BOLT/WASHER, M8x45, HF 8 - |
$5.83 | 3 | |
| 14 |
585382 O Ring, Waterpump - |
$50.79 | 3 | |
| 15 |
585104 Pulley, pump - |
$643.18 | 1 | |
| 16 |
702843 Screw and Washer, M8x19 - |
$1.23 | 4 | |
| 17 |
702846 Bolt, flg, M8x45 - |
- | 4 | Enquire |
| 18 |
4G4318482AA Guard, pump hose - |
$41.76 | 1 | |
| 19 |
8G438A513AA Cover assy, pump - |
$1,231.01 | 1 |
