Exhaust Manifolds and Turbos of Aston Martin Aston Martin GT VANQUISH (2025-

すべて見る

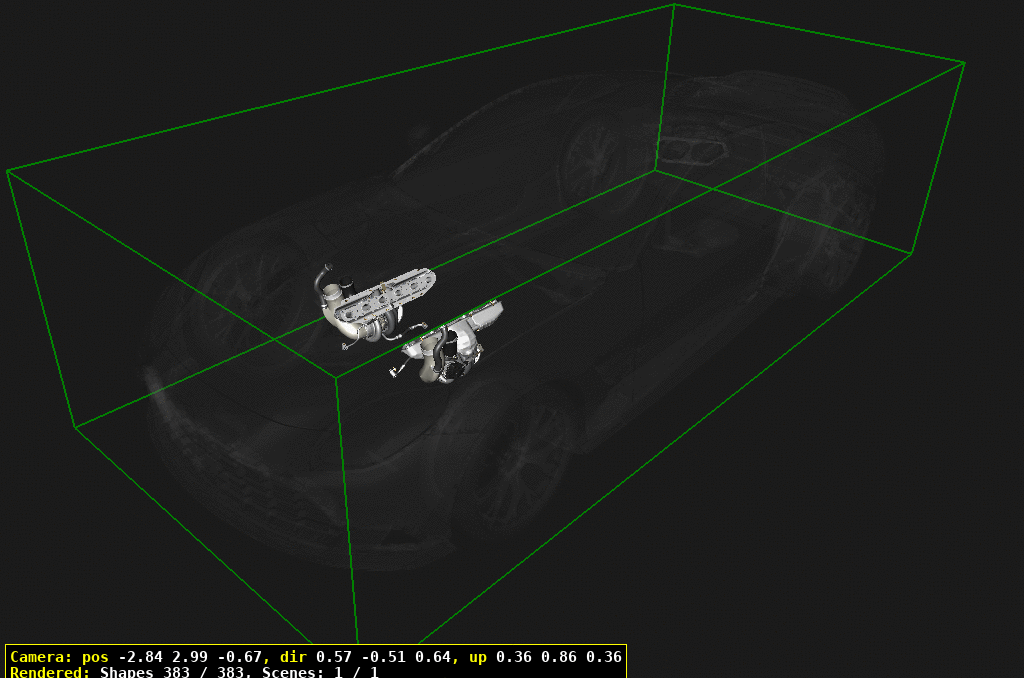

Aston Martin GT VANQUISH (2025- - Exhaust Manifolds and Turbos

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
10	NY73-9429-BA	エキゾーストマニホールド	NY73-9429-BA エキゾーストマニホールド	-	2	Enquire
30	NY739448AA	ガスケット、エキゾーストマニホールド	NY739448AA ガスケット、エキゾーストマニホールド	$68.59	2
40	NY739448BA	ガスケット、エキゾーストマニホールド	NY739448BA ガスケット、エキゾーストマニホールド	$68.59	2
50	HY539P441AA	NUT, EXHAUST MANIFOLD(INTEGRATED SPACER)	HY539P441AA NUT, EXHAUST MANIFOLD(INTEGRATED SPACER) ALWAYS REPLACE. DO NOTRE-USE	$11.01	24
60	NY739S425BA	BOLT, TURBOCHARGER toMANIFOLD, SHORT	NY739S425BA BOLT, TURBOCHARGER toMANIFOLD, SHORT ALWAYS REPLACE. DO NOTRE-USE	$78.56	4
70	702680	NUT, M6, HF 8	702680 NUT, M6, HF 8	$1.92	4
80	HY539A462AB	HEATSHIELD, MANIFOLD,CENTRE	HY539A462AB HEATSHIELD, MANIFOLD,CENTRE	$411.64	2
90	HY539A462DB	HEATSHIELD, MANIFOLD	HY539A462DB HEATSHIELD, MANIFOLD	$292.08	2
100	HY539A462CB	HEATSHIELD, MANIFOLD	HY539A462CB HEATSHIELD, MANIFOLD	$292.08	2
110	HY539A471AB	TAB, EXHAUST BOLT LOCK	HY539A471AB TAB, EXHAUST BOLT LOCK ALWAYS REPLACE. DO NOTRE-USE	$6.54	2
120	HY539A471BB	TAB, EXHAUST BOLT LOCK	HY539A471BB TAB, EXHAUST BOLT LOCK ALWAYS REPLACE. DO NOTRE-USE	$10.22	2
130	NY739S425AA	BOLT, TURBOCHARGER toMANIFOLD, LONG	NY739S425AA BOLT, TURBOCHARGER toMANIFOLD, LONG ALWAYS REPLACE. DO NOTRE-USE	$78.56	2
140	NY73-6467-AA	SPACER, LONG	NY73-6467-AA SPACER, LONG	-	2	Enquire
150	NY736467BA	SPACER, SHORT	NY736467BA SPACER, SHORT	$48.25	4
200	NY73-6466-AA	GASKET, TURBO to MANIFOLD	NY73-6466-AA GASKET, TURBO to MANIFOLD	-	2	Enquire
210	SY7Y9K308EA	HOSE, AIR BYPASS VALVEINLET, LH	SY7Y9K308EA HOSE, AIR BYPASS VALVEINLET, LH LH	$644.62	1
220	SY7Y9K308FA	HOSE, AIR BYPASS VALVEINLET, RH	SY7Y9K308FA HOSE, AIR BYPASS VALVEINLET, RH RH	$644.62	1
230	HY532976CB	HOSE, TURBO to WCAC	HY532976CB HOSE, TURBO to WCAC LH	$184.04	1
240	HY532976DB	HOSE, TURBO to WCAC	HY532976DB HOSE, TURBO to WCAC RH	$184.04	1
250	NY739G438AA	TURBOCHARGER ASSEMBLY	NY739G438AA TURBOCHARGER ASSEMBLY LH	$6,875.10	1
260	NY739G438BA	TURBOCHARGER ASSEMBLY	NY739G438BA TURBOCHARGER ASSEMBLY RH	$6,875.10	1
270	HY539G440BB	OIL PIPE ASSEMBLY, FEED,LH	HY539G440BB OIL PIPE ASSEMBLY, FEED,LH	$315.25	1
280	HY539G440AC	OIL PIPE ASSEMBLY, FEED,RH	HY539G440AC OIL PIPE ASSEMBLY, FEED,RH	$327.11	1
290	HY539G441AA	OIL PIPE ASSEMBLY, DRAIN,RH	HY539G441AA OIL PIPE ASSEMBLY, DRAIN,RH	$349.54	1
300	HY539G441CC	OIL PIPE ASSEMBLY, DRAIN,LH	HY539G441CC OIL PIPE ASSEMBLY, DRAIN,LH	$361.56	1
310	4R8Q6N652AA	GASKET, TURBO OIL DRAIN	4R8Q6N652AA GASKET, TURBO OIL DRAIN	$1.42	2
320	HY539E936CB	O RING, DUCT to TURBO,78x2	HY539E936CB O RING, DUCT to TURBO,78x2	$7.96	2
330	SY7Y-9E770-CA	INTAKE DUCT ASSEMBLY, LH	SY7Y-9E770-CA INTAKE DUCT ASSEMBLY, LH	-	1	Enquire
340	SY7Y-9E770-DA	INTAKE DUCT ASSEMBLY, RH	SY7Y-9E770-DA INTAKE DUCT ASSEMBLY, RH	-	1	Enquire
350	HY53XSC2065AA	Vバンドクランプ	HY53XSC2065AA Vバンドクランプ	$97.29	2
360	702294	Screw, M6x16 Pan Hd 6 lobe IN STOCK	702294 Screw, M6x16 Pan Hd 6 lobe IN STOCK	$0.27	2
370	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	4	Enquire
380	702294	Screw, M6x16 Pan Hd 6 lobe IN STOCK	702294 Screw, M6x16 Pan Hd 6 lobe IN STOCK	$0.27	2
390	HY53100079BA	BANJO BOLT, OIL FEED	HY53100079BA BANJO BOLT, OIL FEED ALWAYS REPLACE. DO NOTRE-USE	$87.61	2
400	HY53232046BA	DOUBLE WASHER, COPPER	HY53232046BA DOUBLE WASHER, COPPER ALWAYS REPLACE. DO NOTRE-USE	$27.61	2
410	HY5361J17BA	O RING, 11x2.5, OIL FEED	HY5361J17BA O RING, 11x2.5, OIL FEED ALWAYS REPLACE. DO NOTRE-USE	$32.26	2
420	HY5361J17CA	O RING, 16x2.5, OILRETURN	HY5361J17CA O RING, 16x2.5, OILRETURN ALWAYS REPLACE. DO NOTRE-USE	$17.14	2
