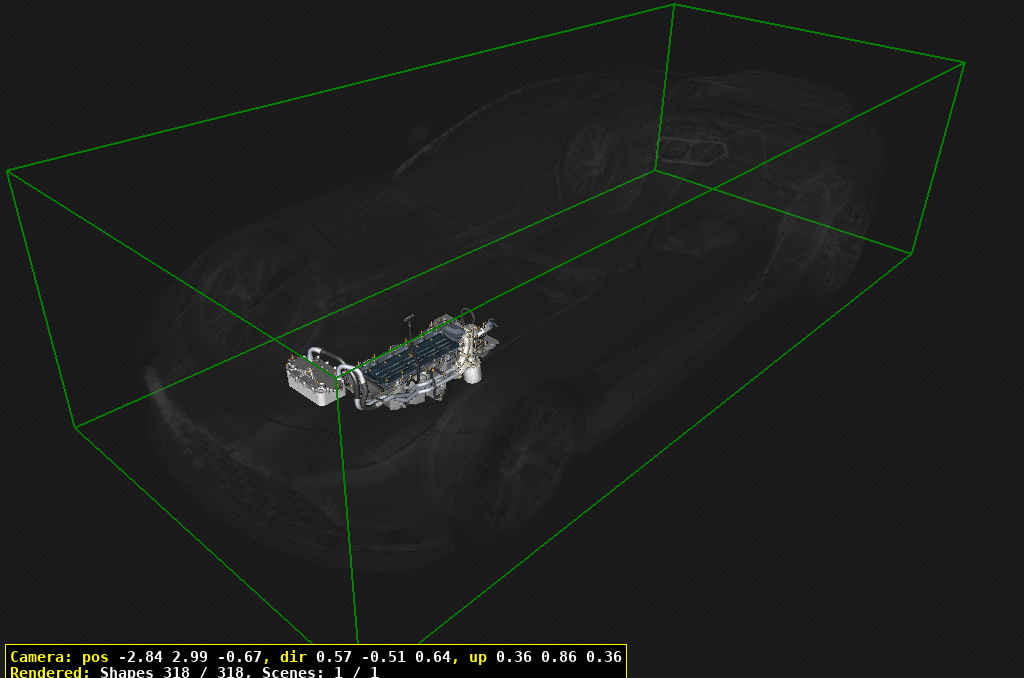

Aston Martin GT VANQUISH (2025- - Sump and Lubrication

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
10	SY7Y-8B547-AA	MODULE ASSEMBLY, OILFILTER	SY7Y-8B547-AA MODULE ASSEMBLY, OILFILTER	-	1	Enquire
20	HY536K829AA	PLUG, TAPPED	HY536K829AA PLUG, TAPPED	$10.37	1
30	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	5
40	707126	BOLT, M8x50, HEX FLG	707126 BOLT, M8x50, HEX FLG	$0.90	4
60	HY53-6675-AG	PAN ASSEMBLY, OIL	HY53-6675-AG PAN ASSEMBLY, OIL Includes items 70-120	-	1	Enquire
70	697748	PLUG, OIL PAN DRAIN, M12(SHORT) IN STOCK	697748 PLUG, OIL PAN DRAIN, M12(SHORT) IN STOCK	$24.68	1
80	SY7Y-6C624-AA	SENSOR, LOW OIL LEVEL	SY7Y-6C624-AA SENSOR, LOW OIL LEVEL Includes item 90	-	1	Enquire
90	8W9387030BA	GASKET, SENSOR, LOW OILLEVEL	8W9387030BA GASKET, SENSOR, LOW OILLEVEL ALWAYS REPLACE. DO NOTRE-USE	$38.10	1
100	SY7Y-10698-AA	SCREW, M6x30, PAN HD	SY7Y-10698-AA SCREW, M6x30, PAN HD	-	3	Enquire
110	SY7Y-87030-BA	SPACER, OIL LEVEL SENSOR	SY7Y-87030-BA SPACER, OIL LEVEL SENSOR	-	1	Enquire
120	SY7Y-61J17-CA	Oリング	SY7Y-61J17-CA Oリング	-	1	Enquire
130	HY536L623AA	RETAINER, SCAVANGE PUMPOIL PIPES	HY536L623AA RETAINER, SCAVANGE PUMPOIL PIPES	$55.33	1
140	702844	BOLT, M8x30, HEX FLG	702844 BOLT, M8x30, HEX FLG	$7.35	4
150	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	1
160	HY536632AA	SHIELD, OIL PUMP (PICKUP)	HY536632AA SHIELD, OIL PUMP (PICKUP)	$83.28	1
170	HY536617CA	OIL PICKUP PIPE ASSEMBLY	HY536617CA OIL PICKUP PIPE ASSEMBLY	$428.55	1
180	HY536B677CA	BREATHER DRAIN PIPE, RH	HY536B677CA BREATHER DRAIN PIPE, RH	$150.45	1
190	HY536B677DA	BREATHER DRAIN PIPE, LH	HY536B677DA BREATHER DRAIN PIPE, LH	$150.45	1
200	HY536A895AA	CHAIN, OIL PUMP DRIVE	HY536A895AA CHAIN, OIL PUMP DRIVE	$111.65	1
210	HY539G441BB	PIPE ASSEMBLY, INNERDRAIN, RH	HY539G441BB PIPE ASSEMBLY, INNERDRAIN, RH	$154.31	1
220	HY539G441DB	PIPE ASSEMBLY, INNERDRAIN, LH	HY539G441DB PIPE ASSEMBLY, INNERDRAIN, LH	$154.31	1
230	HY539G441EB	TUBE ASSEMBLY, TURBO OILRETURN, INNER, RH	HY539G441EB TUBE ASSEMBLY, TURBO OILRETURN, INNER, RH	$209.12	1
240	HY539G441FB	TUBE ASSEMBLY, TURBO OILRETURN, INNER, LH	HY539G441FB TUBE ASSEMBLY, TURBO OILRETURN, INNER, LH	$209.12	1
250	703145	Bolt, M6 x 1.00 x 30 IN STOCK	703145 Bolt, M6 x 1.00 x 30 IN STOCK	$0.90	1
260	HY535144AA	SPACER, WCAC FRONT BUSH	HY535144AA SPACER, WCAC FRONT BUSH	$8.35	1
270	HY536790AA	BUSH, FRONT	HY536790AA BUSH, FRONT	$7.19	1
280	HY536D603AA	ワンウェイバルブ	HY536D603AA ワンウェイバルブ	$37.45	4
290	HY536621AB	オイルポンプアッセンブリー	HY536621AB オイルポンプアッセンブリー	$3,198.16	1
300	HY536C880AA	SOLENOID, OIL CONTROL	HY536C880AA SOLENOID, OIL CONTROL	$391.70	1
310	HY536C747AA	BODY, VALVE PUMP	HY536C747AA BODY, VALVE PUMP	$528.53	1
320	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	2
330	707160	BOLT, M8x140, HF8	707160 BOLT, M8x140, HF8	$5.55	2
340	703201	Screw, M8 x 30 Hex Head Flange IN STOCK	703201 Screw, M8 x 30 Hex Head Flange IN STOCK	$1.28	21
350	HY536W601AA	GASKET, OIL COOLERADAPTOR to CYL BLOCK	HY536W601AA GASKET, OIL COOLERADAPTOR to CYL BLOCK	$15.97	1
360	HY536710BA	ガスケット、オイルパン	HY536710BA ガスケット、オイルパン	$348.05	1
370	HY537527LEGAA	FIRTREE CONNECTOR INSERT	HY537527LEGAA FIRTREE CONNECTOR INSERT	$4.02	1
380	HY5317443AA	O RING, 33x3.5, SOLENOIDHOUSING	HY5317443AA O RING, 33x3.5, SOLENOIDHOUSING	$5.37	1
390	HY5332603AA	BRACKET, OIL PUMPSOLENOID	HY5332603AA BRACKET, OIL PUMPSOLENOID	$67.38	1
400	SY7Y6B634BA	BRACKET, REAR, OIL COOLERPIPES	SY7Y6B634BA BRACKET, REAR, OIL COOLERPIPES	$182.68	1
410	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	2
420	HY536686AC	バッフルプレート、オイルパン	HY536686AC バッフルプレート、オイルパン	$1,376.67	1
430	SY7Y6750AA	オイルレベルディップスティック	SY7Y6750AA オイルレベルディップスティック	$143.37	1
440	SY7Y6754AB	ディップスティックチューブ	SY7Y6754AB ディップスティックチューブ	$251.89	1
450	4G436K804AA	DECAL, OIL LEVELINDICATOR	4G436K804AA DECAL, OIL LEVELINDICATOR	$8.10	1
460	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	1
470	702573	Bolt, M8x35mm	702573 Bolt, M8x35mm	$0.38	1
480	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	11
490	703750	SCREW, M6x20, HEX FLD IN STOCK	703750 SCREW, M6x20, HEX FLD IN STOCK	$3.09	12
500	HY536B660AB	WINDAGE TRAY ASSEMBLY	HY536B660AB WINDAGE TRAY ASSEMBLY	$963.15	1
510	703189	Screw M8x16 hex flg hd, latch plate	703189 Screw M8x16 hex flg hd, latch plate	$0.38	1
600	SY7Y8B512AC	ENGINE OIL COOLERASSEMBLY	SY7Y8B512AC ENGINE OIL COOLERASSEMBLY	$1,684.01	1
610	703201	Screw, M8 x 30 Hex Head Flange IN STOCK	703201 Screw, M8 x 30 Hex Head Flange IN STOCK	$1.28	-
620	AG43384993AA	スリーブ	AG43384993AA スリーブ	$29.93	3
630	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	2
640	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
650	SY7Y6B747AC	HOSE ASSEMBLY, COOLERINLET	SY7Y6B747AC HOSE ASSEMBLY, COOLERINLET Includes item 670	$665.24	1
660	SY7Y6B748AC	HOSE ASSEMBLY, COOLEROUTLET	SY7Y6B748AC HOSE ASSEMBLY, COOLEROUTLET Includes item 670	$665.24	1
670	SY7Y-61J17-AA	O RING, 23.6x2.5	SY7Y-61J17-AA O RING, 23.6x2.5	-	4	Enquire
680	SY7Y-6B634-AB	BRACKET, FRONT, OILCOOLER PIPES	SY7Y-6B634-AB BRACKET, FRONT, OILCOOLER PIPES	-	1	Enquire
690	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	2
700	HY536884AA	SPIGOT, OIL FILTER	HY536884AA SPIGOT, OIL FILTER	$44.32	1
710	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	12
720	HY536722CA	SEAL, OIL PAN, FRONT	HY536722CA SEAL, OIL PAN, FRONT 200mm	$13.96	1
