Electrical and Sensors of Aston Martin Aston Martin GT VANQUISH (2025-

すべて見る

Aston Martin GT VANQUISH (2025- - Electrical and Sensors

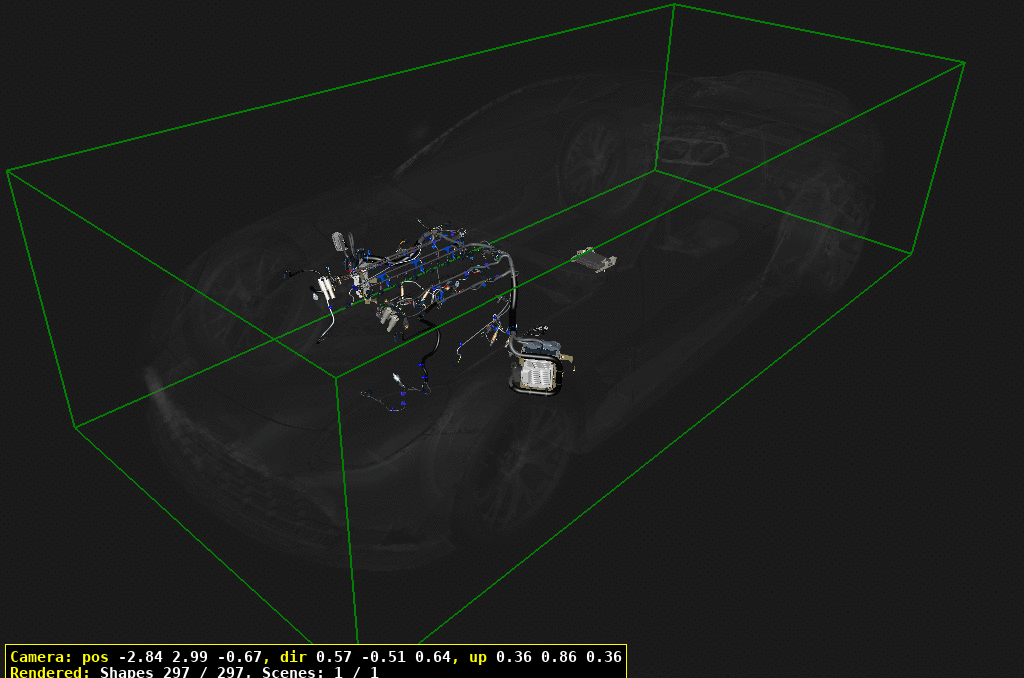

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	SY7Y12B637AA	ハーネス、エンジン	SY7Y12B637AA ハーネス、エンジン	$5,901.73	1
30	HY5312A650AA	MODULE, ENGINE CONTROL	HY5312A650AA MODULE, ENGINE CONTROL	$1,677.99	2
40	SY7Y12B696AC	BRACKET, ECU, LH	SY7Y12B696AC BRACKET, ECU, LH	$226.38	1
50	SY7Y12B695AB	BRACKET, ECU, RH	SY7Y12B695AB BRACKET, ECU, RH	$226.38	1
60	707141	SCREW, M5x20, PAN HD	707141 SCREW, M5x20, PAN HD	$0.72	8
70	703163	Nut, M06, hex flange head IN STOCK	703163 Nut, M06, hex flange head IN STOCK	$0.23	6
80	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	2
90	PY83SE12B684AA	COMMON POWERTRAINCONTROLLER	PY83SE12B684AA COMMON POWERTRAINCONTROLLER CPC	$350.01	1
100	RY5318D821AB	BRACKET, CPC MODULE	RY5318D821AB BRACKET, CPC MODULE LHD	$163.06	1
101	RY5318D820AB	BRACKET, CPC MODULE	RY5318D820AB BRACKET, CPC MODULE RHD	$163.06	1
110	707786	SCREW, M5x12, PAN HD,BLACK	707786 SCREW, M5x12, PAN HD,BLACK	$0.32	2
120	703163	Nut, M06, hex flange head IN STOCK	703163 Nut, M06, hex flange head CPC Bracket IN STOCK	$0.23	2
130	703163	Nut, M06, hex flange head IN STOCK	703163 Nut, M06, hex flange head IN STOCK	$0.23	4
140	SY7Y-12K059-AB	MODULE, EISB	SY7Y-12K059-AB MODULE, EISB ION Sensing & Ignition	-	2	Enquire
200	CM5E6B297CC	Solenoid, VCT IN STOCK	CM5E6B297CC Solenoid, VCT IN STOCK	$152.08	4
210	ED2312K073BA	Sensor Assy, Camshaft Timing	ED2312K073BA Sensor Assy, Camshaft Timing	$123.79	4
220	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	5
230	ED236C315AB	SENSOR ASSEMBLY,CRANKSHAFT TIMING	ED236C315AB SENSOR ASSEMBLY,CRANKSHAFT TIMING	$125.51	1
240	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	4
250	HY5312B676AA	SENSOR, ENGINE INTAKETEMPERATURE & PRESSURE	HY5312B676AA SENSOR, ENGINE INTAKETEMPERATURE & PRESSURE	$248.32	4
260	HY539S306AA	センサー、油圧	HY539S306AA センサー、油圧	$218.66	1
270	CD3312A699AA	SENSOR, KNOCK	CD3312A699AA SENSOR, KNOCK	$68.66	2
280	6G430310009	SENSOR, KNOCK	6G430310009 SENSOR, KNOCK	$45.50	4
290	703201	Screw, M8 x 30 Hex Head Flange IN STOCK	703201 Screw, M8 x 30 Hex Head Flange IN STOCK	$1.28	6
300	HY5312K530AB	BRACKET, KNOCK SENSORCONNECTOR	HY5312K530AB BRACKET, KNOCK SENSORCONNECTOR	$36.61	1
310	HY5312B637BC	LINK LEAD, KNOCK SENSOR	HY5312B637BC LINK LEAD, KNOCK SENSOR	$205.54	1
320	SY7Y12B637CA	LINK LEAD, KNOCK SENSOR	SY7Y12B637CA LINK LEAD, KNOCK SENSOR	$159.70	1
330	HY539V449AA	SENSOR, PRESSURE(SECONDARY AIR)	HY539V449AA SENSOR, PRESSURE(SECONDARY AIR)	$90.18	2
340	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	2	Enquire
350	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	4
400	ED239F472AA	SENSOR ASSEMBLY, EXHAUSTGAS, FRONT IN STOCK	ED239F472AA SENSOR ASSEMBLY, EXHAUSTGAS, FRONT IN STOCK	$272.41	2
410	6C119G444AA	SENSOR ASSEMBLY, EXHAUSTGAS, REAR	6C119G444AA SENSOR ASSEMBLY, EXHAUSTGAS, REAR	$242.96	2
420	HY535910AA	ケーブルクリップ	HY535910AA ケーブルクリップ	$4.56	1
