Engine Structure of Aston Martin Aston Martin GT VANQUISH (2025-

すべて見る

Aston Martin GT VANQUISH (2025- - エンジン構造

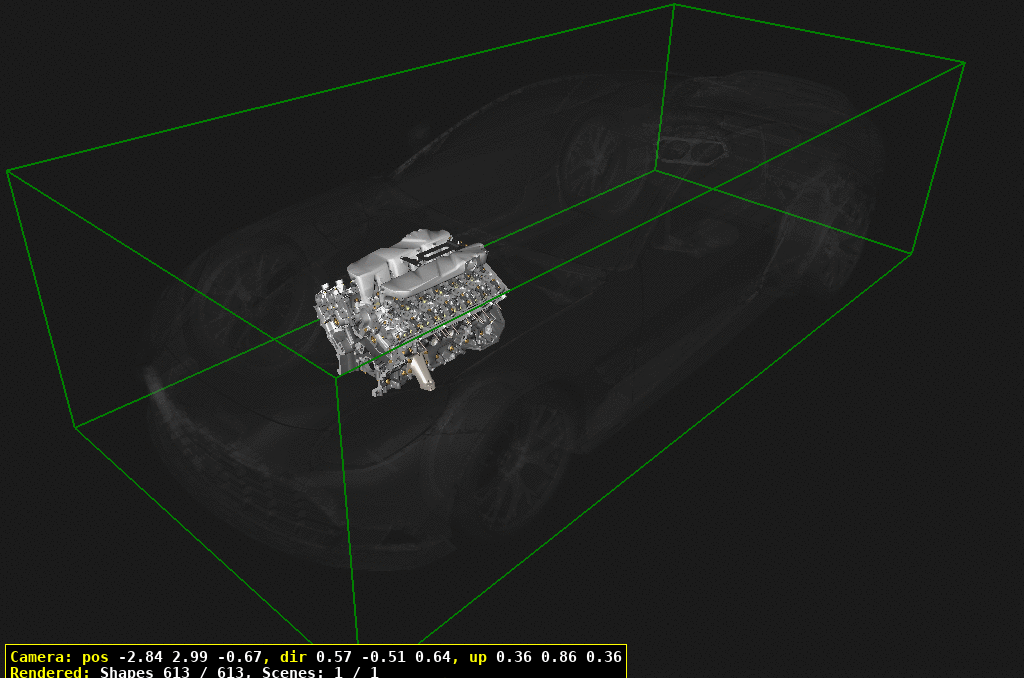

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
10	SY7Y-6007-AA	ENGINE ASSEMBLY, AE34DV12	SY7Y-6007-AA ENGINE ASSEMBLY, AE34DV12 Includes Ancillaries &WCAC not illustrated	-	1	Enquire
11	NOTE:(1)	WHEN REPLACING AN ENGINEYOU MUST ALSO ORDER & FITA NEW OIL COOLERSY7Y-8B512-AC	NOTE:(1) WHEN REPLACING AN ENGINEYOU MUST ALSO ORDER & FITA NEW OIL COOLERSY7Y-8B512-AC	-	-	Enquire
12	NOTE:(2)	Engines are NOT suppliedwith Pilot Bearing.Please order separately	NOTE:(2) Engines are NOT suppliedwith Pilot Bearing.Please order separately	-	-	Enquire
20	TBA	ランプ	TBA ランプ Includes items 40-140	-	1	Enquire
30	4G430110203	Bolt, M10x1.5x91 IN STOCK	4G430110203 Bolt, M10x1.5x91 Main Bearing Cap Inner.ALWAYS REPLACE. DO NOTRE-USE IN STOCK	$15.09	14
40	4G430110819	ボルト、メインベアリングキャップ IN STOCK	4G430110819 ボルト、メインベアリングキャップ Crankcase. ALWAYSREPLACE. DO NOT RE-USE IN STOCK	$36.09	14
50	4G430110202	BOLT, M8x1.25x82, HEX IN STOCK	4G430110202 BOLT, M8x1.25x82, HEX Main Bearing Cap Outer.ALWAYS REPLACE. DO NOTRE-USE IN STOCK	$6.66	14
60	HY53205029AA	VALVE, ANTI-DRAIN	HY53205029AA VALVE, ANTI-DRAIN	$14.89	2
70	184997	PLUG, CUP 1.25	184997 PLUG, CUP 1.25	$5.07	4
80	184998	Plug, 3/4-14 PTF, Internal Hex	184998 Plug, 3/4-14 PTF, Internal Hex	$1.62	5
90	707150	PIN, 8.0x18.25, DOWELCHAMFER, HARD	707150 PIN, 8.0x18.25, DOWELCHAMFER, HARD	$1.47	2
100	707151	PIN, 6x16, DOWEL CHAMFER,HARD	707151 PIN, 6x16, DOWEL CHAMFER,HARD	$23.03	5
110	699134	HOLLOW DOWEL	699134 HOLLOW DOWEL	$18.18	2
120	185000	Plug, Cup	185000 Plug, Cup	$16.44	1
130	704775	Plug, 19.35 dia, Expansion cup	704775 Plug, 19.35 dia, Expansion cup	$1.26	1
140	707161	PIN, HOLLOW DOWEL,16.4x19 SPLIT	707161 PIN, HOLLOW DOWEL,16.4x19 SPLIT	$1.19	4
150	702210PK	Bolt, flg, M10x30 IN STOCK	702210PK Bolt, flg, M10x30 Pack of 10 IN STOCK	$23.37	8
160	HY536031AA	BRACKET, ENGINE MOUNTING	HY536031AA BRACKET, ENGINE MOUNTING	$334.97	2
170	HY536869BB	VENT, CRANKCASE, FRONT	HY536869BB VENT, CRANKCASE, FRONT	$52.31	1
180	HY536869AB	VENT, CRANKCASE, REAR	HY536869AB VENT, CRANKCASE, REAR	$50.57	1
190	HY536B752BA	GASKET, OIL SEPARATOR,REAR	HY536B752BA GASKET, OIL SEPARATOR,REAR	$34.19	1
210	HY536B752AA	GASKET, OIL SEPARATOR,FRONT	HY536B752AA GASKET, OIL SEPARATOR,FRONT	$34.19	1
220	NY73-6M099-AB	CYLINDER HEAD ASSEMBLY,LH	NY73-6M099-AB CYLINDER HEAD ASSEMBLY,LH With Valves, Adjusters &Springs	-	1	Enquire
221	NY73-6050-AC	シリンダーヘッド、左側	NY73-6050-AC シリンダーヘッド、左側 Less Valves, Adjusters,Springs & Camshafts	-	1	Enquire
230	NY73-6F093-AB	CYLINDER HEAD ASSEMBLY,RH	NY73-6F093-AB CYLINDER HEAD ASSEMBLY,RH With Valves, Adjusters &Springs	-	1	Enquire
231	NY73-6049-AC	シリンダーヘッド、右側	NY73-6049-AC シリンダーヘッド、右側 Less Valves, Adjusters,Springs & Camshafts	-	1	Enquire
235	NY73-6065-AC	BOLT, M12, CYLINDER HEADto BLOCK	NY73-6065-AC BOLT, M12, CYLINDER HEADto BLOCK ALWAYS REPLACE. DO NOTRE-USE	-	28	Enquire
240	186452	Plug, 1/4-18 x10.8	186452 Plug, 1/4-18 x10.8	$16.44	10
245	HY536K799AA	RESTRICTOR, OIL	HY536K799AA RESTRICTOR, OIL Camshaft oil feed	$17.05	4
250	703198	BOLT, M6x40, HEX IN STOCK	703198 BOLT, M6x40, HEX IN STOCK	$0.79	56
260	685031	PLUG, 3/8x14	685031 PLUG, 3/8x14	-	2	Enquire
280	184998	Plug, 3/4-14 PTF, Internal Hex	184998 Plug, 3/4-14 PTF, Internal Hex	$1.62	2
290	707152	PIN, 10x49.25, DOWEL	707152 PIN, 10x49.25, DOWEL	$2.64	2
300	707153	PLUG, 1/2-14, SOCKET HEX	707153 PLUG, 1/2-14, SOCKET HEX	$9.74	2
310	HY533823AC	STUD (Exhaust Manifold toCylinder Head)	HY533823AC STUD (Exhaust Manifold toCylinder Head) ALWAYS REPLACE. DO NOTRE-USE	$19.33	24
320	703690	Bolt, M8x63, Hex Flange Head IN STOCK	703690 Bolt, M8x63, Hex Flange Head ALWAYS REPLACE. DO NOTRE-USE IN STOCK	$27.40	4
330	HY5312K530AB	BRACKET, KNOCK SENSORCONNECTOR	HY5312K530AB BRACKET, KNOCK SENSORCONNECTOR	$36.61	1
340	NY73-6083-AB	ガスケット、シリンダーヘッド、左側	NY73-6083-AB ガスケット、シリンダーヘッド、左側	-	1	Enquire
350	NY73-6051-AB	ガスケット、シリンダーヘッド、右側	NY73-6051-AB ガスケット、シリンダーヘッド、右側	-	1	Enquire
360	1R120810077PK	ガスケット、インテークマニホールド IN STOCK	1R120810077PK ガスケット、インテークマニホールド Pack of 2 IN STOCK	$390.18	1
370	4G430810002	アイソレーター IN STOCK	4G430810002 アイソレーター IN STOCK	$26.96	14
380	702544	BOLT, M6x50, HF PIL 8 IN STOCK	702544 BOLT, M6x50, HF PIL 8 IN STOCK	$0.63	14
390	SY7Y-9J444-AB	VALLEY BRACE ASSEMBLY	SY7Y-9J444-AB VALLEY BRACE ASSEMBLY	-	1	Enquire
400	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	2
440	HY539425BD	MANIFOLD INLET, LH	HY539425BD MANIFOLD INLET, LH	$2,548.35	1
450	NY73-9424-AA	MANIFOLD INLET, RH	NY73-9424-AA MANIFOLD INLET, RH	-	1	Enquire
460	HY536N078AA	PISTON OIL SQUIRTER (VLVOIL JET)	HY536N078AA PISTON OIL SQUIRTER (VLVOIL JET)	$39.22	12
470	707149	SCREW, M6x10, EXTRA LOBE	707149 SCREW, M6x10, EXTRA LOBE	$0.50	12
480	NY736686BA	SHIELD, BREATHER	NY736686BA SHIELD, BREATHER	$75.04	2
490	707149	SCREW, M6x10, EXTRA LOBE	707149 SCREW, M6x10, EXTRA LOBE	$0.50	4
500	MY6Y9S447AA	PLUG ASSEMBLY, INTAKEMANIFOLD	MY6Y9S447AA PLUG ASSEMBLY, INTAKEMANIFOLD Includes item 510	$306.79	1
510	HY53532387AA	O RING, (23.39x3.53)	HY53532387AA O RING, (23.39x3.53)	$4.85	1
