Interior Trim - Lower of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Interior Trim - Lower

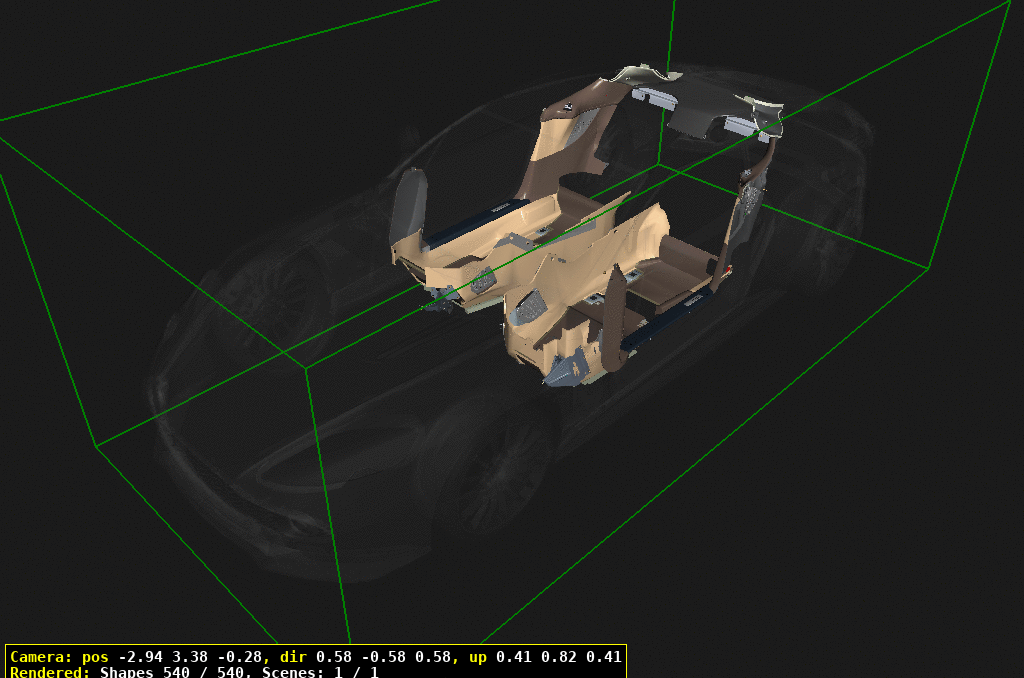

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	ED3302349ADW	TRIM ASSEMBLY, A-PILLAR,LH	ED3302349ADW TRIM ASSEMBLY, A-PILLAR,LH	$910.65	1
30	ED3302348ADW	RIM ASSEMBLY, A-PILLAR,RH	ED3302348ADW RIM ASSEMBLY, A-PILLAR,RH	$944.47	1
40	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	2
50	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	2
60	6G33100N00AA	ADHESIVE TAPE, DOUBLESIDED	6G33100N00AA ADHESIVE TAPE, DOUBLESIDED	$15.29	A/R
70	FD33100A90AA	SUPPORT PANEL, REARFLOOR, RH	FD33100A90AA SUPPORT PANEL, REARFLOOR, RH	$90.86	1
80	4G43M4D4515AA	フォームストリップ	4G43M4D4515AA フォームストリップ	$0.84	1
90	703747	SCREW/WASHER, M6x25x1.0	703747 SCREW/WASHER, M6x25x1.0	$1.53	2
100	DD3319L525AA	スカッフプレート、アクセル	DD3319L525AA スカッフプレート、アクセル LHD only	$44.35	1
110	FD33100A91AA	SUPPORT PANEL, REARFLOOR, LH	FD33100A91AA SUPPORT PANEL, REARFLOOR, LH	$90.86	1
120	CD338310016	KIT, FLOOR CARPETS	CD338310016 KIT, FLOOR CARPETS LHD, Heavyweight	$3,588.76	1
121	CD338310017	KIT, FLOOR CARPETS	CD338310017 KIT, FLOOR CARPETS LHD, Lightweight	$3,588.76	1
122	CD338310014	KIT, FLOOR CARPETS	CD338310014 KIT, FLOOR CARPETS RHD, Heavyweight	$2,213.25	1
123	CD338310015	KIT, FLOOR CARPETS	CD338310015 KIT, FLOOR CARPETS RHD, Lightweight	$3,190.05	1
130	CD33044J09AA	ENERGY ABSORBER PAD	CD33044J09AA ENERGY ABSORBER PAD LHD	$60.38	1
140	9G4312020BA	Pad assy, foot rest	9G4312020BA Pad assy, foot rest LHD, Silver	$374.12	1
141	CD3312020CA	COVER PLATE, FOOTREST	CD3312020CA COVER PLATE, FOOTREST LHD, Black	$130.47	1
150	CD333N328BB	BRACKET, DRIVERS FOOTREST	CD333N328BB BRACKET, DRIVERS FOOTREST LHD	$107.68	1
160	DD33130B53BB	SUPPORT, CARPET, LH	DD33130B53BB SUPPORT, CARPET, LH LHD	$86.93	1
161	DD33130B53AB	SUPPORT, CARPET, LH	DD33130B53AB SUPPORT, CARPET, LH RHD	$97.83	1
170	DD33130B52BB	SUPPORT, CARPET, RH	DD33130B52BB SUPPORT, CARPET, RH LHD	$86.93	1
171	DD33130B52AB	SUPPORT, CARPET, RH	DD33130B52AB SUPPORT, CARPET, RH RHD	$97.83	1
180	DD33311A76AA	GRILLE, SPEAKER, RH	DD33311A76AA GRILLE, SPEAKER, RH Black	$782.72	1
181	DD33311A76BA	GRILLE, SPEAKER, RH	DD33311A76BA GRILLE, SPEAKER, RH Iridium	$750.12	1
210	CD3310K973AEW	HEELBOARD ASSEMBLY	CD3310K973AEW HEELBOARD ASSEMBLY	$356.48	1
220	DD33311A77AA	GRILLE, SPEAKER, LH	DD33311A77AA GRILLE, SPEAKER, LH Black	$782.72	1
221	DD33311A77BA	GRILLE, SPEAKER, LH	DD33311A77BA GRILLE, SPEAKER, LH Iridium	$750.12	1
240	703168	NUT, M6, HEX	703168 NUT, M6, HEX	-	1	Enquire
270	DD33-13003-AA	INSERT, CARPET, FRONTFLOOR	DD33-13003-AA INSERT, CARPET, FRONTFLOOR	-	2	Enquire
280	FD33281B11ABW	KIT, CARPET ASSEMBLY	FD33281B11ABW KIT, CARPET ASSEMBLY LHD	$2,370.27	1
281	FD33281B10ABW	KIT, CARPET ASSEMBLY	FD33281B10ABW KIT, CARPET ASSEMBLY RHD	$2,370.27	1
290	4G43831237ABW	Handbrake Gaiter Assembly, LHD	4G43831237ABW Handbrake Gaiter Assembly, LHD LHD	$782.80	1
291	4G43831236ABW	GAITER ASSEMBLY,HANDBRAKE	4G43831236ABW GAITER ASSEMBLY,HANDBRAKE RHD	$778.59	1
300	GD33201A49AA	SHIELD, SPEAKERPROTECTION, LH	GD33201A49AA SHIELD, SPEAKERPROTECTION, LH	$30.23	1
310	703026	Screw M5x16 Hex flg hd IN STOCK	703026 Screw M5x16 Hex flg hd IN STOCK	$0.34	3
320	6G33E801202AA	Screw, M5 x 36 Countersunk Head Capscrew	6G33E801202AA Screw, M5 x 36 Countersunk Head Capscrew	$0.74	3
330	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	$10.78	2
340	697564	Push-on Fix	697564 Push-on Fix	$0.11	3
350	706711	SCREW, M5x16, CSK 6 LOB,BLACK	706711 SCREW, M5x16, CSK 6 LOB,BLACK	-	4	Enquire
360	DD33-37041-AA	CAP, 4.8x12.7	DD33-37041-AA CAP, 4.8x12.7	-	2	Enquire
370	DD33130B14AB	SUPPORT BRACKET, CARPET	DD33130B14AB SUPPORT BRACKET, CARPET	$7.63	2
380	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	$10.78	2
390	AD43666A40AB	FINISHER, CARPET, RH	AD43666A40AB FINISHER, CARPET, RH	$71.69	2
400	AD43666A41AB	INISHER, CARPET, LH	AD43666A41AB INISHER, CARPET, LH	$71.69	2
420	6G3368D11AA	Screw, M5 x 20 Cap Head	6G3368D11AA Screw, M5 x 20 Cap Head	$1.08	4
430	6G3368D11BA	Screw, M5 x 12 Cap Head IN STOCK	6G3368D11BA Screw, M5 x 12 Cap Head IN STOCK	$2.48	4
440	6G3379231AC	Screw, M3.5 x 38 Pozi IN STOCK	6G3379231AC Screw, M3.5 x 38 Pozi IN STOCK	$0.72	1
500	DD3313242AGW	KIT, SILL PLATES (pair)	DD3313242AGW KIT, SILL PLATES (pair)	$619.34	1
511	6G33SS106209AAPK	BOLT, M6x20, SKT HD	6G33SS106209AAPK BOLT, M6x20, SKT HD Bright. Pack of 2	-	8	Enquire
520	HD3Y132A50AA	ネームプレート、フロントシル	HD3Y132A50AA ネームプレート、フロントシル 'Zagato'	-	2	Enquire
521	HD3Y-132A50-EA	ネームプレート、フロントシル	HD3Y-132A50-EA ネームプレート、フロントシル 'Villa D'Este'	-	2	Enquire
530	703026	Screw M5x16 Hex flg hd IN STOCK	703026 Screw M5x16 Hex flg hd IN STOCK	$0.34	4
540	CD333N234AA	ブラケット、フットレスト	CD333N234AA ブラケット、フットレスト RHD	$66.86	1
550	CD33044J08AA	ENERGY ABSORBER PAD	CD33044J08AA ENERGY ABSORBER PAD RHD	$60.38	1
560	6G33-12021-BA	COVER PLATE, FOOTREST	6G33-12021-BA COVER PLATE, FOOTREST RHD, Silver	-	1	Enquire
561	6G3312021AA	COVER PLATE, FOOTREST	6G3312021AA COVER PLATE, FOOTREST RHD, Black	$141.66	1
600	HD3Y-31113-BAW	TRIM PANEL, REAR QUARTER,UPPER, LH	HD3Y-31113-BAW TRIM PANEL, REAR QUARTER,UPPER, LH	-	1	Enquire
610	HD3Y-31112-BAW	TRIM PANEL, REAR QUARTER,UPPER, RH	HD3Y-31112-BAW TRIM PANEL, REAR QUARTER,UPPER, RH	-	1	Enquire
620	703177	SCREW, M5x30, PAN HEAD TX	703177 SCREW, M5x30, PAN HEAD TX	$1.53	2
630	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	2
640	SPB10796/9	フォームストリップ	SPB10796/9 フォームストリップ	-	2	Enquire
650	CD3324859AD	BEZEL, SEATBELT, LH	CD3324859AD BEZEL, SEATBELT, LH	$29.32	1
660	CD3324858AD	BEZEL, SEATBELT, RH	CD3324858AD BEZEL, SEATBELT, RH	$29.32	1
670	HD3Y-68271-ABW	TRIM PANEL, C-PILLAR, LH	HD3Y-68271-ABW TRIM PANEL, C-PILLAR, LH	-	1	Enquire
680	HD3Y-68270-ABW	TRIM PANEL, C-PILLAR, RH	HD3Y-68270-ABW TRIM PANEL, C-PILLAR, RH	-	1	Enquire
720	HD3Y31487BAW	TRIM PANEL, BODY SIDE,MID, LH	HD3Y31487BAW TRIM PANEL, BODY SIDE,MID, LH Includes item 740/1	$1,322.49	1
730	HD3Y-31486-BAW	TRIM PANEL, BODY SIDE,MID, RH	HD3Y-31486-BAW TRIM PANEL, BODY SIDE,MID, RH Includes item 750/1	-	1	Enquire
740	9D33310B09BA	GRILLE, SPEAKER, LH	9D33310B09BA GRILLE, SPEAKER, LH Black	$751.47	1
741	9D33310B09CA	GRILLE, SPEAKER, LH	9D33310B09CA GRILLE, SPEAKER, LH Iridium	$766.97	1
750	9D33310B08BA	GRILLE, SPEAKER, RH	9D33310B08BA GRILLE, SPEAKER, RH Black	$751.47	1
751	9D33310B08CA	GRILLE, SPEAKER, RH	9D33310B08CA GRILLE, SPEAKER, RH Iridium	$766.97	1
760	CD33-312A07-BCW	TRIM PANEL, BODY SIDE,LOWER, LH	CD33-312A07-BCW TRIM PANEL, BODY SIDE,LOWER, LH	-	1	Enquire
770	CD33-312A06-BCW	TRIM PANEL, BODY SIDE,LOWER, RH	CD33-312A06-BCW TRIM PANEL, BODY SIDE,LOWER, RH	-	1	Enquire
780	HD3Y-202W12-AA	ENERGY ABSORBER PAD	HD3Y-202W12-AA ENERGY ABSORBER PAD	-	2	Enquire
800	HD3Y-46668-ACW	PACKAGE TRAY	HD3Y-46668-ACW PACKAGE TRAY	-	1	Enquire
810	703732	Screw, M5 x 20 Hex Flg	703732 Screw, M5 x 20 Hex Flg	$0.45	4
820	6G33438A26AB	LUGGAGE TIE DOWN	6G33438A26AB LUGGAGE TIE DOWN	$35.46	2
