Exterior Trim of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - エクステリアトリム

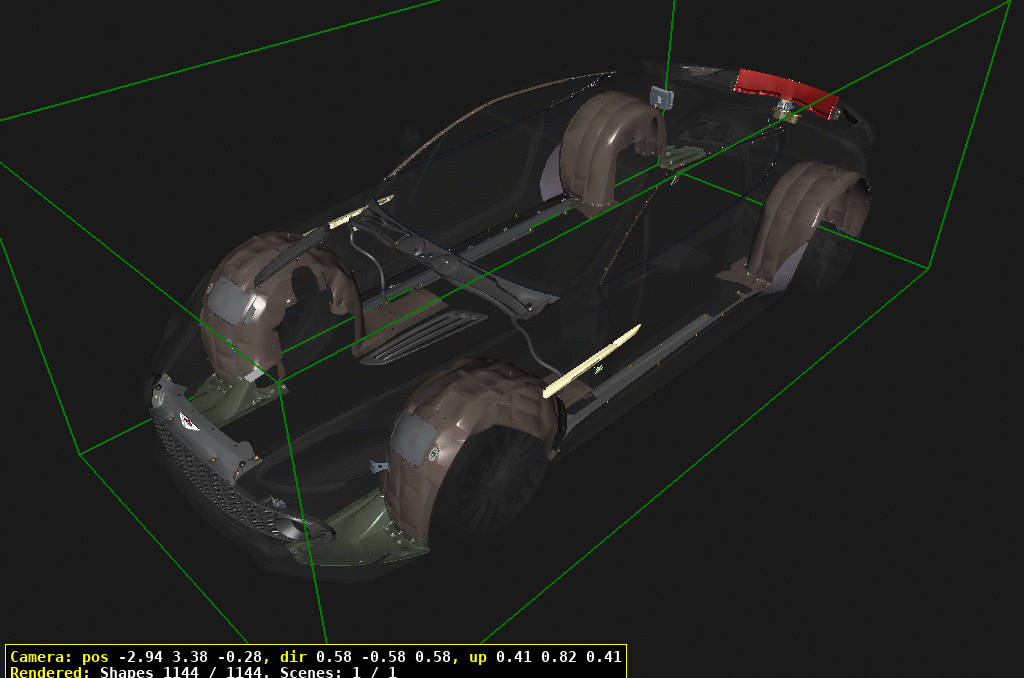

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
30	HD3Y8A100AC	ラジエターグリル	HD3Y8A100AC ラジエターグリル	$2,230.18	1
40	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 ARRIVING SOON	$12.41	2
50	703149	ねじ M6X16 六角穴付き	703149 ねじ M6X16 六角穴付き	$1.27	12
60	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.80	4
70	HD3Y17766BB	BRACKET, GRILLE, LH	HD3Y17766BB BRACKET, GRILLE, LH	$169.61	1
80	HD3Y17765BB	BRACKET, GRILLE, RH	HD3Y17765BB BRACKET, GRILLE, RH	$169.61	1
90	HD3Y-8190-AA	PANEL, RADIATOR GRILLE	HD3Y-8190-AA PANEL, RADIATOR GRILLE	-	1	Enquire
100	4G4316K808AB	Support Assembly	4G4316K808AB Support Assembly	$5.17	2
110	703143	BOLT/WASHER, M6x12.0	703143 BOLT/WASHER, M6x12.0	$1.89	6
120	XR8TF03836AA	バンパー	XR8TF03836AA バンパー	$3.12	4
130	6G33301A00AA	スペーサー	6G33301A00AA スペーサー	-	3	Enquire
200	HD3Y16C693AA	BONNET VENT, LH	HD3Y16C693AA BONNET VENT, LH Carbon	$9,779.58	1
210	HD3Y16C692AA	BONNET VENT, RH	HD3Y16C692AA BONNET VENT, RH Carbon	$9,779.58	1
220	HD3Y250B85BA	WASHER, M6, NYLON	HD3Y250B85BA WASHER, M6, NYLON	$0.50	24
230	4G4316C695ABPK	NUT, M6, DOMED NYLON,BLACK	4G4316C695ABPK NUT, M6, DOMED NYLON,BLACK Pack of 10	$26.81	12
300	HD3YC519A36AA	フィニッシャー、キャントレイル、左側	HD3YC519A36AA フィニッシャー、キャントレイル、左側 Black	$16,039.53	1
310	HD3YC519A37AA	フィニッシャー、キャントレール、右側	HD3YC519A37AA フィニッシャー、キャントレール、右側 Black	$16,039.53	1
320	AD43C519A40AA	MACHINE SCREW, M5x13, PAN	AD43C519A40AA MACHINE SCREW, M5x13, PAN	$0.78	24
330	HD3Y250B85CA	WASHER, 11.75x6.3, NYLON	HD3Y250B85CA WASHER, 11.75x6.3, NYLON Black	$1.03	24
340	6G33C699761AA	CLIP, DOOR TRIM	6G33C699761AA CLIP, DOOR TRIM	$7.01	16
350	6G3378788AC	BLIND RIVET, 3.0mm,1.5-3.5	6G3378788AC BLIND RIVET, 3.0mm,1.5-3.5	$0.18	16
360	FD33F20563BA	SEAL, DOOR WAIST, OUTER,LH	FD33F20563BA SEAL, DOOR WAIST, OUTER,LH Black	$501.45	1
361	CD33F20563AC	SEAL, DOOR WAIST, OUTER,LH	CD33F20563AC SEAL, DOOR WAIST, OUTER,LH Bright	$284.87	1
370	FD33F20562BA	SEAL, DOOR WAIST, OUTER,RH	FD33F20562BA SEAL, DOOR WAIST, OUTER,RH Black	$501.45	1
371	CD33F20562AC	SEAL, DOOR WAIST, OUTER,RLH	CD33F20562AC SEAL, DOOR WAIST, OUTER,RLH Bright	$258.82	1
380	HD3Y1228497BA	フィニッシャー、左サイド	HD3Y1228497BA フィニッシャー、左サイド Black	$3,460.69	1
381	HD3Y1228497AA	フィニッシャー、左サイド	HD3Y1228497AA フィニッシャー、左サイド Bright	$6,528.77	1
390	HD3Y1228496BA	フィニッシャー、右側	HD3Y1228496BA フィニッシャー、右側 Black	$3,460.69	1
391	HD3Y1228496AA	フィニッシャー、右側	HD3Y1228496AA フィニッシャー、右側 Bright	$6,528.77	1
400	HD3Y280B63AD	SIDE STRAKE, WING, LH	HD3Y280B63AD SIDE STRAKE, WING, LH Bronze	$4,205.85	1
401	HD3Y280B63BC	SIDE STRAKE, WING, LH	HD3Y280B63BC SIDE STRAKE, WING, LH Bright	$2,788.90	1
402	HD3Y280B63CA	SIDE STRAKE, WING, LH	HD3Y280B63CA SIDE STRAKE, WING, LH Carbon	$3,725.61	1
410	HD3Y018K29AC	サイドストレーキ、ドア、左側	HD3Y018K29AC サイドストレーキ、ドア、左側 Bronze	$2,773.00	1
411	HD3Y018K29BB	サイドストレーキ、ドア、左側	HD3Y018K29BB サイドストレーキ、ドア、左側 Bright	$2,409.98	1
412	HD3Y018K29CA	サイドストレーキ、ドア、左側	HD3Y018K29CA サイドストレーキ、ドア、左側 Carbon	$2,251.22	1
420	HD3Y280B62AD	SIDE STRAKE, WING, RH	HD3Y280B62AD SIDE STRAKE, WING, RH Bronze	$4,205.85	1
421	HD3Y280B62BC	SIDE STRAKE, WING, RH	HD3Y280B62BC SIDE STRAKE, WING, RH Bright	$2,788.90	1
422	HD3Y280B62CA	SIDE STRAKE, WING, RH	HD3Y280B62CA SIDE STRAKE, WING, RH Carbon	$3,725.61	1
430	HD3Y018K28AC	サイドストレーキ、ドア、右側	HD3Y018K28AC サイドストレーキ、ドア、右側 Bronze	$2,773.00	1
431	HD3Y018K28BB	サイドストレーキ、ドア、右側	HD3Y018K28BB サイドストレーキ、ドア、右側 Bright	$2,409.98	1
432	HD3Y018K28CA	サイドストレーキ、ドア、右側	HD3Y018K28CA サイドストレーキ、ドア、右側 Carbon	$2,251.22	1
460	6G3351756AAPK	MACHINE SCREW, M5x13, PANHD	6G3351756AAPK MACHINE SCREW, M5x13, PANHD Pack of 10	$5.72	6
470	HD3Y0937AA	RETAINER, DOOR SIDESTRAKE	HD3Y0937AA RETAINER, DOOR SIDESTRAKE	$44.32	2
480	HD3Y10609AA	敷居アップリケ、左側	HD3Y10609AA 敷居アップリケ、左側	$18,705.02	1
490	HD3Y10608AA	敷居アップリケ、右側	HD3Y10608AA 敷居アップリケ、右側	$18,705.02	1
500	HD3Y10611AA	SILL BLADE, LH	HD3Y10611AA SILL BLADE, LH Carbon	$887.04	1
510	HD3Y10610AA	SILL BLADE, RH	HD3Y10610AA SILL BLADE, RH Carbon	$887.04	1
520	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	20
530	703143	BOLT/WASHER, M6x12.0	703143 BOLT/WASHER, M6x12.0	$1.89	8
540	701553	Screw, M6 x 16 pan hd, hood release handle to bracket	701553 Screw, M6 x 16 pan hd, hood release handle to bracket	$0.30	2
550	6G430516BBA	Screw, M6	6G430516BBA Screw, M6	$5.72	14
560	701567	SCREW, M6x16, PAN	701567 SCREW, M6x16, PAN	$3.71	2
570	HD3Y13B217AA	TRIM, TAIL LAMP, LH	HD3Y13B217AA TRIM, TAIL LAMP, LH	$214.80	1
580	HD3Y13B216AA	TRIM, TAIL LAMP, RH	HD3Y13B216AA TRIM, TAIL LAMP, RH	$214.80	1
590	HD3Y10625DA	HELI TAPE, SILL, LH	HD3Y10625DA HELI TAPE, SILL, LH LH	$159.69	1
600	HD3Y10624DA	HELI TAPE, SILL, RH	HD3Y10624DA HELI TAPE, SILL, RH RH	$159.69	1
610	HD3Y280B84AA	MESH, WING, LH	HD3Y280B84AA MESH, WING, LH	$210.67	1
620	HD3Y280B83AA	MESH, WING, RH	HD3Y280B83AA MESH, WING, RH	$210.67	1
700	CD33292670AD	LEAF SCREEN ASSEMBLY	CD33292670AD LEAF SCREEN ASSEMBLY LHD	$467.97	1
701	CD33292670BD	LEAF SCREEN ASSEMBLY	CD33292670BD LEAF SCREEN ASSEMBLY RHD	$467.97	1
710	703085	Bolt, M6 x 12, VOLANTE	703085 Bolt, M6 x 12, VOLANTE	$1.44	2
740	DG43219005AA	SCREW, ST 4.2x16, PAN HD	DG43219005AA SCREW, ST 4.2x16, PAN HD	$1.52	3
750	DG433810AA	DRAIN TUBE, LEAF SCREEN,LH	DG433810AA DRAIN TUBE, LEAF SCREEN,LH	$53.93	1
760	DG433811AA	DRAIN TUBE, LEAF SCREEN,RH	DG433811AA DRAIN TUBE, LEAF SCREEN,RH	$20.38	1
800	HD3Y44226AD	AERO BLADE ASSEMBLY KIT	HD3Y44226AD AERO BLADE ASSEMBLY KIT	$9,494.69	1
810	HD3Y-442A92-AB	スポイラーブレード	HD3Y-442A92-AB スポイラーブレード	-	1	Enquire
830	702944	Nut, M6 flg	702944 Nut, M6 flg	$1.82	8
840	703278	Screw, M6 x 10	703278 Screw, M6 x 10	$0.16	2
850	HD3Y404C98AA	ECU, SPOILER	HD3Y404C98AA ECU, SPOILER	$8,968.28	1
860	HD3Y121205AB	BRACKET, SPOILER ECU	HD3Y121205AB BRACKET, SPOILER ECU	$123.98	1
870	703168	NUT, M6, HEX	703168 NUT, M6, HEX	-	4	Enquire
880	703172PK	Screw M8 x 25 Pan Head	703172PK Screw M8 x 25 Pan Head Pack of 10	$7.11	3
900	HD3Y407A74BA	BADGE , AM WINGS	HD3Y407A74BA BADGE , AM WINGS White/Red	$495.59	1
910	HD3Y-974663-BA	PLAQUE, FINAL INSPECTION	HD3Y-974663-BA PLAQUE, FINAL INSPECTION	-	1	Enquire
911	HD3Y-974663-AB	PLAQUE, FINAL INSPECTION	HD3Y-974663-AB PLAQUE, FINAL INSPECTION 'Vila D'Este'	-	1	Enquire
920	HD3Y43549AA	BADGE, 'Z'	HD3Y43549AA BADGE, 'Z'	$271.91	2
930	4G43103021AB	FIXER, PUSH-ON	4G43103021AB FIXER, PUSH-ON	$1.85	4
940	CY83407A74BA	BADGE , AM WINGS	CY83407A74BA BADGE , AM WINGS White/Red	$495.59	1
1000	HD3Y166563AB	WHEELARCH LINER, LH	HD3Y166563AB WHEELARCH LINER, LH	$1,687.45	1
1010	HD3Y166562AA	WHEELARCH LINER, RH	HD3Y166562AA WHEELARCH LINER, RH	$2,069.79	1
1020	8D33166573AA	Bracket, Front Wheelarch Liner	8D33166573AA Bracket, Front Wheelarch Liner	$40.67	1
1030	8D33166572AA	Bracket, Front Wheelarch Liner	8D33166572AA Bracket, Front Wheelarch Liner	$44.75	1
1040	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	21
1050	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 ARRIVING SOON	$12.41	16
1100	HD3Y54279D23AB	WHEELARCH LINER, REAR, LH	HD3Y54279D23AB WHEELARCH LINER, REAR, LH	$1,040.24	1
1110	HD3Y54279D22AB	WHEELARCH LINER, REAR, RH	HD3Y54279D22AB WHEELARCH LINER, REAR, RH	$1,040.24	1
1120	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	21
1130	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 ARRIVING SOON	$12.41	6
