Centre Console of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

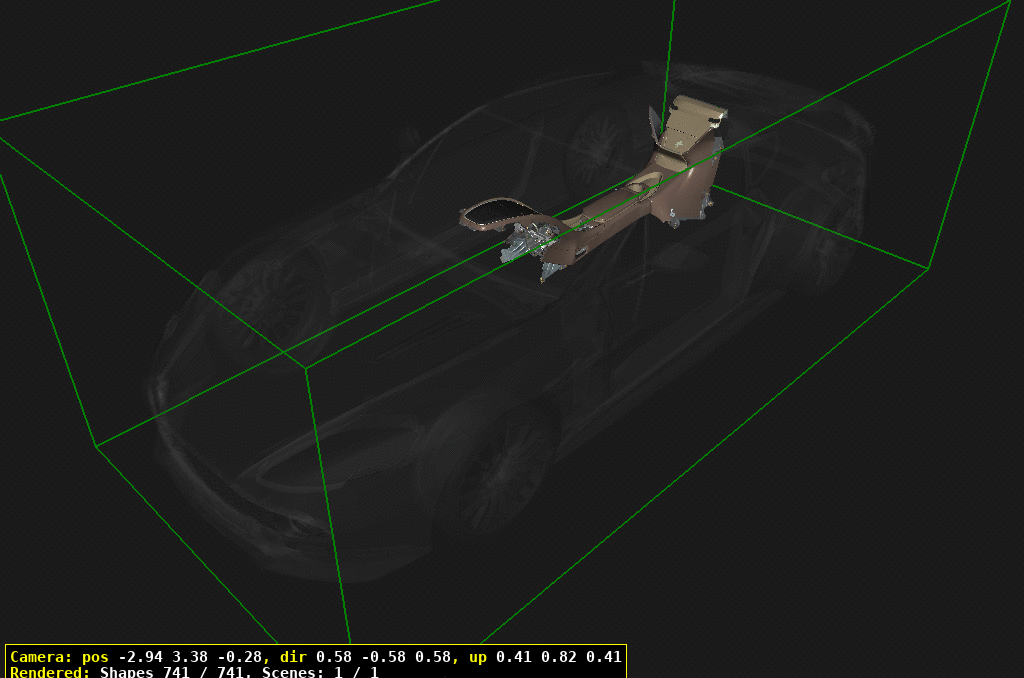

Aston Martin GT VANQUISH ZAGATO (2016-2019) - センター・コンソール

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	8	Enquire
30	705464	Screw, M4 x 9.5 IN STOCK	705464 Screw, M4 x 9.5 IN STOCK	$0.18	2
40	701573	Screw and Washer assy, M4x16 Pan hd	701573 Screw and Washer assy, M4x16 Pan hd	$0.41	4
50	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	2
60	DD3355210AHW	PANEL ASSEMBLY, CENTRESTACK	DD3355210AHW PANEL ASSEMBLY, CENTRESTACK	-	1	Enquire
70	DD3304568AC	BRACKET, IP to CENTRECONSOLE, RH	DD3304568AC BRACKET, IP to CENTRECONSOLE, RH	$98.89	1
80	DD3304567AC	BRACKET, IP to CENTRECONSOLE, LH	DD3304567AC BRACKET, IP to CENTRECONSOLE, LH	$98.89	1
90	701171	SCREW, M4x16	701171 SCREW, M4x16	$0.14	4
100	707141	SCREW, M5x20, PAN HD	707141 SCREW, M5x20, PAN HD	$0.72	4
110	DD3304559DA	BRACKET, SUPPORT, LH	DD3304559DA BRACKET, SUPPORT, LH	$15.34	1
120	DD3304559CA	BRACKET, SUPPORT, RH	DD3304559CA BRACKET, SUPPORT, RH	$15.34	1
130	703177	SCREW, M5x30, PAN HEAD TX	703177 SCREW, M5x30, PAN HEAD TX	$1.53	2
140	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.98	2
150	CD3314853AE	FINISHER, CENTRE STACKVENEER	CD3314853AE FINISHER, CENTRE STACKVENEER Black	$913.18	1
151	CD3314853CD	FINISHER, CENTRE STACKVENEER	CD3314853CD FINISHER, CENTRE STACKVENEER Iridium	$1,370.67	1
160	703746	SCREW, M6x16, PAN FLGHEAD TORX, BLACK	703746 SCREW, M6x16, PAN FLGHEAD TORX, BLACK	$0.50	2
170	702520PK	CLIP, 8.5x16x1.7, TRIMPUSH-IN IN STOCK	702520PK CLIP, 8.5x16x1.7, TRIMPUSH-IN Pack of 20 IN STOCK	$22.71	6
180	707137	SCREW, M4x12, PAN HD FLG	707137 SCREW, M4x12, PAN HD FLG	$0.72	2
190	DD338C813AA	BUMP STOP, RUBBER	DD338C813AA BUMP STOP, RUBBER	$20.59	2
200	DD3388420AA	CATCH, STRIKER	DD3388420AA CATCH, STRIKER	$1.40	2
210	DD33MRC1980AA	WASHER, 4.3x8.0x0.5,NYLON	DD33MRC1980AA WASHER, 4.3x8.0x0.5,NYLON	$0.38	4
220	702959	SCREW, M4x12, PAN HD TORX IN STOCK	702959 SCREW, M4x12, PAN HD TORX IN STOCK	$1.38	6
230	703178	Screw M4 x 8 Pan Head Torx	703178 Screw M4 x 8 Pan Head Torx	$0.38	12
240	DD330863AA	SCREW, M4X12, PATCH LOCK	DD330863AA SCREW, M4X12, PATCH LOCK	$0.54	14
250	DD3311A090AB	圧縮スプリング	DD3311A090AB 圧縮スプリング	$0.83	18
260	DD330816AA	SCREW, M4X20, PATCH LOCK	DD330816AA SCREW, M4X20, PATCH LOCK	$1.31	2
270	DD330838AA	SCREW, M4x16, PATCH LOCKW	DD330838AA SCREW, M4x16, PATCH LOCKW	$0.81	2
280	HD3Y-19F648-AAW	BEZEL, AIR REGISTER	HD3Y-19F648-AAW BEZEL, AIR REGISTER Zagato Bronze	-	1	Enquire
281	CD3319F648AE	BEZEL, AIR REGISTER	CD3319F648AE BEZEL, AIR REGISTER Pearl Gloss	$450.07	1
282	CD3319F648BD	BEZEL, AIR REGISTER	CD3319F648BD BEZEL, AIR REGISTER Shadow Bronze	$465.89	1
290	CD33C046A26AA	GRILLE, SPEAKER	CD33C046A26AA GRILLE, SPEAKER Black	$580.56	1
300	DD3314A462AB	SWITCH CARRIER	DD3314A462AB SWITCH CARRIER	$12.56	1
320	CD33046B31AB	AIR REGISTER, LH	CD33046B31AB AIR REGISTER, LH	$111.07	1
330	CD33046B30AB	AIR REGISTER , RH	CD33046B30AB AIR REGISTER , RH	$79.81	1
340	HD3Y045J10AA	VENEER ASSEMBLY, with SATNAV	HD3Y045J10AA VENEER ASSEMBLY, with SATNAV Graduated Bronze	$9,223.91	1
341	CD33045J10FC	VENEER ASSEMBLY, with SATNAV	CD33045J10FC VENEER ASSEMBLY, with SATNAV Carbon Fibre Fishbone	$5,825.02	1
350	DD33-67247-BA	ギャップハイダー	DD33-67247-BA ギャップハイダー	-	1	Enquire
360	4G4318D404CA	SEAL, AIR DUCT	4G4318D404CA SEAL, AIR DUCT	$2.53	2
400	CD33F04704AB	MAT, STOWAGE, FRONT	CD33F04704AB MAT, STOWAGE, FRONT	$170.44	1
410	CD33045K07ADW	アームレストアセンブリ	CD33045K07ADW アームレストアセンブリ RoW	$1,356.92	1
411	DD33-045K07-BBW	アームレストアセンブリ	DD33-045K07-BBW アームレストアセンブリ Federal	-	1	Enquire
430	DD33519F22AB	MAIN CARRIER MOULDING	DD33519F22AB MAIN CARRIER MOULDING	-	1	Enquire
440	707137	SCREW, M4x12, PAN HD FLG	707137 SCREW, M4x12, PAN HD FLG	$0.72	2
450	702847	ねじ M6X20 六角 FLG HD IN STOCK	702847 ねじ M6X20 六角 FLG HD IN STOCK	$2.51	5
460	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type IN STOCK	$2.17	2
470	705464	Screw, M4 x 9.5 IN STOCK	705464 Screw, M4 x 9.5 IN STOCK	$0.18	2
480	701445	SCREW, 4x8, PAN HD	701445 SCREW, 4x8, PAN HD	$0.25	4
490	703143	BOLT/WASHER, M6x12.0	703143 BOLT/WASHER, M6x12.0	$1.90	4
500	702289	SCREW, M4x16, THREAD FORM IN STOCK	702289 SCREW, M4x16, THREAD FORM IN STOCK	$0.68	2
510	W714509S442	SCREW, M4x1.46x30, FIXING	W714509S442 SCREW, M4x1.46x30, FIXING	-	2	Enquire
520	DD33487013AA	FINISHER, STOWAGE COVER	DD33487013AA FINISHER, STOWAGE COVER	-	2	Enquire
530	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic	$0.79	2
540	DD33045H74ABW	STOWAGE ASSEMBLY, REAR	DD33045H74ABW STOWAGE ASSEMBLY, REAR RoW	$608.51	1
541	DD33045H74BAW	STOWAGE ASSEMBLY, REAR	DD33045H74BAW STOWAGE ASSEMBLY, REAR Federal	-	1	Enquire
550	DD33044H60AEW	REAR STOWAGE TRAYASSEMBLY	DD33044H60AEW REAR STOWAGE TRAYASSEMBLY	$773.40	1
560	DD33044G38ABW	カップホルダーアッセンブリー	DD33044G38ABW カップホルダーアッセンブリー Satin Chrome	$1,242.71	1
561	DD33044G38BBW	カップホルダーアッセンブリー	DD33044G38BBW カップホルダーアッセンブリー Shadow Bronze	$1,641.90	1
570	CD33045M19AB	LID LINER MOULDINGASSEMBLY	CD33045M19AB LID LINER MOULDINGASSEMBLY Row	$51.79	1
571	DD33045M19BA	LID LINER MOULDINGASSEMBLY	DD33045M19BA LID LINER MOULDINGASSEMBLY Federal	-	1	Enquire
580	703725	SCREW, M4x10, FLAT CSK	703725 SCREW, M4x10, FLAT CSK	$1.51	4
595	CD33045K07AP1A01	バンプストップ	CD33045K07AP1A01 バンプストップ	$1.85	2
600	DD332943751AB	BRACKET, CARPET SUPPORT,LH	DD332943751AB BRACKET, CARPET SUPPORT,LH	$144.81	1
610	DD332943752AB	BRACKET, CARPET SUPPORT,RH	DD332943752AB BRACKET, CARPET SUPPORT,RH	$144.81	1
620	CD33-045M880-AC	マット、アームレスト収納	CD33-045M880-AC マット、アームレスト収納	-	1	Enquire
630	CD3367846ACW	OUTER PANEL ASSEMBLY,REAR CUP HOLDER	CD3367846ACW OUTER PANEL ASSEMBLY,REAR CUP HOLDER Includes items 640-670	$405.57	1
640	DD3329765AAW	MAT, REAR CUPHOLDER	DD3329765AAW MAT, REAR CUPHOLDER	$321.99	1
650	DD33046B95ABW	CUPHOLDER, REAR	DD33046B95ABW CUPHOLDER, REAR	-	1	Enquire
660	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	2
670	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX	$0.25	1
680	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	4	Enquire
690	707262	Nut and Washer M5	707262 Nut and Washer M5	$13.42	4
700	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg IN STOCK	$1.83	4
710	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	4
720	701559	SCREW, M4, S/TAP	701559 SCREW, M4, S/TAP	$0.14	4
730	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head	$0.68	2
740	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	8
750	HD33045R19AAW	CONSOLE TRIM, FRONT LOWER	HD33045R19AAW CONSOLE TRIM, FRONT LOWER	$1,014.41	1
760	CD3367446ABW	PANEL ASSEMBLY, LOWER, LH	CD3367446ABW PANEL ASSEMBLY, LOWER, LH	$1,595.23	1
770	CD3367445ABW	PANEL ASSEMBLY, LOWER, RH	CD3367445ABW PANEL ASSEMBLY, LOWER, RH	$1,595.23	1
780	DD33281B05ABW	PANEL ASSEMBLY, STOWAGEBRACE, LH	DD33281B05ABW PANEL ASSEMBLY, STOWAGEBRACE, LH	$517.06	1
790	DD33281B04ABW	PANEL ASSEMBLY, STOWAGEBRACE, RH	DD33281B04ABW PANEL ASSEMBLY, STOWAGEBRACE, RH	$517.06	1
800	DD3311648ACW	MAT ASSEMBLY, FRONTSTOWAGE	DD3311648ACW MAT ASSEMBLY, FRONTSTOWAGE	$503.80	1
810	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE	$0.13	4
820	DD33244487AA	ロックウォッシャー	DD33244487AA ロックウォッシャー Federal	-	1	Enquire
830	DD33044M10AA	LATCH, CONSOLE ARMREST	DD33044M10AA LATCH, CONSOLE ARMREST Federal	-	1	Enquire
840	704779	SCREW, M4x12, FLAT SKTCSK	704779 SCREW, M4x12, FLAT SKTCSK Federal	$0.29	1
900	CD33045C63ABW	TRIMMED PANEL, LH	CD33045C63ABW TRIMMED PANEL, LH	$1,327.32	1
910	CD33045C62ABW	TRIMMED PANEL, RH	CD33045C62ABW TRIMMED PANEL, RH	$1,327.32	1
920	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	2
930	7G43C2437AAW	Tape, Anti squeak	7G43C2437AAW Tape, Anti squeak	$145.29	A/R
940	CD33045E23ACW	PANEL ASSEMBLY, CENTREFINISHER, REAR	CD33045E23ACW PANEL ASSEMBLY, CENTREFINISHER, REAR	$1,791.85	1
950	701573	Screw and Washer assy, M4x16 Pan hd	701573 Screw and Washer assy, M4x16 Pan hd	$0.41	2
960	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type IN STOCK	$2.17	4
970	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	4
990	702839PK	Screw and Washer M6x20 Hex IN STOCK	702839PK Screw and Washer M6x20 Hex Pack of 10 IN STOCK	$6.86	2
1000	703026	Screw M5x16 Hex flg hd IN STOCK	703026 Screw M5x16 Hex flg hd IN STOCK	$0.34	3
1100	ED33L045C62AAW	TRIMMED PANEL, RH	ED33L045C62AAW TRIMMED PANEL, RH	-	1	Enquire
1110	ED33L045C63AAW	TRIMMED PANEL, LH	ED33L045C63AAW TRIMMED PANEL, LH	-	1	Enquire
1140	AD33-L047A44-ACW	パネルASSY、上部、リアコンソールVOL	AD33-L047A44-ACW パネルASSY、上部、リアコンソールVOL	-	1	Enquire
1150	ED33045E24ACW	PANEL ASSEMBLY, CONSOLEFINISHER	ED33045E24ACW PANEL ASSEMBLY, CONSOLEFINISHER	$1,186.68	1
1160	701432	Pin, 5.7 x 15.7 push in nylon IN STOCK	701432 Pin, 5.7 x 15.7 push in nylon IN STOCK	$0.68	2
1170	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type IN STOCK	$2.17	6
1180	701441PK	SCREW, M4.2x13, FLG,BLACK	701441PK SCREW, M4.2x13, FLG,BLACK Pack of 10	$2.86	4
1200	JD3ML045C63AAW	TRIMMED PANEL, LH	JD3ML045C63AAW TRIMMED PANEL, LH	$1,191.71	1
1210	JD3ML045C62AAW	TRIMMED PANEL, RH	JD3ML045C62AAW TRIMMED PANEL, RH	$1,191.71	1
1220	JD3M-045E24-AA	PANEL ASSEMBLY, CONSOLEFINISHER	JD3M-045E24-AA PANEL ASSEMBLY, CONSOLEFINISHER	-	1	Enquire
1230	702587	TRIM CLIP, 8.0mm x 1.5	702587 TRIM CLIP, 8.0mm x 1.5	$1.31	8
1240	702839PK	Screw and Washer M6x20 Hex IN STOCK	702839PK Screw and Washer M6x20 Hex Pack of 10 IN STOCK	$6.86	6
1300	KD3M-045A12-ABW	パネルASSY、コンソール	KD3M-045A12-ABW パネルASSY、コンソール Carbon	-	1	Enquire
1301	KD3M-045A12-BAW	パネルASSY、コンソール	KD3M-045A12-BAW パネルASSY、コンソール Bronze	-	1	Enquire
1310	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type IN STOCK	$2.17	4
1320	702839PK	Screw and Washer M6x20 Hex IN STOCK	702839PK Screw and Washer M6x20 Hex Pack of 10 IN STOCK	$6.86	6
1330	4G43105104AA	Screw, M4x8 Cap Hd, Blk	4G43105104AA Screw, M4x8 Cap Hd, Blk	$0.23	2
1340	8D33313A75AB	BRACKET, LH	8D33313A75AB BRACKET, LH	$17.26	1
1350	8D33313A74AB	BRACKET, RH	8D33313A74AB BRACKET, RH	$17.26	1
1360	704580	SCREW, M6x30x1, FL CSK	704580 SCREW, M6x30x1, FL CSK	$1.01	4
