Handles and Lock Mechanisms of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Handles and Lock Mechanisms

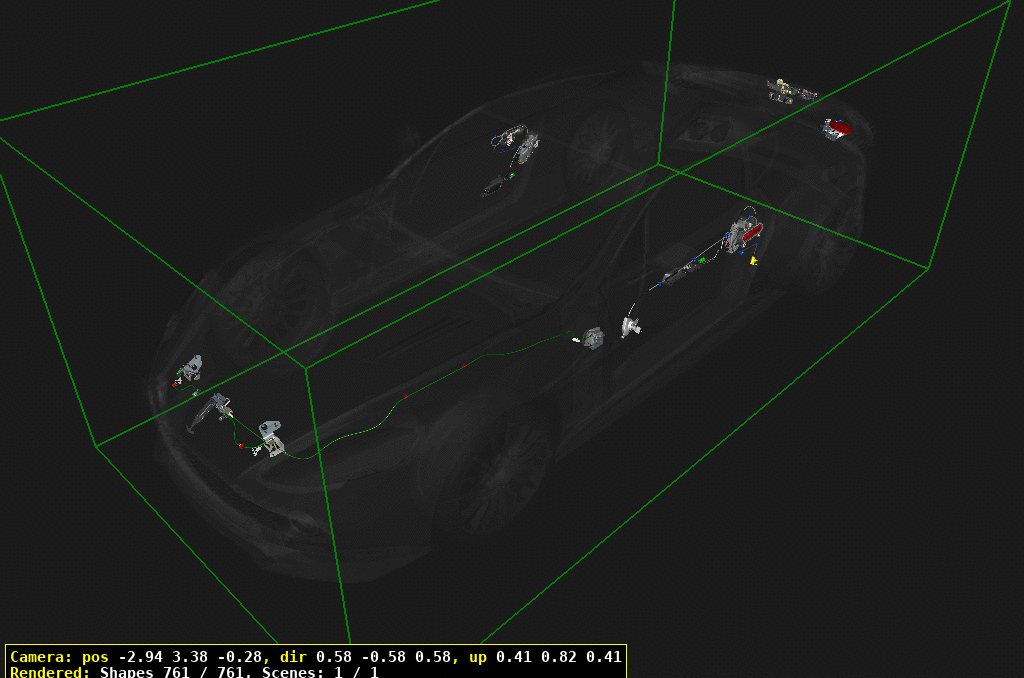

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	CD3316K662AB	CABLE ABUTMENT, SECONDARYRELEASE	CD3316K662AB CABLE ABUTMENT, SECONDARYRELEASE	$8.66	2
30	DD4316B768AD	LATCH, SECONDARY, LH IN STOCK	DD4316B768AD LATCH, SECONDARY, LH IN STOCK	$130.04	1
40	4G436510059PK	Firtree clip, pad wear lead attch IN STOCK	4G436510059PK Firtree clip, pad wear lead attch Pack of 100 IN STOCK	$74.51	2
50	703143	BOLT/WASHER, M6x12.0	703143 BOLT/WASHER, M6x12.0	$1.90	2
60	9G436411062	HANDLE, BONNET RELEASE	9G436411062 HANDLE, BONNET RELEASE	$189.27	1
70	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	1
80	DD4316B769AD	LATCH, SECONDARY, RH IN STOCK	DD4316B769AD LATCH, SECONDARY, RH IN STOCK	$130.04	1
90	DD43915A01AA	LABEL, BONNET LATCHWARNING	DD43915A01AA LABEL, BONNET LATCHWARNING	$36.77	2
100	CD3316C730AA	BRACKET, BONNET RELEASEHANDLE	CD3316C730AA BRACKET, BONNET RELEASEHANDLE	$25.40	1
110	DD4316A945AA	STRIKER BAR, SECONDARYLATCH, RH IN STOCK	DD4316A945AA STRIKER BAR, SECONDARYLATCH, RH IN STOCK	$157.78	1
120	DD4316A944AA	STRIKER BAR, SECONDARYLATCH, LH	DD4316A944AA STRIKER BAR, SECONDARYLATCH, LH	$143.33	1
130	DD43405C45AD	CABLE RELEASE, SECONDARY IN STOCK	DD43405C45AD CABLE RELEASE, SECONDARY IN STOCK	$96.90	1
140	HD3Y-5284-AA	RELEASE LEVER, SECONDARY	HD3Y-5284-AA RELEASE LEVER, SECONDARY	-	1	Enquire
150	4G436410063	ラッチASSY、フード	4G436410063 ラッチASSY、フード	$35.87	1
160	AD4316C656AC	RELEASE CABLE ASSEMBLY IN STOCK	AD4316C656AC RELEASE CABLE ASSEMBLY IN STOCK	$69.50	1
170	704443	Clip Plastic IN STOCK	704443 Clip Plastic IN STOCK	$1.49	2
180	705464	Screw, M4 x 9.5 IN STOCK	705464 Screw, M4 x 9.5 IN STOCK	$0.18	2
190	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type IN STOCK	$2.17	2
200	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	$12.50	2
220	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	10
300	CD33F218A01AA	CABLE, INTERIOR HANDLERELEASE	CD33F218A01AA CABLE, INTERIOR HANDLERELEASE	$65.14	2
310	CD3322615AG	HANDLE MECHANISM, LH	CD3322615AG HANDLE MECHANISM, LH	$1,322.07	1
320	CD3322614AE	HANDLE MECHANISM, RH	CD3322614AE HANDLE MECHANISM, RH	-	1	Enquire
330	AD433710064	マイクロスイッチ	AD433710064 マイクロスイッチ	$206.42	2
350	CD33F22050AB	DOOR LOCK CYLINDERASSEMBLY	CD33F22050AB DOOR LOCK CYLINDERASSEMBLY	$364.13	1
360	8D33654024AAN	KEY ASSEMBLY, to number	8D33654024AAN KEY ASSEMBLY, to number	$260.93	1
370	704443	Clip Plastic IN STOCK	704443 Clip Plastic IN STOCK	$1.49	3
380	4G43-22404-AG	Handle Blade Assembly	4G43-22404-AG Handle Blade Assembly	-	2	Enquire
381	CD3322405AC	HANDLE ASSEMBLY, LH	CD3322405AC HANDLE ASSEMBLY, LH Carbon	$1,976.95	1
382	CD3322404AC	HANDLE ASSEMBLY, RH	CD3322404AC HANDLE ASSEMBLY, RH Carbon	$1,976.95	1
400	CD33221A00AA	CABLE ASSEMBLY, FRONTDOOR	CD33221A00AA CABLE ASSEMBLY, FRONTDOOR	$65.14	2
410	CD33226A28AB	HANDLE MECHANISM,EXTERIOR	CD33226A28AB HANDLE MECHANISM,EXTERIOR	$228.52	2
420	ED3321813AB	LATCH ASSEMBLY, LH IN STOCK	ED3321813AB LATCH ASSEMBLY, LH IN STOCK	$401.82	1
430	ED3321814AB	LATCH ASSEMBLY, RH	ED3321814AB LATCH ASSEMBLY, RH	$365.08	1
440	3790075	CABLE TIE, 290mm x 3.5mm IN STOCK	3790075 CABLE TIE, 290mm x 3.5mm IN STOCK	$0.18	1
450	4G43224A72AH	レンズ IN STOCK	4G43224A72AH レンズ IN STOCK	$4.67	2
460	4G43224A68AA	PIN, HANDLE PIVOT IN STOCK	4G43224A68AA PIN, HANDLE PIVOT IN STOCK	$5.95	2
470	703612	Nut and Washer, M6 Hex IN STOCK	703612 Nut and Washer, M6 Hex IN STOCK	$0.83	6
480	GG43AA0231AA	SCREW, M8x34, FLAT CSKTORX	GG43AA0231AA SCREW, M8x34, FLAT CSKTORX	$6.43	4
500	703073	SCREW, M6x16, CSK, BLACK	703073 SCREW, M6x16, CSK, BLACK	$0.16	2
510	701158	SCREW, M6x10, BUTTON HD,TORX, BLACK	701158 SCREW, M6x10, BUTTON HD,TORX, BLACK	$1.31	4
520	703128	LOCKWASHER, M6, SINGLECOIL IN STOCK	703128 LOCKWASHER, M6, SINGLECOIL IN STOCK	$0.23	2
530	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.98	4
540	703746	SCREW, M6x16, PAN FLGHEAD TORX, BLACK	703746 SCREW, M6x16, PAN FLGHEAD TORX, BLACK	$0.50	6
550	707147	NUT, M5, HEX FLG	707147 NUT, M5, HEX FLG	$0.45	2
560	ED43226A28AA	BUMPSTOP, TWIN	ED43226A28AA BUMPSTOP, TWIN	$4.33	2
600	6G436710237	Handle, Emergency	6G436710237 Handle, Emergency	$17.55	1
610	DD4314B529AD	パワーラッチ	DD4314B529AD パワーラッチ	$231.56	1
620	6G436710235	ストライカー	6G436710235 ストライカー	$48.29	1
630	DD43F442A66AA	LATCH, DECKLID	DD43F442A66AA LATCH, DECKLID Includes item 640	$312.05	1
640	6G436710236	ベゼル、ラッチ	6G436710236 ベゼル、ラッチ	$21.29	1
650	HD3Y3896BA	BRACKET, POWER LATCH	HD3Y3896BA BRACKET, POWER LATCH	$130.11	1
670	703746	SCREW, M6x16, PAN FLGHEAD TORX, BLACK	703746 SCREW, M6x16, PAN FLGHEAD TORX, BLACK	$0.50	4
680	701556PK	SCREW, M5x16, PAN HD IN STOCK	701556PK SCREW, M5x16, PAN HD Pack of 10 IN STOCK	$4.42	3
690	702517	BOLT, M8x14, PC T1 PIL 10	702517 BOLT, M8x14, PC T1 PIL 10	$0.70	3
700	704442	BOLT, M8x25.5, PN TITESPL8	704442 BOLT, M8x25.5, PN TITESPL8	$3.61	2
710	HD3Y-5435-AA	SPACER, 10mm	HD3Y-5435-AA SPACER, 10mm	-	2	Enquire
730	HD3Y3896AA	ブラケット、アクチュエータ	HD3Y3896AA ブラケット、アクチュエータ	$232.72	1
800	HD3Y-378504-AA	GROMMET, 25-5-2	HD3Y-378504-AA GROMMET, 25-5-2	-	1	Enquire
810	6G3328614AB	SEAL, FUEL FILLER CABLE IN STOCK	6G3328614AB SEAL, FUEL FILLER CABLE IN STOCK	$3.97	1
820	6G33F9C070AA	Latch assy, actuator, glovebox IN STOCK	6G33F9C070AA Latch assy, actuator, glovebox IN STOCK	$148.49	1
840	HD3Y405B46AA	ブラケット、アクチュエータ	HD3Y405B46AA ブラケット、アクチュエータ	$155.03	1
850	6G3340180BA	CABLE, FILLER FLAPRELEASE IN STOCK	6G3340180BA CABLE, FILLER FLAPRELEASE IN STOCK	$51.95	1
860	CD33C405B96BD	HINGE ASSEMBLY, FUELFILLER FLAP	CD33C405B96BD HINGE ASSEMBLY, FUELFILLER FLAP	$377.66	1
870	HD3Y-C405A02-AA	PANEL, FUEL FILLER FLAP	HD3Y-C405A02-AA PANEL, FUEL FILLER FLAP	-	1	Enquire
880	703149	ねじ M6X16 六角穴付き IN STOCK	703149 ねじ M6X16 六角穴付き IN STOCK	$1.28	2
890	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
900	4G4372027AA	BUMPSTOP, FUEL FILLER	4G4372027AA BUMPSTOP, FUEL FILLER	$4.62	1
