Interior Trim - Lower of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Interior Trim - Lower

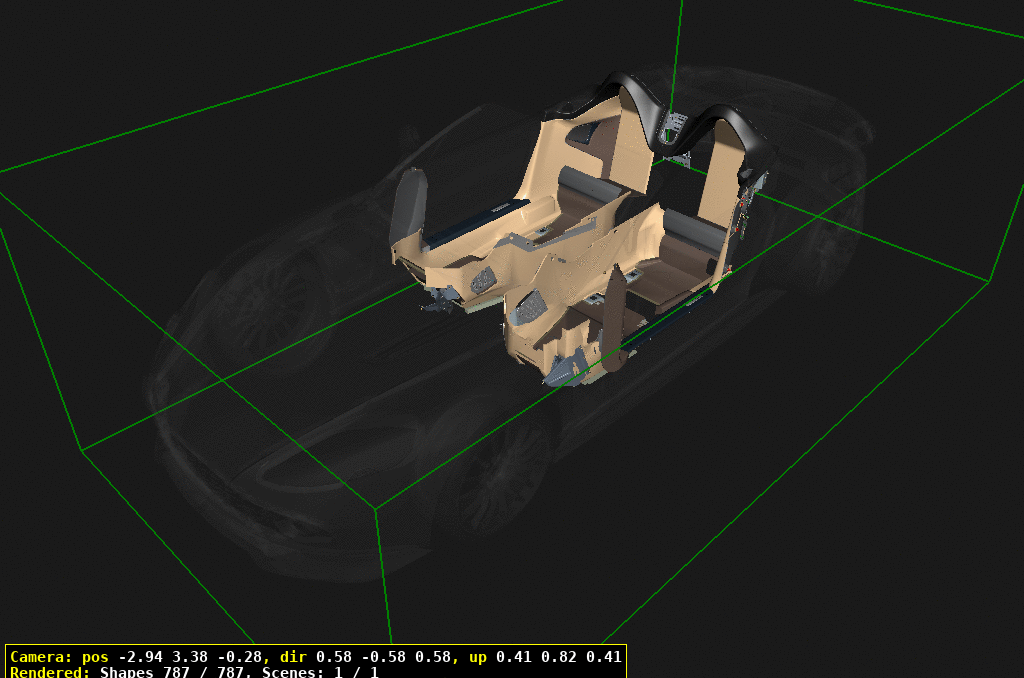

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	ED3302349ADW	TRIM ASSEMBLY, A-PILLAR,LH	ED3302349ADW TRIM ASSEMBLY, A-PILLAR,LH	$903.80	1
30	ED3302348ADW	RIM ASSEMBLY, A-PILLAR,RH	ED3302348ADW RIM ASSEMBLY, A-PILLAR,RH	$937.37	1
40	701157PK	Screw, 4.2 x 13	701157PK Screw, 4.2 x 13 Pack of 10	$3.05	2
50	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20	$10.70	2
60	6G33100N00AA	ADHESIVE TAPE, DOUBLESIDED	6G33100N00AA ADHESIVE TAPE, DOUBLESIDED	$15.17	A/R
70	FD33100A90AA	SUPPORT PANEL, REARFLOOR, RH	FD33100A90AA SUPPORT PANEL, REARFLOOR, RH	$90.18	1
80	4G43M4D4515AA	フォームストリップ	4G43M4D4515AA フォームストリップ	$0.84	1
90	703747	SCREW/WASHER, M6x25x1.0	703747 SCREW/WASHER, M6x25x1.0	$1.52	2
100	DD3319L525AA	スカッフプレート、アクセル	DD3319L525AA スカッフプレート、アクセル LHD only	$44.02	1
110	FD33100A91AA	SUPPORT PANEL, REARFLOOR, LH	FD33100A91AA SUPPORT PANEL, REARFLOOR, LH	$90.18	1
120	CD338310016	KIT, FLOOR CARPETS	CD338310016 KIT, FLOOR CARPETS LHD Heavyweight	$3,561.78	1
121	CD338310017	KIT, FLOOR CARPETS	CD338310017 KIT, FLOOR CARPETS LHD Lightweight	$3,561.78	1
122	CD338310014	KIT, FLOOR CARPETS	CD338310014 KIT, FLOOR CARPETS RHD Heavyweight	$2,196.61	1
123	CD338310015	KIT, FLOOR CARPETS	CD338310015 KIT, FLOOR CARPETS RHD Lightweight	$3,166.07	1
130	CD33044J09AA	ENERGY ABSORBER PAD	CD33044J09AA ENERGY ABSORBER PAD LHD	$59.92	1
140	9G4312020BA	Pad assy, foot rest	9G4312020BA Pad assy, foot rest LHD Silver Pedals	$371.30	1
141	CD3312020CA	COVER PLATE, FOOTREST	CD3312020CA COVER PLATE, FOOTREST LHD Black Pedals	$129.49	1
150	CD333N328BB	BRACKET, DRIVERS FOOTREST	CD333N328BB BRACKET, DRIVERS FOOTREST LHD	$106.87	1
160	DD33130B53BB	SUPPORT, CARPET, LH	DD33130B53BB SUPPORT, CARPET, LH LHD	$86.27	1
161	DD33130B53AB	SUPPORT, CARPET, LH	DD33130B53AB SUPPORT, CARPET, LH RHD	$97.10	1
170	DD33130B52BB	SUPPORT, CARPET, RH	DD33130B52BB SUPPORT, CARPET, RH LHD	$86.27	1
171	DD33130B52AB	SUPPORT, CARPET, RH	DD33130B52AB SUPPORT, CARPET, RH RHD	$97.10	1
180	DD33311A76AA	GRILLE, SPEAKER, RH	DD33311A76AA GRILLE, SPEAKER, RH Black	$776.84	1
181	DD33311A76BA	GRILLE, SPEAKER, RH	DD33311A76BA GRILLE, SPEAKER, RH Iridium	$744.48	1
210	CD3310K973AEW	HEELBOARD ASSEMBLY	CD3310K973AEW HEELBOARD ASSEMBLY	$353.80	1
220	DD33311A77AA	GRILLE, SPEAKER, LH	DD33311A77AA GRILLE, SPEAKER, LH Black	$776.84	1
221	DD33311A77BA	GRILLE, SPEAKER, LH	DD33311A77BA GRILLE, SPEAKER, LH Iridium	$744.48	1
240	703168	NUT, M6, HEX	703168 NUT, M6, HEX	-	1	Enquire
270	DD33-13003-AA	INSERT, CARPET, FRONTFLOOR	DD33-13003-AA INSERT, CARPET, FRONTFLOOR	-	2	Enquire
280	FD33281B11ABW	KIT, CARPET ASSEMBLY	FD33281B11ABW KIT, CARPET ASSEMBLY LHD	$2,352.45	1
281	FD33281B10ABW	KIT, CARPET ASSEMBLY	FD33281B10ABW KIT, CARPET ASSEMBLY RHD	$2,352.45	1
290	4G43831237ABW	Handbrake Gaiter Assembly, LHD	4G43831237ABW Handbrake Gaiter Assembly, LHD LHD	$776.91	1
291	4G43831236ABW	GAITER ASSEMBLY,HANDBRAKE	4G43831236ABW GAITER ASSEMBLY,HANDBRAKE RHD	$772.74	1
300	GD33201A49AA	SHIELD, SPEAKERPROTECTION, LH	GD33201A49AA SHIELD, SPEAKERPROTECTION, LH	$30.01	1
310	703026	Screw M5x16 Hex flg hd	703026 Screw M5x16 Hex flg hd	$0.34	3
330	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON	$10.70	2
340	697564	Push-on Fix	697564 Push-on Fix	$0.11	3
350	706711	SCREW, M5x16, CSK 6 LOB,BLACK	706711 SCREW, M5x16, CSK 6 LOB,BLACK	-	4	Enquire
360	DD33-37041-AA	CAP, 4.8x12.7	DD33-37041-AA CAP, 4.8x12.7	-	2	Enquire
370	DD33130B14AB	SUPPORT BRACKET, CARPET	DD33130B14AB SUPPORT BRACKET, CARPET	$7.58	2
380	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON	$10.70	2
390	AD43666A40AB	FINISHER, CARPET, RH	AD43666A40AB FINISHER, CARPET, RH	$71.16	2
400	AD43666A41AB	INISHER, CARPET, LH	AD43666A41AB INISHER, CARPET, LH	$71.16	2
420	6G3368D11AA	Screw, M5 x 20 Cap Head	6G3368D11AA Screw, M5 x 20 Cap Head	$1.07	4
430	6G3368D11BA	Screw, M5 x 12 Cap Head	6G3368D11BA Screw, M5 x 12 Cap Head	$2.46	4
440	6G3379231AC	Screw, M3.5 x 38 Pozi	6G3379231AC Screw, M3.5 x 38 Pozi	$0.71	1
500	DD3313242AGW	KIT, SILL PLATES (pair)	DD3313242AGW KIT, SILL PLATES (pair)	$614.69	1
511	6G33SS106209AAPK	BOLT, M6x20, SKT HD	6G33SS106209AAPK BOLT, M6x20, SKT HD Bright. Pack of 2	-	8	Enquire
520	HD3Y132A50AA	ネームプレート、フロントシル	HD3Y132A50AA ネームプレート、フロントシル 'Zagato'	-	2	Enquire
521	HD3Y-132A50-E	NAME PLATE, FROT SILL	HD3Y-132A50-E NAME PLATE, FROT SILL 'Villa D'Este'	-	2	Enquire
530	703026	Screw M5x16 Hex flg hd	703026 Screw M5x16 Hex flg hd	$0.34	4
540	CD333N234AA	ブラケット、フットレスト	CD333N234AA ブラケット、フットレスト RHD	$66.36	1
550	CD33044J08AA	ENERGY ABSORBER PAD	CD33044J08AA ENERGY ABSORBER PAD RHD	$59.92	1
560	6G33-12021-BA	COVER PLATE, FOOTREST	6G33-12021-BA COVER PLATE, FOOTREST RHD, Silver Pedals	-	1	Enquire
561	6G3312021AA	COVER PLATE, FOOTREST	6G3312021AA COVER PLATE, FOOTREST RHD, Black Pedals	$140.60	1
600	JD3M-465C12-A	COVER ASSEMBLY, CENTRE	JD3M-465C12-A COVER ASSEMBLY, CENTRE	-	1	Enquire
610	JD3M-15305-AA	BRACKET, LAMP LH	JD3M-15305-AA BRACKET, LAMP LH	-	1	Enquire
620	JD3M-15304-AA	BRACKET, LAMP RH	JD3M-15304-AA BRACKET, LAMP RH	-	1	Enquire
640	JD3M-10153-AA	CENTRE ARCH SUPPORTBRACKET ASSEMBLY	JD3M-10153-AA CENTRE ARCH SUPPORTBRACKET ASSEMBLY	-	1	Enquire
660	JD3M-16734-AA	ARCH HOOD BRACKET UPPER	JD3M-16734-AA ARCH HOOD BRACKET UPPER	-	2	Enquire
680	JD3M-16698-AA	BRACKET, MID	JD3M-16698-AA BRACKET, MID	-	2	Enquire
690	JD3M-12172-AA	BRACKET, HUMP ASSEMBLY	JD3M-12172-AA BRACKET, HUMP ASSEMBLY	-	2	Enquire
710	JD3M-60029-AAW	TRIM PANEL, REARBULKHEAD, LH	JD3M-60029-AAW TRIM PANEL, REARBULKHEAD, LH	-	1	Enquire
720	JD3M-60028-AAW	TRIM PANEL, REARBULKHEAD, RH	JD3M-60028-AAW TRIM PANEL, REARBULKHEAD, RH	-	1	Enquire
740	JD3M-11767-AAW	PANEL ASSEMBLY, STOWAGE,LH	JD3M-11767-AAW PANEL ASSEMBLY, STOWAGE,LH	-	1	Enquire
750	JD3M-11766-AAW	PANEL ASSEMBLY, STOWAGE,RH	JD3M-11766-AAW PANEL ASSEMBLY, STOWAGE,RH	-	1	Enquire
760	JD3M-674A09-AA	MOULDING, CABIN FINISHER,LH	JD3M-674A09-AA MOULDING, CABIN FINISHER,LH	-	1	Enquire
770	JD3M-674A08-AA	MOULDING, CABIN FINISHER,RH	JD3M-674A08-AA MOULDING, CABIN FINISHER,RH	-	1	Enquire
780	9D33L312A95BA	GRILLE, SPEAKER, LH	9D33L312A95BA GRILLE, SPEAKER, LH	$761.19	1
790	9D33L312A94BA	GRILLE, SPEAKER, RH	9D33L312A94BA GRILLE, SPEAKER, RH	$761.19	1
800	702520PK	CLIP, 8.5x16x1.7, TRIMPUSH-IN	702520PK CLIP, 8.5x16x1.7, TRIMPUSH-IN Pack of 20	$22.54	2
810	JD3M-31487-AA	TRIM PANEL, QUARTER TRIM,LOWER, LH	JD3M-31487-AA TRIM PANEL, QUARTER TRIM,LOWER, LH Includes item 780	-	1	Enquire
820	JD3M-31486-AA	TRIM PANEL, QUARTER TRIM,LOWER, RH	JD3M-31486-AA TRIM PANEL, QUARTER TRIM,LOWER, RH Includes item 790	-	1	Enquire
830	700242	Screw, M5 x 16 csk hd int torx	700242 Screw, M5 x 16 csk hd int torx	$0.89	18
840	FD3337523AA	J Nut, M5	FD3337523AA J Nut, M5	$1.39	14
850	JD3M-31113-AA	TRIM PANEL ASSEMBLY,QUARTER TRIM, LH	JD3M-31113-AA TRIM PANEL ASSEMBLY,QUARTER TRIM, LH	-	1	Enquire
860	JD3M-31112-AA	TRIM PANEL ASSEMBLY,QUARTER TRIM, RH	JD3M-31112-AA TRIM PANEL ASSEMBLY,QUARTER TRIM, RH	-	1	Enquire
870	702587	TRIM CLIP, 8.0mm x 1.5	702587 TRIM CLIP, 8.0mm x 1.5	$1.30	12
880	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.90	2
890	FD3337523AA	J Nut, M5	FD3337523AA J Nut, M5	$1.39	4
900	JD3M-5F121-AA	BRACKET, WHEELARCH, LH	JD3M-5F121-AA BRACKET, WHEELARCH, LH	-	1	Enquire
910	JD3M-5F120-AA	BRACKET, WHEELARCH, RH	JD3M-5F120-AA BRACKET, WHEELARCH, RH	-	1	Enquire
920	W500002S440	SCREW, M5x12	W500002S440 SCREW, M5x12	-	4	Enquire
930	702211	Screw, M5 x 8, Pan Hd	702211 Screw, M5 x 8, Pan Hd	$0.18	4
940	703121	SCREW, M8x2,0 HEX FLG	703121 SCREW, M8x2,0 HEX FLG	$0.48	4
950	JD3M-5085-AA	BRACKET, HEELBOARD, LH	JD3M-5085-AA BRACKET, HEELBOARD, LH	-	1	Enquire
960	JD3M-5084-AA	BRACKET, HEELBOARD, RH	JD3M-5084-AA BRACKET, HEELBOARD, RH	-	1	Enquire
