Sealing of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Sealing

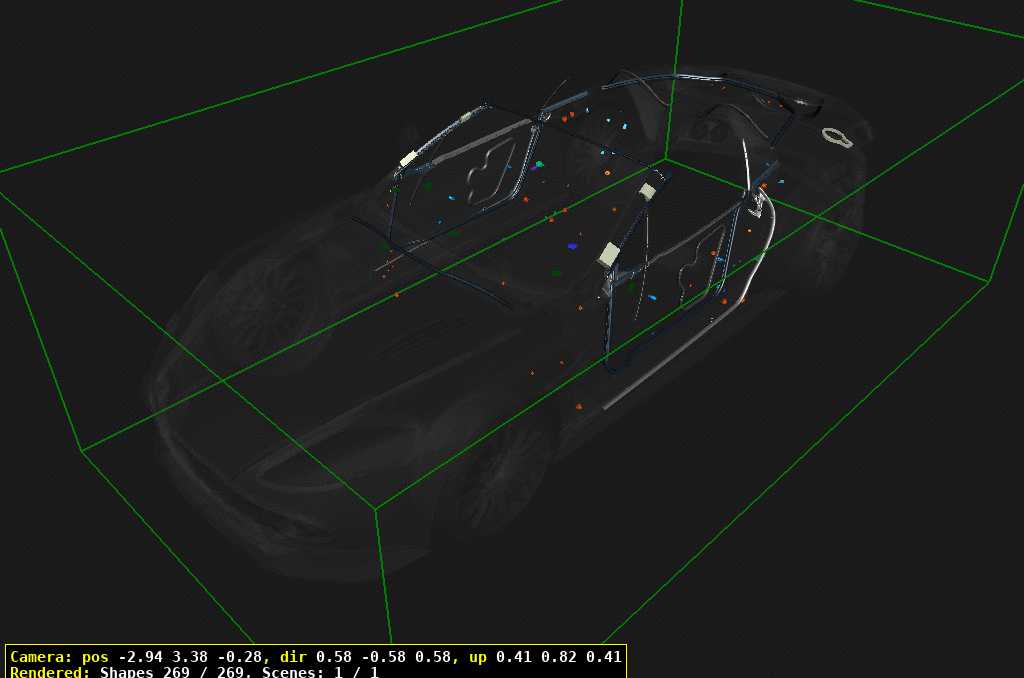

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	1	Enquire
20	6G33N804263AA	PLUG, 22mm	6G33N804263AA PLUG, 22mm	$2.03	1
30	4G43L20222AA	Seal patch, Small, 20mm dia.	4G43L20222AA Seal patch, Small, 20mm dia.	$0.48	28
40	4G43N800631AA	PLUG, 11mm	4G43N800631AA PLUG, 11mm	$1.41	7
50	4G43N805935AA	PLUG, 17mm	4G43N805935AA PLUG, 17mm	$0.93	4
60	6G33N806457AA	PLUG, 20mm	6G33N806457AA PLUG, 20mm	$2.30	2
70	6G33N804814AA	PLUG, 24mm	6G33N804814AA PLUG, 24mm	$3.33	10
80	4G43N808070AA	PLUG, 19mm	4G43N808070AA PLUG, 19mm	$1.89	6
90	4G43N811191AA	PLUG, 7mm	4G43N811191AA PLUG, 7mm	$0.61	11
100	4G43F280C09AA	FOAM BLOCK, A-PILLAR	4G43F280C09AA FOAM BLOCK, A-PILLAR	$22.77	2
110	CD339184AB	GASKET, FOAM, DOORMOUNTED	CD339184AB GASKET, FOAM, DOORMOUNTED	$2.16	1
120	4G43026A30AB	BAFFLE, A-PILLAR	4G43026A30AB BAFFLE, A-PILLAR	$8.84	2
130	4G43L20220AA	Seal patch, Large, 50mm dia.	4G43L20220AA Seal patch, Large, 50mm dia.	$1.23	6
140	6G3325919AA	PLUG, 12mm	6G3325919AA PLUG, 12mm	$1.03	1
150	CD337N280AA	PLUG, 52mm, TAPERED	CD337N280AA PLUG, 52mm, TAPERED	$3.87	1
180	CD33-58862-AA	SEALING PATCH, ANGLED	CD33-58862-AA SEALING PATCH, ANGLED	-	2	Enquire
190	7W83-9348-AA	シーリングパッド	7W83-9348-AA シーリングパッド	-	1	Enquire
210	CD33M4D4515AA	GASKET, FUEL FILLER BOWL	CD33M4D4515AA GASKET, FUEL FILLER BOWL	$17.86	2
220	702804	DRAIN PLUG, 20mm x0.6-2.2	702804 DRAIN PLUG, 20mm x0.6-2.2	$2.64	3
300	ED3329123AA	MOULDING, REAR QUARTERWINDOW, LH	ED3329123AA MOULDING, REAR QUARTERWINDOW, LH	$11.50	1
310	4G43F20921AC	MOULDING ASSEMBLY, REAR,LH	4G43F20921AC MOULDING ASSEMBLY, REAR,LH	$434.04	1
320	4G43L29731AD	Moulding, Quarter Window Inner, VOL LH	4G43L29731AD Moulding, Quarter Window Inner, VOL LH	$193.18	1
330	JD3YL25325AA	WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, LH	JD3YL25325AA WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, LH Includes item 350	$666.84	1
340	JD3YL25324AA	WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, RH	JD3YL25324AA WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, RH Includes item 350	$666.84	1
350	4G43L25324BA	CLIP, WEATHERSTRIPRETENTION	4G43L25324BA CLIP, WEATHERSTRIPRETENTION	$3.17	2
360	ED33C21510AA	WEATHERSTRIP, GLASSCHANNEL, RH	ED33C21510AA WEATHERSTRIP, GLASSCHANNEL, RH	$687.66	1
370	CD33C20921BB	MOULDING ASSEMBLY, DOORTRIM, LH	CD33C20921BB MOULDING ASSEMBLY, DOORTRIM, LH	$357.56	1
380	CD33C20920BB	MOULDING ASSEMBLY, DOORTRIM, RH	CD33C20920BB MOULDING ASSEMBLY, DOORTRIM, RH	$357.56	1
390	4G43F20920AC	MOULDING ASSEMBLY, REAR,RH	4G43F20920AC MOULDING ASSEMBLY, REAR,RH	$434.04	1
400	4G43L29730AD	Moulding, Quarter Window Inner, VOL RH	4G43L29730AD Moulding, Quarter Window Inner, VOL RH	$193.18	1
410	ED3329122AA	MOULDING, REAR QUARTERWINDOW, RH	ED3329122AA MOULDING, REAR QUARTERWINDOW, RH	$13.35	1
420	JD3ML20709AA	WEATHERSTRIP, B-PILLAR,LH	JD3ML20709AA WEATHERSTRIP, B-PILLAR,LH	$559.52	1
440	ED33F20571AA	WEATHERSTRIP ASSEMBLY,INNER, LH	ED33F20571AA WEATHERSTRIP ASSEMBLY,INNER, LH	$42.00	1
450	ED33F20570AA	WEATHERSTRIP ASSEMBLY,INNER, RH	ED33F20570AA WEATHERSTRIP ASSEMBLY,INNER, RH	$42.00	1
460	JD3ML20708AA	WEATHERSTRIP, B-PILLAR,RH	JD3ML20708AA WEATHERSTRIP, B-PILLAR,RH	$559.52	-
470	ED33C21511AA	WEATHERSTRIP, GLASSCHANNEL, LH	ED33C21511AA WEATHERSTRIP, GLASSCHANNEL, LH	$687.66	1
480	4G4354237A04AC	Watershield, Front Door	4G4354237A04AC Watershield, Front Door	$19.74	2
490	ED33F20708AD	PRIMARY SEAL, DOOR, LH/RH	ED33F20708AD PRIMARY SEAL, DOOR, LH/RH	$2,987.28	1
500	702217	SCREW, M5x16, BUTTON HEAD	702217 SCREW, M5x16, BUTTON HEAD	$0.68	4
510	HD3YC02565AA	RETAINER ASSEMBLY, LH	HD3YC02565AA RETAINER ASSEMBLY, LH	$196.83	1
520	HD3YC02564AA	RETAINER ASSEMBLY, RH	HD3YC02564AA RETAINER ASSEMBLY, RH	$196.83	1
530	JD3M-L43720-AA	WEATHERSTRIP, LUGGAGECOMPARTMENT	JD3M-L43720-AA WEATHERSTRIP, LUGGAGECOMPARTMENT	-	1	Enquire
540	CD3316K816AA	WEATHERSTRIP, BONNET,REAR	CD3316K816AA WEATHERSTRIP, BONNET,REAR	$151.90	1
550	JD3M-L51452-AA	WEATHERSTRIP ASSEMBLY,TONNEAU to BODY	JD3M-L51452-AA WEATHERSTRIP ASSEMBLY,TONNEAU to BODY	-	1	Enquire
560	JD3M-L03829-AA	SEAL, TONNEAU MARGIN, LH	JD3M-L03829-AA SEAL, TONNEAU MARGIN, LH	-	1	Enquire
570	JD3M-L03828-AA	SEAL, TONNEAU MARGIN, RH	JD3M-L03828-AA SEAL, TONNEAU MARGIN, RH	-	1	Enquire
