Exterior Trim of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - エクステリアトリム

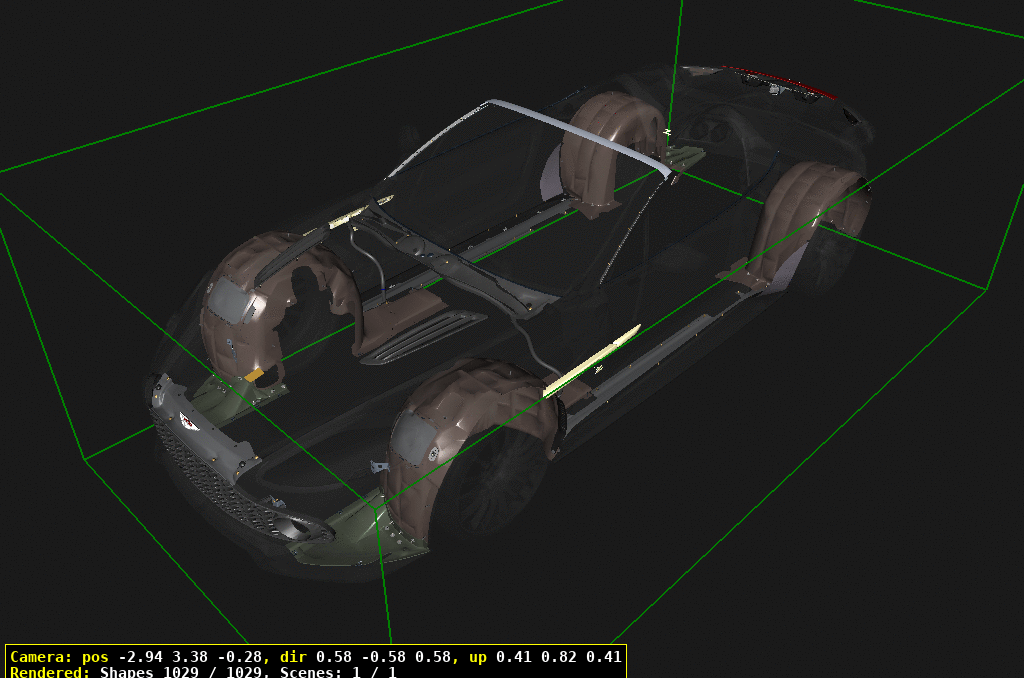

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
30	HD3Y8A100AC	ラジエターグリル	HD3Y8A100AC ラジエターグリル	$2,247.07	1
40	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	2
50	703149	ねじ M6X16 六角穴付き IN STOCK	703149 ねじ M6X16 六角穴付き IN STOCK	$1.28	12
60	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.98	4
70	HD3Y17766BB	BRACKET, GRILLE, LH	HD3Y17766BB BRACKET, GRILLE, LH	$170.89	1
80	HD3Y17765BB	BRACKET, GRILLE, RH	HD3Y17765BB BRACKET, GRILLE, RH	$170.89	1
90	HD3Y-8190-AA	PANEL, RADIATOR GRILLE	HD3Y-8190-AA PANEL, RADIATOR GRILLE	-	1	Enquire
100	4G4316K808AB	Support Assembly IN STOCK	4G4316K808AB Support Assembly IN STOCK	$5.21	2
110	703143	BOLT/WASHER, M6x12.0	703143 BOLT/WASHER, M6x12.0	$1.90	6
120	XR8TF03836AA	バンパー IN STOCK	XR8TF03836AA バンパー IN STOCK	$3.14	4
130	6G33301A00AA	スペーサー	6G33301A00AA スペーサー	-	3	Enquire
200	HD3Y16C693AA	BONNET VENT, LH	HD3Y16C693AA BONNET VENT, LH	$9,853.67	1
210	HD3Y16C692AA	BONNET VENT, RH	HD3Y16C692AA BONNET VENT, RH	$9,853.67	1
220	HD3Y250B85BA	WASHER, M6, NYLON	HD3Y250B85BA WASHER, M6, NYLON	$0.50	24
230	4G4316C695ABPK	NUT, M6, DOMED NYLON,BLACK IN STOCK	4G4316C695ABPK NUT, M6, DOMED NYLON,BLACK Pack of 10 IN STOCK	$27.02	12
300	FD33519A37BA	FINISHER, A-PILLAR, LH	FD33519A37BA FINISHER, A-PILLAR, LH Black	$622.90	1
301	ED33519A37AB	FINISHER, A-PILLAR, LH	ED33519A37AB FINISHER, A-PILLAR, LH Bright	$309.86	1
310	FD33519A36BA	FINISHER, A-PILLAR, RH	FD33519A36BA FINISHER, A-PILLAR, RH Black	$622.90	1
311	ED33519A36AB	FINISHER, A-PILLAR, RH	ED33519A36AB FINISHER, A-PILLAR, RH Bright	$319.36	1
320	JD3M-L03065-BA	FINISHER, WINDSCREEN	JD3M-L03065-BA FINISHER, WINDSCREEN	-	1	Enquire
330	AG43608073AA	SCREW, No8x25, STB INT HCSK	AG43608073AA SCREW, No8x25, STB INT HCSK	$20.51	2
340	4G43103081BA	Screw, M4x16, Countersunk, Stainless Black IN STOCK	4G43103081BA Screw, M4x16, Countersunk, Stainless Black IN STOCK	$1.24	2
360	FD33F20563BA	SEAL, DOOR WAIST, OUTER,LH	FD33F20563BA SEAL, DOOR WAIST, OUTER,LH Black	$505.25	1
361	CD33F20563AC	SEAL, DOOR WAIST, OUTER,LH IN STOCK	CD33F20563AC SEAL, DOOR WAIST, OUTER,LH Bright IN STOCK	$287.03	1
370	FD33F20562BA	SEAL, DOOR WAIST, OUTER,RH	FD33F20562BA SEAL, DOOR WAIST, OUTER,RH Black	$505.25	1
371	CD33F20562AC	SEAL, DOOR WAIST, OUTER,RLH	CD33F20562AC SEAL, DOOR WAIST, OUTER,RLH Bright	$260.78	1
380	JD3M-1228495-BB	FINISHER, REAR QUARTER,OUTER, LH	JD3M-1228495-BB FINISHER, REAR QUARTER,OUTER, LH Black	-	1	Enquire
381	JD3M1228495AB	FINISHER, REAR QUARTER,OUTER, LH	JD3M1228495AB FINISHER, REAR QUARTER,OUTER, LH Bright	$4,150.57	1
390	JD3M-1228494-BB	FINISHER, REAR QUARTER,OUTER, RH	JD3M-1228494-BB FINISHER, REAR QUARTER,OUTER, RH Black	-	1	Enquire
391	JD3M1228494AB	FINISHER, REAR QUARTER,OUTER, RH	JD3M1228494AB FINISHER, REAR QUARTER,OUTER, RH Bright	$4,150.57	1
400	HD3Y280B63AD	SIDE STRAKE, WING, LH	HD3Y280B63AD SIDE STRAKE, WING, LH Bronze	$4,237.71	1
401	HD3Y280B63BC	SIDE STRAKE, WING, LH	HD3Y280B63BC SIDE STRAKE, WING, LH Bright	$2,810.03	1
402	HD3Y280B63CA	SIDE STRAKE, WING, LH	HD3Y280B63CA SIDE STRAKE, WING, LH Carbon	$3,753.83	1
410	HD3Y018K29AC	サイドストレーキ、ドア、左側	HD3Y018K29AC サイドストレーキ、ドア、左側 Bronze	$2,794.00	1
411	HD3Y018K29BB	サイドストレーキ、ドア、左側	HD3Y018K29BB サイドストレーキ、ドア、左側 Bright	$2,428.24	1
412	HD3Y018K29CA	サイドストレーキ、ドア、左側	HD3Y018K29CA サイドストレーキ、ドア、左側 Carbon	$2,268.27	1
420	HD3Y280B62AD	SIDE STRAKE, WING, RH	HD3Y280B62AD SIDE STRAKE, WING, RH Bronze	$4,237.71	1
421	HD3Y280B62BC	SIDE STRAKE, WING, RH	HD3Y280B62BC SIDE STRAKE, WING, RH Bright	$2,810.03	1
422	HD3Y280B62CA	SIDE STRAKE, WING, RH	HD3Y280B62CA SIDE STRAKE, WING, RH Carbon	$3,753.83	1
430	HD3Y018K28AC	サイドストレーキ、ドア、右側	HD3Y018K28AC サイドストレーキ、ドア、右側 Bronze	$2,794.00	1
431	HD3Y018K28BB	サイドストレーキ、ドア、右側	HD3Y018K28BB サイドストレーキ、ドア、右側 Bright	$2,428.24	1
432	HD3Y018K28CA	サイドストレーキ、ドア、右側	HD3Y018K28CA サイドストレーキ、ドア、右側 Carbon	$2,268.27	1
460	6G3351756AAPK	MACHINE SCREW, M5x13, PANHD IN STOCK	6G3351756AAPK MACHINE SCREW, M5x13, PANHD Pack of 10 IN STOCK	$5.77	6
470	HD3Y0937AA	RETAINER, DOOR SIDESTRAKE	HD3Y0937AA RETAINER, DOOR SIDESTRAKE	$44.66	2
480	HD3Y10609AA	敷居アップリケ、左側	HD3Y10609AA 敷居アップリケ、左側	$18,846.72	1
490	HD3Y10608AA	敷居アップリケ、右側	HD3Y10608AA 敷居アップリケ、右側	$18,846.72	1
500	HD3Y10611AA	SILL BLADE, LH	HD3Y10611AA SILL BLADE, LH Carbon	$893.76	1
510	HD3Y10610AA	SILL BLADE, RH	HD3Y10610AA SILL BLADE, RH Carbon	$893.76	1
520	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	20
530	703143	BOLT/WASHER, M6x12.0	703143 BOLT/WASHER, M6x12.0	$1.90	8
540	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	2
550	6G430516BBA	Screw, M6 IN STOCK	6G430516BBA Screw, M6 IN STOCK	$5.77	14
560	701567	SCREW, M6x16, PAN IN STOCK	701567 SCREW, M6x16, PAN IN STOCK	$3.74	2
570	HD3Y13B217AA	TRIM, TAIL LAMP, LH	HD3Y13B217AA TRIM, TAIL LAMP, LH	$216.43	1
580	HD3Y13B216AA	TRIM, TAIL LAMP, RH	HD3Y13B216AA TRIM, TAIL LAMP, RH	$216.43	1
590	HD3Y10625DA	HELI TAPE, SILL, LH	HD3Y10625DA HELI TAPE, SILL, LH LH	$160.90	1
600	HD3Y10624DA	HELI TAPE, SILL, RH	HD3Y10624DA HELI TAPE, SILL, RH RH	$160.90	1
610	HD3Y280B84AA	MESH, WING, LH	HD3Y280B84AA MESH, WING, LH	$212.26	1
620	HD3Y280B83AA	MESH, WING, RH	HD3Y280B83AA MESH, WING, RH	$212.26	1
700	CD33292670AD	LEAF SCREEN ASSEMBLY	CD33292670AD LEAF SCREEN ASSEMBLY LHD	$471.52	1
701	CD33292670BD	LEAF SCREEN ASSEMBLY	CD33292670BD LEAF SCREEN ASSEMBLY RHD	$471.52	1
710	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	2
740	DG43219005AA	SCREW, ST 4.2x16, PAN HD	DG43219005AA SCREW, ST 4.2x16, PAN HD	$1.53	3
750	DG433810AA	DRAIN TUBE, LEAF SCREEN,LH	DG433810AA DRAIN TUBE, LEAF SCREEN,LH	$54.34	1
760	DG433811AA	DRAIN TUBE, LEAF SCREEN,RH	DG433811AA DRAIN TUBE, LEAF SCREEN,RH	$20.53	1
800	JD3Y-442A92-AA	スポイラーブレード	JD3Y-442A92-AA スポイラーブレード	-	1	Enquire
810	702514	Screw, flg, M6 x 16 torx IN STOCK	702514 Screw, flg, M6 x 16 torx IN STOCK	$2.87	4
820	JD3Y-44226-AA	DEPLOYING SPOILER KIT	JD3Y-44226-AA DEPLOYING SPOILER KIT Includes items 830, 840	-	1	Enquire
830	4G43103081BA	Screw, M4x16, Countersunk, Stainless Black IN STOCK	4G43103081BA Screw, M4x16, Countersunk, Stainless Black IN STOCK	$1.24	12
850	JD3Y-44228-AA	GASKET, MOUNTING PANEL	JD3Y-44228-AA GASKET, MOUNTING PANEL	-	1	Enquire
860	JD3M404C98AA	ECU, SPOILER	JD3M404C98AA ECU, SPOILER	$9,036.22	1
870	703168	NUT, M6, HEX	703168 NUT, M6, HEX	-	4	Enquire
900	HD3Y407A74BA	BADGE , AM WINGS	HD3Y407A74BA BADGE , AM WINGS White/Red	$499.34	1
910	HD3Y-974663-BA	PLAQUE, FINAL INSPECTION	HD3Y-974663-BA PLAQUE, FINAL INSPECTION	-	1	Enquire
911	HD3Y-974663-AB	PLAQUE, FINAL INSPECTION	HD3Y-974663-AB PLAQUE, FINAL INSPECTION 'Vila D'Este'	-	1	Enquire
920	HD3Y43549AA	BADGE, 'Z'	HD3Y43549AA BADGE, 'Z'	$273.97	3
930	4G43103021AB	FIXER, PUSH-ON IN STOCK	4G43103021AB FIXER, PUSH-ON IN STOCK	$1.87	4
940	CY83407A74BA	BADGE , AM WINGS	CY83407A74BA BADGE , AM WINGS White/Red	$499.34	1
1000	HD3Y166563AB	WHEELARCH LINER, LH	HD3Y166563AB WHEELARCH LINER, LH	$1,700.23	1
1010	HD3Y166562AA	WHEELARCH LINER, RH	HD3Y166562AA WHEELARCH LINER, RH	$2,085.47	1
1020	8D33166573AA	Bracket, Front Wheelarch Liner	8D33166573AA Bracket, Front Wheelarch Liner	$40.98	1
1030	8D33166572AA	Bracket, Front Wheelarch Liner IN STOCK	8D33166572AA Bracket, Front Wheelarch Liner IN STOCK	$45.09	1
1040	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	21
1050	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	16
1100	JD3Y-54279D23-AA	WHEELARCH LINER, REAR, LH	JD3Y-54279D23-AA WHEELARCH LINER, REAR, LH	-	1	Enquire
1110	JD3Y-54279D22-AA	WHEELARCH LINER, REAR, RH	JD3Y-54279D22-AA WHEELARCH LINER, REAR, RH	-	1	Enquire
1120	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	21
1130	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	6
