Handles and Lock Mechanisms of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Handles and Lock Mechanisms

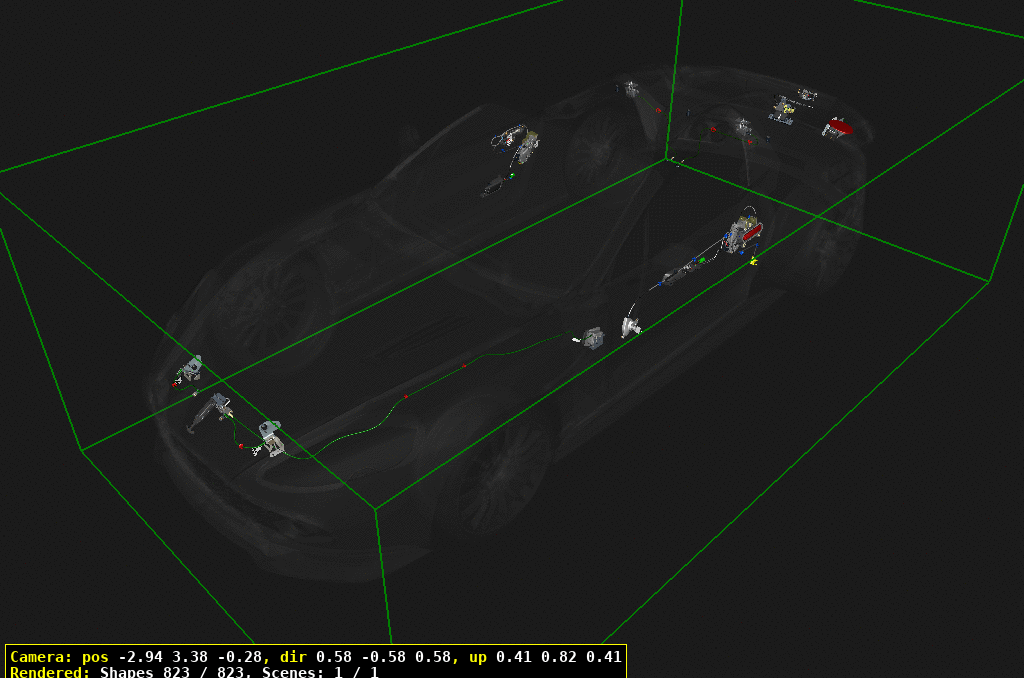

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	CD3316K662AB	CABLE ABUTMENT, SECONDARYRELEASE	CD3316K662AB CABLE ABUTMENT, SECONDARYRELEASE	$8.59	2
30	DD4316B768AD	LATCH, SECONDARY, LH	DD4316B768AD LATCH, SECONDARY, LH	$129.06	1
40	4G436510059PK	Firtree clip, pad wear lead attch	4G436510059PK Firtree clip, pad wear lead attch Pack of 100	$73.95	2
50	703143	BOLT/WASHER, M6x12.0	703143 BOLT/WASHER, M6x12.0	$1.89	2
60	9G436411062	HANDLE, BONNET RELEASE	9G436411062 HANDLE, BONNET RELEASE	$187.84	1
70	701553	Screw, M6 x 16 pan hd, hood release handle to bracket	701553 Screw, M6 x 16 pan hd, hood release handle to bracket	$0.30	1
80	DD4316B769AD	LATCH, SECONDARY, RH	DD4316B769AD LATCH, SECONDARY, RH	$129.06	1
90	DD43915A01AA	LABEL, BONNET LATCHWARNING	DD43915A01AA LABEL, BONNET LATCHWARNING	$36.50	2
100	CD3316C730AA	BRACKET, BONNET RELEASEHANDLE	CD3316C730AA BRACKET, BONNET RELEASEHANDLE	$25.21	1
110	DD4316A945AA	STRIKER BAR, SECONDARYLATCH, RH	DD4316A945AA STRIKER BAR, SECONDARYLATCH, RH	$156.59	1
120	DD4316A944AA	STRIKER BAR, SECONDARYLATCH, LH	DD4316A944AA STRIKER BAR, SECONDARYLATCH, LH	$142.26	1
130	DD43405C45AD	CABLE RELEASE, SECONDARY	DD43405C45AD CABLE RELEASE, SECONDARY	$96.17	1
140	HD3Y-5284-AA	RELEASE LEVER, SECONDARY	HD3Y-5284-AA RELEASE LEVER, SECONDARY	-	1	Enquire
150	4G436410063	ラッチASSY、フード	4G436410063 ラッチASSY、フード	$35.60	1
160	AD4316C656AC	RELEASE CABLE ASSEMBLY	AD4316C656AC RELEASE CABLE ASSEMBLY	$68.98	1
170	704443	Clip Plastic	704443 Clip Plastic	$1.48	2
180	705464	Screw, M4 x 9.5	705464 Screw, M4 x 9.5	$0.18	2
190	701448	Nut, U-Type	701448 Nut, U-Type	$2.16	2
200	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	$12.41	2
220	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	10
300	CD33F218A01AA	CABLE, INTERIOR HANDLERELEASE	CD33F218A01AA CABLE, INTERIOR HANDLERELEASE	$64.65	2
310	CD3322615AG	HANDLE MECHANISM, LH	CD3322615AG HANDLE MECHANISM, LH	$1,312.13	1
320	CD3322614AE	HANDLE MECHANISM, RH	CD3322614AE HANDLE MECHANISM, RH	-	1	Enquire
330	AD433710064	マイクロスイッチ	AD433710064 マイクロスイッチ	$204.87	2
350	CD33F22050AB	DOOR LOCK CYLINDERASSEMBLY	CD33F22050AB DOOR LOCK CYLINDERASSEMBLY	$361.39	1
370	704443	Clip Plastic	704443 Clip Plastic	$1.48	3
380	4G43-22404-AG	Handle Blade Assembly	4G43-22404-AG Handle Blade Assembly	-	2	Enquire
381	CD3322405AC	HANDLE ASSEMBLY, LH	CD3322405AC HANDLE ASSEMBLY, LH Carbon	$1,962.09	1
382	CD3322404AC	HANDLE ASSEMBLY, RH	CD3322404AC HANDLE ASSEMBLY, RH Carbon	$1,962.09	1
400	CD33221A00AA	CABLE ASSEMBLY, FRONTDOOR	CD33221A00AA CABLE ASSEMBLY, FRONTDOOR	$64.65	2
410	CD33226A28AB	HANDLE MECHANISM,EXTERIOR	CD33226A28AB HANDLE MECHANISM,EXTERIOR	$226.80	2
420	ED3321813AB	LATCH ASSEMBLY, LH	ED3321813AB LATCH ASSEMBLY, LH	$398.80	1
430	ED3321814AB	LATCH ASSEMBLY, RH	ED3321814AB LATCH ASSEMBLY, RH	$362.34	1
440	3790075	CABLE TIE, 290mm x 3.5mm	3790075 CABLE TIE, 290mm x 3.5mm	$0.18	1
450	4G43224A72AH	レンズ	4G43224A72AH レンズ	$4.64	2
460	4G43224A68AA	PIN, HANDLE PIVOT	4G43224A68AA PIN, HANDLE PIVOT	$5.90	2
470	703612	Nut and Washer, M6 Hex	703612 Nut and Washer, M6 Hex	$0.82	6
480	GG43AA0231AA	SCREW, M8x34, FLAT CSKTORX	GG43AA0231AA SCREW, M8x34, FLAT CSKTORX	$6.38	4
500	703073	SCREW, M6x16, CSK, BLACK	703073 SCREW, M6x16, CSK, BLACK	$0.16	2
510	701158	SCREW, M6x10, BUTTON HD,TORX, BLACK	701158 SCREW, M6x10, BUTTON HD,TORX, BLACK	$1.30	4
520	703128	LOCKWASHER, M6, SINGLECOIL	703128 LOCKWASHER, M6, SINGLECOIL	$0.23	2
530	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.80	4
540	703746	SCREW, M6x16, PAN FLGHEAD TORX, BLACK	703746 SCREW, M6x16, PAN FLGHEAD TORX, BLACK	$0.50	6
550	707147	NUT, M5, HEX FLG	707147 NUT, M5, HEX FLG	$0.45	2
560	ED43226A28AA	BUMPSTOP, TWIN	ED43226A28AA BUMPSTOP, TWIN	$4.30	2
600	6G436710237	Handle, Emergency	6G436710237 Handle, Emergency	$17.42	1
610	DD4314B529AD	パワーラッチ	DD4314B529AD パワーラッチ	$229.81	1
620	6G436710235	ストライカー	6G436710235 ストライカー	$47.92	1
630	DD43F442A66AA	LATCH, DECKLID	DD43F442A66AA LATCH, DECKLID Includes item 635	$309.71	1
635	6G436710236	ベゼル、ラッチ	6G436710236 ベゼル、ラッチ	$21.13	1
640	HD3Y-3896-AB	BRACKET, POWER LATCH	HD3Y-3896-AB BRACKET, POWER LATCH	-	1	Enquire
650	W502670S442	Screw st4x13	W502670S442 Screw st4x13	$0.37	3
660	701556PK	SCREW, M5x16, PAN HD	701556PK SCREW, M5x16, PAN HD Pack of 10	$4.39	3
670	702517	BOLT, M8x14, PC T1 PIL 10	702517 BOLT, M8x14, PC T1 PIL 10	$0.70	3
680	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	2
690	4G4346662AAPK	SPACER, 2mm, NYLON	4G4346662AAPK SPACER, 2mm, NYLON Pack of 10	$4.33	4
700	JD3M-L405A02-AA	PANEL, FUEL FILLER FLAP	JD3M-L405A02-AA PANEL, FUEL FILLER FLAP	-	1	Enquire
720	6G33F9C070AA	Latch assy, actuator, glovebox	6G33F9C070AA Latch assy, actuator, glovebox	$147.37	1
730	CD33C405B96BD	HINGE ASSEMBLY, FUELFILLER FLAP	CD33C405B96BD HINGE ASSEMBLY, FUELFILLER FLAP	$374.82	1
740	HD3Y405B46AA	ブラケット、アクチュエータ	HD3Y405B46AA ブラケット、アクチュエータ	$153.86	1
750	6G3340180BA	CABLE, FILLER FLAPRELEASE	6G3340180BA CABLE, FILLER FLAPRELEASE	$51.56	1
760	JD3Y-9N447-AA	ブラケット、アクチュエータ	JD3Y-9N447-AA ブラケット、アクチュエータ	-	1	Enquire
770	703149	ねじ M6X16 六角穴付き	703149 ねじ M6X16 六角穴付き	$1.27	2
780	703265	ネジ、M6 X 16なべ頭	703265 ネジ、M6 X 16なべ頭	$0.59	2
790	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	2
800	702514	Screw, flg, M6 x 16 torx	702514 Screw, flg, M6 x 16 torx	$2.85	8
810	JD3M-19G470-AB	RELEASE CABLE, LH	JD3M-19G470-AB RELEASE CABLE, LH	-	1	Enquire
820	JD3M-19G471-AB	RELEASE CABLE, RH	JD3M-19G471-AB RELEASE CABLE, RH	-	1	Enquire
830	702994	NUT, M6, HEX, THIN	702994 NUT, M6, HEX, THIN	$0.78	4
840	JY53AFU1900AA	FIRTREE CABLE TIE	JY53AFU1900AA FIRTREE CABLE TIE	$2.34	3
850	6G33N40452AB	BUMP STOP ASSEMBLY	6G33N40452AB BUMP STOP ASSEMBLY	$20.79	3
860	CG433711336	SWITCH, BONNET LATCH	CG433711336 SWITCH, BONNET LATCH	$75.51	2
880	6G436410121	STRIKER ASSEMBLY	6G436410121 STRIKER ASSEMBLY	$167.38	2
890	HD3Y250B85BA	WASHER, M6, NYLON	HD3Y250B85BA WASHER, M6, NYLON	$0.50	2
