Aston Martin GT VANQUISH ZAGATO (2016-2019) - Interior Trim - Lower

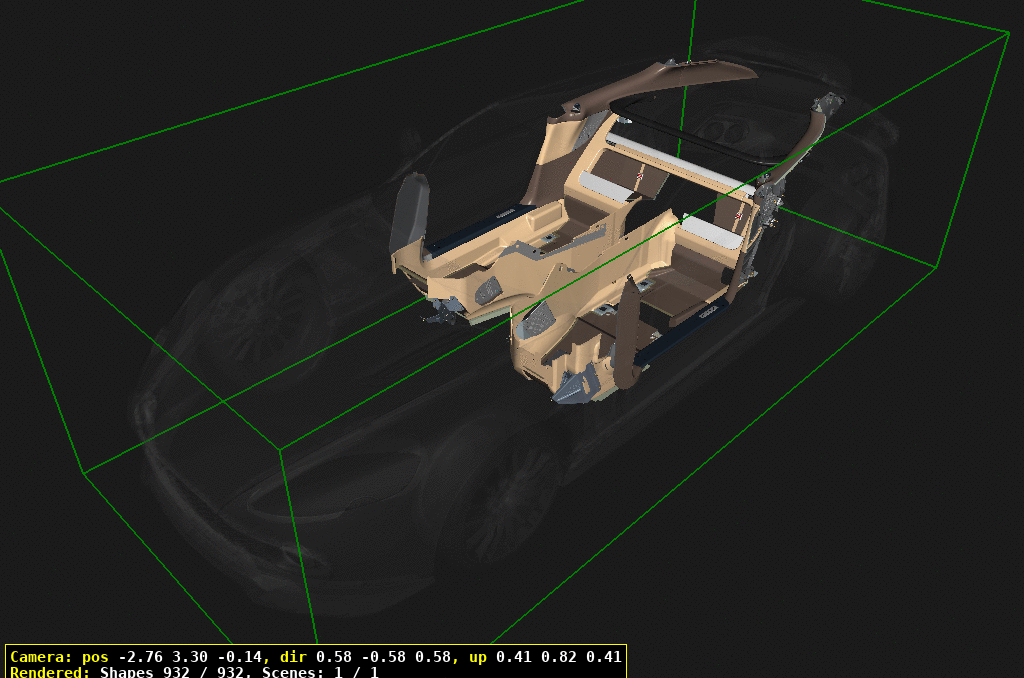

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	ED3302349ADW	TRIM ASSEMBLY, A-PILLAR,LH	ED3302349ADW TRIM ASSEMBLY, A-PILLAR,LH	$910.65	1
30	ED3302348ADW	RIM ASSEMBLY, A-PILLAR,RH	ED3302348ADW RIM ASSEMBLY, A-PILLAR,RH	$944.47	1
40	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	2
50	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	2
60	6G33100N00AA	ADHESIVE TAPE, DOUBLESIDED	6G33100N00AA ADHESIVE TAPE, DOUBLESIDED	$15.29	A/R
70	FD33100A90AA	SUPPORT PANEL, REARFLOOR, RH	FD33100A90AA SUPPORT PANEL, REARFLOOR, RH	$90.86	1
80	4G43M4D4515AA	フォームストリップ	4G43M4D4515AA フォームストリップ	$0.84	1
90	703747	SCREW/WASHER, M6x25x1.0	703747 SCREW/WASHER, M6x25x1.0	$1.53	2
100	DD3319L525AA	スカッフプレート、アクセル	DD3319L525AA スカッフプレート、アクセル LHD only	$44.35	1
110	FD33100A91AA	SUPPORT PANEL, REARFLOOR, LH	FD33100A91AA SUPPORT PANEL, REARFLOOR, LH	$90.86	1
120	CD338310016	KIT, FLOOR CARPETS	CD338310016 KIT, FLOOR CARPETS LHD, Heavyweight	$3,588.76	1
121	CD338310017	KIT, FLOOR CARPETS	CD338310017 KIT, FLOOR CARPETS LHD, Lightweight	$3,588.76	1
122	CD338310014	KIT, FLOOR CARPETS	CD338310014 KIT, FLOOR CARPETS RHD, Heavyweight	$2,213.25	1
123	CD338310015	KIT, FLOOR CARPETS	CD338310015 KIT, FLOOR CARPETS RHD, Lightweight	$3,190.05	1
130	CD33044J09AA	ENERGY ABSORBER PAD	CD33044J09AA ENERGY ABSORBER PAD LHD	$60.38	1
140	9G4312020BA	Pad assy, foot rest	9G4312020BA Pad assy, foot rest LHD, Silver Pedals	$374.12	1
141	CD3312020CA	COVER PLATE, FOOTREST	CD3312020CA COVER PLATE, FOOTREST LHD, Black Pedals	$130.47	1
150	CD333N328BB	BRACKET, DRIVERS FOOTREST	CD333N328BB BRACKET, DRIVERS FOOTREST LHD	$107.68	1
160	DD33130B53BB	SUPPORT, CARPET, LH	DD33130B53BB SUPPORT, CARPET, LH LHD	$86.93	1
161	DD33130B53AB	SUPPORT, CARPET, LH	DD33130B53AB SUPPORT, CARPET, LH RHD	$97.83	1
170	DD33130B52BB	SUPPORT, CARPET, RH	DD33130B52BB SUPPORT, CARPET, RH LHD	$86.93	1
171	DD33130B52AB	SUPPORT, CARPET, RH	DD33130B52AB SUPPORT, CARPET, RH RHD	$97.83	1
180	DD33311A76AA	GRILLE, SPEAKER, RH	DD33311A76AA GRILLE, SPEAKER, RH Black	$782.72	1
181	DD33311A76BA	GRILLE, SPEAKER, RH	DD33311A76BA GRILLE, SPEAKER, RH Iridium	$750.12	1
210	CD3310K973AEW	HEELBOARD ASSEMBLY	CD3310K973AEW HEELBOARD ASSEMBLY	$356.48	1
220	DD33311A77AA	GRILLE, SPEAKER, LH	DD33311A77AA GRILLE, SPEAKER, LH Black	$782.72	1
221	DD33311A77BA	GRILLE, SPEAKER, LH	DD33311A77BA GRILLE, SPEAKER, LH Iridium	$750.12	1
240	703168	NUT, M6, HEX	703168 NUT, M6, HEX	-	1	Enquire
270	DD33-13003-AA	INSERT, CARPET, FRONTFLOOR	DD33-13003-AA INSERT, CARPET, FRONTFLOOR	-	2	Enquire
280	FD33281B11ABW	KIT, CARPET ASSEMBLY	FD33281B11ABW KIT, CARPET ASSEMBLY LHD	$2,370.27	1
281	FD33281B10ABW	KIT, CARPET ASSEMBLY	FD33281B10ABW KIT, CARPET ASSEMBLY RHD	$2,370.27	1
290	4G43831237ABW	Handbrake Gaiter Assembly, LHD	4G43831237ABW Handbrake Gaiter Assembly, LHD LHD	$782.80	1
291	4G43831236ABW	GAITER ASSEMBLY,HANDBRAKE	4G43831236ABW GAITER ASSEMBLY,HANDBRAKE RHD	$778.59	1
300	GD33201A49AA	SHIELD, SPEAKERPROTECTION, LH	GD33201A49AA SHIELD, SPEAKERPROTECTION, LH	$30.23	1
310	703026	Screw M5x16 Hex flg hd IN STOCK	703026 Screw M5x16 Hex flg hd IN STOCK	$0.34	3
320	6G33E801202AA	Screw, M5 x 36 Countersunk Head Capscrew	6G33E801202AA Screw, M5 x 36 Countersunk Head Capscrew	$0.74	3
330	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	$10.78	2
340	697564	Push-on Fix	697564 Push-on Fix	$0.11	3
350	706711	SCREW, M5x16, CSK 6 LOB,BLACK	706711 SCREW, M5x16, CSK 6 LOB,BLACK	-	4	Enquire
360	DD33-37041-AA	CAP, 4.8x12.7	DD33-37041-AA CAP, 4.8x12.7	-	2	Enquire
370	DD33130B14AB	SUPPORT BRACKET, CARPET	DD33130B14AB SUPPORT BRACKET, CARPET	$7.63	2
380	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	$10.78	2
390	AD43666A40AB	FINISHER, CARPET, RH	AD43666A40AB FINISHER, CARPET, RH	$71.69	2
400	AD43666A41AB	INISHER, CARPET, LH	AD43666A41AB INISHER, CARPET, LH	$71.69	2
420	6G3368D11AA	Screw, M5 x 20 Cap Head	6G3368D11AA Screw, M5 x 20 Cap Head	$1.08	4
430	6G3368D11BA	Screw, M5 x 12 Cap Head IN STOCK	6G3368D11BA Screw, M5 x 12 Cap Head IN STOCK	$2.48	4
440	6G3379231AC	Screw, M3.5 x 38 Pozi IN STOCK	6G3379231AC Screw, M3.5 x 38 Pozi IN STOCK	$0.72	1
500	DD3313242AGW	KIT, SILL PLATES (pair)	DD3313242AGW KIT, SILL PLATES (pair)	$619.34	1
511	6G33SS106209AAPK	BOLT, M6x20, SKT HD	6G33SS106209AAPK BOLT, M6x20, SKT HD Bright. Pack of 2	-	8	Enquire
520	KD3M-132A50-AA	ネームプレート、フロントシル	KD3M-132A50-AA ネームプレート、フロントシル 'Zagato'	-	2	Enquire
521	KD3M-132A50-BA	ネームプレート、フロントシル	KD3M-132A50-BA ネームプレート、フロントシル 'Villa D'Este'	-	2	Enquire
522	KD3M132A50CA	ネームプレート、フロントシル	KD3M132A50CA ネームプレート、フロントシル 'Zagato', Personalised	$431.85	2
523	KD3M-132A50-DA	ネームプレート、フロントシル	KD3M-132A50-DA ネームプレート、フロントシル 'Villa D'Este',Personalised	-	2	Enquire
530	703026	Screw M5x16 Hex flg hd IN STOCK	703026 Screw M5x16 Hex flg hd IN STOCK	$0.34	4
540	CD333N234AA	ブラケット、フットレスト	CD333N234AA ブラケット、フットレスト RHD	$66.86	1
550	CD33044J08AA	ENERGY ABSORBER PAD	CD33044J08AA ENERGY ABSORBER PAD RHD	$60.38	1
560	6G33-12021-BA	COVER PLATE, FOOTREST	6G33-12021-BA COVER PLATE, FOOTREST RHD, Silver Pedals	-	1	Enquire
561	6G3312021AA	COVER PLATE, FOOTREST	6G3312021AA COVER PLATE, FOOTREST RHD, Black Pedals	$141.66	1
800	DD3331464AB	REINFORCEMENT, QUARTERPANEL EDGE	DD3331464AB REINFORCEMENT, QUARTERPANEL EDGE	$22.81	2
810	KD3M-31012-AAW	TRIM PANEL, BODY SIDE,RH	KD3M-31012-AAW TRIM PANEL, BODY SIDE,RH Includes items 820-821	-	1	Enquire
820	9D33310B08BA	GRILLE, SPEAKER, RH	9D33310B08BA GRILLE, SPEAKER, RH Black	$751.47	1
821	9D33310B08CA	GRILLE, SPEAKER, RH	9D33310B08CA GRILLE, SPEAKER, RH Iridium	$766.97	1
830	KD3M-31013-AAW	TRIM PANEL, BODY SIDE, LH	KD3M-31013-AAW TRIM PANEL, BODY SIDE, LH Includes items 840-841	-	1	Enquire
840	9D33310B09BA	GRILLE, SPEAKER, LH	9D33310B09BA GRILLE, SPEAKER, LH Black	$751.47	1
841	9D33310B09CA	GRILLE, SPEAKER, LH	9D33310B09CA GRILLE, SPEAKER, LH Iridium	$766.97	1
850	KD3M290A23ABW	TRIM PANEL, REAR QUARTER,UPPER, LH	KD3M290A23ABW TRIM PANEL, REAR QUARTER,UPPER, LH	$1,301.86	1
860	KD3M290A22ABW	TRIM PANEL, REAR QUARTER,UPPER, RH	KD3M290A22ABW TRIM PANEL, REAR QUARTER,UPPER, RH	$1,301.86	1
870	KD3ML31113AAW	TRIM PANEL, C-PILLAR, LH	KD3ML31113AAW TRIM PANEL, C-PILLAR, LH	$943.20	1
880	KD3ML31112AAW	TRIM PANEL, C-PILLAR, RH	KD3ML31112AAW TRIM PANEL, C-PILLAR, RH	$943.20	1
900	AD4303722AA	TRIM CLIP, DIAMOND	AD4303722AA TRIM CLIP, DIAMOND	$0.61	2
910	CD3324859AD	BEZEL, SEATBELT, LH	CD3324859AD BEZEL, SEATBELT, LH	$29.32	1
920	CD3324858AD	BEZEL, SEATBELT, RH	CD3324858AD BEZEL, SEATBELT, RH	$29.32	1
930	W505771S307	SCREW, M5x10, FLAT CSK	W505771S307 SCREW, M5x10, FLAT CSK	-	4	Enquire
940	KD3M-047A44-ABW	PANEL ASSEMBLY, CENTREFINISHER, UPPER	KD3M-047A44-ABW PANEL ASSEMBLY, CENTREFINISHER, UPPER	-	1	Enquire
950	KD3M-60027-AAW	TRIM PANEL, BULKHEAD, LH	KD3M-60027-AAW TRIM PANEL, BULKHEAD, LH	-	1	Enquire
960	KD3M-60026-AAW	TRIM PANEL, BULKHEAD, RH	KD3M-60026-AAW TRIM PANEL, BULKHEAD, RH	-	1	Enquire
970	7G43-25954-BA	SCREW/WASHER, M5x16	7G43-25954-BA SCREW/WASHER, M5x16	-	6	Enquire
980	KD3M41853AA	BRACKET ASSEMBLY, LH	KD3M41853AA BRACKET ASSEMBLY, LH	$134.14	1
990	KD3M41852AA	BRACKET ASSEMBLY, RH	KD3M41852AA BRACKET ASSEMBLY, RH	$134.14	1
1000	KD3M03525AA	BRACKET ASSEMBLY, REARQUARTER, LH	KD3M03525AA BRACKET ASSEMBLY, REARQUARTER, LH	$63.11	1
1010	KD3M03524AA	BRACKET ASSEMBLY, REARQUARTER, RH	KD3M03524AA BRACKET ASSEMBLY, REARQUARTER, RH	$63.11	1
1020	703732	Screw, M5 x 20 Hex Flg	703732 Screw, M5 x 20 Hex Flg	$0.45	6
1030	KD3M50337BA	BRACKET ASSEMBLY, LOWER,LH	KD3M50337BA BRACKET ASSEMBLY, LOWER,LH	$78.86	1
1040	KD3M50337AA	BRACKET ASSEMBLY, LOWER,RH	KD3M50337AA BRACKET ASSEMBLY, LOWER,RH	$78.86	1
1050	KD3M-674A09-AB	フィニッシャー、キャビン左側	KD3M-674A09-AB フィニッシャー、キャビン左側	-	1	Enquire
1060	KD3M-674A08-AB	フィニッシャー、キャビン右側	KD3M-674A08-AB フィニッシャー、キャビン右側	-	1	Enquire
1070	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	4
1080	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type IN STOCK	$2.17	4
1090	8D33313A73AB	BRACKET, CABIN FINISHER,LH	8D33313A73AB BRACKET, CABIN FINISHER,LH	$17.26	1
1100	8D33313A72AB	BRACKET, CABIN FINISHER,RH	8D33313A72AB BRACKET, CABIN FINISHER,RH	$17.26	1
1110	697603	SCREW, M6x25, CSK HD IN STOCK	697603 SCREW, M6x25, CSK HD IN STOCK	$0.41	4
1120	4G43105104AA	Screw, M4x8 Cap Hd, Blk	4G43105104AA Screw, M4x8 Cap Hd, Blk	$0.23	2
1130	8D33314A97AC	BRACKET, SUPPORT, LH	8D33314A97AC BRACKET, SUPPORT, LH	$61.58	1
1140	8D33314A96AC	BRACKET, SUPPORT, RH	8D33314A96AC BRACKET, SUPPORT, RH	$61.58	1
1150	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 IN STOCK	$3.07	6
1160	701441PK	SCREW, M4.2x13, FLG,BLACK	701441PK SCREW, M4.2x13, FLG,BLACK	$2.86	9
1170	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type IN STOCK	$2.17	12
1180	DD3367340AA	PANEL, HEELBOARD	DD3367340AA PANEL, HEELBOARD	$50.35	1
1190	KD3M-11767-AAW	PANEL ASSEMBLY, STOWAGECOMPARTMENT, LOWER, LH	KD3M-11767-AAW PANEL ASSEMBLY, STOWAGECOMPARTMENT, LOWER, LH	-	1	Enquire
1200	KD3M11766AAW	PANEL ASSEMBLY, STOWAGECOMPARTMENT, LOWER, RH	KD3M11766AAW PANEL ASSEMBLY, STOWAGECOMPARTMENT, LOWER, RH	$981.28	1
1210	KD3M-045C63-AAW	PANEL ASSEMBLY, STOWAGECOMPARTMENT, LH	KD3M-045C63-AAW PANEL ASSEMBLY, STOWAGECOMPARTMENT, LH Includes item 1220,1230	-	1	Enquire
1220	GD3319C166AB	デュアルUSB	GD3319C166AB デュアルUSB	$442.81	1
1240	KD3M045C62AAW	PANEL ASSEMBLY, STOWAGECOMPARTMENT, RH	KD3M045C62AAW PANEL ASSEMBLY, STOWAGECOMPARTMENT, RH	$1,412.97	1
1250	704327	ナットおよびワッシャ	704327 ナットおよびワッシャ	$5.43	6
1260	KD3M-60029-ABW	PANEL ASSEMBLY, REARBULKHEAD, LH	KD3M-60029-ABW PANEL ASSEMBLY, REARBULKHEAD, LH	-	1	Enquire
1270	KD3M60028ABW	PANEL ASSEMBLY, REARBULKHEAD, RH	KD3M60028ABW PANEL ASSEMBLY, REARBULKHEAD, RH	$1,674.22	1
1280	4G43C045F70AB	Retainer, passenger air bag cover pad	4G43C045F70AB Retainer, passenger air bag cover pad	$3.00	8
1290	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	4
1300	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type IN STOCK	$2.17	4
1310	CD33310A85AA	BRACKET, BULKHEAD, LH	CD33310A85AA BRACKET, BULKHEAD, LH	-	1	Enquire
1320	8D33310A84AB	BRACKET, BULKHEAD, RH	8D33310A84AB BRACKET, BULKHEAD, RH	$56.19	1
1330	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	4
1340	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	2
1350	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type IN STOCK	$2.17	2
1360	KD3M-11769-AAW	PANEL ASSEMBLY, STOWAGECOMPARTMENT, UPPER, LH	KD3M-11769-AAW PANEL ASSEMBLY, STOWAGECOMPARTMENT, UPPER, LH	-	1	Enquire
1370	KD3M-11768-AAW	PANEL ASSEMBLY, STOWAGECOMPARTMENT, UPPER, RH	KD3M-11768-AAW PANEL ASSEMBLY, STOWAGECOMPARTMENT, UPPER, RH	-	1	Enquire
1380	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type IN STOCK	$2.17	8
1390	TBA	ランプ	TBA ランプ	-	8	Enquire
1400	KD3M-C044F06-AA	RETENTION BAR, LUGGAGE,LOWER	KD3M-C044F06-AA RETENTION BAR, LUGGAGE,LOWER	-	1	Enquire
1401	KD3M-C044F06-BA	RETENTION BAR, LUGGAGE,LOWER	KD3M-C044F06-BA RETENTION BAR, LUGGAGE,LOWER Carbon	-	1	Enquire
1410	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	4
1420	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	2
1430	KD3M-67344-AB	RETENTION BAR, LOADCOMPARTMENT, UPPER	KD3M-67344-AB RETENTION BAR, LOADCOMPARTMENT, UPPER	-	1	Enquire
1440	HD43711387AA	BOLT, M8x25.5, PN TITESPL8	HD43711387AA BOLT, M8x25.5, PN TITESPL8	$4.62	6
1450	KD3M-423A34-AA	SHIM, RETENTION BAR,UPPER	KD3M-423A34-AA SHIM, RETENTION BAR,UPPER	-	6	Enquire
1460	707621	SPRING NUT, 4.2x0.7-2, UTYPE	707621 SPRING NUT, 4.2x0.7-2, UTYPE	-	2	Enquire
1470	702288	SCREW, 4.2x16, SELF TAP	702288 SCREW, 4.2x16, SELF TAP	$2.03	2
1480	7G43-25954-AC	SCREW/WASHER ASSEMBLY,M5x16	7G43-25954-AC SCREW/WASHER ASSEMBLY,M5x16	-	6	Enquire
1490	707957	SCREW, M5x12	707957 SCREW, M5x12	$3.07	2
1500	703177	SCREW, M5x30, PAN HEAD TX	703177 SCREW, M5x30, PAN HEAD TX	$1.53	2
1510	FD4310512FAA	SCREW, M5x0.8x20, PAN HD	FD4310512FAA SCREW, M5x0.8x20, PAN HD	$0.50	4
1520	610261357	FOAM, 10x10x7.5M	610261357 FOAM, 10x10x7.5M	$17.14	2
1530	DD3361236AA	MOULDING, GAP HIDER	DD3361236AA MOULDING, GAP HIDER	-	2	Enquire
1540	KD3M-045E24-ABW	PANEL ASSEMBLY, CENTREFINISHER, LOWER	KD3M-045E24-ABW PANEL ASSEMBLY, CENTREFINISHER, LOWER	-	1	Enquire
1550	AD43C519A40AA	MACHINE SCREW, M5x13, PAN IN STOCK	AD43C519A40AA MACHINE SCREW, M5x13, PAN IN STOCK	$0.79	5
