Sealing of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Sealing

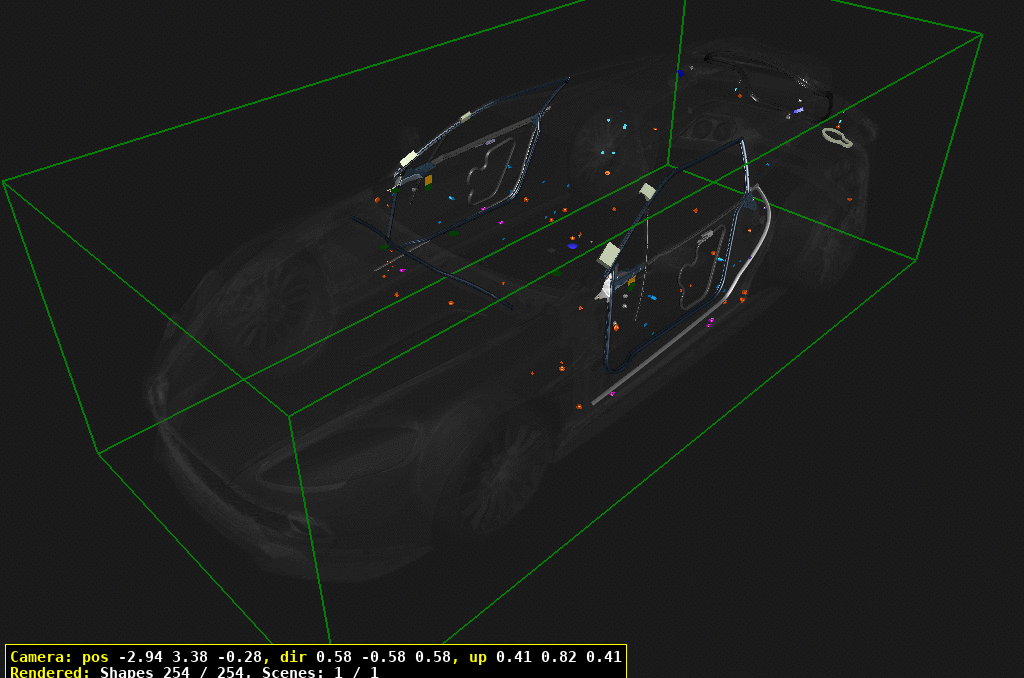

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	6G33N804263AA	PLUG, 22mm	6G33N804263AA PLUG, 22mm	$2.05	1
30	702804	DRAIN PLUG, 20mm x0.6-2.2	702804 DRAIN PLUG, 20mm x0.6-2.2	$2.66	6
40	4G43L20222AA	Seal patch, Small, 20mm dia.	4G43L20222AA Seal patch, Small, 20mm dia.	$0.49	28
50	4G43N800631AA	PLUG, 11mm	4G43N800631AA PLUG, 11mm	$1.42	5
60	4G43N805935AA	PLUG, 17mm	4G43N805935AA PLUG, 17mm	$0.93	4
70	6G33N806457AA	PLUG, 20mm	6G33N806457AA PLUG, 20mm	$2.32	2
80	6G33N804814AA	PLUG, 24mm IN STOCK	6G33N804814AA PLUG, 24mm IN STOCK	$3.36	6
90	4G43N808070AA	PLUG, 19mm	4G43N808070AA PLUG, 19mm	$1.90	6
100	4G43N811191AA	PLUG, 7mm	4G43N811191AA PLUG, 7mm	$0.61	7
110	4G43F280C09AA	FOAM BLOCK, A-PILLAR	4G43F280C09AA FOAM BLOCK, A-PILLAR	$22.94	2
120	4G43N804138AA	PLUG, 18mm	4G43N804138AA PLUG, 18mm	$0.61	1
130	4G43026A30AB	BAFFLE, A-PILLAR	4G43026A30AB BAFFLE, A-PILLAR	$8.91	2
140	4G43L20220AA	Seal patch, Large, 50mm dia. IN STOCK	4G43L20220AA Seal patch, Large, 50mm dia. IN STOCK	$1.24	6
150	6G3325919AA	PLUG, 12mm	6G3325919AA PLUG, 12mm	$1.04	1
160	CD337N280AA	PLUG, 52mm, TAPERED	CD337N280AA PLUG, 52mm, TAPERED	$3.90	1
200	DD33F37521AA	BLANKING PLUG, 14mm	DD33F37521AA BLANKING PLUG, 14mm	$3.00	1
210	4G43301347AA	グロメット	4G43301347AA グロメット	$2.48	2
220	CD33M4D4515AA	GASKET, FUEL FILLER BOWL	CD33M4D4515AA GASKET, FUEL FILLER BOWL	$18.00	1
230	AD43F5467906AA	バンプストップ	AD43F5467906AA バンプストップ	$4.49	2
240	8G3354442AA	CAP, NON-THREADED,12.7x22.2	8G3354442AA CAP, NON-THREADED,12.7x22.2	$0.14	2
300	ED33C21510AA	WEATHERSTRIP, GLASSCHANNEL, RH	ED33C21510AA WEATHERSTRIP, GLASSCHANNEL, RH	$692.87	1
310	CD33C25324BA	WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, RH IN STOCK	CD33C25324BA WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, RH IN STOCK	$677.22	1
320	CD33C25325BA	WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, LH IN STOCK	CD33C25325BA WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, LH IN STOCK	$677.22	1
330	HD3YC02565AA	RETAINER ASSEMBLY, LH	HD3YC02565AA RETAINER ASSEMBLY, LH	$198.32	1
340	HD3YC02564AA	RETAINER ASSEMBLY, RH	HD3YC02564AA RETAINER ASSEMBLY, RH	$198.32	1
350	CD33F20570AB	WEATHERSTRIP ASSEMBLY,INNER, RH	CD33F20570AB WEATHERSTRIP ASSEMBLY,INNER, RH	$464.62	1
360	CD33C20921BB	MOULDING ASSEMBLY, DOORTRIM, LH	CD33C20921BB MOULDING ASSEMBLY, DOORTRIM, LH Includes item 380	$360.27	1
370	CD33C20920BB	MOULDING ASSEMBLY, DOORTRIM, RH	CD33C20920BB MOULDING ASSEMBLY, DOORTRIM, RH Includes item 380	$360.27	1
380	702213	PIN, 4.7x16.0, PUSH-IN IN STOCK	702213 PIN, 4.7x16.0, PUSH-IN IN STOCK	$0.34	6
390	4G43F20921AC	MOULDING ASSEMBLY, REAR,LH	4G43F20921AC MOULDING ASSEMBLY, REAR,LH	$437.33	1
400	4G43F20920AC	MOULDING ASSEMBLY, REAR,RH	4G43F20920AC MOULDING ASSEMBLY, REAR,RH	$437.33	1
410	CD33F20571AB	WEATHERSTRIP ASSEMBLY,INNER, LH	CD33F20571AB WEATHERSTRIP ASSEMBLY,INNER, LH	$464.62	1
420	ED33C21511AA	WEATHERSTRIP, GLASSCHANNEL, LH	ED33C21511AA WEATHERSTRIP, GLASSCHANNEL, LH	$692.87	1
430	KD3MC20709AA	PRIMARY SEAL, DOOR, LH	KD3MC20709AA PRIMARY SEAL, DOOR, LH	$1,966.39	1
440	KD3MC20708AA	PRIMARY SEAL, DOOR, RH	KD3MC20708AA PRIMARY SEAL, DOOR, RH	$1,966.39	1
450	HD3YF20570BA	WEATHERSTRIP, ANTI-RATTLE	HD3YF20570BA WEATHERSTRIP, ANTI-RATTLE	$218.24	4
460	4G4354237A04AC	Watershield, Front Door	4G4354237A04AC Watershield, Front Door	$19.89	2
470	KD3M-C43720-AA	WEATHERSTRIP, LUGGAGECOMPARTMENT	KD3M-C43720-AA WEATHERSTRIP, LUGGAGECOMPARTMENT	-	1	Enquire
480	CD3316K816AA	WEATHERSTRIP, BONNET,REAR	CD3316K816AA WEATHERSTRIP, BONNET,REAR	$153.05	1
