Occupant Restraining Device of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Occupant Restraining Device

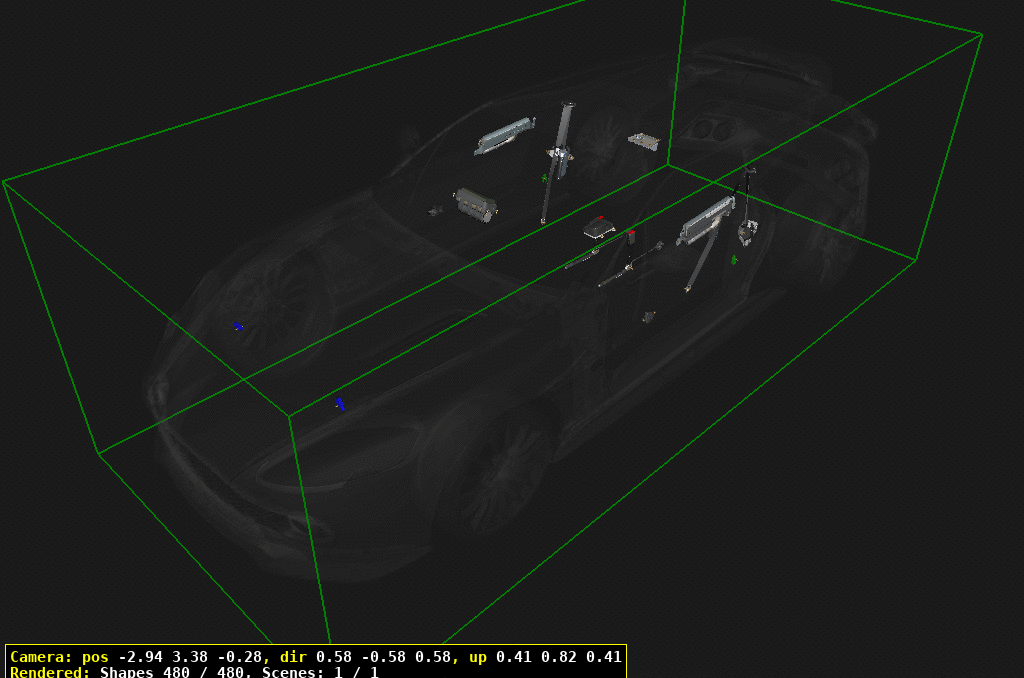

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	CD33611B70ACW	SEATBELT, LH	CD33611B70ACW SEATBELT, LH	$1,393.09	1
30	CD33611B69ACW	SEATBELT, RH	CD33611B69ACW SEATBELT, RH	$1,469.94	1
40	703121	SCREW, M8x2,0 HEX FLG IN STOCK	703121 SCREW, M8x2,0 HEX FLG IN STOCK	$0.49	12
50	DG4360259BB	REINFORCEMENT, LH	DG4360259BB REINFORCEMENT, LH	$50.66	1
60	DG4360258BC	REINFORCEMENT, RH	DG4360258BC REINFORCEMENT, RH	$50.75	1
70	DG43V248A66AA	NUTPLATE 2xM8	DG43V248A66AA NUTPLATE 2xM8	$21.05	2
80	DD33610E55AA	BUCKLE, SEATBELTPRETENSIONER, LH	DD33610E55AA BUCKLE, SEATBELTPRETENSIONER, LH	$585.07	1
90	DD33610E54AA	BUCKLE, SEATBELTPRETENSIONER, RH	DD33610E54AA BUCKLE, SEATBELTPRETENSIONER, RH	$585.07	1
200	4G43044H31AA	AIRBAG ASSEMBLY,PASSENGER	4G43044H31AA AIRBAG ASSEMBLY,PASSENGER	$817.20	1
210	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	4
220	6G3314B268AA	Switch assy, Passenger Airbag Deactivation	6G3314B268AA Switch assy, Passenger Airbag Deactivation	$51.14	1
230	FD43B14K158AE	AIRBAG, DOOR MOUNTED, LH	FD43B14K158AE AIRBAG, DOOR MOUNTED, LH	$828.98	1
240	FD43B14K159AE	AIRBAG, DOOR MOUNTED, RH	FD43B14K159AE AIRBAG, DOOR MOUNTED, RH	$804.82	2
250	FD4310512FAA	SCREW, M5x0.8x20, PAN HD	FD4310512FAA SCREW, M5x0.8x20, PAN HD	$0.50	-
260	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic	$0.79	4
270	8G438979AA	WASHER, M5x20x1.5THK,BLACK IN STOCK	8G438979AA WASHER, M5x20x1.5THK,BLACK IN STOCK	$0.75	4
280	703165	Nut, M05 IN STOCK	703165 Nut, M05 IN STOCK	$0.34	4
290	ED3312A965AB	BRACKET, AIRBAG, LH	ED3312A965AB BRACKET, AIRBAG, LH	$104.30	1
300	ED3312A964AB	BRACKET, AIRBAG, RH	ED3312A964AB BRACKET, AIRBAG, RH	$104.30	1
310	FD33611D10AC	AIRBAG, SEAT, LH	FD33611D10AC AIRBAG, SEAT, LH	$360.11	1
320	FD33611D11AC	AIRBAG, SEAT, RH	FD33611D11AC AIRBAG, SEAT, RH	$1,660.28	1
330	FD33-14K157-AA	BRACKET, SEAT AIRBAG, LH	FD33-14K157-AA BRACKET, SEAT AIRBAG, LH	-	1	Enquire
340	FD3314K156AB	BRACKET, SIDE AIRBAG, RH	FD3314K156AB BRACKET, SIDE AIRBAG, RH	$35.87	1
350	703149	ねじ M6X16 六角穴付き IN STOCK	703149 ねじ M6X16 六角穴付き IN STOCK	$1.28	2
360	6G3346058AA	SCREW, M5x10, FLG TORX	6G3346058AA SCREW, M5x10, FLG TORX	$1.87	4
400	DD3314C246AA	CONTROLLER, OCCUPANTRESTRAINTS	DD3314C246AA CONTROLLER, OCCUPANTRESTRAINTS	$949.11	2
410	702840	Nut & Washer M6 Hex Flg	702840 Nut & Washer M6 Hex Flg	$0.36	2
420	702839PK	Screw and Washer M6x20 Hex IN STOCK	702839PK Screw and Washer M6x20 Hex IN STOCK	$6.86	2
430	4G433710932	SENSOR, OCCUPANTRESTRAINTS SYSTEM, UPPER,FRONT IN STOCK	4G433710932 SENSOR, OCCUPANTRESTRAINTS SYSTEM, UPPER,FRONT IN STOCK	$56.39	2
440	4G433710931	SENSOR, SIDE IMPACTSTRUCTURE	4G433710931 SENSOR, SIDE IMPACTSTRUCTURE	$55.42	2
450	703199	Bolt M6x30 hex flg hd IN STOCK	703199 Bolt M6x30 hex flg hd IN STOCK	$0.79	4
460	6G433710240	SENSOR, SIDE IMPACTPRESSURE	6G433710240 SENSOR, SIDE IMPACTPRESSURE	$75.11	2
500	KD3M-613D20-AA	BRACKET ASSEMBLY, CHLDSEAT BELT ANCHORAGE	KD3M-613D20-AA BRACKET ASSEMBLY, CHLDSEAT BELT ANCHORAGE	-	1	Enquire
510	702839PK	Screw and Washer M6x20 Hex IN STOCK	702839PK Screw and Washer M6x20 Hex IN STOCK	$6.86	6
520	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	3
530	KD3M-C513B96-BA	REINFORCEMENT, CARGO LOOPMOUNTING	KD3M-C513B96-BA REINFORCEMENT, CARGO LOOPMOUNTING	-	1	Enquire
570	KD3M-44457-BA	PLATE, ANCHOR SPREADER	KD3M-44457-BA PLATE, ANCHOR SPREADER	-	1	Enquire
