Sound and Heat Control of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Sound and Heat Control

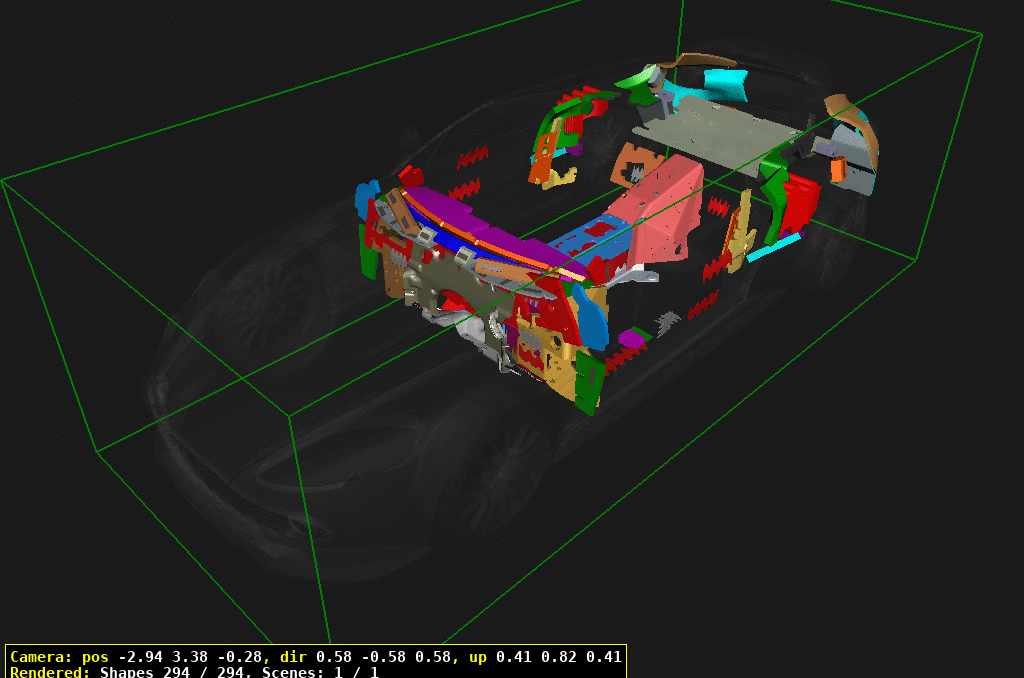

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	1	Enquire
20	DD3300152AB	NVH, PLENUM, ENGINE BAY	DD3300152AB NVH, PLENUM, ENGINE BAY	-	1	Enquire
30	DD3328110AB	NVH, FENDER, LOWER	DD3328110AB NVH, FENDER, LOWER	$47.19	2
40	DD3328112AA	NVH, FENDER, UPPER	DD3328112AA NVH, FENDER, UPPER	$57.09	2
50	AD4368066CA	NVH, IP, UNDERSIDE CAVITY	AD4368066CA NVH, IP, UNDERSIDE CAVITY	-	2	Enquire
60	DG4368066BA	NVH, IP, UNDERSIDECAVITY, SMALL	DG4368066BA NVH, IP, UNDERSIDECAVITY, SMALL	$7.98	2
80	6G33102B00AE	INSULATION, BULKHEAD	6G33102B00AE INSULATION, BULKHEAD LHD	$161.51	1
81	6G33102B00BE	INSULATION, BULKHEAD	6G33102B00BE INSULATION, BULKHEAD RHD	$153.81	1
90	8G4304564AA	NVH, CLUTCH PEDAL	8G4304564AA NVH, CLUTCH PEDAL	$0.93	1
100	8G4348181AB	FOAM PAD, IP COWL, LH	8G4348181AB FOAM PAD, IP COWL, LH	$22.28	1
110	8G4348182AB	FOAM PAD, IP COWL, RH	8G4348182AB FOAM PAD, IP COWL, RH	$22.28	1
130	CG43-310A59-AA	NVH, BODY SIDE, UPPER, LH	CG43-310A59-AA NVH, BODY SIDE, UPPER, LH	-	1	Enquire
140	CG43-310A60-AA	NVH, BODY SIDE, UPPER, RH	CG43-310A60-AA NVH, BODY SIDE, UPPER, RH	-	1	Enquire
150	702212	SNAPSAC, 6.8mm, PUSH-ON	702212 SNAPSAC, 6.8mm, PUSH-ON	$0.57	1
160	DD33015A23AD	BAFFLE, FRONT PANEL, LH	DD33015A23AD BAFFLE, FRONT PANEL, LH LHD	$100.10	1
161	DD33015A22AG	BAFFLE, FRONT PANEL, LH	DD33015A22AG BAFFLE, FRONT PANEL, LH RHD	$86.03	1
170	DD33002K05AF	BAFFLE, FRONT PANEL, RH	DD33002K05AF BAFFLE, FRONT PANEL, RH LHD	$75.90	1
171	DD33002K06AD	BAFFLE, FRONT PANEL, RH	DD33002K06AD BAFFLE, FRONT PANEL, RH RHD	$99.63	1
180	CG43-02139-AA	BAFFLE, TOP COWL	CG43-02139-AA BAFFLE, TOP COWL	-	1	Enquire
200	AD43534A0AB	パネルASSY、ダッシュ下部運転席側	AD43534A0AB パネルASSY、ダッシュ下部運転席側 LHD	$23.66	1
201	AD43-534A0-BB	NVH, IP LOWER, RH	AD43-534A0-BB NVH, IP LOWER, RH RHD	-	1	Enquire
210	AD43534A1AC	NVH, IP LOWER, LH	AD43534A1AC NVH, IP LOWER, LH LHD	$136.98	1
211	AD43-534A1-BB	NVH, IP LOWER, LH	AD43-534A1-BB NVH, IP LOWER, LH RHD	-	1	Enquire
220	6G3368066AC	NVH, IP, UNDERSIDE CAVITY	6G3368066AC NVH, IP, UNDERSIDE CAVITY	$47.80	1
300	4G437Z309AC	NVH, EXTERIOR,TRANSMISSION	4G437Z309AC NVH, EXTERIOR,TRANSMISSION	$82.08	1
310	4G43114B26AH	NVH, TUNNEL	4G43114B26AH NVH, TUNNEL	$108.93	1
330	702212	SNAPSAC, 6.8mm, PUSH-ON	702212 SNAPSAC, 6.8mm, PUSH-ON	$0.57	5
340	ED335416AD	NVH, TUNNEL FLEECE	ED335416AD NVH, TUNNEL FLEECE	-	1	Enquire
350	DD3311446AD	NVH, TUNNEL, INTERIOR	DD3311446AD NVH, TUNNEL, INTERIOR	$43.40	1
360	CG43D1161AC	NVH, REAR QUARTER TRIM,LH	CG43D1161AC NVH, REAR QUARTER TRIM,LH	$13.19	1
370	CG43-D1160-AC	NVH, REAR QUARTER TRIM,RH	CG43-D1160-AC NVH, REAR QUARTER TRIM,RH	-	1	Enquire
380	ED33L27747AA	NVH, REAR QUARTER PANEL,LH	ED33L27747AA NVH, REAR QUARTER PANEL,LH	-	1	Enquire
390	ED33L27746AA	NVH, REAR QUARTER PANELN,RH	ED33L27746AA NVH, REAR QUARTER PANELN,RH	$144.65	1
400	KD3M-A84959-AA	NVH, B-PILLAR, LOWER, LH	KD3M-A84959-AA NVH, B-PILLAR, LOWER, LH	-	1	Enquire
410	KD3M-A84958-AA	NVH, B-PILLAR, LOWER, RH	KD3M-A84958-AA NVH, B-PILLAR, LOWER, RH	-	1	Enquire
420	KD3M-025A59-AA	NVH, B-PILLAR, REAR, LH	KD3M-025A59-AA NVH, B-PILLAR, REAR, LH	-	1	Enquire
430	KD3M-025A58-AA	NVH, B-PILLAR, REAR, RH	KD3M-025A58-AA NVH, B-PILLAR, REAR, RH	-	1	Enquire
440	KD3M-C27747-AA	BAFFLE, REAR QUARTER, LH	KD3M-C27747-AA BAFFLE, REAR QUARTER, LH	-	1	Enquire
450	KD3M-C27746-AA	BAFFLE, REAR QUARTER, RH	KD3M-C27746-AA BAFFLE, REAR QUARTER, RH	-	1	Enquire
700	ED3331314AB	NVH, QUARTER PANEL, REAR	ED3331314AB NVH, QUARTER PANEL, REAR	-	1	Enquire
720	DD33C27747AA	BAFFLE, REAR QUARTER, LH	DD33C27747AA BAFFLE, REAR QUARTER, LH	$32.66	1
730	DD33C27746AA	BAFFLE, REAR QUARTER, RH	DD33C27746AA BAFFLE, REAR QUARTER, RH	$35.87	1
740	KD3MD1161AA	INSULATION, REAR QUARTER,LH	KD3MD1161AA INSULATION, REAR QUARTER,LH	$350.05	1
750	KD3M-F310A27-AA	INSULATION, REAR QUARTER,INNER, LH	KD3M-F310A27-AA INSULATION, REAR QUARTER,INNER, LH	-	1	Enquire
760	KD3M-27747-AA	INSULATION, REAR QUARTER,LH	KD3M-27747-AA INSULATION, REAR QUARTER,LH	-	1	Enquire
770	KD3M-27746-AA	INSULATION, REAR QUARTER,RH	KD3M-27746-AA INSULATION, REAR QUARTER,RH	-	1	Enquire
780	KD3MF310A26AB	INSULATION, REAR QUARTER,RH	KD3MF310A26AB INSULATION, REAR QUARTER,RH	$400.25	1
790	CG43-C311K70-AA	NVH, REAR SEAT, LOWER	CG43-C311K70-AA NVH, REAR SEAT, LOWER	-	1	Enquire
800	KD3M-405A32-AA	NVH, FUEL TANK, UPPER	KD3M-405A32-AA NVH, FUEL TANK, UPPER	-	1	Enquire
810	ED33403C20AA	NVH, BACK PANEL, OUTER	ED33403C20AA NVH, BACK PANEL, OUTER	-	2	Enquire
820	KD3M-454A13-AA	NVH, WHEELARCH HOUSING,LH	KD3M-454A13-AA NVH, WHEELARCH HOUSING,LH	-	1	Enquire
830	KD3M-454A12-AA	NVH, WHEELARCH HOUSING,RH	KD3M-454A12-AA NVH, WHEELARCH HOUSING,RH	-	1	Enquire
840	KD3M-45637-AA	NVH, LOAD COMPARTMENT, LH	KD3M-45637-AA NVH, LOAD COMPARTMENT, LH	-	1	Enquire
850	KD3M-45636-AA	NVH, LOAD COMPARTMENT, RH	KD3M-45636-AA NVH, LOAD COMPARTMENT, RH	-	1	Enquire
860	KD3M-45635-AA	NVH, LOAD COMPARTMENTSIDE, LH	KD3M-45635-AA NVH, LOAD COMPARTMENTSIDE, LH	-	1	Enquire
870	KD3M-45634-AA	NVH, LOAD COMPARTMENTSIDE, RH	KD3M-45634-AA NVH, LOAD COMPARTMENTSIDE, RH	-	1	Enquire
880	KD3M-C56157-AA	NVH, FUEL TANK REAR	KD3M-C56157-AA NVH, FUEL TANK REAR	-	1	Enquire
890	KD3M-114A10-BA	INSULATION, REAR FLOOR,LH	KD3M-114A10-BA INSULATION, REAR FLOOR,LH	-	1	Enquire
900	KD3M-112B25-BB	NVH, LOAD COMPARTMENT,REAR FLOOR, RH	KD3M-112B25-BB NVH, LOAD COMPARTMENT,REAR FLOOR, RH	-	1	Enquire
910	KD3M-112B25-AB	NVH, LOAD COMPARTMENT,REAR FLOOR, LH	KD3M-112B25-AB NVH, LOAD COMPARTMENT,REAR FLOOR, LH	-	1	Enquire
920	KD3M-114A10-AA	INSULATION, REAR FLOOR,RH	KD3M-114A10-AA INSULATION, REAR FLOOR,RH	-	1	Enquire
1100	4G43017A16AG	Heat Shield, Front Bulk Head, LHD	4G43017A16AG Heat Shield, Front Bulk Head, LHD LHD	$143.87	1
1101	4G43017A16BG	Heat Shield, Front Bulk Head, RHD	4G43017A16BG Heat Shield, Front Bulk Head, RHD RHD	$143.03	1
1110	4G432B485AC	シールド	4G432B485AC シールド	$30.07	1
1120	703612	Nut and Washer, M6 Hex IN STOCK	703612 Nut and Washer, M6 Hex IN STOCK	$0.83	2
1130	DG4311398AB	HEATSHIELD, FLOOR	DG4311398AB HEATSHIELD, FLOOR	$415.65	1
1140	4G433962GA	BRACKET, EXHAUSTHEATSHIELD	4G433962GA BRACKET, EXHAUSTHEATSHIELD	$4.80	2
1150	703612	Nut and Washer, M6 Hex IN STOCK	703612 Nut and Washer, M6 Hex IN STOCK	$0.83	2
1160	4G433962CD	BRACKET, FLOOR HEATSHIELD	4G433962CD BRACKET, FLOOR HEATSHIELD	$12.23	2
1170	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	2	Enquire
1180	703612	Nut and Washer, M6 Hex IN STOCK	703612 Nut and Washer, M6 Hex IN STOCK	$0.83	2
1190	703151	Nut/washr, M6 IN STOCK	703151 Nut/washr, M6 IN STOCK	$0.90	6
1210	CD3311398BB	HEATSHIELD, CATALYST,R LH	CD3311398BB HEATSHIELD, CATALYST,R LH	$89.39	1
1220	CD3311398AB	HEATSHIELD, CATALYST, RH	CD3311398AB HEATSHIELD, CATALYST, RH	$89.39	1
1230	4G434A380AE	ヒートシールド、トンネル	4G434A380AE ヒートシールド、トンネル	$164.21	1
1240	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	2
1250	703612	Nut and Washer, M6 Hex IN STOCK	703612 Nut and Washer, M6 Hex IN STOCK	$0.83	2
1260	KD3M-112B24-AB	INSULATION, BOOT FLOOR	KD3M-112B24-AB INSULATION, BOOT FLOOR	-	1	Enquire
1270	707004	BOLT/WASHER, M6x16, HEXPIL FL 10	707004 BOLT/WASHER, M6x16, HEXPIL FL 10	$0.92	13
1280	KD3M-112B24-BB	INSULATION, BOOT FLOOR,LH	KD3M-112B24-BB INSULATION, BOOT FLOOR,LH	-	1	Enquire
1290	KD3M-112B24-CB	INSULATION, BOOT FLOOR,RH	KD3M-112B24-CB INSULATION, BOOT FLOOR,RH	-	1	Enquire
