Fuel Injection System of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

Aston Martin GT DB11 (2017-2023) - 燃料噴射システム

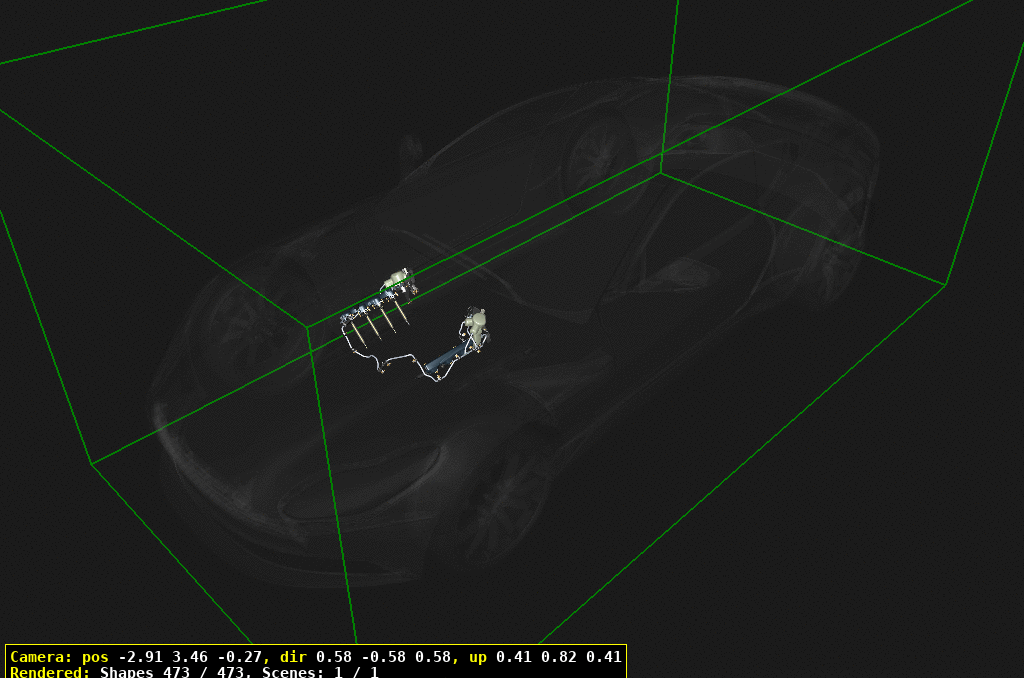

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量
20	JY53SE9D376AA	FUEL PUMP, HIGH PRESSURE	JY53SE9D376AA FUEL PUMP, HIGH PRESSURE -> VIN L07111	$2,806.28	2
21	JY53SE9D376AB	FUEL PUMP, HIGH PRESSURE	JY53SE9D376AB FUEL PUMP, HIGH PRESSURE VIN L07112->	$2,775.76	2
30	JY53SE9400AA	DRIVE ROLLER, FUEL PUMP	JY53SE9400AA DRIVE ROLLER, FUEL PUMP Fuel Pump	$245.24	2
40	JY53SE9276AA	Oリング	JY53SE9276AA Oリング	$87.00	2
50	JY53SEHS000028AA	スクリュー	JY53SEHS000028AA スクリュー	$4.89	4
60	JY53SE9A397AA	PROTECTIVE COVER, LH	JY53SE9A397AA PROTECTIVE COVER, LH	$234.25	1
70	JY53SE9A397BA	PROTECTIVE COVER, RH	JY53SE9A397BA PROTECTIVE COVER, RH	$328.50	1
80	JY53SEHS000002AA	SCREW, M6x12, PAN HEAD	JY53SEHS000002AA SCREW, M6x12, PAN HEAD	$5.37	2
90	JY53SEHS000017AA	SCREW, M6x16, TORX HEAD	JY53SEHS000017AA SCREW, M6x16, TORX HEAD	$14.87	8
100	JY53SE9F911AA	FUEL PIPE ASSEMBLY, LOWPRESSURE, LH	JY53SE9F911AA FUEL PIPE ASSEMBLY, LOWPRESSURE, LH Includes items 110,120	$1,477.69	1
110	JY53SE19D702AA	保護キャップ	JY53SE19D702AA 保護キャップ Schrader	$13.59	1
120	JY53SE9H321AA	PRESSURE RELEASE VALVE	JY53SE9H321AA PRESSURE RELEASE VALVE Schrader	$30.04	1
130	JY53SE9F911BA	FUEL PIPE ASSEMBLY, LOWPRESSURE, FRONT	JY53SE9F911BA FUEL PIPE ASSEMBLY, LOWPRESSURE, FRONT -> 22MY	$678.87	1
131	RY53SE9F911BA	FUEL PIPE ASSEMBLY, LOWPRESSURE, FRONT	RY53SE9F911BA FUEL PIPE ASSEMBLY, LOWPRESSURE, FRONT 23MY->	$726.08	1
140	JY53SE9F911CA	FUEL PIPE ASSEMBLY, LOWPRESSURE, RH	JY53SE9F911CA FUEL PIPE ASSEMBLY, LOWPRESSURE, RH -> 22MY	$678.87	1
141	RY53SE9F911CA	FUEL PIPE ASSEMBLY, LOWPRESSURE, RH	RY53SE9F911CA FUEL PIPE ASSEMBLY, LOWPRESSURE, RH 23MY->	$830.68	1
150	JY53SE9G886AA	FUEL PIPE ASSEMBLY, HIGHPRESSURE, LH	JY53SE9G886AA FUEL PIPE ASSEMBLY, HIGHPRESSURE, LH	$678.87	1
160	JY53SE9G886BA	FUEL PIPE ASSEMBLY, HIGHPRESSURE, RH	JY53SE9G886BA FUEL PIPE ASSEMBLY, HIGHPRESSURE, RH	$678.87	1
170	JY53SE9S441AA	フューエルレール、左側	JY53SE9S441AA フューエルレール、左側	$2,726.18	1
180	JY53SE9S441BA	フューエルレール、右側	JY53SE9S441BA フューエルレール、右側	$2,726.18	1
190	JY53SE9G756AA	SENSOR, PRESSURE &TEMPERATURE	JY53SE9G756AA SENSOR, PRESSURE &TEMPERATURE	$399.94	2
200	JY53SE9F593AB	FUEL INJECTOR & NOZZLE	JY53SE9F593AB FUEL INJECTOR & NOZZLE -> 21MY	$813.46	8
201	JY53SE9F593AC	FUEL INJECTOR & NOZZLE	JY53SE9F593AC FUEL INJECTOR & NOZZLE 21MY->	$709.86	8
205	JY53SE37H770AA	SEALS & SPRING KIT,INJECTOR	JY53SE37H770AA SEALS & SPRING KIT,INJECTOR Always Replace, NeverRe-Use	$155.47	8
210	JY53SEHS000017AA	SCREW, M6x16, TORX HEAD	JY53SEHS000017AA SCREW, M6x16, TORX HEAD	$14.87	16
220	JY53SE2L202CA	P CLIP, SINGLE	JY53SE2L202CA P CLIP, SINGLE	$39.99	8
221	JY53SE8287AA	P CLIP, DOUBLE	JY53SE8287AA P CLIP, DOUBLE	$18.61	2
230	JY53SEHS000048AA	SCREW, M6x16, PAN HEAD	JY53SEHS000048AA SCREW, M6x16, PAN HEAD	$5.37	15
240	JY53SE9D440AA	NVH, FUEL RAIL, LH	JY53SE9D440AA NVH, FUEL RAIL, LH -> VIN L10495	$201.41	1
241	MY63SE9D440AA	NVH, FUEL RAIL, LH	MY63SE9D440AA NVH, FUEL RAIL, LH VIN L10496->	$195.64	1
250	JY53SE9D440BA	NVH, FUEL RAIL, RH	JY53SE9D440BA NVH, FUEL RAIL, RH -> VIN L10495	$201.41	1
251	MY63SE9D440BA	NVH, FUEL RAIL, RH	MY63SE9D440BA NVH, FUEL RAIL, RH VIN L10496->	$195.64	1
260	JY53SE9D440CA	NVH, FUEL PUMP, RH	JY53SE9D440CA NVH, FUEL PUMP, RH -> VIN L10495	$201.41	1
261	MY63SE9D440CA	NVH, FUEL PUMP, RH	MY63SE9D440CA NVH, FUEL PUMP, RH VIN L10496->	$195.49	1
270	JY53SE9D440DA	NVH, FUEL PUMP, RH	JY53SE9D440DA NVH, FUEL PUMP, RH -> VIN L10495	$201.41	1
271	MY63SE9D440DA	NVH, FUEL PUMP, RH	MY63SE9D440DA NVH, FUEL PUMP, RH VIN L10496->	$195.64	1
