Coolant Reservoir & Hoses of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

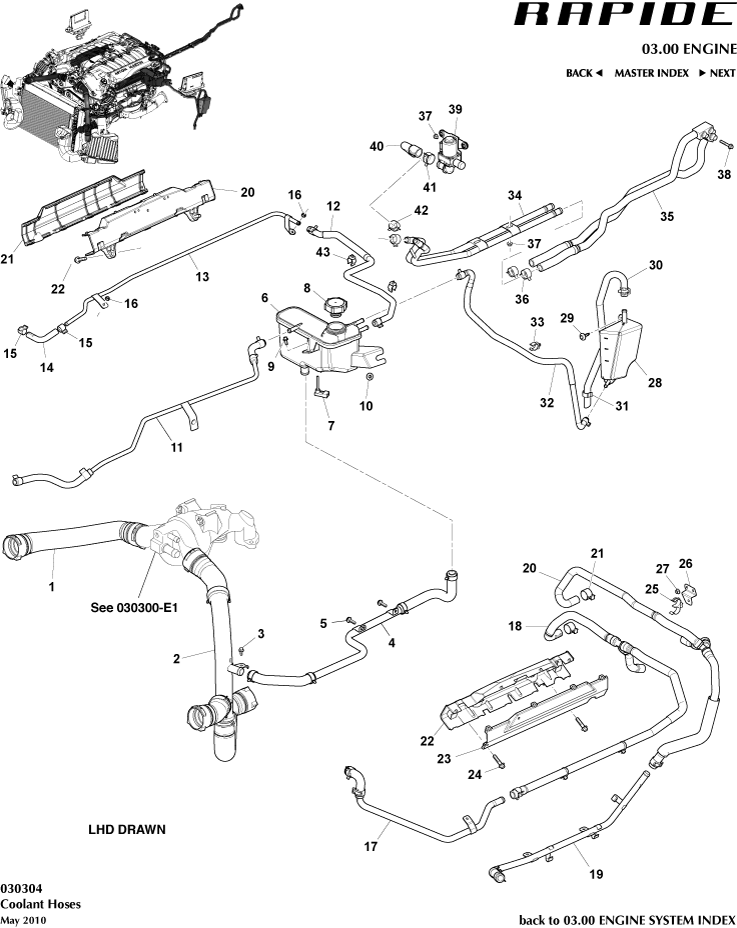

Aston Martin GT RAPIDE (2010-2019) - クーラントリザーバー＆ホース

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	AD4318D334BA	Hose, Water Heater Inlet assy, RHD	AD4318D334BA Hose, Water Heater Inlet assy, RHD RHD	$270.93	1
-	AD4318D359BA	Hose, Water Heater Outlet assy, RHD	AD4318D359BA Hose, Water Heater Outlet assy, RHD RHD	$281.21	1
-	AD4318D359CA	Hose, Heater Water Valve Inlet	AD4318D359CA Hose, Heater Water Valve Inlet RHD	$49.53	1
1	8D338333AA	トップホースアセンブリ	8D338333AA トップホースアセンブリ -	$117.88	1
2	8D338555AB	Tube assy, water bypass, incl hoses IN STOCK	8D338555AB Tube assy, water bypass, incl hoses - IN STOCK	$1,313.54	1
3	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd -	-	1	Enquire
4	4G438C350GA	ホース、エンジンクールリザーバ	4G438C350GA ホース、エンジンクールリザーバ -	-	1	Enquire
5	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd Hose, engine cool reservoir	-	2	Enquire
7	1R123710166	SENSOR, COOLANT LEVEL IN STOCK	1R123710166 SENSOR, COOLANT LEVEL - IN STOCK	$79.81	1
8	4G438101BA	キャップアセンブリ	4G438101BA キャップアセンブリ -	$108.65	1
9	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd Tank assy, expansion	-	1	Enquire
10	7036912	Nut and Washer M6	7036912 Nut and Washer M6 -	-	1	Enquire
11	4G438C363FB	Tube, radiator breather	4G438C363FB Tube, radiator breather -	-	1	Enquire
12	4G438063AE	HOSE ASSEMBLY, DEGAS	4G438063AE HOSE ASSEMBLY, DEGAS -	$90.02	1
13	4G438003EA	Pipe, Cross Over, Bleed	4G438003EA Pipe, Cross Over, Bleed -	-	1	Enquire
15	702904	Hose Clamp, Spring, 17x15 IN STOCK	702904 Hose Clamp, Spring, 17x15 - IN STOCK	$3.52	2
16	702295	Nut M5 Hex flng pc8 IN STOCK	702295 Nut M5 Hex flng pc8 Crossover Bleed Pipe IN STOCK	$0.18	2
17	4G438584DB	Tube, Assembly heater Feed	4G438584DB Tube, Assembly heater Feed Also use items 17a and 17b	$91.01	1
17a	ED238A209AA	ホース、サーモアッパー	ED238A209AA ホース、サーモアッパー Also use items 17 and 17b	$382.63	1
17b	702901	HOSE CLAMP, SPRING, 23x15	702901 HOSE CLAMP, SPRING, 23x15 Also use items 17 and 17a	$2.17	2
18	AD4318D334AA	Hose, Water Heater Inlet assy, LHD	AD4318D334AA Hose, Water Heater Inlet assy, LHD LHD	$301.09	1
19	4G4318674EB	Hose, Water Heater Outlet Assembly	4G4318674EB Hose, Water Heater Outlet Assembly -	-	1	Enquire
20	AD4318D359AA	Hose, Water Heater Outlet assy, LHD	AD4318D359AA Hose, Water Heater Outlet assy, LHD LHD	$372.00	1
21	701335	HOSR CLIP, SPRING, 20x15	701335 HOSR CLIP, SPRING, 20x15 -	$1.17	2
22	4G434867BC	HOSE COVER, LOWER	4G434867BC HOSE COVER, LOWER -	$19.94	2
23	4G436793BB	HOSE COVER, TOP	4G436793BB HOSE COVER, TOP -	$14.69	2
24	700229	Bolt, M8x35, Hex Flange Head	700229 Bolt, M8x35, Hex Flange Head -	$0.43	4
25	4G4358AA	PIPE CLIP, DOUBLE	4G4358AA PIPE CLIP, DOUBLE -	$23.26	1
26	AD432A155AA	Bracket, Hose Clip	AD432A155AA Bracket, Hose Clip -	$21.23	1
27	701345	Nut, flg, M6	701345 Nut, flg, M6 -	-	2	Enquire
28	6G33TBD2BA	Tank, overflow IN STOCK	6G33TBD2BA Tank, overflow - IN STOCK	$58.35	1
29	703734	BOLT/WASHER, M6x25	703734 BOLT/WASHER, M6x25 Overflow tank	$1.28	3
30	4G438N029AG	HOSE, OVERFLOW	4G438N029AG HOSE, OVERFLOW -	$26.80	1
31	AD4355AA	Clip, Raymond C 18	AD4355AA Clip, Raymond C 18 -	$1.69	1
32	AD438B081AA	Hose, Radiator Supply Tank Overflow	AD438B081AA Hose, Radiator Supply Tank Overflow -	$74.96	1
33	701181	Clip, Plastic IN STOCK	701181 Clip, Plastic - IN STOCK	$3.99	1
34	AD4318D359EA	Heater Pipe, Outlet and Inlet	AD4318D359EA Heater Pipe, Outlet and Inlet -	$247.92	1
35	AD4318D359DA	Pipe Assembly, Outlet and Inlet	AD4318D359DA Pipe Assembly, Outlet and Inlet -	$498.71	1
36	702901	HOSE CLAMP, SPRING, 23x15	702901 HOSE CLAMP, SPRING, 23x15 Rear Heater Pipe assy	$2.17	2
37	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg Rear Heater Pipe assy IN STOCK	$1.83	2
38	703198	BOLT, M6x40, HEX IN STOCK	703198 BOLT, M6x40, HEX Rear Heater Pipe assy IN STOCK	$0.79	1
39	AD4318495AA	Valve Assy, Heater Water Control	AD4318495AA Valve Assy, Heater Water Control -	$255.70	1
40	AD43-18D359-FA	Hose, Heater Water Valve Inlet	AD43-18D359-FA Hose, Heater Water Valve Inlet LHD	-	1	Enquire
43	701172	CLIP, 16.0x2.8-3.3 IN STOCK	701172 CLIP, 16.0x2.8-3.3 - IN STOCK	$0.79	2
