Aston Martin GT VANQUISH (2025- - フロントエンド

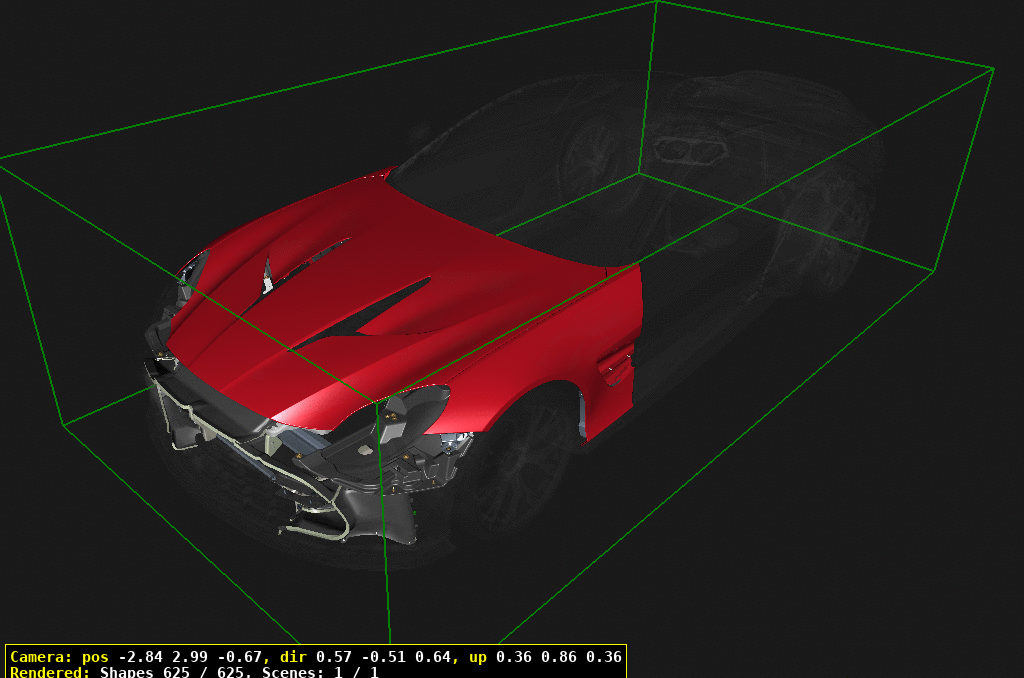

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	SY7Y8B411AC	SIDE PANEL, UPPER, LH	SY7Y8B411AC SIDE PANEL, UPPER, LH	$165.38	1
30	SY7Y8B410AD	SIDE PANEL, UPPER, RH	SY7Y8B410AD SIDE PANEL, UPPER, RH	$165.38	1
40	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	2
50	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	2
60	DD3343394AA	GROMMET, OD 17.5 ID 9.5	DD3343394AA GROMMET, OD 17.5 ID 9.5	$1.78	1
70	SY7Y018C23AA	BRAKE DUCT, REAR, LH	SY7Y018C23AA BRAKE DUCT, REAR, LH	$178.81	1
80	SY7Y018C22AA	BRAKE DUCT, REAR, RH	SY7Y018C22AA BRAKE DUCT, REAR, RH	$178.81	1
90	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	2
100	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	2
110	SY7Y8C465AA	DUCT, AUXILIARY RADIATOR,LH	SY7Y8C465AA DUCT, AUXILIARY RADIATOR,LH	$360.16	1
120	SY7Y8C464AA	DUCT, AUXILIARY RADIATOR,RH	SY7Y8C464AA DUCT, AUXILIARY RADIATOR,RH	$360.16	1
130	4G4317F773ABPK	Retainer, Bumper Grille	4G4317F773ABPK Retainer, Bumper Grille Pack of 10	$4.92	4
140	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	6
150	SY7Y018C21AA	BRAKE DUCT, FRONT, LH	SY7Y018C21AA BRAKE DUCT, FRONT, LH	$111.84	1
160	SY7Y018C20AA	BRAKE DUCT, FRONT, RH	SY7Y018C20AA BRAKE DUCT, FRONT, RH	$111.84	1
170	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	4
180	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	2
190	SY7Y8B413AA	SIDE PANEL, LOWER, LH	SY7Y8B413AA SIDE PANEL, LOWER, LH	$95.59	1
200	SY7Y8B412AA	SIDE PANEL, LOWER, RH	SY7Y8B412AA SIDE PANEL, LOWER, RH	$95.59	1
210	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	4
220	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	6
300	SY7Y403C52AB	PANEL, AIR VENT CENTRE,UPPER	SY7Y403C52AB PANEL, AIR VENT CENTRE,UPPER	$166.53	1
310	702839	Screw and Washer M6x20 hex	702839 Screw and Washer M6x20 hex	-	4	Enquire
320	SY7Y8211AB	PANEL, RADIATOR GRILLE,CENTRE	SY7Y8211AB PANEL, RADIATOR GRILLE,CENTRE	$370.25	1
330	702839	Screw and Washer M6x20 hex	702839 Screw and Washer M6x20 hex	-	4	Enquire
340	SY7YF01991AA	パネル、エアベント、左側	SY7YF01991AA パネル、エアベント、左側	$307.11	1
350	SY7YF01990AA	パネル、通気口、右側	SY7YF01990AA パネル、通気口、右側	$307.11	1
360	706890	BOLT/WASHER, M6x24	706890 BOLT/WASHER, M6x24	$1.35	2
370	HY538C252AC	サポート、ラジエーター	HY538C252AC サポート、ラジエーター	$20.78	2
380	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	8
390	SY7Y8243AB	PANEL, RADIATOR GRILLE,LH	SY7Y8243AB PANEL, RADIATOR GRILLE,LH	$293.98	1
400	SY7Y8242AB	PANEL, RADIATOR GRILLE,RH	SY7Y8242AB PANEL, RADIATOR GRILLE,RH	$293.98	1
410	SY7Y8052AA	SUPPORT, RADIATOR, LOWER	SY7Y8052AA SUPPORT, RADIATOR, LOWER Cat A	$511.11	1
420	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	12
430	RY73-2943751-AA	SUPPORT BEAM, LOWER	RY73-2943751-AA SUPPORT BEAM, LOWER	-	1	Enquire
440	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
500	SY7Y16006AE	WING ASSEMBLY, LH	SY7Y16006AE WING ASSEMBLY, LH	$7,686.25	1
510	SY7Y16005AE	WING ASSEMBLY, RH	SY7Y16005AE WING ASSEMBLY, RH	$7,686.25	1
520	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	12
530	HY53N800888AA	WASHER, 6ID x 18OD x1.5	HY53N800888AA WASHER, 6ID x 18OD x1.5	$0.18	2
540	703741	SCREW, M6x35, PAN TX	703741 SCREW, M6x35, PAN TX	$2.30	2
550	7G43143002AA	Nut, Grommet	7G43143002AA Nut, Grommet	$0.79	2
560	SY7Y13069AE	CARRIER, LH	SY7Y13069AE CARRIER, LH	$948.08	1
570	SY7Y13068AE	CARRIER, RH	SY7Y13068AE CARRIER, RH	$948.08	1
580	703198	BOLT, M6x40, HEX IN STOCK	703198 BOLT, M6x40, HEX IN STOCK	$0.79	6
590	706890	BOLT/WASHER, M6x24	706890 BOLT/WASHER, M6x24	$1.35	12
600	KY63E830821AA	WASHER, 25mm x 1.5	KY63E830821AA WASHER, 25mm x 1.5	$1.26	6
610	SY7Y14108AA	ウィジーナット	SY7Y14108AA ウィジーナット	$12.97	6
620	SY9Y10142AA	BOLT, M6x16	SY9Y10142AA BOLT, M6x16	$4.81	4
630	HY5319G465BA	BRACKET, WASHER BOTTLERETENTION	HY5319G465BA BRACKET, WASHER BOTTLERETENTION	$55.33	1
640	703149	ねじ M6X16 六角穴付き IN STOCK	703149 ねじ M6X16 六角穴付き IN STOCK	$1.28	1
650	SY7Y16A005AA	BRACKET, PILLAR MOUNTING	SY7Y16A005AA BRACKET, PILLAR MOUNTING	$37.40	1
660	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	2
670	RY5316N451AA	ブラケット、フロント	RY5316N451AA ブラケット、フロント	$36.13	4
680	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	8
690	RY5316A306AA	トランスファープレート	RY5316A306AA トランスファープレート	$30.70	6
700	7G43-25954-AC	SCREW/WASHER ASSEMBLY,M5x16	7G43-25954-AC SCREW/WASHER ASSEMBLY,M5x16	-	12	Enquire
710	RY5316F124AA	BRACKET, OUTER	RY5316F124AA BRACKET, OUTER	$22.56	2
720	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	4
730	SY7Y16A004AA	BRACKET, PILLAR MOUNTING	SY7Y16A004AA BRACKET, PILLAR MOUNTING	$37.40	1
740	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	2
750	SY7Y16N340AA	BRACKET, AIR PUMP	SY7Y16N340AA BRACKET, AIR PUMP	$37.29	1
760	706890	BOLT/WASHER, M6x24	706890 BOLT/WASHER, M6x24	$1.35	2
770	SY7Y16A006AC	BRACKET, PILLAR MOUNTING	SY7Y16A006AC BRACKET, PILLAR MOUNTING	$51.34	2
780	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	4
900	SY7Y16612AD	ボンネットアッセンブリー	SY7Y16612AD ボンネットアッセンブリー	$14,989.29	1
910	RY6316801AC	HINGE ASSEMBLY, LH	RY6316801AC HINGE ASSEMBLY, LH	$217.29	1
920	RY6316800AC	HINGE ASSEMBLY, RH	RY6316800AC HINGE ASSEMBLY, RH	$217.29	1
930	703120	Screw, flg, M8 x 25 IN STOCK	703120 Screw, flg, M8 x 25 IN STOCK	$22.08	6
940	AG4332692BA	WASHER, M8x25, BLACK	AG4332692BA WASHER, M8x25, BLACK	$1.46	6
950	703201	Screw, M8 x 30 Hex Head Flange IN STOCK	703201 Screw, M8 x 30 Hex Head Flange IN STOCK	$1.28	4
960	RY6316A832AA	SHIM, BONNET HINGE	RY6316A832AA SHIM, BONNET HINGE	$26.91	4
970	RY6316B874AA	ヒンジサポート	RY6316B874AA ヒンジサポート	$85.17	2
980	RY6316C826AB	ガススプリング	RY6316C826AB ガススプリング	$53.10	2
990	RY6318179AA	BRACKET, GAS STRUT, LH	RY6318179AA BRACKET, GAS STRUT, LH	$36.13	1
1000	RY6318178AA	BRACKET, GAS STRUT, RH	RY6318178AA BRACKET, GAS STRUT, RH	$36.13	1
1010	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	4
1020	91AB16C618AA	BUMPSTOP ASSEMBLY	91AB16C618AA BUMPSTOP ASSEMBLY	$1.90	2
1030	MY63J611V46AA	BRACKET, BUMPSTOP	MY63J611V46AA BRACKET, BUMPSTOP	$10.83	2
1040	707515	SCREW, M5x16, PAN TX,BLACK	707515 SCREW, M5x16, PAN TX,BLACK	$4.94	4
1050	4G4316K808AB	Support Assembly IN STOCK	4G4316K808AB Support Assembly IN STOCK	$5.21	2
1060	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg IN STOCK	$1.83	2
1070	KY63FCZU00001AA	BUMPSTOP	KY63FCZU00001AA BUMPSTOP	$9.56	2
