Bumpers of Aston Martin Aston Martin GT VANQUISH (2025-

すべて見る

Aston Martin GT VANQUISH (2025- - バンパー

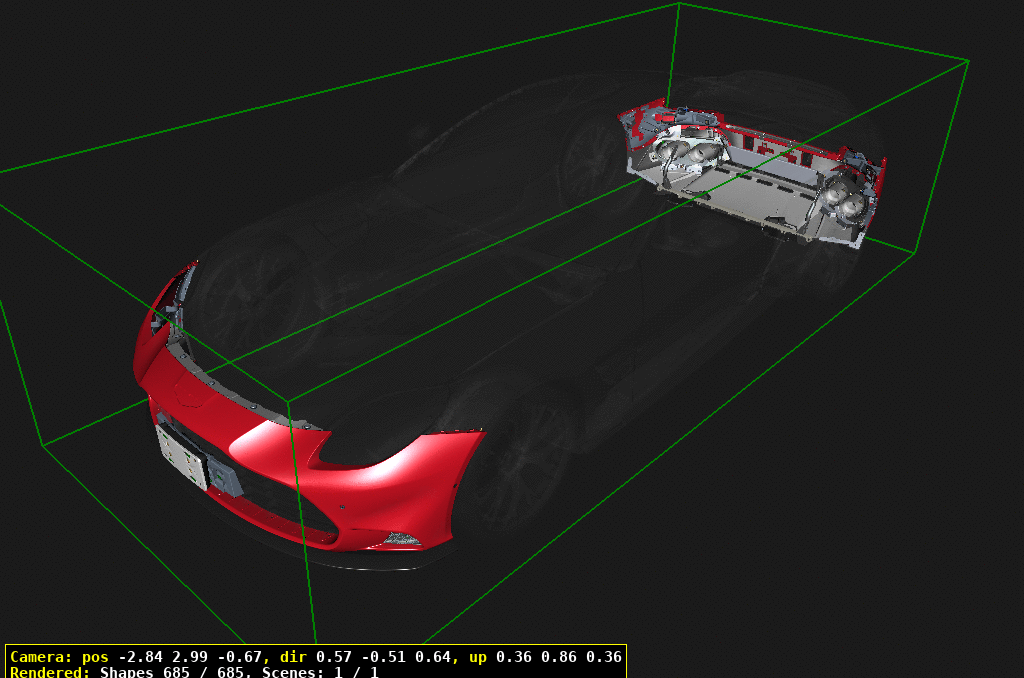

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	SY7Y17D957AB	フロントバンパーアッセンブリー	SY7Y17D957AB フロントバンパーアッセンブリー RoW	$2,883.73	1
21	SY7Y17D957BB	フロントバンパーアッセンブリー	SY7Y17D957BB フロントバンパーアッセンブリー Federal	$2,883.73	1
30	SY7Y17626AA	フロントスプリッター	SY7Y17626AA フロントスプリッター Gloss Black	$1,329.73	1
31	SY7Y17626BA	フロントスプリッター	SY7Y17626BA フロントスプリッター Gloss Carbon	$5,137.76	1
32	SY7Y17626CA	フロントスプリッター	SY7Y17626CA フロントスプリッター Satin Carbon	$5,409.59	1
33	SY7Y17626DA	フロントスプリッター	SY7Y17626DA フロントスプリッター Black Tint Carbon	$5,284.74	1
40	SY7Y018B71AB	DUCT, BUMPER SIDE, LH	SY7Y018B71AB DUCT, BUMPER SIDE, LH	$81.88	1
50	SY7Y018B70AB	DUCT, BUMPER SIDE, RH	SY7Y018B70AB DUCT, BUMPER SIDE, RH	$81.88	1
60	SY7Y8157AA	メッシュ、フロントバンパー、左側	SY7Y8157AA メッシュ、フロントバンパー、左側	$273.81	1
70	SY7Y8156AA	メッシュ、フロントバンパー、右側	SY7Y8156AA メッシュ、フロントバンパー、右側	$273.81	1
80	RY53MA046AAA	BEZEL, CAMERA, FRONT	RY53MA046AAA BEZEL, CAMERA, FRONT	$85.60	1
90	RY6319J219AA	BRACKET, CAMERA, FRONT	RY6319J219AA BRACKET, CAMERA, FRONT	$80.41	1
100	SY7Y16G032AA	フォームブロック	SY7Y16G032AA フォームブロック	$29.23	2
110	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	5
120	7G43-25954-AC	SCREW/WASHER ASSEMBLY,M5x16	7G43-25954-AC SCREW/WASHER ASSEMBLY,M5x16	-	8	Enquire
130	HY53N623361AA	U CLIP, DECKLID, LOWER	HY53N623361AA U CLIP, DECKLID, LOWER	$1.76	8
140	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	1
150	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	1
160	FD43E830667AB	WASHER, 25mm O/D x 6.4mmI/Dx 1.5	FD43E830667AB WASHER, 25mm O/D x 6.4mmI/Dx 1.5	$0.72	5
180	RY5317F773AA	リテーナークリップ	RY5317F773AA リテーナークリップ For Carbon Splitters only	$0.99	12
190	HY5388276AC	バス	HY5388276AC バス	$2.10	1
200	SY7Y17K835AA	COVER ASSEMBLY, REARBUMPER	SY7Y17K835AA COVER ASSEMBLY, REARBUMPER RoW	$2,703.61	1
201	SY7Y17K835BA	COVER ASSEMBLY, REARBUMPER	SY7Y17K835BA COVER ASSEMBLY, REARBUMPER Federal (Illustrated)	$2,650.61	1
202	SY7Y17K835CA	COVER ASSEMBLY, REARBUMPER	SY7Y17K835CA COVER ASSEMBLY, REARBUMPER China	$2,650.61	1
210	SY7Y17C870AB	DUCT, DIFFUSER, CENTRE	SY7Y17C870AB DUCT, DIFFUSER, CENTRE Gloss Black	$6,065.76	1
211	SY7Y17C870BB	DUCT, DIFFUSER, CENTRE	SY7Y17C870BB DUCT, DIFFUSER, CENTRE Gloss Carbon	$7,474.81	1
212	SY7Y17C870CB	DUCT, DIFFUSER, CENTRE	SY7Y17C870CB DUCT, DIFFUSER, CENTRE Satin Carbon	$7,669.07	1
213	SY7Y17C870DB	DUCT, DIFFUSER, CENTRE	SY7Y17C870DB DUCT, DIFFUSER, CENTRE Black Tinted Gloss Carbon	$7,874.53	1
220	SY7Y17E955AD	DIFFUSER, REAR BUMPER	SY7Y17E955AD DIFFUSER, REAR BUMPER Gloss Black	$13,492.97	1
221	SY7Y17E955BD	DIFFUSER, REAR BUMPER	SY7Y17E955BD DIFFUSER, REAR BUMPER Gloss Carbon	$12,848.17	1
222	SY7Y17E955CD	DIFFUSER, REAR BUMPER	SY7Y17E955CD DIFFUSER, REAR BUMPER Satin Carbon	$13,120.82	1
223	SY7Y17E955DD	DIFFUSER, REAR BUMPER	SY7Y17E955DD DIFFUSER, REAR BUMPER Black Tinted Gloss Carbon	$13,090.72	1
230	KY7317E968AC	BRACKET, DIFFUSER, CENTRE	KY7317E968AC BRACKET, DIFFUSER, CENTRE	$822.16	1
240	KY7317C815AC	BRACKET, DIFFUSER, LH	KY7317C815AC BRACKET, DIFFUSER, LH	$158.87	1
250	KY7317C814AC	BRACKET, DIFFUSER, RH	KY7317C814AC BRACKET, DIFFUSER, RH	$158.87	1
260	RY53278G14AA	BRACKET, RADAR, FRONT	RY53278G14AA BRACKET, RADAR, FRONT	$84.52	2
270	SY7Y01949AC	MESH, REAR BUMPER, LH	SY7Y01949AC MESH, REAR BUMPER, LH	$412.25	1
280	SY7Y01948AC	MESH, REAR BUMPER, RH	SY7Y01948AC MESH, REAR BUMPER, RH	$412.25	1
290	SY7Y17A826AA	BRACKET, DIFFUSER SUPPORT	SY7Y17A826AA BRACKET, DIFFUSER SUPPORT	$48.84	2
300	SY7Y5K239AC	FINISHER, TAILPIPE, LH	SY7Y5K239AC FINISHER, TAILPIPE, LH Bright	$291.39	2
301	SY7Y5K239CB	FINISHER, TAILPIPE, LH	SY7Y5K239CB FINISHER, TAILPIPE, LH Gloss Black	$294.09	2
302	SY7Y5K239EB	FINISHER, TAILPIPE, LH	SY7Y5K239EB FINISHER, TAILPIPE, LH Matt Black	$292.69	2
310	SY7Y5K238AB	FINISHER, TAILPIPE, RH	SY7Y5K238AB FINISHER, TAILPIPE, RH Bright	$291.30	2
311	SY7Y5K238CB	FINISHER, TAILPIPE, RH	SY7Y5K238CB FINISHER, TAILPIPE, RH Gloss Black	$294.09	2
312	SY7Y5K238EB	FINISHER, TAILPIPE, RH	SY7Y5K238EB FINISHER, TAILPIPE, RH Matt Black	$292.69	2
320	704327	ナットおよびワッシャ	704327 ナットおよびワッシャ	$5.43	8
330	HY535B282AA	WASHER, EXHAUSTINSULATION	HY535B282AA WASHER, EXHAUSTINSULATION	$0.29	16
340	SY7YF17B681AC	BRACKET, CENTRE, REARBUMPER	SY7YF17B681AC BRACKET, CENTRE, REARBUMPER	$144.34	1
350	6G3351756AA	Screw, M5 x 13 Pan Head	6G3351756AA Screw, M5 x 13 Pan Head	-	4	Enquire
360	SY7Y17A899AB	SCOOP, DIFFUSER, LH	SY7Y17A899AB SCOOP, DIFFUSER, LH	$103.36	1
370	SY7Y17A898AB	SCOOP, DIFFUSER, RH	SY7Y17A898AB SCOOP, DIFFUSER, RH	$103.36	1
380	703742	Fastener, 6.5 x 6, Push In IN STOCK	703742 Fastener, 6.5 x 6, Push In IN STOCK	$0.41	12
390	7G43-25954-AC	SCREW/WASHER ASSEMBLY,M5x16	7G43-25954-AC SCREW/WASHER ASSEMBLY,M5x16	-	8	Enquire
400	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	38
410	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	38
420	703152	Screw and washer, M6 x 20	703152 Screw and washer, M6 x 20	-	4	Enquire
430	700606	SCREW, M6x12, HEX HD IN STOCK	700606 SCREW, M6x12, HEX HD IN STOCK	$0.34	12
440	FD43E830667AB	WASHER, 25mm O/D x 6.4mmI/Dx 1.5	FD43E830667AB WASHER, 25mm O/D x 6.4mmI/Dx 1.5	$0.72	6
450	4G4313520AB	FIXING SEAL, ADJUSTER IN STOCK	4G4313520AB FIXING SEAL, ADJUSTER IN STOCK	$4.33	6
460	700607	Screw M6x20 Hex Flng Hd	700607 Screw M6x20 Hex Flng Hd	$0.31	4
470	707614	BOLT, M4x14, PAN HD	707614 BOLT, M4x14, PAN HD	$3.36	8
480	702295	Nut M5 Hex flng pc8 IN STOCK	702295 Nut M5 Hex flng pc8 IN STOCK	$0.18	2
490	HY53N800888AA	WASHER, 6ID x 18OD x1.5	HY53N800888AA WASHER, 6ID x 18OD x1.5	$0.18	4
500	703198	BOLT, M6x40, HEX IN STOCK	703198 BOLT, M6x40, HEX IN STOCK	$0.79	6
510	707515	SCREW, M5x16, PAN TX,BLACK	707515 SCREW, M5x16, PAN TX,BLACK	$4.94	2
520	DD330816AA	SCREW, M4X20, PATCH LOCK	DD330816AA SCREW, M4X20, PATCH LOCK Fog Lamp to Rear Bumper	$1.31	2
530	699123	SCREW, 4.2x16, CSK IN STOCK	699123 SCREW, 4.2x16, CSK IN STOCK	$0.63	2
540	SY7Y17C910AA	COVER, OVERRIDER, LH	SY7Y17C910AA COVER, OVERRIDER, LH Federal	$290.78	1
550	SY7Y17C911AA	COVER, OVERRIDER, RH	SY7Y17C911AA COVER, OVERRIDER, RH Federal	$290.78	1
560	1X43-17D843-AB	RETAINER, OVERRIDER	1X43-17D843-AB RETAINER, OVERRIDER Federal	-	2	Enquire
570	HY53E603123AA	SCREW, 4x12, TORX HD	HY53E603123AA SCREW, 4x12, TORX HD Federal	$0.75	4
580	SY7Y10140AA	HEATSHIELD, CENTRE	SY7Y10140AA HEATSHIELD, CENTRE	$171.02	1
590	SY7Y17G953AA	HEATSHIELD, PDC, LH	SY7Y17G953AA HEATSHIELD, PDC, LH	$104.59	1
600	SY7Y17G952AA	HEATSHIELD, PDC, RH	SY7Y17G952AA HEATSHIELD, PDC, RH	$104.59	1
700	SY7Y17A835AB	PLINTH, LICENCE PLATE	SY7Y17A835AB PLINTH, LICENCE PLATE RoW	$166.36	1
710	707163	SCREW, 4.8x25, TORX XS/C	707163 SCREW, 4.8x25, TORX XS/C	$0.81	2
720	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	2
730	8G438979BA	WASHER, M5x20x1.5THK,ST/STEEL	8G438979BA WASHER, M5x20x1.5THK,ST/STEEL	$0.45	2
740	KY7317A835BA	PLINTH, LICENCE PLATE	KY7317A835BA PLINTH, LICENCE PLATE Federal	$234.43	1
750	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	4
760	6G430516BBA	Screw, M6 IN STOCK	6G430516BBA Screw, M6 IN STOCK	$5.77	6
770	RY5317A835CA	PLINTH, LICENCE PLATE	RY5317A835CA PLINTH, LICENCE PLATE Swiss, GCC	$198.82	1
780	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	2
790	707163	SCREW, 4.8x25, TORX XS/C	707163 SCREW, 4.8x25, TORX XS/C	$0.81	2
800	RY5317A835DA	PLINTH, LICENCE PLATE	RY5317A835DA PLINTH, LICENCE PLATE China	$198.82	1
810	707163	SCREW, 4.8x25, TORX XS/C	707163 SCREW, 4.8x25, TORX XS/C	$0.81	2
820	RY5317A835EA	PLINTH, LICENCE PLATE	RY5317A835EA PLINTH, LICENCE PLATE Japan	$198.82	1
830	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	2
840	707163	SCREW, 4.8x25, TORX XS/C	707163 SCREW, 4.8x25, TORX XS/C	$0.81	2
900	6G3317B389AE	BRACKET, LICENCE PLATE	6G3317B389AE BRACKET, LICENCE PLATE Federal, Swiss	$51.32	1
910	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	6
920	707629	SCREW, SELF TAP, 4.8x19	707629 SCREW, SELF TAP, 4.8x19	$0.29	2
930	CD3317B389DD	BRACKET, LICENCE PLATE	CD3317B389DD BRACKET, LICENCE PLATE China	$60.54	1
940	707629	SCREW, SELF TAP, 4.8x19	707629 SCREW, SELF TAP, 4.8x19	$0.29	2
950	AD4313418BA	Bracket assy, licence plate	AD4313418BA Bracket assy, licence plate	$95.21	2
960	702943	Rivet, 3.2x6.5, Blind Aluminium	702943 Rivet, 3.2x6.5, Blind Aluminium	$0.07	4
