Aston Martin GT VANQUISH (2025- - Interior Trim - Rear Cabin

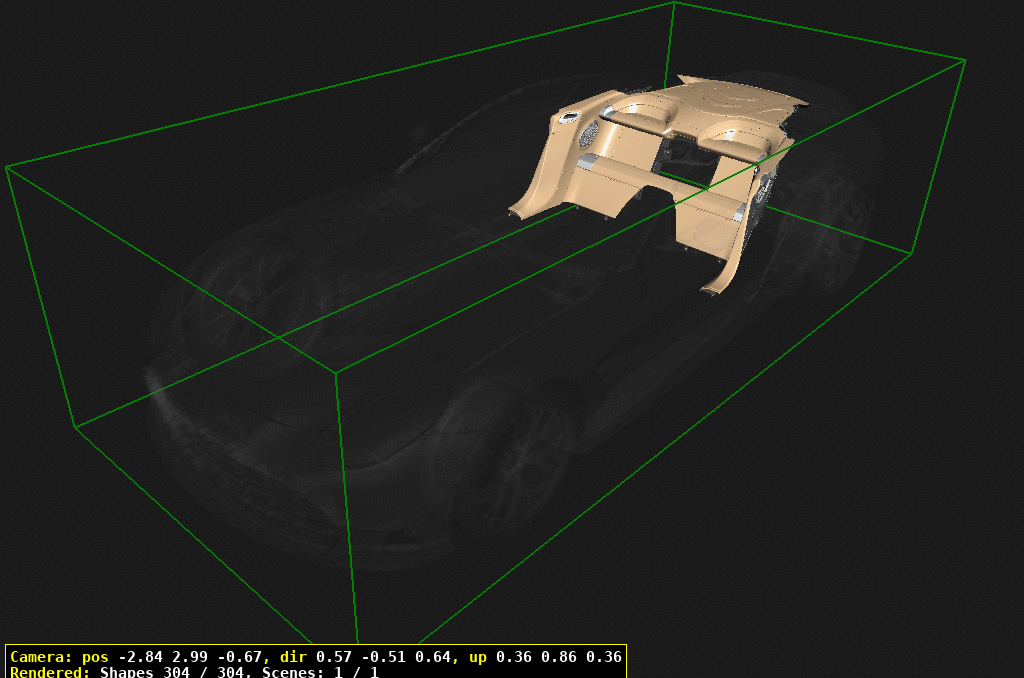

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	SY7Y312A33ECW	TRIM PANEL, BODY SIDE, LH	SY7Y312A33ECW TRIM PANEL, BODY SIDE, LH Includes items 40-70	$1,785.67	1
30	SY7Y312A32ECW	TRIM PANEL, BODY SIDE, RH	SY7Y312A32ECW TRIM PANEL, BODY SIDE, RH Includes items 40-70	$1,742.11	1
40	RY5318978AA	GRILLE, SPEAKER	RY5318978AA GRILLE, SPEAKER Silver	$143.96	2
41	RY5318978BA	GRILLE, SPEAKER	RY5318978BA GRILLE, SPEAKER Dark Chrome	$638.46	2
50	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 Included with SpeakerGrille IN STOCK	$4.49	6
60	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	4
70	700606	SCREW, M6x12, HEX HD IN STOCK	700606 SCREW, M6x12, HEX HD IN STOCK	$0.34	4
80	703752	Bolt and washer, M6x14	703752 Bolt and washer, M6x14	$1.42	6
90	703076	Screw, M4 x 20 csk skt	703076 Screw, M4 x 20 csk skt	$0.20	4
100	HY53611B93AA	BEZEL, SEATBELT, LH	HY53611B93AA BEZEL, SEATBELT, LH Satin Silver	$230.78	1
101	HY53611B93BA	BEZEL, SEATBELT, LH	HY53611B93BA BEZEL, SEATBELT, LH Dark Chrome	$522.82	1
102	HY53611B93TA	BEZEL, SEATBELT, LH	HY53611B93TA BEZEL, SEATBELT, LH Titanium	$609.86	1
110	HY53611B92CA	BEZEL, SEATBELT, RH	HY53611B92CA BEZEL, SEATBELT, RH Satin Silver	$338.35	1
111	HY53611B92FA	BEZEL, SEATBELT, RH	HY53611B92FA BEZEL, SEATBELT, RH Dark Chrome	$259.70	1
112	HY53611B92TA	BEZEL, SEATBELT, RH	HY53611B92TA BEZEL, SEATBELT, RH Titanium	$609.86	1
120	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	2
200	SY7Y-674A09-ABW	フィニッシャー、リアキャビン	SY7Y-674A09-ABW フィニッシャー、リアキャビン Leather	-	1	Enquire
201	SY7Y-674A09-CA	フィニッシャー、リアキャビン	SY7Y-674A09-CA フィニッシャー、リアキャビン Carbon	-	1	Enquire
202	SY7Y-674A09-DA	フィニッシャー、リアキャビン	SY7Y-674A09-DA フィニッシャー、リアキャビン Carbon, Silver Fibres	-	1	Enquire
203	SY7Y-674A09-EA	フィニッシャー、リアキャビン	SY7Y-674A09-EA フィニッシャー、リアキャビン Carbon, Copper Fibres	-	1	Enquire
204	SY7Y-674A09-FA	フィニッシャー、リアキャビン	SY7Y-674A09-FA フィニッシャー、リアキャビン Carbon, Gold Fibres	-	1	Enquire
210	SY7Y-N20A63-ECW	FINISHER, REAR CABIN,UPPER, LH	SY7Y-N20A63-ECW FINISHER, REAR CABIN,UPPER, LH Semi Aniline	-	1	Enquire
211	SY7Y-N20A63-SCW	FINISHER, REAR CABIN,UPPER, LH	SY7Y-N20A63-SCW FINISHER, REAR CABIN,UPPER, LH Split Leather	-	1	Enquire
220	SY7Y-N20A62-ECW	FINISHER, REAR CABIN,UPPER, RH	SY7Y-N20A62-ECW FINISHER, REAR CABIN,UPPER, RH Semi Aniline	-	1	Enquire
221	SY7Y-N20A62-SCW	FINISHER, REAR CABIN,UPPER, RH	SY7Y-N20A62-SCW FINISHER, REAR CABIN,UPPER, RH Split Leather	-	1	Enquire
230	SY7Y-04748-EBW	TOP TRIM ASSEMBLY, CENTRE	SY7Y-04748-EBW TOP TRIM ASSEMBLY, CENTRE Semi Aniline	-	1	Enquire
231	SY7Y-04748-SBW	TOP TRIM ASSEMBLY, CENTRE	SY7Y-04748-SBW TOP TRIM ASSEMBLY, CENTRE Split Leather	-	1	Enquire
240	SY7Y-11767-EAW	PANEL ASSEMBLY, STOWAGE,LH	SY7Y-11767-EAW PANEL ASSEMBLY, STOWAGE,LH	-	1	Enquire
250	SY7Y-11766-EAW	PANEL ASSEMBLY, STOWAGE,RH	SY7Y-11766-EAW PANEL ASSEMBLY, STOWAGE,RH	-	1	Enquire
260	SY7Y29061AA	FINISHER, LOWER, LH	SY7Y29061AA FINISHER, LOWER, LH Satin Silver	$232.88	1
261	SY7Y29061BA	FINISHER, LOWER, LH	SY7Y29061BA FINISHER, LOWER, LH Dark Chrome	$391.15	1
262	SY7Y-29061-CB	FINISHER, LOWER, LH	SY7Y-29061-CB FINISHER, LOWER, LH Titanium	-	1	Enquire
270	SY7Y29060AA	FINISHER, LOWER, RH	SY7Y29060AA FINISHER, LOWER, RH Satin Silver	$232.88	1
271	SY7Y29060BA	FINISHER, LOWER, RH	SY7Y29060BA FINISHER, LOWER, RH Dark Chrome	$381.61	1
272	SY7Y-29060-CB	FINISHER, LOWER, RH	SY7Y-29060-CB FINISHER, LOWER, RH Titanium	-	1	Enquire
280	SY7Y29063AA	FINISHER, UPPER, LH	SY7Y29063AA FINISHER, UPPER, LH Satin Silver	$319.54	1
281	SY7Y29063BA	FINISHER, UPPER, LH	SY7Y29063BA FINISHER, UPPER, LH Dark Chrome	$515.19	1
282	SY7Y-29063-CB	FINISHER, UPPER, LH	SY7Y-29063-CB FINISHER, UPPER, LH Titanium	-	1	Enquire
290	SY7Y29062AA	FINISHER, UPPER, RH	SY7Y29062AA FINISHER, UPPER, RH Satin Silver	$319.54	1
291	SY7Y29062BA	FINISHER, UPPER, RH	SY7Y29062BA FINISHER, UPPER, RH Dark Chrome	$528.07	1
292	SY7Y-29062-CB	FINISHER, UPPER, RH	SY7Y-29062-CB FINISHER, UPPER, RH Titanium	-	1	Enquire
300	SY7Y-11769-EDW	PANEL ASSEMBLY, STOWAGESHELF, UPPER, LH	SY7Y-11769-EDW PANEL ASSEMBLY, STOWAGESHELF, UPPER, LH Semi Aniline	-	1	Enquire
301	SY7Y-11769-SDW	PANEL ASSEMBLY, STOWAGESHELF, UPPER, LH	SY7Y-11769-SDW PANEL ASSEMBLY, STOWAGESHELF, UPPER, LH Split Leather	-	1	Enquire
310	SY7Y-11768-EDW	PANEL ASSEMBLY, STOWAGESHELF, UPPER, LH	SY7Y-11768-EDW PANEL ASSEMBLY, STOWAGESHELF, UPPER, LH Semi Aniline	-	1	Enquire
311	SY7Y-11768-SDW	PANEL ASSEMBLY, STOWAGESHELF, UPPER, LH	SY7Y-11768-SDW PANEL ASSEMBLY, STOWAGESHELF, UPPER, LH Split Leather	-	1	Enquire
320	SY7Y63151AA	BRACKET, LOWER SUPPORT	SY7Y63151AA BRACKET, LOWER SUPPORT	$66.38	2
330	SY7Y-60029-EAW	TRIM ASSEMBLY, REARBULKHEAD, LH	SY7Y-60029-EAW TRIM ASSEMBLY, REARBULKHEAD, LH Semi Aniline	-	1	Enquire
331	SY7Y-60029-SAW	TRIM ASSEMBLY, REARBULKHEAD, LH	SY7Y-60029-SAW TRIM ASSEMBLY, REARBULKHEAD, LH Split Leather	-	1	Enquire
340	SY7Y-60028-EAW	TRIM ASSEMBLY, REARBULKHEAD, RH	SY7Y-60028-EAW TRIM ASSEMBLY, REARBULKHEAD, RH Semi Aniline	-	1	Enquire
341	SY7Y-60028-SAW	TRIM ASSEMBLY, REARBULKHEAD, RH	SY7Y-60028-SAW TRIM ASSEMBLY, REARBULKHEAD, RH Split Leather	-	1	Enquire
350	SY7Y-63847-EBW	SEAT BACK, LOWER, LH	SY7Y-63847-EBW SEAT BACK, LOWER, LH	-	1	Enquire
351	SY7Y-63846-EBW	SEAT BACK, LOWER, RH	SY7Y-63846-EBW SEAT BACK, LOWER, RH	-	1	Enquire
360	S7Y7-C044F06-EAW	FINISHER, REAR CABIN,LOWER	S7Y7-C044F06-EAW FINISHER, REAR CABIN,LOWER Semi Aniline	-	1	Enquire
361	S7Y7-C044F06-SAW	FINISHER, REAR CABIN,LOWER	S7Y7-C044F06-SAW FINISHER, REAR CABIN,LOWER Split Leather	-	1	Enquire
370	SY7Y-310A65-DBW	TRIM PANEL, LOWER, LH	SY7Y-310A65-DBW TRIM PANEL, LOWER, LH Alcantara	-	1	Enquire
371	SY7Y-310A65-ECW	TRIM PANEL, LOWER, LH	SY7Y-310A65-ECW TRIM PANEL, LOWER, LH Semi Aniline	-	1	Enquire
372	SY7Y-310A65-SBW	TRIM PANEL, LOWER, LH	SY7Y-310A65-SBW TRIM PANEL, LOWER, LH Split Leather	-	1	Enquire
380	SY7Y-310A64-DBW	TRIM PANEL, LOWER, RH	SY7Y-310A64-DBW TRIM PANEL, LOWER, RH Alcantara	-	1	Enquire
381	SY7Y-310A64-ECW	TRIM PANEL, LOWER, RH	SY7Y-310A64-ECW TRIM PANEL, LOWER, RH Semi Aniline	-	1	Enquire
382	SY7Y-310A64-SBW	TRIM PANEL, LOWER, RH	SY7Y-310A64-SBW TRIM PANEL, LOWER, RH Split Leather	-	1	Enquire
400	SY7Y-600E69-EBW	TRIM STRAP ASSEMBLY, LH	SY7Y-600E69-EBW TRIM STRAP ASSEMBLY, LH	-	1	Enquire
410	SY7Y-600E68-EBW	TRIM STRAP ASSEMBLY, RH	SY7Y-600E68-EBW TRIM STRAP ASSEMBLY, RH	-	1	Enquire
420	SY7Y-61069-EAW	STOWAGE SHELF ASSEMBLY,LH	SY7Y-61069-EAW STOWAGE SHELF ASSEMBLY,LH Semi Aniline	-	1	Enquire
421	SY7Y-61069-SAW	STOWAGE SHELF ASSEMBLY,LH	SY7Y-61069-SAW STOWAGE SHELF ASSEMBLY,LH Split Leather	-	1	Enquire
430	SY7Y-61068-EAW	STOWAGE SHELF ASSEMBLY,RH	SY7Y-61068-EAW STOWAGE SHELF ASSEMBLY,RH Semi Aniline	-	1	Enquire
431	SY7Y-61068-SAW	STOWAGE SHELF ASSEMBLY,RH	SY7Y-61068-SAW STOWAGE SHELF ASSEMBLY,RH Split Leather	-	1	Enquire
440	SY7Y46180AA	ブラケット、アッパー	SY7Y46180AA ブラケット、アッパー	$51.16	1
450	SY7Y-04463-EAW	COVER, CENTRE, LOWER	SY7Y-04463-EAW COVER, CENTRE, LOWER Semi Aniline	-	1	Enquire
451	SY7Y-04463-SAW	COVER, CENTRE, LOWER	SY7Y-04463-SAW COVER, CENTRE, LOWER Split Leather	-	1	Enquire
460	SY7Y-31011-EAW	INFILL ASSEMBLY, LOWER,LH	SY7Y-31011-EAW INFILL ASSEMBLY, LOWER,LH Semi Aniline	-	1	Enquire
461	SY7Y-31011-SAW	INFILL ASSEMBLY, LOWER,LH	SY7Y-31011-SAW INFILL ASSEMBLY, LOWER,LH Split Leather	-	1	Enquire
470	SY7Y-31010-EAW	INFILL ASSEMBLY, LOWER,RH	SY7Y-31010-EAW INFILL ASSEMBLY, LOWER,RH Semi Aniline	-	1	Enquire
471	SY7Y-31010-SAW	INFILL ASSEMBLY, LOWER,RH	SY7Y-31010-SAW INFILL ASSEMBLY, LOWER,RH Split Leather	-	1	Enquire
480	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	10
490	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	12
500	700606	SCREW, M6x12, HEX HD IN STOCK	700606 SCREW, M6x12, HEX HD IN STOCK	$0.34	2
520	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX	$0.25	8
530	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	4
540	4G4380899AA	ネジ、M4X5MM IN STOCK	4G4380899AA ネジ、M4X5MM IN STOCK	$0.27	4
700	SY7Y-46668-EAW	PACKAGE TRAY ASSEMBLY	SY7Y-46668-EAW PACKAGE TRAY ASSEMBLY Semi Aniline	-	1	Enquire
701	SY7Y-46668-DAW	PACKAGE TRAY ASSEMBLY	SY7Y-46668-DAW PACKAGE TRAY ASSEMBLY Alcantara	-	1	Enquire
702	SY7Y-46668-SAW	PACKAGE TRAY ASSEMBLY	SY7Y-46668-SAW PACKAGE TRAY ASSEMBLY Split Leather	-	1	Enquire
710	7G43-25954-AC	SCREW/WASHER ASSEMBLY,M5x16	7G43-25954-AC SCREW/WASHER ASSEMBLY,M5x16	-	2	Enquire
720	703752	Bolt and washer, M6x14	703752 Bolt and washer, M6x14	$1.42	2
730	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	2	Enquire
740	NY53666B22EAW	TETHER COVER ASSEMBLY	NY53666B22EAW TETHER COVER ASSEMBLY Semi Aniline	$685.86	2
741	NY53-666B22-DA	TETHER COVER ASSEMBLY	NY53-666B22-DA TETHER COVER ASSEMBLY Alcantara	-	2	Enquire
750	HY5346813ABW	PACKAGE TRAY, REAR, LH	HY5346813ABW PACKAGE TRAY, REAR, LH	$1,224.98	1
760	HY5346812ABW	PACKAGE TRAY, REAR, RH	HY5346812ABW PACKAGE TRAY, REAR, RH	$1,224.98	1
780	7G43C2437AAW	Tape, Anti squeak	7G43C2437AAW Tape, Anti squeak Cut from Roll	$145.29	2
790	AG4346660BA	FOAM BLOCK, 27x20x20mm	AG4346660BA FOAM BLOCK, 27x20x20mm	$0.45	2
