Aston Martin GT VANQUISH (2025- - センター・コンソール

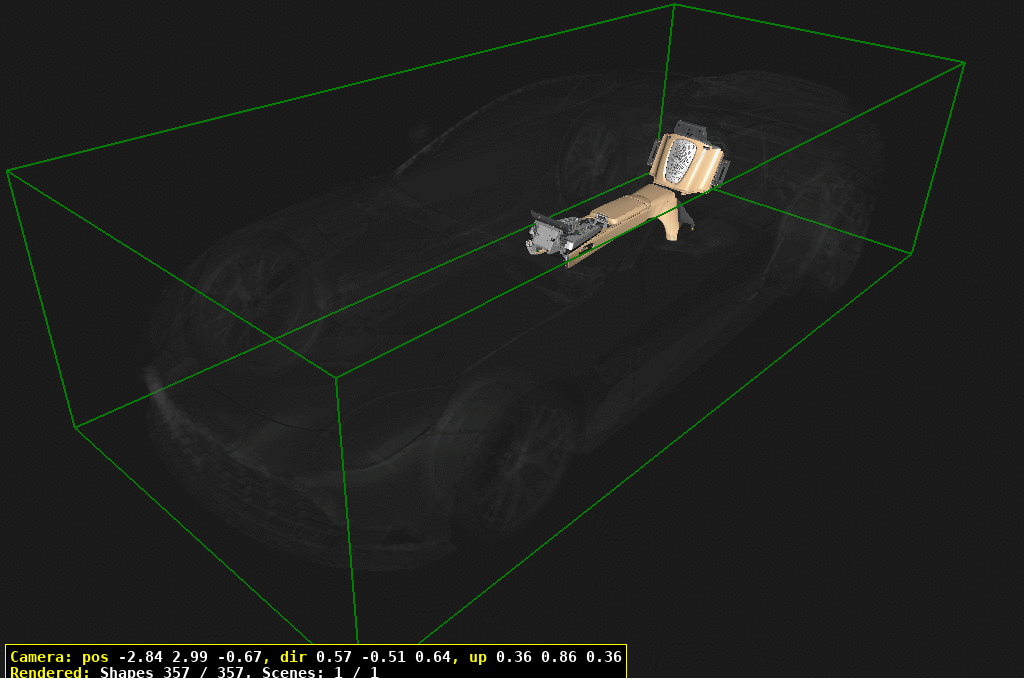

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	SY7Y-045C31-AAW	SIDE PANEL ASSEMBLY,CONSOLE, LH	SY7Y-045C31-AAW SIDE PANEL ASSEMBLY,CONSOLE, LH Semi Aniline	-	1	Enquire
21	SY7Y-045C31-FAW	SIDE PANEL ASSEMBLY,CONSOLE, LH	SY7Y-045C31-FAW SIDE PANEL ASSEMBLY,CONSOLE, LH Lightweight Semi Aniline	-	1	Enquire
30	SY7Y-045C30-AAW	SIDE PANEL ASSEMBLY,CONSOLE, RH	SY7Y-045C30-AAW SIDE PANEL ASSEMBLY,CONSOLE, RH Semi Aniline	-	1	Enquire
31	SY7Y-045C30-FAW	SIDE PANEL ASSEMBLY,CONSOLE, RH	SY7Y-045C30-FAW SIDE PANEL ASSEMBLY,CONSOLE, RH Lightweight Semi Aniline	-	1	Enquire
40	SY7Y-045E24-AAW	INSERT ASSEMBLY, REARCONSOLE	SY7Y-045E24-AAW INSERT ASSEMBLY, REARCONSOLE Semi Aniline	-	1	Enquire
41	SY7Y-045E24-FAW	INSERT ASSEMBLY, REARCONSOLE	SY7Y-045E24-FAW INSERT ASSEMBLY, REARCONSOLE Lightweight Semi Aniline	-	1	Enquire
50	RY6314891AA	フィニッシャー、左サイド	RY6314891AA フィニッシャー、左サイド Satin Chrome	$58.56	1
51	RY6314891BA	フィニッシャー、左サイド	RY6314891BA フィニッシャー、左サイド Dark Chrome	$103.45	1
60	RY6314890AA	フィニッシャー、右側	RY6314890AA フィニッシャー、右側 Satin Chrome	$58.56	1
61	RY6314890BA	フィニッシャー、右側	RY6314890BA フィニッシャー、右側 Dark Chrome	$103.45	1
70	8D3368D11AA	SCREW, M6x20, LOW HD	8D3368D11AA SCREW, M6x20, LOW HD	$0.79	2
80	SY7Y-045C74-ABW	CONSOLE STOWAGE ASSEMBLY	SY7Y-045C74-ABW CONSOLE STOWAGE ASSEMBLY Semi Aniline, SatinChrome	-	1	Enquire
81	SY7Y-045C74-BBW	CONSOLE STOWAGE ASSEMBLY	SY7Y-045C74-BBW CONSOLE STOWAGE ASSEMBLY Semi Aniline, Dark Chrome	-	1	Enquire
82	SY7Y-045C74-FBW	CONSOLE STOWAGE ASSEMBLY	SY7Y-045C74-FBW CONSOLE STOWAGE ASSEMBLY Lightweight Semi Aniline,Satin Chrome	-	1	Enquire
83	SY7Y-045C74-GBW	CONSOLE STOWAGE ASSEMBLY	SY7Y-045C74-GBW CONSOLE STOWAGE ASSEMBLY Lightweight Semi Aniline,Dark Chrome	-	1	Enquire
90	RY5313522AA	BRACKET, STOWAGE MOUNT	RY5313522AA BRACKET, STOWAGE MOUNT	$170.87	1
100	703163	Nut, M06, hex flange head IN STOCK	703163 Nut, M06, hex flange head IN STOCK	$0.23	4
110	7784981	フォームストリップ、ガタ防止	7784981 フォームストリップ、ガタ防止	-	2	Enquire
120	RY6313560EAW	CUP HOLDER ASSEMBLY	RY6313560EAW CUP HOLDER ASSEMBLY Semi Aniline	$374.67	1
121	SY7Y13560FAW	CUP HOLDER ASSEMBLY	SY7Y13560FAW CUP HOLDER ASSEMBLY Lightweight Semi Aniline	$345.28	1
130	RY6329765AB	カップホルダー	RY6329765AB カップホルダー Satin Chrome	$498.27	1
131	RY6329765BB	カップホルダー	RY6329765BB カップホルダー Dark Chrome	$789.16	1
140	RY63044K14EAW	COVER,CUP HOLDER	RY63044K14EAW COVER,CUP HOLDER Semi Aniline	$89.50	1
141	SY7Y044K14FAW	COVER,CUP HOLDER	SY7Y044K14FAW COVER,CUP HOLDER Lightweight Semi Aniline	$89.50	1
150	703746	SCREW, M6x16, PAN FLGHEAD TORX, BLACK	703746 SCREW, M6x16, PAN FLGHEAD TORX, BLACK	$0.50	2
160	PY83SE040K60BA	MAT, CUP HOLDER	PY83SE040K60BA MAT, CUP HOLDER	$84.79	1
170	RY5313523AA	ブラケット、取り付け	RY5313523AA ブラケット、取り付け	$51.09	1
180	703149	ねじ M6X16 六角穴付き IN STOCK	703149 ねじ M6X16 六角穴付き IN STOCK	$1.28	4
190	703144	BOLT, M6x45, PAN IN STOCK	703144 BOLT, M6x45, PAN IN STOCK	$3.13	4
200	RY5304558AA	サポートブラケット	RY5304558AA サポートブラケット	$88.87	1
220	SY7Y045J11AB	VENEER, LH	SY7Y045J11AB VENEER, LH Light Brushed Metal	$654.37	1
221	SY7Y045J11BB	VENEER, LH	SY7Y045J11BB VENEER, LH Dark Brushed Metal	$886.61	1
222	SY7Y045J11DA	VENEER, LH	SY7Y045J11DA VENEER, LH Light Ash Burl	$885.32	1
223	SY7Y045J11EA	VENEER, LH	SY7Y045J11EA VENEER, LH Dark Walnut	$885.32	1
224	TY7Y045J11CA	VENEER, LH	TY7Y045J11CA VENEER, LH Satin Carbon	$1,207.50	1
225	TY7Y-045J11-DA	VENEER, LH	TY7Y-045J11-DA VENEER, LH Carbon with Silver Fibres	-	1	Enquire
226	TY7Y045J11EA	VENEER, LH	TY7Y045J11EA VENEER, LH Carbon with Copper Fibres	$1,199.18	1
227	TY7Y-045J11-FA	VENEER, LH	TY7Y-045J11-FA VENEER, LH Carbon with Gold Fibres	-	1	Enquire
230	SY7Y045J10AB	VENEER, RH	SY7Y045J10AB VENEER, RH Light Brushed Metal	$886.61	1
231	SY7Y045J10BB	VENEER, RH	SY7Y045J10BB VENEER, RH Dark Brushed Metal	$886.61	1
232	SY7Y045J10DA	VENEER, RH	SY7Y045J10DA VENEER, RH Light Ash Burl	$885.32	1
233	SY7Y045J10EA	VENEER, RH	SY7Y045J10EA VENEER, RH Dark Walnut	$885.32	1
234	TY7Y045J10CA	VENEER, RH	TY7Y045J10CA VENEER, RH Satin Carbon	$1,207.50	1
235	TY7Y-045J10-DA	VENEER, RH	TY7Y-045J10-DA VENEER, RH Carbon with Silver Fibres	-	1	Enquire
236	TY7Y045J10EA	VENEER, RH	TY7Y045J10EA VENEER, RH Carbon with Copper Fibres	$1,199.18	1
237	TY7Y-045J10-FA	VENEER, RH	TY7Y-045J10-FA VENEER, RH Carbon with Gold Fibres	-	1	Enquire
240	SY7Y14861AB	SWITCH SURROUND, LH	SY7Y14861AB SWITCH SURROUND, LH Satin Chrome	$279.82	1
241	SY7Y14861BB	SWITCH SURROUND, LH	SY7Y14861BB SWITCH SURROUND, LH Dark Chrome	$758.96	1
250	SY7Y14860AB	SWITCH SURROUND, RH	SY7Y14860AB SWITCH SURROUND, RH Satin Chrome	$279.82	1
251	SY7Y14860BB	SWITCH SURROUND, RH	SY7Y14860BB SWITCH SURROUND, RH Dark Chrome	$758.96	1
260	SY7Y045K69AB	FINISHER, LOWER, SWITCHSURROUND, LH	SY7Y045K69AB FINISHER, LOWER, SWITCHSURROUND, LH	$603.91	1
270	SY7Y045K68AB	FINISHER, LOWER, SWITCHSURROUND, RH	SY7Y045K68AB FINISHER, LOWER, SWITCHSURROUND, RH	$603.91	1
280	SY7YV513K01AC	SUPPORT ASSEMBLY	SY7YV513K01AC SUPPORT ASSEMBLY	$92.30	1
290	SY7Y-V513K02-ABW	BRACKET, SAT NAV	SY7Y-V513K02-ABW BRACKET, SAT NAV Semi Aniline	-	1	Enquire
300	6G33104101BA	SCREW, M4x9, THREADFORMING IN STOCK	6G33104101BA SCREW, M4x9, THREADFORMING IN STOCK	$0.86	4
310	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	14
320	703144	BOLT, M6x45, PAN IN STOCK	703144 BOLT, M6x45, PAN IN STOCK	$3.13	2
330	SY7Y04490AC	SWITCH SUPPORT MOUNDING	SY7Y04490AC SWITCH SUPPORT MOUNDING	$187.99	1
340	SY7Y04492AB	FINISHER, CENTRE, SWITCHSURROUND	SY7Y04492AB FINISHER, CENTRE, SWITCHSURROUND Satin Chrome	$190.09	1
341	SY7Y04492BB	FINISHER, CENTRE, SWITCHSURROUND	SY7Y04492BB FINISHER, CENTRE, SWITCHSURROUND Dark Chrome	$581.04	1
350	RY6311N653AA	FILLER PANEL	RY6311N653AA FILLER PANEL	$764.47	1
360	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX	$0.25	26
370	SY7Y045R19AB	FINISHER, FRONT, CENTRESTACK	SY7Y045R19AB FINISHER, FRONT, CENTRESTACK	$927.96	1
380	RY5311N653AA	BLANKING PANEL	RY5311N653AA BLANKING PANEL	$101.19	1
390	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX	$0.25	2
400	SY7Y045M880AA	MAT, STOWAGE COMPARTMENT	SY7Y045M880AA MAT, STOWAGE COMPARTMENT	$75.16	1
410	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	6
420	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	20
500	SY7Y-045A12-EBW	CONSOLE ASSEMBLY, REAR,LOWER	SY7Y-045A12-EBW CONSOLE ASSEMBLY, REAR,LOWER	-	1	Enquire
510	AD43C519A40AA	MACHINE SCREW, M5x13, PAN IN STOCK	AD43C519A40AA MACHINE SCREW, M5x13, PAN IN STOCK	$0.79	2
520	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	2
530	SY7Y-674A32-EBW	CONSOLE ASSEMBLY, REAR,UPPER	SY7Y-674A32-EBW CONSOLE ASSEMBLY, REAR,UPPER Includes items 540-550	-	1	Enquire
540	RY5318C857AA	SPEAKER GRILL, SUBWOOFER	RY5318C857AA SPEAKER GRILL, SUBWOOFER Silver	$230.21	1
541	RY5318C857BA	SPEAKER GRILL, SUBWOOFER	RY5318C857BA SPEAKER GRILL, SUBWOOFER Dark	$883.04	1
550	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	4
560	700606	SCREW, M6x12, HEX HD IN STOCK	700606 SCREW, M6x12, HEX HD IN STOCK	$0.34	4
