Seating - Lightweight of Aston Martin Aston Martin GT VANQUISH (2025-

すべて見る

Aston Martin GT VANQUISH (2025- - Seating - Lightweight

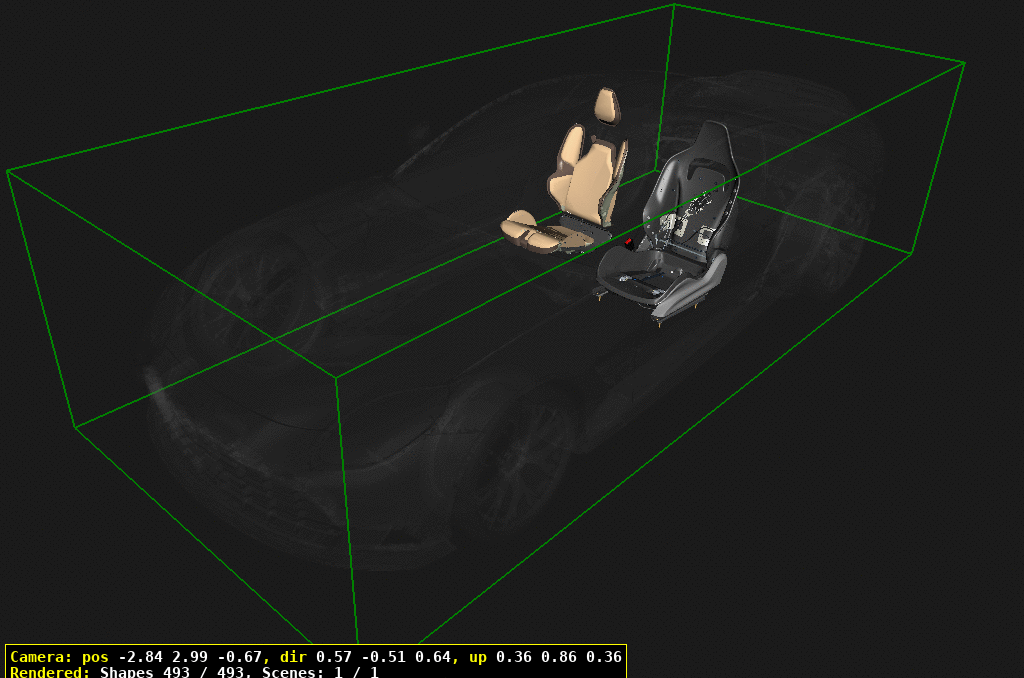

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~~O~~	RH Illustrated	~~O~~ RH Illustrated	-	-	Enquire
2	~~0~~	LH Illustrated	~~0~~ LH Illustrated	-	-	Enquire
3	RY5360008BAW	FRONT SEAT ASSEMBLY, RH	RY5360008BAW FRONT SEAT ASSEMBLY, RH	$36,315.18	1
4	RY5360009BAW	FRONT SEAT ASSEMBLY, LH	RY5360009BAW FRONT SEAT ASSEMBLY, LH	$36,315.18	1
20	RY53-14B718-AAW	ヘッドレストアセンブリ	RY53-14B718-AAW ヘッドレストアセンブリ	-	1	Enquire
30	RY53-631B03-AAW	CUSHION BOLSTER ASSEMBLY,LH	RY53-631B03-AAW CUSHION BOLSTER ASSEMBLY,LH	-	1	Enquire
40	RY53-631B02-AAW	CUSHION BOLSTER ASSEMBLY,RH	RY53-631B02-AAW CUSHION BOLSTER ASSEMBLY,RH	-	1	Enquire
50	RY53-61672-AAW	SQUAB INSERT ASSEMBLY	RY53-61672-AAW SQUAB INSERT ASSEMBLY Includes item 60	-	1	Enquire
60	MY8314D696AB	HEATER PAD, SEAT SQUAB	MY8314D696AB HEATER PAD, SEAT SQUAB	$54.83	1
70	RY53-61527-AAW	SQUAB BOLSTER ASSEMBLY,LH	RY53-61527-AAW SQUAB BOLSTER ASSEMBLY,LH	-	1	Enquire
80	RY53-61526-AAW	SQUAB BOLSTER ASSEMBLY,RH	RY53-61526-AAW SQUAB BOLSTER ASSEMBLY,RH	-	1	Enquire
90	RY5361678ABW	CUSHION INSERT ASSEMBLY	RY5361678ABW CUSHION INSERT ASSEMBLY Includes item 100	$3,700.97	1
100	MY8314D698AC	HEATER PAD, SEAT CUSHION	MY8314D698AC HEATER PAD, SEAT CUSHION	$54.61	1
110	LY7Y63258AC	FOAM BEZEL, CUSHION	LY7Y63258AC FOAM BEZEL, CUSHION	$156.00	1
120	PY63621A64AAW	STRAP, BACKREST RELEASE	PY63621A64AAW STRAP, BACKREST RELEASE	$219.63	1
130	PY63605W01AAW	STRAP, CUSHION RELEASE	PY63605W01AAW STRAP, CUSHION RELEASE with Webbing	$417.77	1
131	PY63605W01BAW	STRAP, CUSHION RELEASE	PY63605W01BAW STRAP, CUSHION RELEASE without Webbing	$168.91	1
140	LY7Y631C00AB	RETAINER, TRIM CAP	LY7Y631C00AB RETAINER, TRIM CAP	$206.46	1
150	LY7Y600C76AA	TRIM CAP	LY7Y600C76AA TRIM CAP	$41.82	1
160	MY6YN604144AA	SCREW, M5x16, CSK HD	MY6YN604144AA SCREW, M5x16, CSK HD	$3.70	1
170	LY7Y602B48AA	GUIDE, SEATBELT, FRONT,RH SEAT	LY7Y602B48AA GUIDE, SEATBELT, FRONT,RH SEAT	$70.65	1
171	LY7Y602B47AA	GUIDE, SEATBELT, FRONT,LH SEAT	LY7Y602B47AA GUIDE, SEATBELT, FRONT,LH SEAT	$70.65	1
180	LY7Y666B82AB	GUIDE, SEATBELT, REAR, RHSEAT	LY7Y666B82AB GUIDE, SEATBELT, REAR, RHSEAT	$92.10	1
181	LY7Y666B83AB	GUIDE, SEATBELT, REAR, LHSEAT	LY7Y666B83AB GUIDE, SEATBELT, REAR, LHSEAT	$92.10	1
190	MY6YE603125AA	SCREW, M4x10, CSK	MY6YE603125AA SCREW, M4x10, CSK	$4.47	1
200	LY7Y600C76AA	TRIM CAP	LY7Y600C76AA TRIM CAP	$41.82	1
210	LY7Y631C00AB	RETAINER, TRIM CAP	LY7Y631C00AB RETAINER, TRIM CAP	$206.46	1
220	MY6YN604144AA	SCREW, M5x16, CSK HD	MY6YN604144AA SCREW, M5x16, CSK HD	$3.70	1
230	PY63644K79AA	GAP HIDER ASSEMBLY	PY63644K79AA GAP HIDER ASSEMBLY Includes item 240	$130.06	2
240	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	4
250	RY53-74-10189	OCS SERVICE ASSEMBLY	RY53-74-10189 OCS SERVICE ASSEMBLY Includes items 260	-	1	Enquire
260	PY63-9515-AA	FOAM ASSEMBLY, CUSHION	PY63-9515-AA FOAM ASSEMBLY, CUSHION	-	1	Enquire
400	RY53600C15AD	SEAT FRAME, DRIVER	RY53600C15AD SEAT FRAME, DRIVER LHD, Satin	$14,101.57	1
402	RY53600C14BD	SEAT FRAME, PASSENGER	RY53600C14BD SEAT FRAME, PASSENGER LHD, Satin	$14,096.28	1
403	RY53600C14CC	SEAT FRAME, PASSENGER	RY53600C14CC SEAT FRAME, PASSENGER LHD, Satin, Top Tether	$14,295.54	1
404	RY53600C14AD	SEAT FRAME, DRIVER	RY53600C14AD SEAT FRAME, DRIVER RHD, Satin	$13,852.21	1
406	RY53600C15BD	SEAT FRAME, PASSENGER	RY53600C15BD SEAT FRAME, PASSENGER RHD, Satin	$14,335.19	1
410	MY83610E54AC	BUCKLE, SEATBELT	MY83610E54AC BUCKLE, SEATBELT	$128.59	2
420	LY7YXC471045BC	BRACKET, ECU	LY7YXC471045BC BRACKET, ECU	$117.36	2
430	RY53SE14C249AB	ECU, DRIVERS SEAT	RY53SE14C249AB ECU, DRIVERS SEAT	$944.18	1
431	RY53SE14C249BB	ECU, PASSENGERS SEAT	RY53SE14C249BB ECU, PASSENGERS SEAT	$916.68	1
440	LY7Y617C84AA	SPACER ASSEMBLY, RH	LY7Y617C84AA SPACER ASSEMBLY, RH	$281.30	1
450	LY7Y617C85AA	SPACER ASSEMBLY, LH	LY7Y617C85AA SPACER ASSEMBLY, LH	$281.30	1
460	RY5311026BAA	BOLT, M10x1.5x45, T50	RY5311026BAA BOLT, M10x1.5x45, T50	$12.45	4
470	LY7Y484451AA	SCREW, M10x1.5x16	LY7Y484451AA SCREW, M10x1.5x16	$1.22	4
480	LY7Y-F667K04-AA	MOULDING, ANTI-ROTATION	LY7Y-F667K04-AA MOULDING, ANTI-ROTATION	-	1	Enquire
490	LY7Y7L565AB	CABLE, SEAT RECLINER	LY7Y7L565AB CABLE, SEAT RECLINER	$146.62	1
500	LY7Y600D44AA	リリースメカニズム	LY7Y600D44AA リリースメカニズム	$476.67	1
510	LY7Y14B683BB	HARNESS, LH	LY7Y14B683BB HARNESS, LH	$850.50	1
511	LY7Y14B684BB	HARNESS, RH	LY7Y14B684BB HARNESS, RH	$953.44	1
520	PY63-666B60-BA	BEZEL, RELEASE STRAP	PY63-666B60-BA BEZEL, RELEASE STRAP	-	1	Enquire
530	LY7Y10C850AB	KILL SWITCH ASSEMBLY	LY7Y10C850AB KILL SWITCH ASSEMBLY	$101.23	2
