Lock and Latches of Aston Martin Aston Martin GT VANQUISH (2025-

すべて見る

Aston Martin GT VANQUISH (2025- - Lock and Latches

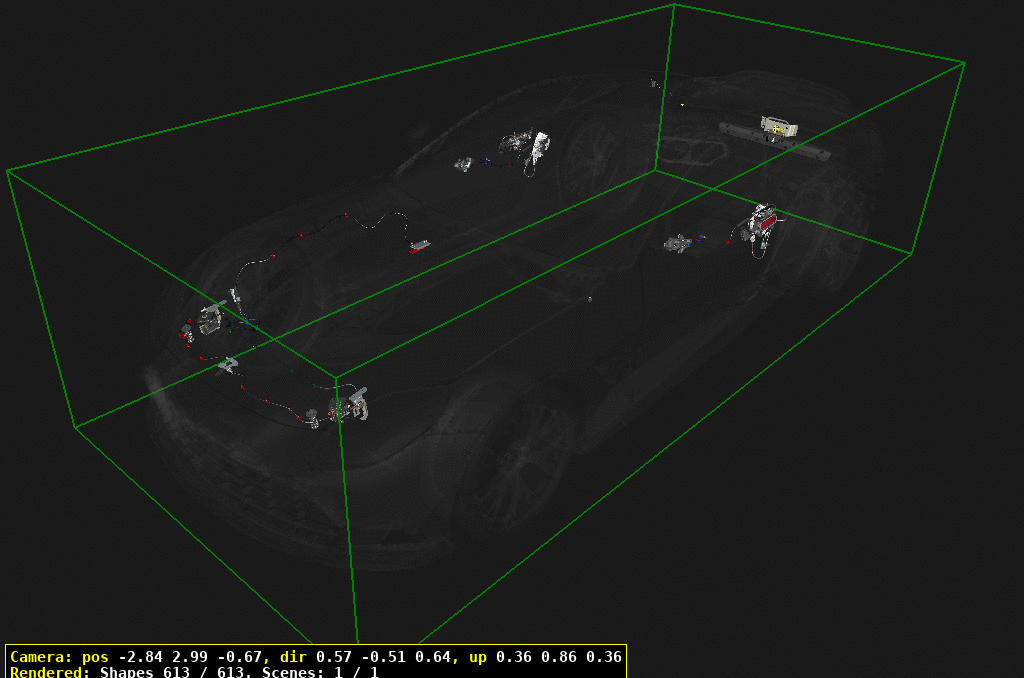

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	KY6316C774AA	RELEASE LEVER, SECONDARY	KY6316C774AA RELEASE LEVER, SECONDARY	$71.12	1
30	SY7Y405C44AB	CABLE RELEASE, SECONDARY	SY7Y405C44AB CABLE RELEASE, SECONDARY	$65.62	2
40	HY53SE16K688AA	STRIKER, BONNET LATCH	HY53SE16K688AA STRIKER, BONNET LATCH	$43.24	2
50	703163	Nut, M06, hex flange head IN STOCK	703163 Nut, M06, hex flange head IN STOCK	$0.23	4
60	KY53SE16700AA	BONNET LATCH ASSEMBLY	KY53SE16700AA BONNET LATCH ASSEMBLY	$32.71	2
70	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	4
80	KY53SE19G366AA	LATCH, SWITCH AJAR, LH	KY53SE19G366AA LATCH, SWITCH AJAR, LH	$27.05	1
90	KY53SE19G367AA	LATCH, SWITCH AJAR, RH	KY53SE19G367AA LATCH, SWITCH AJAR, RH	$27.72	1
100	KY6316B769AA	LATCH, SECONDARY, LH	KY6316B769AA LATCH, SECONDARY, LH	$96.75	1
110	KY6316B768AA	LATCH, SECONDARY, RH	KY6316B768AA LATCH, SECONDARY, RH	$96.75	1
120	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	4
130	KY6316A944AA	STRIKER, SECONDARY	KY6316A944AA STRIKER, SECONDARY	$42.70	2
140	KY53SE16K808AA	SPRING, BONNET POP-UP	KY53SE16K808AA SPRING, BONNET POP-UP	$50.69	2
150	SY7Y16C657AA	RELEASE CABLE ASSEMBLY,PRIMARY, FORWARD	SY7Y16C657AA RELEASE CABLE ASSEMBLY,PRIMARY, FORWARD	$262.92	1
160	707935	CLIP, 5.8x2.5, EDGE	707935 CLIP, 5.8x2.5, EDGE	$1.83	4
180	DD33F37521AA	BLANKING PLUG, 14mm	DD33F37521AA BLANKING PLUG, 14mm	$3.00	1
190	RY6316C751AA	MOUNTING BRACKET, BONNETRELEASE CABLE	RY6316C751AA MOUNTING BRACKET, BONNETRELEASE CABLE LHD	$42.50	1
191	RY6316C750AA	MOUNTING BRACKET, BONNETRELEASE CABLE	RY6316C750AA MOUNTING BRACKET, BONNETRELEASE CABLE RHD	$42.50	1
200	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	1
210	SY7Y16C656AA	RELEASE CABLE ASSEMBLY,REAR	SY7Y16C656AA RELEASE CABLE ASSEMBLY,REAR	$262.92	1
220	704443	Clip Plastic IN STOCK	704443 Clip Plastic IN STOCK	$1.49	3
230	KY53SE16A874AA	HANDLE, BONNET RELEASE	KY53SE16A874AA HANDLE, BONNET RELEASE	$461.39	1
240	KY6316C730AC	MOUNTING BRACKET, RELEASEHANDLE	KY6316C730AC MOUNTING BRACKET, RELEASEHANDLE	$31.81	1
250	701356	Rivet, 4x10 Blind Pan Head	701356 Rivet, 4x10 Blind Pan Head	$0.14	2
260	703163	Nut, M06, hex flange head IN STOCK	703163 Nut, M06, hex flange head IN STOCK	$0.23	2
270	703163	Nut, M06, hex flange head IN STOCK	703163 Nut, M06, hex flange head IN STOCK	$0.23	4
280	703567	CLIP, PUSH-IN,4.3-5.2x6.5x8.6 IN STOCK	703567 CLIP, PUSH-IN,4.3-5.2x6.5x8.6 IN STOCK	$3.59	2
300	HY53F22050AF	VEHICLE LOCK SET	HY53F22050AF VEHICLE LOCK SET LH Door only. IncludesItem 310	$405.23	1
310	MY83654024AB	エマージェンシーキー	MY83654024AB エマージェンシーキー Cut Key, Order with VIN	$60.61	1
320	HY5321813AD	LATCH ASSEMBLY, LH	HY5321813AD LATCH ASSEMBLY, LH Includes Item 340	$368.48	1
330	HY5321812AD	LATCH ASSEMBLY, RH	HY5321812AD LATCH ASSEMBLY, RH Includes Item 340	$368.48	1
340	HY53F218A01AB	CABLE, INTERIOR HANDLERELEASE	HY53F218A01AB CABLE, INTERIOR HANDLERELEASE	$63.70	2
350	HY5321982AB	STRIKER, DOOR, with SEAL	HY5321982AB STRIKER, DOOR, with SEAL	$62.48	2
360	4G43-22404-AG	Handle Blade Assembly	4G43-22404-AG Handle Blade Assembly	-	2	Enquire
361	CD3322405AC	HANDLE ASSEMBLY, LH	CD3322405AC HANDLE ASSEMBLY, LH Carbon	$1,976.95	1
362	CD3322404AC	HANDLE ASSEMBLY, RH	CD3322404AC HANDLE ASSEMBLY, RH Carbon	$1,976.95	1
370	4G43224A68AA	PIN, HANDLE PIVOT IN STOCK	4G43224A68AA PIN, HANDLE PIVOT IN STOCK	$5.95	2
380	4G43224A72AH	レンズ IN STOCK	4G43224A72AH レンズ IN STOCK	$4.67	2
390	GG43AA0231AA	SCREW, M8x34, FLAT CSKTORX	GG43AA0231AA SCREW, M8x34, FLAT CSKTORX	$6.43	4
400	6G33239600AA	CABLE CLIP, SEALED	6G33239600AA CABLE CLIP, SEALED	$1.65	2
410	703149	ねじ M6X16 六角穴付き IN STOCK	703149 ねじ M6X16 六角穴付き IN STOCK	$1.28	6
420	703612	Nut and Washer, M6 Hex IN STOCK	703612 Nut and Washer, M6 Hex IN STOCK	$0.83	6
430	RY6322615CA	HANDLE MECHANISM,INTERIOR, LH	RY6322615CA HANDLE MECHANISM,INTERIOR, LH Satin Chrome	$412.74	1
431	RY6322615BA	HANDLE MECHANISM,INTERIOR, LH	RY6322615BA HANDLE MECHANISM,INTERIOR, LH Dark Chrome	$561.01	1
432	SY7Y22615DA	HANDLE MECHANISM,INTERIOR, LH	SY7Y22615DA HANDLE MECHANISM,INTERIOR, LH Titanium	$768.05	1
433	RY5322615AA	HANDLE MECHANISM,INTERIOR, LH	RY5322615AA HANDLE MECHANISM,INTERIOR, LH Bright Chrome	$485.17	1
440	RY6322614CA	HANDLE MECHANISM,INTERIOR, RH	RY6322614CA HANDLE MECHANISM,INTERIOR, RH Satin Chrome	$412.74	1
441	RY6322614BA	HANDLE MECHANISM,INTERIOR, RH	RY6322614BA HANDLE MECHANISM,INTERIOR, RH Dark Chrome	$561.01	1
442	SY7Y22614DA	HANDLE MECHANISM,INTERIOR, RH	SY7Y22614DA HANDLE MECHANISM,INTERIOR, RH Titanium	$768.05	1
443	RY5322614AA	HANDLE MECHANISM,INTERIOR, RH	RY5322614AA HANDLE MECHANISM,INTERIOR, RH Bright Chrome	$485.17	1
450	HY53A17N409AA	NUT, M5, THUMB	HY53A17N409AA NUT, M5, THUMB	$2.95	6
460	702295	Nut M5 Hex flng pc8 IN STOCK	702295 Nut M5 Hex flng pc8 IN STOCK	$0.18	6
470	704443	Clip Plastic IN STOCK	704443 Clip Plastic IN STOCK	$1.49	2
480	707004	BOLT/WASHER, M6x16, HEXPIL FL 10	707004 BOLT/WASHER, M6x16, HEXPIL FL 10	$0.92	2
490	PY83226A29AC	HANDLE MECHANISM,EXTERIOR, LH	PY83226A29AC HANDLE MECHANISM,EXTERIOR, LH Self-Presenting	$507.64	1
500	PY83226A28AC	HANDLE MECHANISM,EXTERIOR, RH	PY83226A28AC HANDLE MECHANISM,EXTERIOR, RH Self-Presenting	$507.64	1
510	NOTE:	See Section 19-1000, item870 for Self-PresentingHandle ECU	NOTE: See Section 19-1000, item870 for Self-PresentingHandle ECU	-	-	Enquire
700	6G436710235	ストライカー	6G436710235 ストライカー	$48.29	1
710	KY7344462AB	BRACKET, LATCH MOUNTING	KY7344462AB BRACKET, LATCH MOUNTING	$57.66	1
720	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	4
730	6G436710237	Handle, Emergency	6G436710237 Handle, Emergency	$17.55	1
740	700610	SCREW, M8x25, FLAT CSK,GRD 10.9 IN STOCK	700610 SCREW, M8x25, FLAT CSK,GRD 10.9 IN STOCK	$1.24	1
751	700607	Screw M6x20 Hex Flng Hd	700607 Screw M6x20 Hex Flng Hd	$0.31	4
760	HY53F442A66AG	パワーラッチ	HY53F442A66AG パワーラッチ	$1,051.18	1
770	HY5311028AA	PLUG, 22mm, BLACK DOMED	HY5311028AA PLUG, 22mm, BLACK DOMED	$1.35	10
780	SY7Y42626BB	EXTRUSION, REAR STRIKER	SY7Y42626BB EXTRUSION, REAR STRIKER	$774.73	1
800	707624	BOLT, M8x14	707624 BOLT, M8x14	$1.15	5
900	HY539E917AB	ACTUATOR, FUEL FILLER	HY539E917AB ACTUATOR, FUEL FILLER	$144.09	1
910	HY5370312AA	EMERGENCY RELEASE, FUELFILLER	HY5370312AA EMERGENCY RELEASE, FUELFILLER	$15.38	1
920	HY539N287AB	TAPPET, FUEL FILLER	HY539N287AB TAPPET, FUEL FILLER	$5.66	1
