インストルメントパネル

Aston Martin GT VANQUISH (2025-

自分の役割を見つける

Aston Martin GT VANQUISH (2025- - インストルメントパネル

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

すべて見る

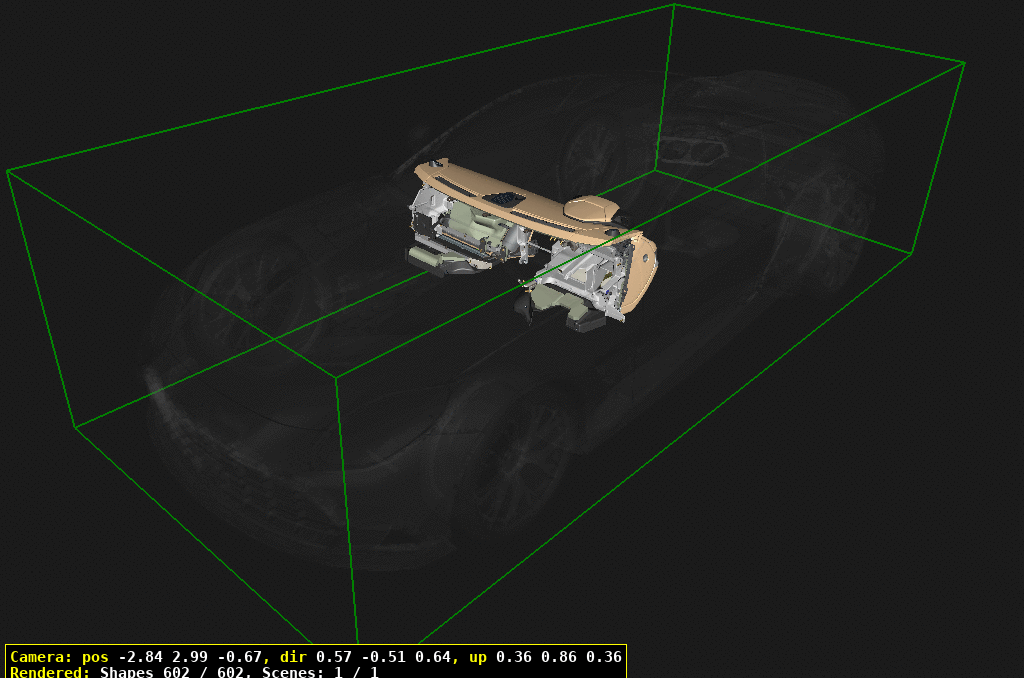

Instrument Panel of Aston Martin Aston Martin GT VANQUISH (2025- ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
1 ~O~
バッテリー 		- - Enquire
20 RY63-044B51-DA
CROSS-CAR BEAM ASSEMBLY
LHD 		- 1 Enquire
21 RY63-044B51-CA
CROSS-CAR BEAM ASSEMBLY
RHD 		- 1 Enquire
30 HY5318K587BB
BRACE, CCB PLENUM
LHD 		$62.21 1
31 HY5318K587AB
BRACE, CCB PLENUM
RHD 		$62.21 1
40 702637
Screw M6x20 Pan Hd lobe D 		$0.22 2
50 RY53-043D45-AA
BRACKET, HVAC UNITSUPPORT 		- 1 Enquire
60 702637
Screw M6x20 Pan Hd lobe D 		$0.22 2
70 HY53044J04AB
BRACKET, DRIVER KNEEENERGY ABSORPTION 		$69.75 2
80 702637
Screw M6x20 Pan Hd lobe D 		$0.22 4
90 HY536542BB
BRACKET, DRIVER END PANEL
LHD 		$103.22 1
91 HY536542AB
BRACKET, DRIVER END PANEL
RHD 		$103.22 1
100 701553
Screw, M6 x 16 pan hd, hood release handle to bracket
IN STOCK 		$0.31 2
110 RY5321336AA
ブラケット 		$31.13 1
120 702637
Screw M6x20 Pan Hd lobe D 		$0.22 2
130 6G33E826A80DA
FLEXITOL ADJUSTER NUT, M8 		$4.38 2
140 HY53N606544AA
BOLT, M8x55, BLACK 		$1.37 2
150 707126
BOLT, M8x50, HEX FLG 		$0.90 4
160 703187
ボルト、M8 X 25、六角フランジヘッド 		$0.74 4
170 703195
SCREW, M6x40, HEX HEAD
IN STOCK 		$1.08 2
180 HY53042K50BA
BRACKET, TUNNEL MOUNT,LHS
LHD, includes item 190 		$257.73 1
181 HY53042K50AA
BRACKET, TUNNEL MOUNT,RHS
RHD, includes item 190 		$277.09 1
190 6G33E826A80DA
FLEXITOL ADJUSTER NUT, M8 		$4.38 1
200 HY53042K51BB
BRACKET, TUNNEL MOUNT,RHS
LHD, includes item 210 		$253.94 1
201 HY53042K51AB
BRACKET, TUNNEL MOUNT,LHS
RHD, includes item 210 		$277.09 1
210 6G33E826A80DA
FLEXITOL ADJUSTER NUT, M8 		$4.38 1
220 703187
ボルト、M8 X 25、六角フランジヘッド 		$0.74 5
230 HY5318K529AB
MOUNTING PIN, HVAC toBULKHEAD 		$11.93 1
240 HY53C8A254AA
BLANKING PLATE, GASKET 		$26.50 1
250 HY533114AB
GASKET, HVAC PIN 		$3.22 2
260 703203
Screw, Flange Head M6x20
IN STOCK 		$0.34 4
270 HY533F659AA
SUPPORT ADAPTOR, STEERINGCOLUMN 		$449.24 1
280 703187
ボルト、M8 X 25、六角フランジヘッド 		$0.74 3
290 HY53E826A80AA
FLEXITOL, M8 		$23.84 2
300 HY5318659BA
CUP LOCATOR, PLENUM IP 		$4.90 3
400 SY7Y-04790-DBW
IP UPPER MAIN ASSEMBLY
LHD, Alcantara 		- 1 Enquire
401 RY6304790EBW
IP UPPER MAIN ASSEMBLY
LHD, Semi Aniline 		$9,377.39 1
402 SY7Y04791DBW
IP UPPER MAIN ASSEMBLY
RHD, Alcantara 		$6,113.16 1
403 RY63-04791-EBW
IP UPPER MAIN ASSEMBLY
RHD, Semi Aniline 		- 1 Enquire
410 HY5318C490AA
GRILLE, WINDSCREENDEFROST 		$104.07 2
420 701447
Screw M4x12 Pan collar
IN STOCK 		$0.56 6
430 RY534073ABA
SUPPORT, PASSENGER AIRBAG
LHD 		$50.64 1
431 RY534073AAA
SUPPORT, PASSENGER AIRBAG
RHD 		$50.64 1
440 7784981
フォームストリップ、ガタ防止 		- 3 Enquire
450 RY53-044M26-BA
SUPPORT BRACKET, UPPER,CENTRE 		- 1 Enquire
460 HY5340412AA
SCREW, 4.5x12, TORX HD 		$0.45 2
470 4G432K175AA
CLIP, EXHAUST HEATSHIELD 		- 4 Enquire
480 701553
Screw, M6 x 16 pan hd, hood release handle to bracket
IN STOCK 		$0.31 11
490 702514
Screw, flg, M6 x 16 torx
IN STOCK 		$2.87 2
500 4G43015371AA
NUT, CAPTIVE U, M4,LOCKING
Included with item400-403 		$3.93 31
510 RY5319E711AA
GASKET, SIDE WINDOWDE-MIST, LH 		$35.75 1
520 RY5319E710AA
GASKET, SIDE WINDOWDE-MIST, RH 		$35.75 1
530 702637
Screw M6x20 Pan Hd lobe D 		$0.22 2
540 HY5351PJ5BA
SCREW, M5x14, TX PAN 		$1.38 4
600 RY53C046A33AA
SPEAKER GRILLE, TWEETER,LH
Halo Audio 		$166.45 1
610 RY53C046A32AA
SPEAKER GRILLE, TWEETER,RH
Halo Audio 		$166.45 1
620 HY53E603123AA
SCREW, 4x12, TORX HD 		$0.75 8
630 RY53C046A26AB
スピーカーグリル、センター
Halo Audio 		$3,993.01 1
700 RY53E06011EAW
GLOVEBOX ASSEMBLY
LHD, with Airbag Logo,Semi Aniline 		$1,838.29 1
701 SY7Y-E06011-FAW
GLOVEBOX ASSEMBLY
LHD, with Airbag Logo,Lightwieght Semi Aniline 		- 1 Enquire
702 RY53E06013EAW
GLOVEBOX ASSEMBLY
LHD, without Airbag Logo,Semi Aniline 		$1,941.22 1
703 SY7Y-E06013-FAW
GLOVEBOX ASSEMBLY
LHD, without Airbag Logo,Lightwieght Semi Aniline 		- 1 Enquire
705 RY53E06012EAW
GLOVEBOX ASSEMBLY
RHD, without Airbag Logo,Semi Aniline 		$1,884.26 1
706 SY7Y-E06012-FAW
GLOVEBOX ASSEMBLY
RHD, without Airbag Logo,Lightwieght Semi Aniline 		- 1 Enquire
709 NOTE:
See Section 19-1000, item870 for Self-PresentingHandle ECU 		- - Enquire
710 RY5360K52BA
サポートブラケット
LHD 		$79.60 1
711 RY5360K52AA
サポートブラケット
RHD 		$79.60 1
720 707623
SCREW/WASHER, M6x16
IN STOCK 		$1.04 6
730 701553
Screw, M6 x 16 pan hd, hood release handle to bracket
IN STOCK 		$0.31 1
740 702637
Screw M6x20 Pan Hd lobe D 		$0.22 4
750 RY53016C46BA
CLOSURE PANEL, DRIVERS
LHD 		$281.60 1
751 RY53016C46AA
CLOSURE PANEL, DRIVERS
RHD 		$281.60 1
760 RY53016C47BA
CLOSURE PANEL, PASSENGER
LHD 		$281.60 1
761 RY53016C47AA
CLOSURE PANEL, PASSENGER
RHD 		$281.60 1
762 RY53016C47CA
CLOSURE PANEL, PASSENGER
Federal 		$281.60 1
770 RY53642790AA
スクリベット 		$1.10 6
780 697564
Push-on Fix 		$0.11 3
790 RY5360K51BA
PLATE, KNEE PROTECTOR
LHD 		$110.59 1
791 RY5360K51AA
PLATE, KNEE PROTECTOR
RHD 		$110.59 1
800 RY53044G70EBW
TRIM PANEL, DRIVERS SIDE,LOWER
LHD, with Airbag Logo,Semi Aniline 		$723.70 1
801 SY7Y-044G70-FAW
TRIM PANEL, DRIVERS SIDE,LOWER
LHD, with Airbag Logo,Lightweight Semi Aniline 		- 1 Enquire
802 RY53044G71EBW
TRIM PANEL, DRIVERS SIDE,LOWER
RHD, with Airbag Logo,Semi Aniline 		$830.08 1
803 SY7Y-044G71-FAW
TRIM PANEL, DRIVERS SIDE,LOWER
RHD, with Airbag Logo,Lightweight Semi Aniline 		- 1 Enquire
810 RY53-044E37-EAW
TUNNEL SIDE PANEL,PASSENGER, LOWER
LHD, Semi Aniline 		- 1 Enquire
811 SY7Y-044E37-FAW
TUNNEL SIDE PANEL,PASSENGER, LOWER
LHD, Lightweight SemiAniline 		- 1 Enquire
812 RY63-044E37-EBW
TUNNEL SIDE PANEL,PASSENGER, LOWER
LHD, Semi Aniline &Alcantara 		- 1 Enquire
813 SY7Y-044E39-FAW
TUNNEL SIDE PANEL,PASSENGER, LOWER
RHD, Lightweight SemiAniline 		- 1 Enquire
814 RY63-044E39-EBW
TUNNEL SIDE PANEL,PASSENGER, LOWER
RHD, Semi Aniline &Alcantara 		- 1 Enquire
820 RY53044E36EAW
TUNNEL SIDE PANEL,DRIVER, LOWER
LHD, Semi Aniline 		$493.40 1
821 SY7Y-044E36-FAW
TUNNEL SIDE PANEL,DRIVER, LOWER
LHD, Lightweight SemiAniline 		- 1 Enquire
822 RY63-044E36-EBW
TUNNEL SIDE PANEL,DRIVER, LOWER
LHD, Semi Aniline &Alcantara 		- 1 Enquire
823 SY7Y-044E38-FAW
TUNNEL SIDE PANEL,DRIVER, LOWER
RHD, Lightweight SemiAniline 		- 1 Enquire
824 RY63-044E38-EBW
TUNNEL SIDE PANEL,DRIVER, LOWER
RHD, Semi Aniline &Alcantara 		- 1 Enquire
830 RY5304317EAW
END PANEL ASSEMBLY, LH
Semi Aniline 		$422.10 1
840 RY5304316EAW
END PANEL ASSEMBLY, RH
Semi Aniline 		$422.10 1
850 RY53-C043K93-EAW
TRIM PANEL, PASSENGERSIDE, OUTER
LHD, Semi Aniline 		- 1 Enquire
851 SY7Y-C043K93-FAW
TRIM PANEL, PASSENGERSIDE, OUTER
LHD, Lightweight SemiAniline 		- 1 Enquire
852 RY53-C043K94-EAW
TRIM PANEL, PASSENGERSIDE, OUTER
RHD, Semi Aniline 		- 1 Enquire
853 SY7Y-C043K94-FAW
TRIM PANEL, PASSENGERSIDE, OUTER
RHD, Lightweight SemiAniline 		- 1 Enquire
870 702637
Screw M6x20 Pan Hd lobe D 		$0.22 6
880 702293
BOLT, M6x12, TX HD
IN STOCK 		$0.45 2
890 707623
SCREW/WASHER, M6x16
IN STOCK 		$1.04 6
900 MY83045L95AA
ダンパー、グローブボックス 		$28.49 1
910 MY8319C770AA
PIN, GLOVEBOX DAMPER 		$3.22 1
920 MY838C813BA
バンプストップ 		$4.92 2
930 MY838C813AA
CUSHION, GLOVEBOX 		$12.00 2
940 MY83060B66AA
LATCH ASSEMBLY 		$105.83 1
950 701171
SCREW, M4x16 		$0.14 3
960 RY6338430AB
FINISHER, DRIVERS
LHD 		$49.62 1
961 RY6338431AB
FINISHER, DRIVERS
RHD 		$49.62 1
970 RY6338420AC
FINISHER, PASSENGER
LHD 		$122.15 1
971 RY63-38421-AC
FINISHER, PASSENGER
RHD 		- 1 Enquire
980 HY53E603123AA
SCREW, 4x12, TORX HD 		$0.75 20
990 RY6314881AB
FINISHER, END, DRIVERS
LHD, Satin Chrome 		$54.97 1
991 RY6314881BB
FINISHER, END, DRIVERS
LHD, Dark Chrome 		$120.38 1
992 RY6314883AB
FINISHER, END, DRIVERS
RHD, Satin Chrome 		$50.41 1
993 RY6314883BB
FINISHER, END, DRIVERS
RHD, Dark Chrome 		$209.33 1
1000 RY6314880AB
FINISHER, END, PASSENGER
LHD, Satin Chrome 		$54.97 1
1011 RY6314880BB
FINISHER, END, PASSENGER
LHD, Dark Chrome 		$124.40 1
1013 RY6314882AB
FINISHER, END, PASSENGER
RHD, Satin Chrome 		$54.97 1
1014 RY6314882BB
FINISHER, END, PASSENGER
RHD, Dark Chrome 		$209.33 1
1020 SY7Y-24406-AAW
TRIM PANEL, DRIVERS,LOWER
LHD, Semi Aniline 		- 1 Enquire
1021 RY63-24406-DBW
TRIM PANEL, DRIVERS,LOWER
LHD, Alcantara & SemiAniline 		- 1 Enquire
1022 RY63-045J14-CB
TRIM PANEL, DRIVERS,LOWER
LHD, Satin Carbon 		- 1 Enquire
1023 SY7Y-045J14-DA
TRIM PANEL, DRIVERS,LOWER
LHD, Carbon with SilverFibres 		- 1 Enquire
1024 SY7Y-045J14-EA
TRIM PANEL, DRIVERS,LOWER
LHD, Carbon with CopperFibres 		- 1 Enquire
1025 SY7Y-045J14-FA
TRIM PANEL, DRIVERS,LOWER
LHD, Carbon withGold/Bronze Fibres 		- 1 Enquire
1030 SY7Y-24407-AAW
TRIM PANEL, DRIVERS,LOWER
RHD, Semi Aniline 		- 1 Enquire
1031 RY63-24407-DBW
TRIM PANEL, DRIVERS,LOWER
RHD, Alcantara & SemiAniline 		- 1 Enquire
1032 RY63-045J24-CB
TRIM PANEL, DRIVERS,LOWER
RHD, Satin Carbon 		- 1 Enquire
1033 SY7Y-045J24-DA
TRIM PANEL, DRIVERS,LOWER
RHD, Carbon with SilverFibres 		- 1 Enquire
1034 SY7Y-045J24-EA
TRIM PANEL, DRIVERS,LOWER
RHD, Carbon with CopperFibres 		- 1 Enquire
1035 SY7Y-045J24-FA
TRIM PANEL, DRIVERS,LOWER
RHD, Carbon withGold/Bronze Fibres 		- 1 Enquire
1050 SY7Y-24404-AAW
TRIM PANEL, PASSENGER,LOWER
LHD, Semi Aniline 		- 1 Enquire
1051 SY7Y-24404-DBW
TRIM PANEL, PASSENGER,LOWER
LHD, Alcantara & SemiAniline 		- 1 Enquire
1052 SY7Y-045J12-CB
TRIM PANEL, PASSENGER,LOWER
LHD, Satin Carbon 		- 1 Enquire
1053 SY7Y-045J12-DB
TRIM PANEL, PASSENGER,LOWER
LHD, Carbon with SilverFibres 		- 1 Enquire
1054 SY7Y-045J12-EB
TRIM PANEL, PASSENGER,LOWER
LHD, Carbon with CopperFibres 		- 1 Enquire
1055 SY7Y-045J12-FB
TRIM PANEL, PASSENGER,LOWER
LHD, Carbon withGold/Bronze Fibres 		- 1 Enquire
1060 SY7Y-24405-AAW
TRIM PANEL, PASSENGER,LOWER
RHD, Semi Aniline 		- 1 Enquire
1061 SY7Y-24405-DAW
TRIM PANEL, PASSENGER,LOWER
RHD, Alcantara & SemiAniline 		- 1 Enquire
1062 SY7Y-045J22-CB
TRIM PANEL, PASSENGER,LOWER
RHD, Satin Carbon 		- 1 Enquire
1063 SY7Y-045J22-DB
TRIM PANEL, PASSENGER,LOWER
RHD, Carbon with SilverFibres 		- 1 Enquire
1064 SY7Y-045J22-EB
TRIM PANEL, PASSENGER,LOWER
RHD, Carbon with CopperFibres 		- 1 Enquire
1065 SY7Y-045J22-FB
TRIM PANEL, PASSENGER,LOWER
RHD, Carbon withGold/Bronze Fibres 		- 1 Enquire
1080 707623
SCREW/WASHER, M6x16
IN STOCK 		$1.04 4
1090 RY63-C043C72-DBW
TRIM PANEL, DRIVERS,UPPER
LHD, Trimmed 		- 1 Enquire
1091 RY63-C043C92-CB
TRIM PANEL, DRIVERS,UPPER
LHD, Satin Carbon 		- 1 Enquire
1092 SY7Y-C043C92-DA
TRIM PANEL, DRIVERS,UPPER
LHD, Carbon with SilverFibres 		- 1 Enquire
1093 SY7Y-C043C92-EA
TRIM PANEL, DRIVERS,UPPER
LHD, Carbon with CopperFibres 		- 1 Enquire
1094 SY7Y-C043C92-FA
TRIM PANEL, DRIVERS,UPPER
LHD, Carbon withGold/Bronze Fibres 		- 1 Enquire
1095 SY7Y-C043C72-AAW
TRIM PANEL, DRIVERS,UPPER
LHD, Semi Aniline 		- 1 Enquire
1110 SY7Y-C043C73-AAW
TRIM PANEL, DRIVERS,UPPER
RHD, Trimmed 		- 1 Enquire
1111 RY63C043C93CB
TRIM PANEL, DRIVERS,UPPER
RHD, Satin Carbon 		$1,561.34 1
1112 SY7Y-C043C93-DA
TRIM PANEL, DRIVERS,UPPER
RHD, Carbon with SilverFibres 		- 1 Enquire
1113 SY7Y-C043C93-EA
TRIM PANEL, DRIVERS,UPPER
RHD, Carbon with CopperFibres 		- 1 Enquire
1114 SY7Y-C043C93-FA
TRIM PANEL, DRIVERS,UPPER
RHD, Carbon withGold/Bronze Fibres 		- 1 Enquire
1115 RY63-C043C73-DBW
TRIM PANEL, DRIVERS,UPPER
RHD, Semi Aniline 		- 1 Enquire
1120 RY63-C043C70-DBW
TRIM PANEL, PASSENGER,UPPER
LHD, Trimmed 		- 1 Enquire
1121 RY63C043C90CC
TRIM PANEL, PASSENGER,UPPER
LHD, Satin Carbon 		$1,768.24 1
1122 SY7Y-C043C90-DB
TRIM PANEL, PASSENGER,UPPER
LHD, Carbon with SilverFibres 		- 1 Enquire
1123 SY7Y-C043C90-EB
TRIM PANEL, PASSENGER,UPPER
LHD, Carbon with CopperFibres 		- 1 Enquire
1124 SY7Y-C043C90-FB
TRIM PANEL, PASSENGER,UPPER
LHD, Carbon withGold/Bronze Fibres 		- 1 Enquire
1125 SY7YC043C70AAW
TRIM PANEL, PASSENGER,UPPER
LHD, Semi Aniline 		$388.52 1
1140 RY63-C043C71-DBW
TRIM PANEL, PASSENGER,UPPER
RHD, Trimmed 		- 1 Enquire
1141 RY63C043C91CC
TRIM PANEL, PASSENGER,UPPER
RHD, Satin Carbon 		$1,768.35 1
1142 SY7Y-C043C91-DB
TRIM PANEL, PASSENGER,UPPER
RHD, Carbon with SilverFibres 		- 1 Enquire
1143 SY7Y-C043C91-EB
TRIM PANEL, PASSENGER,UPPER
RHD, Carbon with CopperFibres 		- 1 Enquire
1144 SY7Y-C043C91-FB
TRIM PANEL, PASSENGER,UPPER
RHD, Carbon withGold/Bronze Fibres 		- 1 Enquire
1145 SY7Y-C043C71-AAW
TRIM PANEL, PASSENGER,UPPER
RHD, Semi Aniline 		- 1 Enquire
1150 8D3368D11AA
SCREW, M6x20, LOW HD
Black 		$0.79 2
1151 6G33SS106209AB
HEADBOLT, M6x2.0, SKT
Silver
IN STOCK 		$1.01 2
1160 SY7Y-045B53-CC
FINISHER, INNER, LH
Satin Carbon/Satin Chrome 		- 1 Enquire
1161 SY7Y045B53KC
FINISHER, INNER, LH
Satin Carbon/Dark Chrome 		$792.46 1
1162 SY7Y-045B53-DC
FINISHER, INNER, LH
Carbon with SilverFibres/Satin Chrome 		- 1 Enquire
1163 SY7Y-045B53-LC
FINISHER, INNER, LH
Carbon with SilverFibres/Dark Chrome 		- 1 Enquire
1164 SY7Y-045B53-EC
FINISHER, INNER, LH
Carbon with CopperFibres/Satin Chrome 		- 1 Enquire
1165 SY7Y-045B53-MC
FINISHER, INNER, LH
Carbon with CopperFibres/Dark Chrome 		- 1 Enquire
1166 SY7Y-045B53-FC
FINISHER, INNER, LH
Carbon with Gold/BronzeFibres/Satin Chrome 		- 1 Enquire
1167 SY7Y-045B53-NC
FINISHER, INNER, LH
Carbon with Gold/BronzeFibres/Dark Chrome 		- 1 Enquire
1170 SY7Y-045B52-CC
FINISHER, INNER, RH
Satin Carbon/Satin Chrome 		- 1 Enquire
1171 SY7Y045B52KC
FINISHER, INNER, RH
Satin Carbon/Dark Chrome 		$792.46 1
1172 SY7Y-045B52-DC
FINISHER, INNER, RH
Carbon with SilverFibres/Satin Chrome 		- 1 Enquire
1173 SY7Y-045B52-LC
FINISHER, INNER, RH
Carbon with SilverFibres/Dark Chrome 		- 1 Enquire
1174 SY7Y-045B52-EC
FINISHER, INNER, RH
Carbon with CopperFibres/Satin Chrome 		- 1 Enquire
1175 SY7Y-045B52-MC
FINISHER, INNER, RH
Carbon with CopperFibres/Dark Chrome 		- 1 Enquire
1176 SY7Y-045B52-FC
FINISHER, INNER, RH
Carbon with Gold/BronzeFibres/Satin Chrome 		- 1 Enquire
1177 SY7Y-045B52-NC
FINISHER, INNER, RH
Carbon with Gold/BronzeFibres/Dark Chrome 		- 1 Enquire
1180 SY7Y-C04636-ABW
PANEL ASSEMBLY, INNERUPPER, PASSENGER
LHD, Semi Aniline 		- 1 Enquire
1181 SY7Y-C04637-AAW
PANEL ASSEMBLY, INNERUPPER, PASSENGER
RHD 		- 1 Enquire
1190 SY7Y-C04634-ABW
PANEL ASSEMBLY, INNERUPPER, DRIVERS
LHD, Semi Aniline 		- 1 Enquire
1191 SY7Y-C04635-AAW
PANEL ASSEMBLY, INNERUPPER, DRIVERS
RHD 		- 1 Enquire
1200 SY7Y-C04632-ABW
PANEL ASSEMBLY, OUTERUPPER, DRIVERS
LHD, Semi Aniline 		- 1 Enquire
1201 SY7Y-C04633-A
PANEL ASSEMBLY, OUTERUPPER, DRIVERS
RHD 		- 1 Enquire
1210 703027
SCREW, M4x10, PAN HD TORX 		$0.25 4
1220 707623
SCREW/WASHER, M6x16
IN STOCK 		$1.04 2
1230 SY7Y11N953AC
FINISHER, MID, CENTRESTACK 		$228.21 1
1240 JY5362552BA
サポートブラケット
LHD 		$70.69 1
1241 JY5362552AA
サポートブラケット
RHD 		$70.69 1
1250 703203
Screw, Flange Head M6x20
IN STOCK 		$0.34 2
1260 SY7YV513K03AA
補強ブラケット 		$40.67 1
1270 4G4380899AA
ネジ、M4X5MM
IN STOCK 		$0.27 4
1280 FG43M4D4515AA
フォームストリップ 		$0.38 1
1300 RY635602AA
BEZEL & AIR REGISTERASSEMBLY, DRIVERS
LHD, Satin Chrome.Includes item 1320 		$449.91 1
1301 RY635602BA
BEZEL & AIR REGISTERASSEMBLY, DRIVERS
LHD, Dark Chrome.Includes item 1321 		$607.56 1
1302 RY635603AA
BEZEL & AIR REGISTERASSEMBLY, DRIVERS
RHD, Satin Chrome.Includes item 1322 		$449.91 1
1303 RY635603BA
BEZEL & AIR REGISTERASSEMBLY, DRIVERS
RHD, Dark Chrome.Includes item 1323 		$607.56 1
1310 RY6311786AA
BEZEL & AIR REGISTERASSEMBLY, PASSENGER
LHD, Satin Chrome.Includes item 1330, 1340& 1350 		$1,536.53 1
1311 RY63-11786-BA
BEZEL & AIR REGISTERASSEMBLY, PASSENGER
LHD, Dark Chrome.Includes items 1331,1341, 1351 		- 1 Enquire
1312 RY6311787AA
BEZEL & AIR REGISTERASSEMBLY, PASSENGER
RHD, Satin Chrome.Includes item 1330, 1340,1352 		$1,536.53 1
1313 RY6311787BA
BEZEL & AIR REGISTERASSEMBLY, PASSENGER
RHD, Dark Chrome.Includes items 1331,1341, 1353 		$1,709.97 1
1320 RY53046B31AA
AIR REGISTER, DRIVERS
LHD, Satin Chrome 		$370.60 1
1321 RY53046B31BA
AIR REGISTER, DRIVERS
LHD, Dark Chrome 		$502.56 1
1322 RY53046B34AA
AIR REGISTER, DRIVERS
RHD, Satin Chrome 		$379.85 1
1323 RY53046B34BA
AIR REGISTER, DRIVERS
RHD, Dark Chrome 		$502.76 1
1330 RY53046B33AA
AIR REGISTER, CENTRE, LH
Satin Chrome 		$383.69 1
1331 RY53046B33BA
AIR REGISTER, CENTRE, LH
Dark Chrome 		$494.35 1
1340 RY53046B32AA
AIR REGISTER, CENTRE, RH
Satin Chrome 		$383.69 1
1341 RY53046B32BA
AIR REGISTER, CENTRE, RH
Dark Chrome 		$506.71 1
1350 RY53046B30AA
AIR REGISTER, PASSENGER
LHD, Satin Chrome 		$370.60 1
1351 RY53046B30BA
AIR REGISTER, PASSENGER
LHD, Dark Chrome 		$502.56 1
1352 RY53046B35AA
AIR REGISTER, PASSENGER
RHD, Satin Chrome 		$379.85 1
1353 RY53046B35BA
AIR REGISTER, PASSENGER
RHD, Dark Chrome 		$502.76 1
1360 707623
SCREW/WASHER, M6x16
IN STOCK 		$1.04 6
1400 SY7Y-045A03-ABW
INSTRUMENT CLUSTER HOOD,UPPER
Semi Aniline 		- 1 Enquire
1401 SY7Y-045A03-DBW
INSTRUMENT CLUSTER HOOD,UPPER
Alcantara 		- 1 Enquire
1410 SY7Y-045A02-ABW
INSTRUMENT CLUSTER HOOD,LOWER
Semi Aniline 		- 1 Enquire
1411 SY7Y-045A02-DBW
INSTRUMENT CLUSTER HOOD,LOWER
Alcantara 		- 1 Enquire
1420 RY63C04606BA
INSTRUMENT CLUSTEROPENING BEZEL 		$874.79 1
1430 RY63045B57AB
CLUSTER HOUSING OUTER, LH
Gloss Black 		$265.76 1
1431 RY63045C57CB
CLUSTER HOUSING OUTER, LH
Satin Carbon 		$757.90 1
1432 SY7Y-045C57-DA
CLUSTER HOUSING OUTER, LH
Carbon with Silver Fibres 		- 1 Enquire
1433 SY7Y045C57EA
CLUSTER HOUSING OUTER, LH
Carbon with Copper Fibres 		$1,711.26 1
1434 SY7Y045C57FA
CLUSTER HOUSING OUTER, LH
Carbon with Gold/BronzeFibres 		$1,754.05 1
1440 RY63045B56AB
CLUSTER HOUSING OUTER, RH
Gloss Black 		$265.76 1
1441 RY63045C56CB
CLUSTER HOUSING OUTER, RH
Satin Carbon 		$757.90 1
1442 SY7Y-045C56-DA
CLUSTER HOUSING OUTER, RH
Carbon with Silver Fibres 		- 1 Enquire
1443 SY7Y045C56EA
CLUSTER HOUSING OUTER, RH
Carbon with Copper Fibres 		$1,711.26 1
1444 SY7Y045C56FA
CLUSTER HOUSING OUTER, RH
Carbon with Gold/BronzeFibres 		$1,754.05 1
1450 703027
SCREW, M4x10, PAN HD TORX 		$0.25 12
1460 707623
SCREW/WASHER, M6x16
IN STOCK 		$1.04 4
1470 DD3368172AA
SPRING CLIP, JET PRESS,PF268
IN STOCK 		$4.49 3
1480 701447
Screw M4x12 Pan collar
IN STOCK 		$0.56 4
1490 707491
TRIM CLIP, PUSH ON,8.5x16.0x1.7, BLACK
IN STOCK 		$5.28 5
1500 HY53E865224AA
TRIM FASTERNER, 15x5.4 		$1.37 2
1510 RY6334751AA
SUPPORT BRACKET, LH 		$39.18 1
1520 RY6334750AA
SUPPORT BRACKET, RH 		$39.18 1

探しているものが見つかりませんか?

オリジナルパーツ チューニングパーツ 助けが必要ですか?お電話ください

カートを見る/チェックアウト
