Body Structure - Anciliary Parts, Volante, page 1 of Aston Martin Aston Martin GT VIRAGE (2012-2013)

すべて見る

Aston Martin GT VIRAGE (2012-2013) - Body Structure - Anciliary Parts, Volante, page 1

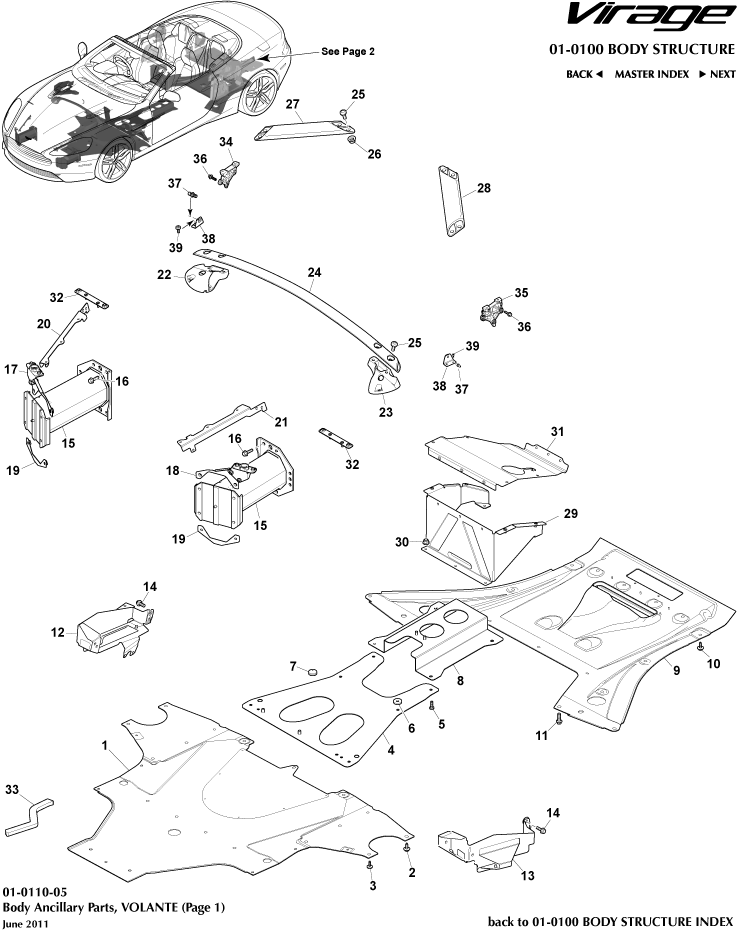

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	9G4311262AF	Reinforcement assy, floor pan front	9G4311262AF Reinforcement assy, floor pan front -	-	1	Enquire
2	703268	Screw M8x21 Hex IN STOCK	703268 Screw M8x21 Hex - IN STOCK	$2.68	14
3	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 - IN STOCK	$24.50	2
4	4G43111K36AF	トンネルレインフォースメント、フロント	4G43111K36AF トンネルレインフォースメント、フロント -	$137.95	-
5	703172PK	Screw M8 x 25 Pan Head IN STOCK	703172PK Screw M8 x 25 Pan Head - IN STOCK	$7.17	8
6	4G431660AA	Spacer, frt tunnel reinforce	4G431660AA Spacer, frt tunnel reinforce -	$25.04	4
7	4G43061B70AA	Cover, Dust Cap	4G43061B70AA Cover, Dust Cap -	$0.72	2
9	AD33L17C857AC	Undertray, Rear CPE	AD33L17C857AC Undertray, Rear CPE -	-	1	Enquire
10	7G33108256AA	Screw, M8 x 21 IN STOCK	7G33108256AA Screw, M8 x 21 - IN STOCK	$1.49	17
11	702210PK	Bolt, flg, M10x30 IN STOCK	702210PK Bolt, flg, M10x30 - IN STOCK	$23.37	2
12	4G435340AJ	Bracket, ECU mounting RH	4G435340AJ Bracket, ECU mounting RH -	$190.97	1
13	4G435341AJ	Bracket, ECU mounting LH	4G435341AJ Bracket, ECU mounting LH -	$190.97	1
14	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 6 per brkt IN STOCK	$0.34	12
15	AD43V17N800AC	Crash Can, Frt Bumper	AD43V17N800AC Crash Can, Frt Bumper Structural Cat. A only	$2,175.94	2
16	704495	SCREW, M8x35, HEX FLG IN STOCK	704495 SCREW, M8x35, HEX FLG 6 per crash can IN STOCK	$14.28	12
17	8D3313068AB	Head lamp mounting panel RH	8D3313068AB Head lamp mounting panel RH -	$911.31	1
18	8D3313069AB	Bracket, Headlamp Mnting LH	8D3313069AB Bracket, Headlamp Mnting LH -	$911.31	1
19	4G436367912AC	Nut Plate Assembly, Crash Can Lower	4G436367912AC Nut Plate Assembly, Crash Can Lower -	-	2	Enquire
20	4G43043B19AC	Tube, passenger airbag initr RH	4G43043B19AC Tube, passenger airbag initr RH -	$38.57	1
21	4G43043B20AC	Tube, passenger airbag initr LH	4G43043B20AC Tube, passenger airbag initr LH -	$71.17	1
22	8D33108A86AA	Bracket, Cross Brace, RH	8D33108A86AA Bracket, Cross Brace, RH -	$130.47	1
23	8D33108A87AA	Bracket, Cross Brace, LH	8D33108A87AA Bracket, Cross Brace, LH -	$130.47	1
24	4G43108A75AA	ブレース、フロントクラッシュ	4G43108A75AA ブレース、フロントクラッシュ -	$136.17	1
25	702209	ネジ、M10 X 25 IN STOCK	702209 ネジ、M10 X 25 - IN STOCK	$2.07	4
27	GOAG43F00198AA	Crush bar, reinforcement body, front RH	GOAG43F00198AA Crush bar, reinforcement body, front RH -	$957.30	1
28	GOAG43F00198AA	Crush bar, reinforcement body, front RH	GOAG43F00198AA Crush bar, reinforcement body, front RH -	$957.30	1
32	8G43199901AA	Nut plate, M6 hood striker plate	8G43199901AA Nut plate, M6 hood striker plate -	$5.96	2
34	CG4316A681AB	Reinforced head hinge on body, RH	CG4316A681AB Reinforced head hinge on body, RH -	$53.78	1
35	CG4316A682AB	Reinforced head hinge on body, LH	CG4316A682AB Reinforced head hinge on body, LH -	$63.29	1
36	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 - IN STOCK	$0.34	18
37	1R12640101AA	ボールペン IN STOCK	1R12640101AA ボールペン - IN STOCK	$7.20	2
39	701567	SCREW, M6x16, PAN IN STOCK	701567 SCREW, M6x16, PAN - IN STOCK	$3.74	4
