Volante Roof & Sunroof - Volante Roof Assembly of Aston Martin Aston Martin GT VIRAGE (2012-2013)

すべて見る

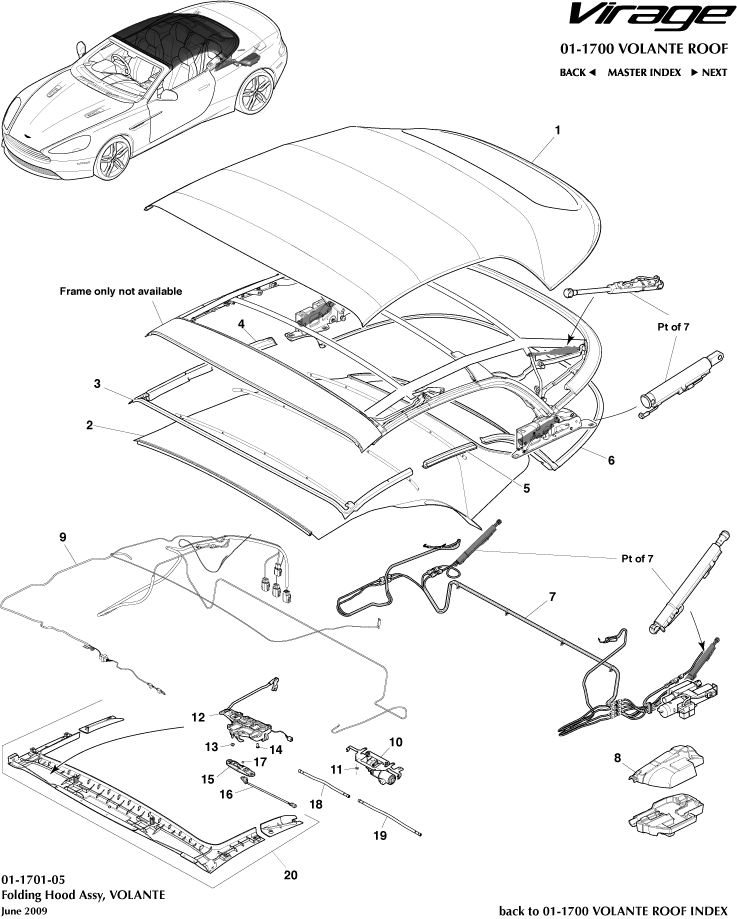

Aston Martin GT VIRAGE (2012-2013) - Volante Roof & Sunroof - Volante Roof Assembly

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	9G4370351BA	KIT, OUTER CANOPY	9G4370351BA KIT, OUTER CANOPY Atlantic Blue	$8,694.65	1
-	9G4370351CA	KIT, OUTER CANOPY	9G4370351CA KIT, OUTER CANOPY Java / Sandstone	$8,694.67	1
-	9G4370351DA	KIT, OUTER CANOPY	9G4370351DA KIT, OUTER CANOPY Westminster Green	$8,694.67	1
-	9G4370351EA	KIT, OUTER CANOPY	9G4370351EA KIT, OUTER CANOPY Titan Grey	$8,694.69	1
-	9G4370351FA	KIT, OUTER CANOPY	9G4370351FA KIT, OUTER CANOPY Burgundy	$14,667.48	1
-	9G4370351HA	Canopy Cover Kit, Grenadine Red	9G4370351HA Canopy Cover Kit, Grenadine Red Grenadine Red	$13,695.19	1
-	9G4370352BB	KIT, INNER LINING	9G4370352BB KIT, INNER LINING Ivory	$2,720.85	1
-	9G4370352CB	KIT, INNER LINING	9G4370352CB KIT, INNER LINING Moonshadow	$2,720.85	1
-	9G4370352DB	KIT, INNER LINING	9G4370352DB KIT, INNER LINING Tailors Grey	$2,720.85	1
-	9G4370352EB	KIT, INNER LINING	9G4370352EB KIT, INNER LINING New Light Tan	$2,720.85	1
-	4G43L51260AA	KIT, AUTOMATIC LATCHING,LH	4G43L51260AA KIT, AUTOMATIC LATCHING,LH -	$827.20	1
-	4G43765011AD	Striker, Header Latching LH	4G43765011AD Striker, Header Latching LH attached to BIW	$112.62	1
-	4G439310615	TRIM COVER SET	4G439310615 TRIM COVER SET Moonshadow	$1,580.49	1
-	4G439310616	TRIM COVER SET	4G439310616 TRIM COVER SET Tailors Grey	$1,580.49	1
-	4G439310617	TRIM COVER SET	4G439310617 TRIM COVER SET Obsidian Black	$1,580.49	1
2	9G4370352AB	KIT, INNER LINING	9G4370352AB KIT, INNER LINING Obsidian Black	$2,720.85	1
3	4G43L51210AA	Kit assy, Seal Front	4G43L51210AA Kit assy, Seal Front -	-	1	Enquire
4	4G43L51221AA	KIT, MID SEAL, RH	4G43L51221AA KIT, MID SEAL, RH -	$635.58	1
5	4G43L51220AA	KIT, MID SEAL, LH	4G43L51220AA KIT, MID SEAL, LH -	$635.58	1
6	4G43L51230AA	Kit assy, Seal Rear	4G43L51230AA Kit assy, Seal Rear -	-	1	Enquire
7	9G439G803AA	HYDRAULIC PUMP, PIPES &CYLINDERS ASSEMBLY	9G439G803AA HYDRAULIC PUMP, PIPES &CYLINDERS ASSEMBLY -	$4,489.15	1
8	9G439311486	Enclosure, Pump Assembly	9G439311486 Enclosure, Pump Assembly -	$132.18	1
10	4G43L51240AA	LATCH MOTOR ASSEMBLY KIT	4G43L51240AA LATCH MOTOR ASSEMBLY KIT -	$368.17	1
11	4G431001991AA	ナット、六角	4G431001991AA ナット、六角 Latch Motor assy	$1.44	4
12	4G43L51270AA	KIT, AUTOMATIC LATCHING,RH	4G43L51270AA KIT, AUTOMATIC LATCHING,RH -	$836.72	1
13	4G4369832AA	ナット、六角	4G4369832AA ナット、六角 3 per Latch assy	$1.42	6
14	4G431003920AA	Screw, Pan Hd	4G431003920AA Screw, Pan Hd 1 Per Latch assy	$1.28	2
15	4G43765010AE	Striker, Header Latching RH	4G43765010AE Striker, Header Latching RH attached to BIW	-	1	Enquire
16	4G43765013AE	Sensor, Latching Striker assy (RH only)	4G43765013AE Sensor, Latching Striker assy (RH only) -	-	1	Enquire
17	4G4380899AA	ネジ、M4X5MM IN STOCK	4G4380899AA ネジ、M4X5MM - IN STOCK	$0.27	1
18	4G431012524AA	FLEXIBLE SHAFT, RH	4G431012524AA FLEXIBLE SHAFT, RH -	$95.69	1
19	4G431012525AA	FLEXIBLE SHAFT, LH	4G431012525AA FLEXIBLE SHAFT, LH -	$95.69	1
20	4G439310614	TRIM COVER SET	4G439310614 TRIM COVER SET Ivory	$1,580.49	1
