Interior Trim & Ornamentation - NVH Pads, Volante of Aston Martin Aston Martin GT VIRAGE (2012-2013)

すべて見る

Aston Martin GT VIRAGE (2012-2013) - Interior Trim & Ornamentation - NVH Pads, Volante

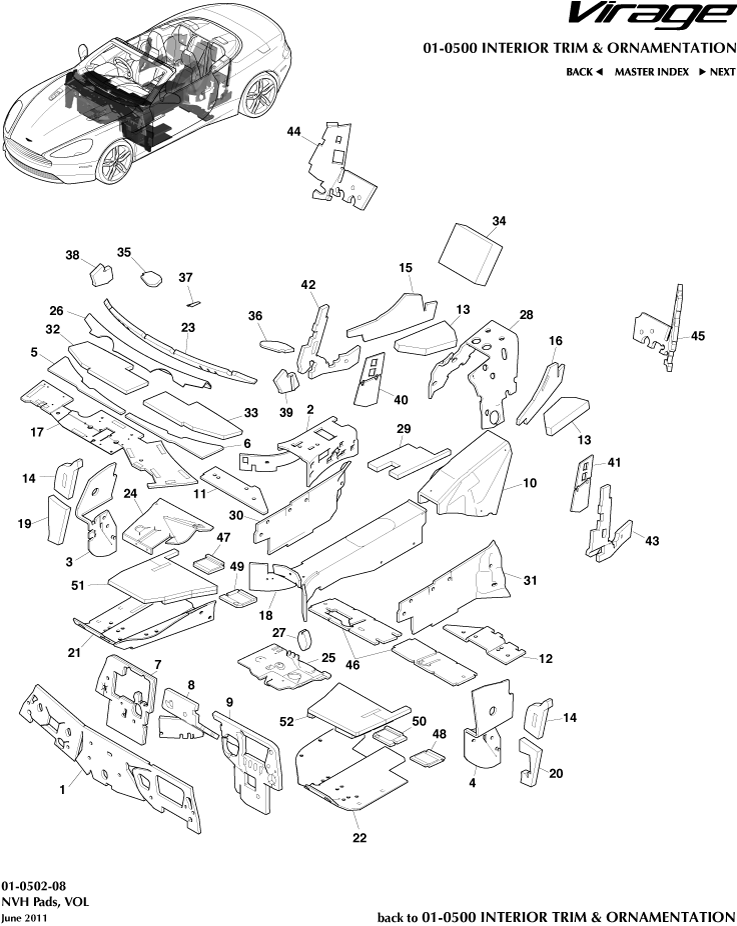

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	8G43002K05AA	Baffle body, front panel, RH	8G43002K05AA Baffle body, front panel, RH LHD	$89.82	1
-	8G43015A23AA	Baffle body, front panel LH	8G43015A23AA Baffle body, front panel LH LHD	$70.62	1
-	4G4300152AG	断熱材、ボディ前面	4G4300152AG 断熱材、ボディ前面 LHD	$218.35	1
-	4G4311455BH	Insulation Assy, front floor pan sound, RH, LHD	4G4311455BH Insulation Assy, front floor pan sound, RH, LHD LHD	$68.44	1
-	4G4311455AH	Insulation Assy, front floor pan sound, LH, LHD	4G4311455AH Insulation Assy, front floor pan sound, LH, LHD LHD	$68.75	1
-	4G4311455BH	Insulation Assy, front floor pan sound, RH, LHD	4G4311455BH Insulation Assy, front floor pan sound, RH, LHD -	$68.44	1
-	4G4311455AH	Insulation Assy, front floor pan sound, LH, LHD	4G4311455AH Insulation Assy, front floor pan sound, LH, LHD -	$68.75	1
2	8G4311446AB	Insulation, sound, floor pan gear shift cover org	8G4311446AB Insulation, sound, floor pan gear shift cover org -	$40.56	1
7	8G43002K06AB	Baffle body, front panel, RH	8G43002K06AB Baffle body, front panel, RH RHD	$70.62	1
9	8G43015A22AB	Baffle body, front panel LH	8G43015A22AB Baffle body, front panel LH RHD	$89.75	1
14	4G4328112AB	NVHフォームパッド、フェンダーアッパー	4G4328112AB NVHフォームパッド、フェンダーアッパー -	$30.56	2
17	4G4300152BG	断熱材、ボディ前面	4G4300152BG 断熱材、ボディ前面 RHD	$218.35	1
19	4G4328110AB	NVHフォームパッド、フェンダー下部、右側	4G4328110AB NVHフォームパッド、フェンダー下部、右側 -	$22.17	1
20	4G4328111AB	NVHフォームパッドASSY、フェンダー下部、左側	4G4328111AB NVHフォームパッドASSY、フェンダー下部、左側 -	$22.17	1
24	4G4311454BH	Insulation Assy, front floor pan sound, RH, RHD	4G4311454BH Insulation Assy, front floor pan sound, RH, RHD RHD	$67.35	1
25	4G4311454AH	Insulation Assy, front floor pan sound, LH, RHD	4G4311454AH Insulation Assy, front floor pan sound, LH, RHD RHD	$67.35	1
26	6G3368066AC	NVH, IP, UNDERSIDE CAVITY	6G3368066AC NVH, IP, UNDERSIDE CAVITY -	$47.80	1
35	9G43046B72AA	Insulation, IP Radio Speaker Opening, RHS	9G43046B72AA Insulation, IP Radio Speaker Opening, RHS -	$2.28	1
36	9G43046B73AA	Insulation, IP Radio Speaker Opening, LHS	9G43046B73AA Insulation, IP Radio Speaker Opening, LHS -	$2.28	1
37	9G43-047B22-AA	Insulation, IP Radio Speaker Opening, Centre	9G43-047B22-AA Insulation, IP Radio Speaker Opening, Centre -	-	1	Enquire
42	AD33L27746AC	Insulation, Quarter Panel Front Side, LH	AD33L27746AC Insulation, Quarter Panel Front Side, LH -	$21.43	1
43	AD33-L27747-AA	Insulation, quarter panel front side, LH	AD33-L27747-AA Insulation, quarter panel front side, LH -	-	1	Enquire
45	AD33L31181AC	Insulation, rear bulkhead NVH, LH	AD33L31181AC Insulation, rear bulkhead NVH, LH -	$9.81	1
46	4G43111C73AE	Kit, Insulation Assy, sound centre floor pan	4G43111C73AE Kit, Insulation Assy, sound centre floor pan -	$24.45	1
47	6G33114B32AA	Insulation Assy, front floor pan, RH	6G33114B32AA Insulation Assy, front floor pan, RH -	$13.40	1
48	6G33114B33AA	Insulation Assy, front floor pan, LH	6G33114B33AA Insulation Assy, front floor pan, LH -	-	1	Enquire
49	6G33114A42AA	Insulation Assy, front floor pan, RH	6G33114A42AA Insulation Assy, front floor pan, RH -	-	1	Enquire
50	6G33114A43AA	Insulation Assy, front floor pan, LH	6G33114A43AA Insulation Assy, front floor pan, LH -	$13.40	1
51	4G4311454BH	Insulation Assy, front floor pan sound, RH, RHD	4G4311454BH Insulation Assy, front floor pan sound, RH, RHD -	$67.35	1
52	4G4311454AH	Insulation Assy, front floor pan sound, LH, RHD	4G4311454AH Insulation Assy, front floor pan sound, LH, RHD -	$67.35	1
