Body Structure - Volante of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

すべて見る

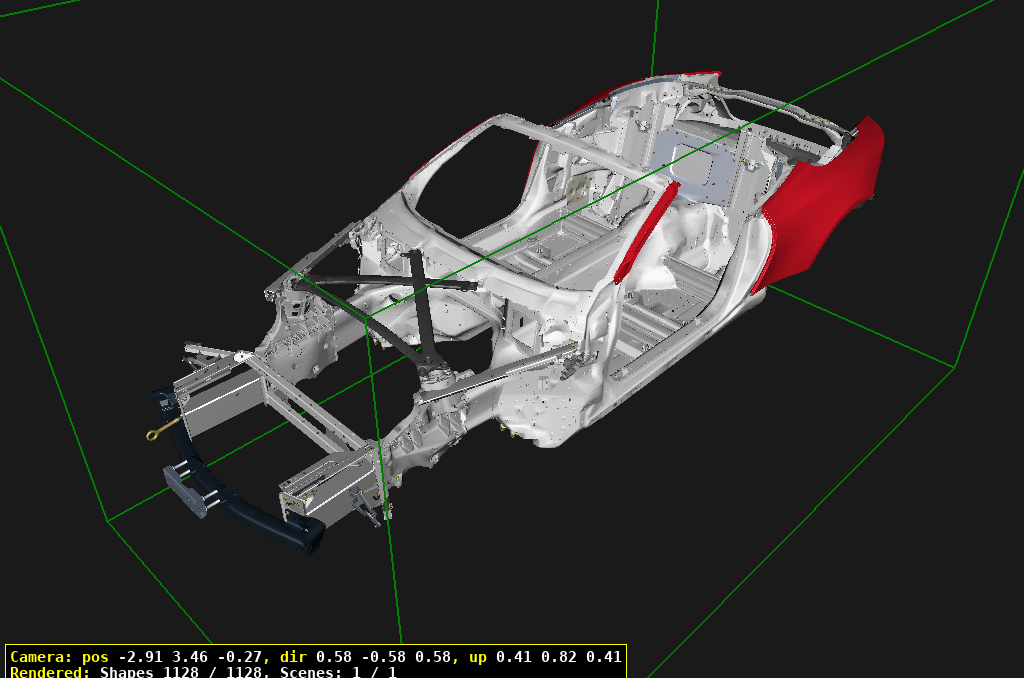

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Body Structure - Volante

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
10	LY736310023	BODYSHELL, Volante	LY736310023 BODYSHELL, Volante Cat A. Less Bonnet,Doors, Boot Lid, CrashStructure & Front Wings	$65,400.63	1
20	HY53N103218AB	BOLT with PILOT POINT,M12x45	HY53N103218AB BOLT with PILOT POINT,M12x45 Grade 10.9	$3.89	10
30	HY53N103218AB	BOLT with PILOT POINT,M12x45	HY53N103218AB BOLT with PILOT POINT,M12x45 Grade 10.9	$3.89	6
40	LY73L101A70AA	CROSSMEMBER, FRONT, UPPER	LY73L101A70AA CROSSMEMBER, FRONT, UPPER Cat A	$1,428.72	1
50	703120	Screw, flg, M8 x 25	703120 Screw, flg, M8 x 25	$21.91	8
60	HY53V17N801AE	CRUSH CAN, FRONT, LH	HY53V17N801AE CRUSH CAN, FRONT, LH	$2,202.72	1
70	HY53V17N800AE	CRUSH CAN, FRONT, RH	HY53V17N800AE CRUSH CAN, FRONT, RH	$2,202.72	1
80	704440	SCREW, M10x35, HEX HD	704440 SCREW, M10x35, HEX HD	$1.32	8
90	703201	Screw, M8 x 30 Hex Head Flange	703201 Screw, M8 x 30 Hex Head Flange	$1.27	4
100	HY5316B859AA	BRACKET, HINGE MOUNT, LH	HY5316B859AA BRACKET, HINGE MOUNT, LH Lower	$110.57	1
110	HY5316B858AA	BRACKET, HINGE MOUNT, RH	HY5316B858AA BRACKET, HINGE MOUNT, RH Lower	$110.57	1
120	HY5316A734AB	NUTPLATE, HINGE MOUNTING	HY5316A734AB NUTPLATE, HINGE MOUNTING	$22.43	2
130	HY536367912AB	ナットプレート、M10	HY536367912AB ナットプレート、M10	$14.00	2
140	6G3337949AA	Rivet, 4.8x13.9	6G3337949AA Rivet, 4.8x13.9	$0.12	4
150	HY5316A681AG	BRACKET, HINGE MOUNT, RH	HY5316A681AG BRACKET, HINGE MOUNT, RH Upper	$707.08	1
160	HY5316A682AB	BRACKET, HINGE MOUNT, LH	HY5316A682AB BRACKET, HINGE MOUNT, LH Upper	-	1	Enquire
170	703120	Screw, flg, M8 x 25	703120 Screw, flg, M8 x 25	$21.91	6
180	HY53100A05AD	MOUNTING, SUSPENSION, LH	HY53100A05AD MOUNTING, SUSPENSION, LH Cat A	$2,153.30	1
190	HY53100A04AD	MOUNTING, SUSPENSION, LH	HY53100A04AD MOUNTING, SUSPENSION, LH Cat A	$2,641.22	1
200	HY53045J72AA	ガスケット、フォーム	HY53045J72AA ガスケット、フォーム	$24.50	2
210	HY53E802299AA	SHOULDERED BOLT withPILOT POINT, M12x45	HY53E802299AA SHOULDERED BOLT withPILOT POINT, M12x45	$11.41	6
220	HY5313B060AA	BRACKET, HEADLAMPADJUSTMENT, LH	HY5313B060AA BRACKET, HEADLAMPADJUSTMENT, LH Cat A	$19.97	1
230	HY5313B059AA	BRACKET, HEADLAMPADJUSTMENT, RH	HY5313B059AA BRACKET, HEADLAMPADJUSTMENT, RH Cat A	$19.97	1
240	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	4
250	KY738D068AC	ADAPTOR BRACKET,RADIATOR, LH	KY738D068AC ADAPTOR BRACKET,RADIATOR, LH	$128.74	1
260	KY738D067AC	ADAPTOR BRACKET,RADIATOR, RH	KY738D067AC ADAPTOR BRACKET,RADIATOR, RH	$132.58	1
270	703585	Screw, M8 x 25 torx drive	703585 Screw, M8 x 25 torx drive	$0.70	4
300	LY73L27847AB	PANEL, REAR QUARTER,OUTER, LH	LY73L27847AB PANEL, REAR QUARTER,OUTER, LH Cat A	$1,964.76	1
310	LY73L27846AB	PANEL, REAR QUARTER,OUTER, RH	LY73L27846AB PANEL, REAR QUARTER,OUTER, RH Cat A	$1,964.76	1
330	4G43023A50BBPK	クリップ、下部	4G43023A50BBPK クリップ、下部 Pack of 5	$38.15	2
340	KY53L02623AC	PANEL, CANTRAIL CARRIER,LH	KY53L02623AC PANEL, CANTRAIL CARRIER,LH Cat A	$236.09	1
350	KY53L02622AC	PANEL, CANTRAIL CARRIER,RH	KY53L02622AC PANEL, CANTRAIL CARRIER,RH Cat A	$236.09	1
400	HY53108A75BA	BRACE ASSEMBLY, ENGINECOMPARTMENT	HY53108A75BA BRACE ASSEMBLY, ENGINECOMPARTMENT Black	$1,653.79	1
410	707497PK	BOLT, M10x30, HEX FLG,BLACK	707497PK BOLT, M10x30, HEX FLG,BLACK Pack of 10. ALWAYSREPLACE. DO NOT REUSE	$55.86	8
460	KY53611B34AA	SPACER, SEATBELTPRETENSIONER	KY53611B34AA SPACER, SEATBELTPRETENSIONER	$21.48	2
470	HY53111C60AD	PANEL, TOE BOARD, RH	HY53111C60AD PANEL, TOE BOARD, RH	$89.57	1
480	HY53111C61AD	PANEL, TOE BOARD, LH	HY53111C61AD PANEL, TOE BOARD, LH	$89.57	1
490	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	16
500	703161	Nut, M8, Hex Head	703161 Nut, M8, Hex Head	$1.68	2
510	KY53L111D38AB	CLOSER PANEL, REARBULKHEAD	KY53L111D38AB CLOSER PANEL, REARBULKHEAD	$196.14	1
520	703121	SCREW, M8x2,0 HEX FLG	703121 SCREW, M8x2,0 HEX FLG	$0.48	10
530	HY5316184AG	BRACE, ENGINE SIDE, RH	HY5316184AG BRACE, ENGINE SIDE, RH -> 23MY	$300.04	1
531	HY5316184CA	BRACE, ENGINE SIDE, RH	HY5316184CA BRACE, ENGINE SIDE, RH 23.5MY->, Black	$1,168.42	1
540	HY5316185AG	BRACE, ENGINE SIDE, LH	HY5316185AG BRACE, ENGINE SIDE, LH -> 23MY	$300.04	1
541	HY5316185CA	BRACE, ENGINE SIDE, LH	HY5316185CA BRACE, ENGINE SIDE, LH 23.5MY->, Black	$1,168.42	1
550	703200	Screw M10x25 Hex Flg Hd	703200 Screw M10x25 Hex Flg Hd	$0.73	10
560	HY53110023AC	BRACE, TUNNEL CENTRE	HY53110023AC BRACE, TUNNEL CENTRE	$554.51	1
570	703200	Screw M10x25 Hex Flg Hd	703200 Screw M10x25 Hex Flg Hd	$0.73	16
580	HY535341AD	BRACKET, BONNET LATCH, LH	HY535341AD BRACKET, BONNET LATCH, LH	$260.41	1
590	HY535340AD	BRACKET, BONNET LATCH, RH	HY535340AD BRACKET, BONNET LATCH, RH	$260.41	1
600	703201	Screw, M8 x 30 Hex Head Flange	703201 Screw, M8 x 30 Hex Head Flange	$1.27	6
610	703121	SCREW, M8x2,0 HEX FLG	703121 SCREW, M8x2,0 HEX FLG	$0.48	12
620	KY53L114B10AC	REINFORCEMENT, ISOFIXTETHER MOUNT, TOP	KY53L114B10AC REINFORCEMENT, ISOFIXTETHER MOUNT, TOP	$524.03	2
630	703265	ネジ、M6 X 16なべ頭	703265 ネジ、M6 X 16なべ頭	$0.59	10
640	KY53L28143AB	PANEL, B-PILLAR, LH	KY53L28143AB PANEL, B-PILLAR, LH Cat A	$56.78	1
650	KY53L28142AB	PANEL, B-PILLAR, RH	KY53L28142AB PANEL, B-PILLAR, RH Cat A	$56.78	1
660	703121	SCREW, M8x2,0 HEX FLG	703121 SCREW, M8x2,0 HEX FLG	$0.48	16
670	HY538741AB	PLATE, SERVICE ACCESS	HY538741AB PLATE, SERVICE ACCESS	$91.07	2
690	705355	SCREW, M10x25, HF ADH10	705355 SCREW, M10x25, HF ADH10	$1.07	2
700	KY53L41037AC	PANEL, REAR QUARTERINFILL, LH	KY53L41037AC PANEL, REAR QUARTERINFILL, LH Cat A	$297.56	1
710	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.21	6
720	1R12642790AAPK	SCRIVET, 8mm DIA, PANEL,3-10mm	1R12642790AAPK SCRIVET, 8mm DIA, PANEL,3-10mm Pack of 5	$8.24	6
730	KY53-L74200-AD	REINFORCEMENT, C-PILLAR,OUTER, LOWER, RH	KY53-L74200-AD REINFORCEMENT, C-PILLAR,OUTER, LOWER, RH	-	1	Enquire
740	6G3368676AC	STRUCTURAL RIVET,6.5x14.0, BLIND	6G3368676AC STRUCTURAL RIVET,6.5x14.0, BLIND	$1.21	20
750	703265	ネジ、M6 X 16なべ頭	703265 ネジ、M6 X 16なべ頭	$0.59	1
760	KY53L41036AC	PANEL, REAR QUARTERINFILL, RH	KY53L41036AC PANEL, REAR QUARTERINFILL, RH Cat A	$298.95	1
770	KY53L279A55AC	PANEL, WHEEL HOUSECLOSER, LH	KY53L279A55AC PANEL, WHEEL HOUSECLOSER, LH	$356.20	1
780	KY53L279A54AC	PANEL, WHEEL HOUSECLOSER, RH	KY53L279A54AC PANEL, WHEEL HOUSECLOSER, RH	$356.20	1
790	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.21	6
800	KY53L21763AB	BRACKET, ROOF MECHANISMSUPPORT, LH	KY53L21763AB BRACKET, ROOF MECHANISMSUPPORT, LH	$33.14	1
810	KY53L21762AB	BRACKET, ROOF MECHANISMSUPPORT, RH	KY53L21762AB BRACKET, ROOF MECHANISMSUPPORT, RH	$33.14	1
820	702944	Nut, M6 flg	702944 Nut, M6 flg	$1.82	4
830	KY53L501A33AA	BRACKET, BUMPSTOP, OUTER	KY53L501A33AA BRACKET, BUMPSTOP, OUTER	$32.70	2
840	702944	Nut, M6 flg	702944 Nut, M6 flg	$1.82	8
850	4G4316K808AB	Support Assembly	4G4316K808AB Support Assembly	$5.17	4
860	KY53L501A32AA	BRACKET, BUMPSTOP, INNER	KY53L501A32AA BRACKET, BUMPSTOP, INNER	$32.70	1
870	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	4
880	KY53L21760AA	BRACKET, BUMPSTOP	KY53L21760AA BRACKET, BUMPSTOP	$37.99	1
890	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	2
900	KY53L5A367AA	CLOSER, SUBFRAMEMOUNTING, LH	KY53L5A367AA CLOSER, SUBFRAMEMOUNTING, LH	$63.44	1
910	KY53L5A366AA	CLOSER, SUBFRAMEMOUNTING, RH	KY53L5A366AA CLOSER, SUBFRAMEMOUNTING, RH	$63.44	1
920	703026	Screw M5x16 Hex flg hd	703026 Screw M5x16 Hex flg hd -> June 2019	$0.34	8
921	6G3351756AAPK	MACHINE SCREW, M5x13, PANHD	6G3351756AAPK MACHINE SCREW, M5x13, PANHD June 2019->, Pack of 10	$5.72	8
1000	HY5347124AF	PANEL, BOOT FLOOR	HY5347124AF PANEL, BOOT FLOOR -> 21MY, Cat A	$1,239.39	1
1001	HY5347124AG	PANEL, BOOT FLOOR	HY5347124AG PANEL, BOOT FLOOR 22MY->, Cat A	$1,377.62	1
1010	6G3368676AC	STRUCTURAL RIVET,6.5x14.0, BLIND	6G3368676AC STRUCTURAL RIVET,6.5x14.0, BLIND	$1.21	4
1020	6G33L80840AD	ドレンプラグ	6G33L80840AD ドレンプラグ	$36.23	2
1030	KY53L10515AE	パネル、クローザー、左側	KY53L10515AE パネル、クローザー、左側 Cat A	$270.98	1
1031	KY53L10514AE	パネル、クローザー、右側	KY53L10514AE パネル、クローザー、右側 Cat A	$270.98	1
1040	6G3368676AC	STRUCTURAL RIVET,6.5x14.0, BLIND	6G3368676AC STRUCTURAL RIVET,6.5x14.0, BLIND	$1.21	6
1050	LY73L41039AA	PANEL, REAR QUARTERINNER, LH	LY73L41039AA PANEL, REAR QUARTERINNER, LH Cat A	$1,100.59	1
1060	LY73L41038AA	PANEL, REAR QUARTERINNER, RH	LY73L41038AA PANEL, REAR QUARTERINNER, RH Cat A. -> VIN T01599	$1,100.59	1
1061	LY73L41038AB	PANEL, REAR QUARTERINNER, RH	LY73L41038AB PANEL, REAR QUARTERINNER, RH Cat A. VIN T01600->	$1,100.61	1
1070	6G33-L205196-AB	プラグ、ドレンTLS	6G33-L205196-AB プラグ、ドレンTLS -> VIN T03073. Due to achange in the drain hose,the later drain plug maybe required.	-	1	Enquire
1071	MY63205196AA	DRAIN PLUG, FUEL BOWL	MY63205196AA DRAIN PLUG, FUEL BOWL VIN T03074->	$3.32	1
1080	LY73L44408AC	BOOT LID SURROUND	LY73L44408AC BOOT LID SURROUND Cat A	$2,565.29	1
1090	KY5342853AA	SPACER, TOP HAT, 1mm	KY5342853AA SPACER, TOP HAT, 1mm	$17.03	6
1091	KY5342853BA	SPACER, TOP HAT, 2mm	KY5342853BA SPACER, TOP HAT, 2mm	$19.24	6
1092	KY5342853CA	SPACER, TOP HAT, 3mm	KY5342853CA SPACER, TOP HAT, 3mm	$19.24	6
1130	6485690	ボールペン	6485690 ボールペン	$0.43	2
1150	CD3343422BA	WASHER, 81Dx21ODx1.6	CD3343422BA WASHER, 81Dx21ODx1.6	$5.94	2
1160	6G43F78410AA	Sealing Pad, Al Butyl 35 x 35	6G43F78410AA Sealing Pad, Al Butyl 35 x 35	$2.91	4
1220	HY5317F035AF	CRUSH CAN, REAR, LH	HY5317F035AF CRUSH CAN, REAR, LH	$568.88	1
1230	HY5317F034AF	CRUSH CAN, REAR, RH	HY5317F034AF CRUSH CAN, REAR, RH	$568.88	1
1240	HY535F046AB	ナットプレート、M8	HY535F046AB ナットプレート、M8	$13.60	2
1250	6G3337949AA	Rivet, 4.8x13.9	6G3337949AA Rivet, 4.8x13.9	$0.12	4
1260	703120	Screw, flg, M8 x 25	703120 Screw, flg, M8 x 25	$21.91	8
1270	KY539348AA	シーリングワッシャー、フォーム	KY539348AA シーリングワッシャー、フォーム	$7.70	6
1300	HY5317B804BA	トウイングアイ	HY5317B804BA トウイングアイ	$260.68	1
1310	KY7317F033AD	アーマチュア、フロントバンパー	KY7317F033AD アーマチュア、フロントバンパー RoW	$1,372.73	1
1320	KY7317F033CE	アーマチュア、フロントバンパー	KY7317F033CE アーマチュア、フロントバンパー China, GCC, South Korea	$1,458.62	1
1330	KY7317F033BF	アーマチュア、フロントバンパー	KY7317F033BF アーマチュア、フロントバンパー Federal	$1,666.36	1
1340	703201	Screw, M8 x 30 Hex Head Flange	703201 Screw, M8 x 30 Hex Head Flange	$1.27	6
1350	703200	Screw M10x25 Hex Flg Hd	703200 Screw M10x25 Hex Flg Hd	$0.73	2
1360	HY5316E146CA	ボルスタースタッド	HY5316E146CA ボルスタースタッド Federal	$98.52	4
1370	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	4
1380	KY7316E170BB	ボルスター	KY7316E170BB ボルスター Structural	$192.20	1
1500	HY5317758AG	アーマチュア、リアバンパー	HY5317758AG アーマチュア、リアバンパー RoW	$1,379.90	1
1510	KY7317758CD	アーマチュア、リアバンパー	KY7317758CD アーマチュア、リアバンパー China, GCC, South Korea	$1,379.92	1
1520	KY7317758BE	アーマチュア、リアバンパー	KY7317758BE アーマチュア、リアバンパー Federal	$1,381.88	1
1530	703200	Screw M10x25 Hex Flg Hd	703200 Screw M10x25 Hex Flg Hd	$0.73	6
1540	703121	SCREW, M8x2,0 HEX FLG	703121 SCREW, M8x2,0 HEX FLG	$0.48	2
