Handles and Lock Mechanisms of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

すべて見る

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Handles and Lock Mechanisms

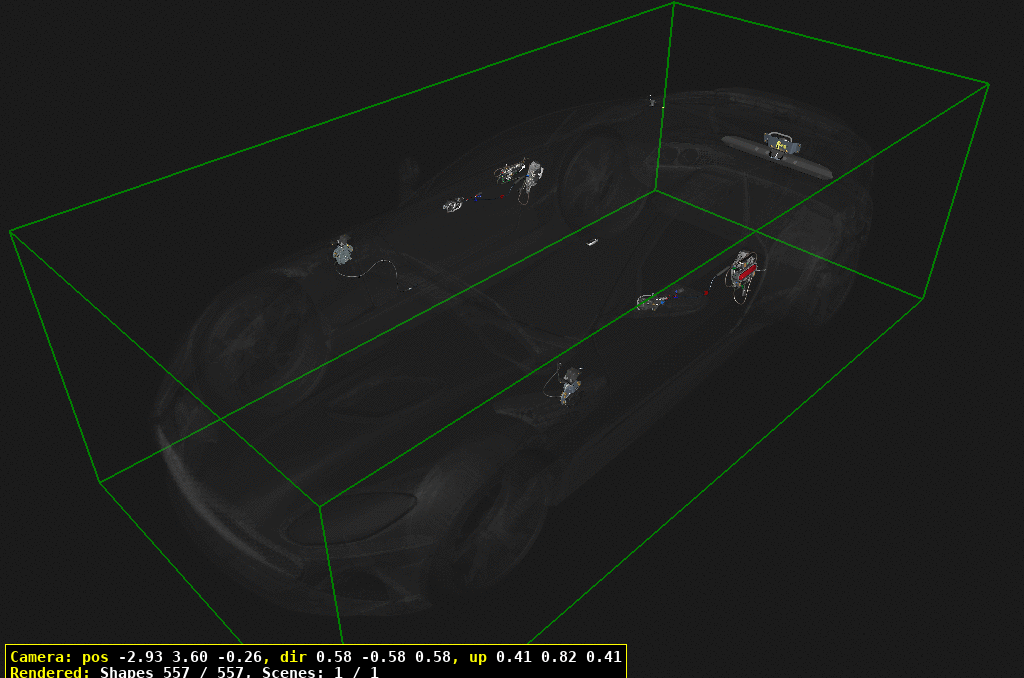

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
10	HY5316700AG	BONNET LATCH ASSEMBLY	HY5316700AG BONNET LATCH ASSEMBLY	$505.16	2
20	HY5316K689AB	STRIKER, LH	HY5316K689AB STRIKER, LH	$834.82	1
30	HY5316K688AA	STRIKER, RH	HY5316K688AA STRIKER, RH	$834.82	1
40	703169	M6, NUT, HEX FLG	703169 M6, NUT, HEX FLG	$1.03	4
60	HY5311748AA	BRACKET, BONNET LATCHREINFORCEMENT	HY5311748AA BRACKET, BONNET LATCHREINFORCEMENT	$40.86	2
70	700610	SCREW, M8x25, FLAT CSK,GRD 10.9	700610 SCREW, M8x25, FLAT CSK,GRD 10.9	$1.23	10
80	703163	Nut, M06, hex flange head	703163 Nut, M06, hex flange head	$0.23	6
100	HY53F22050AF	VEHICLE LOCK SET	HY53F22050AF VEHICLE LOCK SET Includes Item 111	$402.18	1
110	HY53654024AC	エマージェンシーキー	HY53654024AC エマージェンシーキー -> 22MY	$55.47	1
111	MY83654024AB	エマージェンシーキー	MY83654024AB エマージェンシーキー 22MY->	$60.15	1
120	JY53226A14BA	BEZEL, INTEROR HANDLE	JY53226A14BA BEZEL, INTEROR HANDLE Satin Silver	$79.66	2
121	JY53226A14CA	BEZEL, INTEROR HANDLE	JY53226A14CA BEZEL, INTEROR HANDLE Dark Chrome	$85.85	2
130	HY5322615AH	HANDLE MECHANISM,INTERIOR, LH	HY5322615AH HANDLE MECHANISM,INTERIOR, LH Satin Silver	$479.10	1
131	HY5322615BH	HANDLE MECHANISM,INTERIOR, LH	HY5322615BH HANDLE MECHANISM,INTERIOR, LH Dark Chrome	$851.88	1
140	HY5322614AH	HANDLE MECHANISM,INTERIOR, RH	HY5322614AH HANDLE MECHANISM,INTERIOR, RH Satin Silver	$479.17	1
141	HY5322614BH	HANDLE MECHANISM,INTERIOR, RH	HY5322614BH HANDLE MECHANISM,INTERIOR, RH Dark Chrome	$828.69	1
150	HY5321813AD	LATCH ASSEMBLY, LH	HY5321813AD LATCH ASSEMBLY, LH Includes Item 170	$365.71	1
160	HY5321812AD	LATCH ASSEMBLY, RH	HY5321812AD LATCH ASSEMBLY, RH Includes Item 170	$365.71	1
170	HY53F218A01AB	CABLE, INTERIOR HANDLERELEASE	HY53F218A01AB CABLE, INTERIOR HANDLERELEASE	$63.22	2
180	703149	ねじ M6X16 六角穴付き	703149 ねじ M6X16 六角穴付き	$1.27	6
190	HY5321982AB	STRIKER, DOOR, with SEAL	HY5321982AB STRIKER, DOOR, with SEAL	$62.01	2
200	HY53226A29AE	HANDLE MECHANISM,EXTERIOR, LH	HY53226A29AE HANDLE MECHANISM,EXTERIOR, LH	$389.33	1
210	HY53226A28AF	HANDLE MECHANISM,EXTERIOR, RH	HY53226A28AF HANDLE MECHANISM,EXTERIOR, RH	$400.99	1
220	4G43-22404-AG	Handle Blade Assembly	4G43-22404-AG Handle Blade Assembly	-	2	Enquire
221	CD3322405AC	HANDLE ASSEMBLY, LH	CD3322405AC HANDLE ASSEMBLY, LH Carbon	$1,962.09	1
222	CD3322404AC	HANDLE ASSEMBLY, RH	CD3322404AC HANDLE ASSEMBLY, RH Carbon	$1,962.09	1
230	4G43224A68AA	PIN, HANDLE PIVOT	4G43224A68AA PIN, HANDLE PIVOT	$5.90	2
240	4G43224A72AH	レンズ	4G43224A72AH レンズ	$4.64	2
250	703612	Nut and Washer, M6 Hex	703612 Nut and Washer, M6 Hex	$0.82	6
260	6G3351756AAPK	MACHINE SCREW, M5x13, PANHD	6G3351756AAPK MACHINE SCREW, M5x13, PANHD Pack of 10. Standard Trim	$5.72	6
280	HY53A17N409AA	NUT, M5, THUMB	HY53A17N409AA NUT, M5, THUMB	$2.92	6
290	GG43AA0231AA	SCREW, M8x34, FLAT CSKTORX	GG43AA0231AA SCREW, M8x34, FLAT CSKTORX	$6.38	4
300	707004	BOLT/WASHER, M6x16, HEXPIL FL 10	707004 BOLT/WASHER, M6x16, HEXPIL FL 10	$0.91	2
310	~#~	WHEN ORDERING MIRRORREPAIR KITS, PLEASE RAISEA TSR. TECHNICAL SUPPORTWILL RESPOND WITHDETAILED FITTINGINSTRUCTIONS	~#~ WHEN ORDERING MIRRORREPAIR KITS, PLEASE RAISEA TSR. TECHNICAL SUPPORTWILL RESPOND WITHDETAILED FITTINGINSTRUCTIONS See Section 191200-20	-	-	Enquire
320	704443	Clip Plastic	704443 Clip Plastic	$1.48	2
330	6G33239600AA	CABLE CLIP, SEALED	6G33239600AA CABLE CLIP, SEALED	$1.64	2
340	HY53F16346AA	SHIM, STRIKER	HY53F16346AA SHIM, STRIKER 1mm.	$37.30	A/R
410	707624	BOLT, M8x14	707624 BOLT, M8x14	$1.14	5
430	6G436710237	Handle, Emergency	6G436710237 Handle, Emergency	$17.42	1
440	700610	SCREW, M8x25, FLAT CSK,GRD 10.9	700610 SCREW, M8x25, FLAT CSK,GRD 10.9	$1.23	1
450	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	4
460	HY53F442A66AF	パワーラッチ	HY53F442A66AF パワーラッチ	$476.69	1
480	HY5311028AA	PLUG, 22mm, BLACK DOMED	HY5311028AA PLUG, 22mm, BLACK DOMED	$1.34	6
490	HY5342626BD	EXTRUSION, REAR STRIKER	HY5342626BD EXTRUSION, REAR STRIKER Coupe, Black	$735.17	1
491	KY5342626BA	EXTRUSION, REAR STRIKER	KY5342626BA EXTRUSION, REAR STRIKER Volante, Black	$838.71	1
500	6G436710235	ストライカー	6G436710235 ストライカー	$47.92	1
510	KY7344462AB	BRACKET, LATCH MOUNTING	KY7344462AB BRACKET, LATCH MOUNTING	$57.23	1
520	703265	ネジ、M6 X 16なべ頭	703265 ネジ、M6 X 16なべ頭	$0.59	4
530	707624	BOLT, M8x14	707624 BOLT, M8x14	$1.14	3
700	HY539N287AB	TAPPET, FUEL FILLER ARRIVING SOON	HY539N287AB TAPPET, FUEL FILLER ARRIVING SOON	$5.62	1
710	HY539E917AB	ACTUATOR, FUEL FILLER ARRIVING SOON	HY539E917AB ACTUATOR, FUEL FILLER ARRIVING SOON	$143.01	1
720	HY5370312AA	EMERGENCY RELEASE, FUELFILLER	HY5370312AA EMERGENCY RELEASE, FUELFILLER	$15.26	1
