Seating - Lightweight of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

すべて見る

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Seating - Lightweight

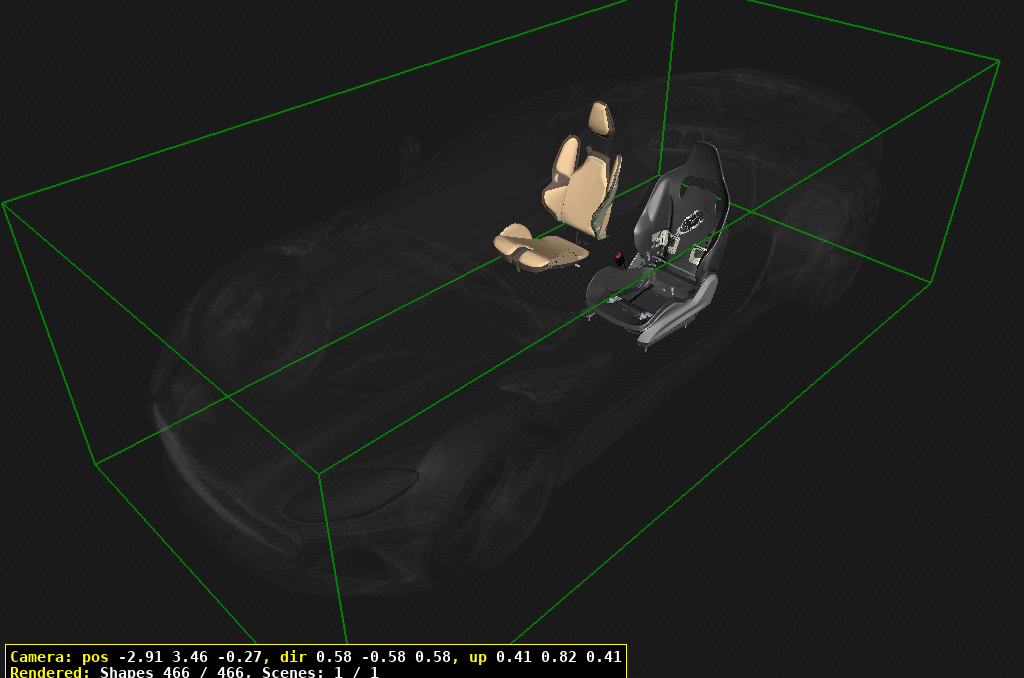

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	PY6360009BAW	FRONT SEAT ASSEMBLY, LH	PY6360009BAW FRONT SEAT ASSEMBLY, LH	$28,967.74	1
2	PY6360008BAW	FRONT SEAT ASSEMBLY, RH	PY6360008BAW FRONT SEAT ASSEMBLY, RH	$28,967.74	1
20	LY7Y14B718ABW	ヘッドレストアセンブリ	LY7Y14B718ABW ヘッドレストアセンブリ	$875.58	1
30	PY63631B03AAW	CUSHION BOLSTER ASSEMBLY,LH	PY63631B03AAW CUSHION BOLSTER ASSEMBLY,LH	$2,339.09	1
40	PY63631B02AAW	CUSHION BOLSTER ASSEMBLY,RH	PY63631B02AAW CUSHION BOLSTER ASSEMBLY,RH	$2,339.09	1
50	LY7Y61672ABW	SQUAB INSERT ASSEMBLY	LY7Y61672ABW SQUAB INSERT ASSEMBLY Includes item 60	$2,833.11	1
60	MY8314D696AB	HEATER PAD, SEAT SQUAB	MY8314D696AB HEATER PAD, SEAT SQUAB	$54.41	1
70	PY6361527AAW	SQUAB BOLSTER ASSEMBLY,LH	PY6361527AAW SQUAB BOLSTER ASSEMBLY,LH	$3,760.75	1
80	PY6361526AAW	SQUAB BOLSTER ASSEMBLY,RH	PY6361526AAW SQUAB BOLSTER ASSEMBLY,RH	$3,760.75	1
90	PY6361678ABW	CUSHION INSERT ASSEMBLY	PY6361678ABW CUSHION INSERT ASSEMBLY Includes item 100	$3,886.11	1
100	MY8314D698AC	HEATER PAD, SEAT CUSHION	MY8314D698AC HEATER PAD, SEAT CUSHION	$54.20	1
110	LY7Y63258AC	FOAM BEZEL, CUSHION	LY7Y63258AC FOAM BEZEL, CUSHION	$154.83	1
120	PY63621A64AAW	STRAP, BACKREST RELEASE	PY63621A64AAW STRAP, BACKREST RELEASE	$217.98	1
130	PY63605W01AAW	STRAP, CUSHION RELEASE	PY63605W01AAW STRAP, CUSHION RELEASE With Webbing	$414.63	1
131	PY63605W01BAW	STRAP, CUSHION RELEASE	PY63605W01BAW STRAP, CUSHION RELEASE Without Webbing	$167.64	1
140	LY7Y631C00AB	RETAINER, TRIM CAP	LY7Y631C00AB RETAINER, TRIM CAP	$204.91	1
150	LY7Y600C76AA	TRIM CAP	LY7Y600C76AA TRIM CAP Satin Dark Chrome	$41.51	1
160	MY6YN604144AA	SCREW, M5x16, CSK HD	MY6YN604144AA SCREW, M5x16, CSK HD	$3.67	1
170	LY7Y602B48AA	GUIDE, SEATBELT, FRONT,RH SEAT	LY7Y602B48AA GUIDE, SEATBELT, FRONT,RH SEAT	$70.12	1
171	LY7Y602B47AA	GUIDE, SEATBELT, FRONT,LH SEAT	LY7Y602B47AA GUIDE, SEATBELT, FRONT,LH SEAT	$70.12	1
180	LY7Y666B82AB	GUIDE, SEATBELT, REAR, RHSEAT	LY7Y666B82AB GUIDE, SEATBELT, REAR, RHSEAT	$91.41	1
181	LY7Y666B83AB	GUIDE, SEATBELT, REAR, LHSEAT	LY7Y666B83AB GUIDE, SEATBELT, REAR, LHSEAT	$91.41	1
190	MY6YE603125AA	SCREW, M4x10, CSK	MY6YE603125AA SCREW, M4x10, CSK	$4.44	1
200	LY7Y600C76AA	TRIM CAP	LY7Y600C76AA TRIM CAP	$41.51	1
210	LY7Y631C00AB	RETAINER, TRIM CAP	LY7Y631C00AB RETAINER, TRIM CAP	$204.91	1
220	MY6YN604144AA	SCREW, M5x16, CSK HD	MY6YN604144AA SCREW, M5x16, CSK HD	$3.67	1
230	MY6Y64810AA	WASHER, 14mm, EDPM	MY6Y64810AA WASHER, 14mm, EDPM	$0.80	1
300	PY63600C15AB	SEAT FRAME, DRIVER	PY63600C15AB SEAT FRAME, DRIVER LHD	$13,663.21	1
301	PY63600C15BB	SEAT FRAME, PASSENGER	PY63600C15BB SEAT FRAME, PASSENGER LHD	$13,663.92	1
302	PY63600C14AB	SEAT FRAME, DRIVER	PY63600C14AB SEAT FRAME, DRIVER RHD	$13,663.21	1
303	PY63600C14BB	SEAT FRAME, PASSENGER	PY63600C14BB SEAT FRAME, PASSENGER RHD	$13,663.92	1
304	PY63600C14CB	SEAT FRAME, PASSENGER	PY63600C14CB SEAT FRAME, PASSENGER LHD, Top Tether	$13,719.14	1
310	MY83610E54AC	BUCKLE, SEATBELT	MY83610E54AC BUCKLE, SEATBELT	$127.62	2
320	LY7YXC471045BC	BRACKET, ECU	LY7YXC471045BC BRACKET, ECU	$116.48	2
330	HY53SE14C249AA	ECU, DRIVERS SEAT	HY53SE14C249AA ECU, DRIVERS SEAT	$370.07	1
331	HY53SE14C249BA	ECU, PASSENGERS SEAT	HY53SE14C249BA ECU, PASSENGERS SEAT	$369.43	1
340	LY7Y617C84AA	SPACER ASSEMBLY, RH	LY7Y617C84AA SPACER ASSEMBLY, RH	$279.18	1
350	LY7Y617C85AA	SPACER ASSEMBLY, LH	LY7Y617C85AA SPACER ASSEMBLY, LH	$279.18	1
360	RY5311026BAA	BOLT, M10x1.5x45, T50	RY5311026BAA BOLT, M10x1.5x45, T50	$12.36	4
370	LY7Y484451AA	SCREW, M10x1.5x16	LY7Y484451AA SCREW, M10x1.5x16	$1.21	4
380	LY7Y-F667K04-AA	MOULDING, ANTI-ROTATION	LY7Y-F667K04-AA MOULDING, ANTI-ROTATION	-	1	Enquire
390	LY7Y7L565AB	CABLE, SEAT RECLINER	LY7Y7L565AB CABLE, SEAT RECLINER	$145.52	1
400	LY7Y600D44AA	リリースメカニズム	LY7Y600D44AA リリースメカニズム	$473.09	1
410	LY7Y14B683BB	HARNESS, LH	LY7Y14B683BB HARNESS, LH	$844.11	1
411	LY7Y14B684BB	HARNESS, RH	LY7Y14B684BB HARNESS, RH	$946.27	1
420	LY7Y10C850AB	KILL SWITCH ASSEMBLY	LY7Y10C850AB KILL SWITCH ASSEMBLY	$100.47	2
