Glass and Regulators - Coupe of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

すべて見る

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Glass and Regulators - Coupe

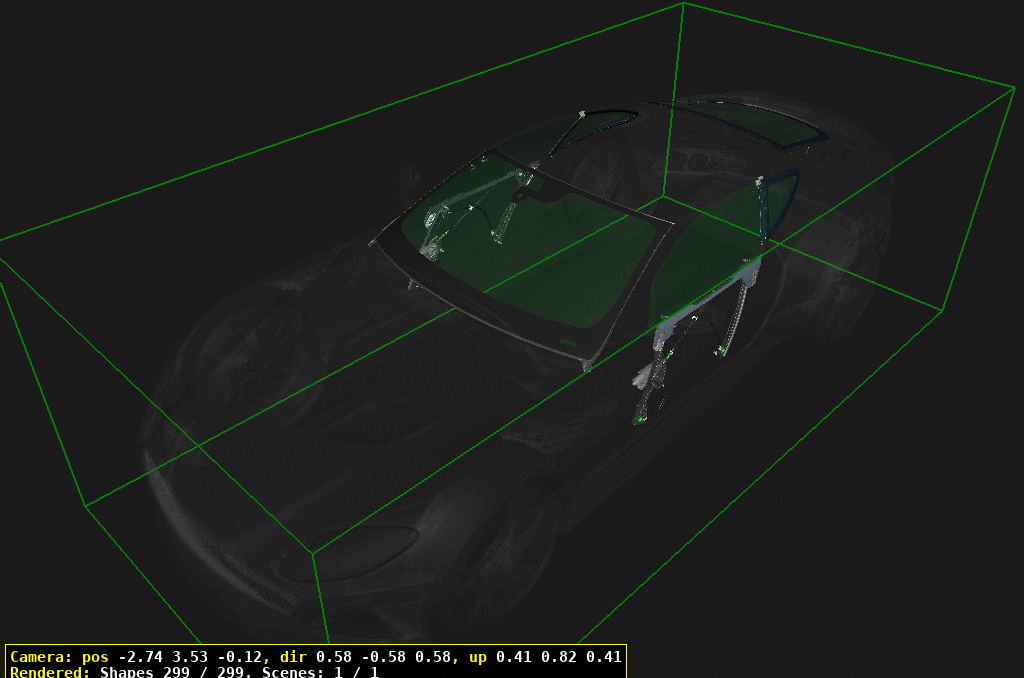

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	HY5303804BC	WINDSCREEN, FRONT	HY5303804BC WINDSCREEN, FRONT LHD	$3,274.22	1
21	HY5303804AC	WINDSCREEN, FRONT	HY5303804AC WINDSCREEN, FRONT RHD	$2,974.82	1
30	HY5303296AA	FINISHER, WINDSCREEN	HY5303296AA FINISHER, WINDSCREEN Does not include item 60.Order separately	$184.81	1
40	4G4303836ABPK	BUMPON, 20mm x5.25x5.5mm	4G4303836ABPK BUMPON, 20mm x5.25x5.5mm Pack of 10	$20.65	6
50	HY53030A44AA	WEATHERSTRIP, WINDSCREEN,LOWER	HY53030A44AA WEATHERSTRIP, WINDSCREEN,LOWER	$37.76	1
60	6G33C03102AP1A04	FOAM, 10x10	6G33C03102AP1A04 FOAM, 10x10	$10.72	1
100	HY5342004AB	REAR WINDOW, HEATED	HY5342004AB REAR WINDOW, HEATED Less Seals	$1,387.30	1
101	LY53F42006AA	REAR WINDOW, HEATED	LY53F42006AA REAR WINDOW, HEATED Privacy Glass, 20MY->	$1,387.41	1
110	HY537710041	FINISHER, REAR GLASS, TOP& SIDES	HY537710041 FINISHER, REAR GLASS, TOP& SIDES	$218.74	1
120	HY537710042	FINISHER, REAR GLASS,LOWER	HY537710042 FINISHER, REAR GLASS,LOWER	$62.19	1
130	4G4303836ABPK	BUMPON, 20mm x5.25x5.5mm	4G4303836ABPK BUMPON, 20mm x5.25x5.5mm Pack of 10	$20.65	4
200	HY53F21411AB	GLASS ASSEMBLY, DOOR, LH	HY53F21411AB GLASS ASSEMBLY, DOOR, LH	$1,454.87	1
210	HY53F21410AB	GLASS ASSEMBLY, DOOR, RH	HY53F21410AB GLASS ASSEMBLY, DOOR, RH	$1,454.87	1
300	HY53N29751BA	GLASS ASSEMBLY, QUARTERWINDOW FIXED, LH	HY53N29751BA GLASS ASSEMBLY, QUARTERWINDOW FIXED, LH	$835.55	1
301	LY53N29751AA	GLASS ASSEMBLY, QUARTERWINDOW FIXED, LH	LY53N29751AA GLASS ASSEMBLY, QUARTERWINDOW FIXED, LH Privacy Glass, 20MY->	$886.93	1
310	HY53N29750BA	GLASS ASSEMBLY, QUARTERWINDOW FIXED, RH	HY53N29750BA GLASS ASSEMBLY, QUARTERWINDOW FIXED, RH	$815.15	1
311	LY53N29750AA	GLASS ASSEMBLY, QUARTERWINDOW FIXED, RH	LY53N29750AA GLASS ASSEMBLY, QUARTERWINDOW FIXED, RH Privacy Glass, 20MY->	$886.93	1
320	703265	ネジ、M6 X 16なべ頭	703265 ネジ、M6 X 16なべ頭	$0.59	2
330	6G3346058AA	SCREW, M5x10, FLG TORX	6G3346058AA SCREW, M5x10, FLG TORX	$1.85	2
340	XR8TF03836AA	バンパー	XR8TF03836AA バンパー	$3.12	2
350	HY5380A225AA	GASKET, FOAM, B-PILLAR,UPPER	HY5380A225AA GASKET, FOAM, B-PILLAR,UPPER	$3.03	2
360	4G4303836ABPK	BUMPON, 20mm x5.25x5.5mm	4G4303836ABPK BUMPON, 20mm x5.25x5.5mm Pack of 10	$20.65	2
370	HY53512A0AA	FINISHER, WEATHERSTRIP	HY53512A0AA FINISHER, WEATHERSTRIP	$24.96	2
400	HY53F23201AF	REGULATOR ASSEMBLY, LH	HY53F23201AF REGULATOR ASSEMBLY, LH	$119.11	1
410	HY53F23200AF	REGULATOR ASSEMBLY, RH	HY53F23200AF REGULATOR ASSEMBLY, RH	$151.53	1
420	703216PK	Nut, M08	703216PK Nut, M08 Pack of 10	$22.93	10
