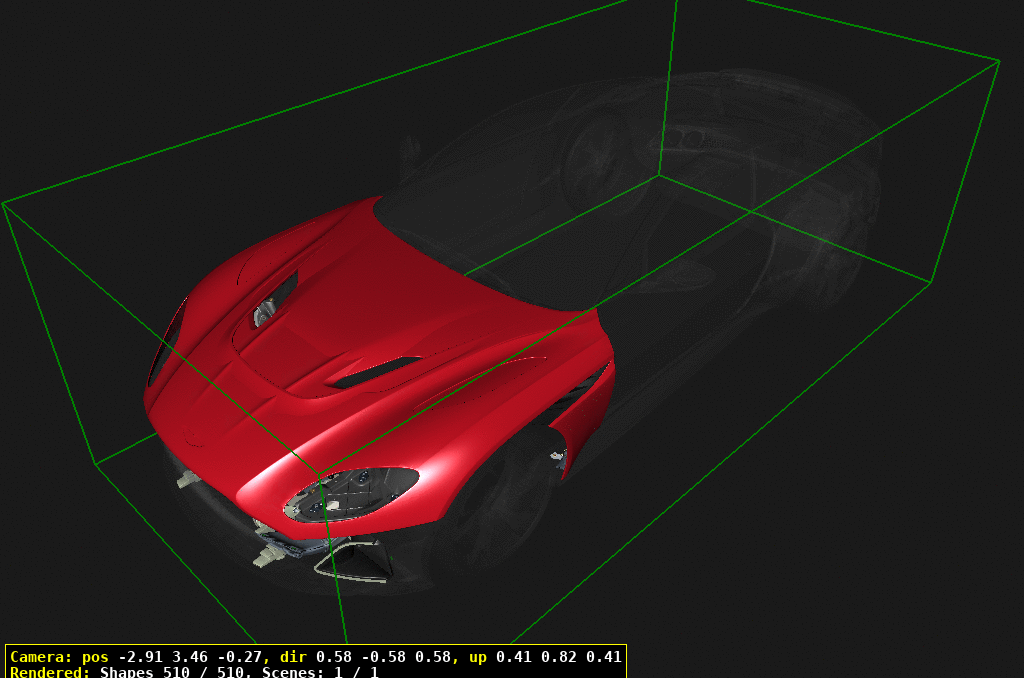

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - フロントエンド

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	KY738B413AB	SIDE PANEL, LOWER, LH	KY738B413AB SIDE PANEL, LOWER, LH	$242.53	1
30	KY738B412AC	SIDE PANEL, LOWER, RH	KY738B412AC SIDE PANEL, LOWER, RH	$249.81	1
40	KY738C465AB	DUCT, AUXILIARY RADIATOR,LH	KY738C465AB DUCT, AUXILIARY RADIATOR,LH	$285.72	1
50	KY738C464AB	DUCT, AUXILIARY RADIATOR,RH	KY738C464AB DUCT, AUXILIARY RADIATOR,RH	$285.72	1
60	KY73018C21AB	DUCT, BRAKE, FRONT, LH	KY73018C21AB DUCT, BRAKE, FRONT, LH	$229.42	1
70	KY73018C20AB	DUCT, BRAKE, FRONT, RH	KY73018C20AB DUCT, BRAKE, FRONT, RH	$229.42	1
80	KY73018C23AA	DUCT, BRAKE, REAR, LH	KY73018C23AA DUCT, BRAKE, REAR, LH	$229.42	1
90	KY73018C22AB	DUCT, BRAKE, REAR, RH	KY73018C22AB DUCT, BRAKE, REAR, RH	$229.42	1
100	KY73502B71AA	FOAM, FRONT BUMPER, LH	KY73502B71AA FOAM, FRONT BUMPER, LH	$161.48	1
110	KY73502B70AA	FOAM, FRONT BUMPER, RH	KY73502B70AA FOAM, FRONT BUMPER, RH	$161.48	1
120	4G4317F773ABPK	Retainer, Bumper Grille	4G4317F773ABPK Retainer, Bumper Grille Pack of 10	$4.92	8
130	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	4
140	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	6
200	HY538C252AC	サポート、ラジエーター	HY538C252AC サポート、ラジエーター	$20.78	2
210	HY5313181BA	BRACKET, HEADLAMP NUTPLATE	HY5313181BA BRACKET, HEADLAMP NUTPLATE	$9.72	6
220	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	2
230	HY538662AA	FOAM, INTAKE, LOWER	HY538662AA FOAM, INTAKE, LOWER	$9.95	2
240	HY5313069AE	PANEL, HEADLAMP MOUNTING,LH	HY5313069AE PANEL, HEADLAMP MOUNTING,LH Cat A	$716.80	1
250	KY7313068AA	PANEL, HEADLAMP MOUNTING,RH	KY7313068AA PANEL, HEADLAMP MOUNTING,RH Cat A	$788.94	1
260	703152PK	Screw and Washer M6x20 Hex IN STOCK	703152PK Screw and Washer M6x20 Hex Pack of 10 IN STOCK	$6.95	10
270	HY5356143AA	RIVET, 4.8x27	HY5356143AA RIVET, 4.8x27	$0.83	12
280	HY538052AF	SUPPORT, RADIATOR, LOWER	HY538052AF SUPPORT, RADIATOR, LOWER	$608.82	1
290	KY732943751AB	SUPPORT BEAM, LOWER	KY732943751AB SUPPORT BEAM, LOWER	$171.09	1
300	HY53F01991AC	パネル、エアベント、左側	HY53F01991AC パネル、エアベント、左側	$601.34	1
310	JY53F01990AC	パネル、通気口、右側	JY53F01990AC パネル、通気口、右側	$601.34	1
320	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	6
330	703120	Screw, flg, M8 x 25 IN STOCK	703120 Screw, flg, M8 x 25 IN STOCK	$22.08	6
340	697452	ワッシャ、M8、空調～ブラケット	697452 ワッシャ、M8、空調～ブラケット	$7.54	2
350	HY538211AF	PANEL, RADIATOR GRILLE,CENTRE	HY538211AF PANEL, RADIATOR GRILLE,CENTRE	$723.50	1
360	KY738A145AA	FOAM, LH, UPPER	KY738A145AA FOAM, LH, UPPER	$93.97	1
370	KY738A144AA	FOAM, RH, UPPER	KY738A144AA FOAM, RH, UPPER	$93.97	1
380	KY738672AA	FOAM, FRONT, CENTRE	KY738672AA FOAM, FRONT, CENTRE	$125.15	1
390	KY738661AB	INTAKE FOAM, UPPER, LH	KY738661AB INTAKE FOAM, UPPER, LH	$111.41	1
400	KY738660AB	INTAKE FOAM, UPPER, RH	KY738660AB INTAKE FOAM, UPPER, RH	$111.41	1
410	KY737081AA	FOAM, LH, UPPER	KY737081AA FOAM, LH, UPPER	$85.13	1
420	KY737080AA	FOAM, RH, UPPER	KY737080AA FOAM, RH, UPPER	$85.13	1
430	KY738243AB	PANEL, RADIATOR GRILLE,LH	KY738243AB PANEL, RADIATOR GRILLE,LH	$190.13	1
440	KY738242AB	PANEL, RADIATOR GRILLE,RH	KY738242AB PANEL, RADIATOR GRILLE,RH	$190.13	1
450	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	10
460	6G33-FA0115-AA-PK	SCREW, M6x20, SKT HD	6G33-FA0115-AA-PK SCREW, M6x20, SKT HD Pack of 20	-	6	Enquire
470	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
500	KY7316006AB	PANEL ASSEMBLY, FRONTWING, LH	KY7316006AB PANEL ASSEMBLY, FRONTWING, LH -> VIN R00931	$1,264.07	1
501	KY7316006AC	PANEL ASSEMBLY, FRONTWING, LH	KY7316006AC PANEL ASSEMBLY, FRONTWING, LH VIN R00932->	$1,265.52	1
510	KY7316005AB	PANEL ASSEMBLY, FRONTWING, RH	KY7316005AB PANEL ASSEMBLY, FRONTWING, RH -> VIN R00931	$1,264.07	1
511	KY7316005AC	PANEL ASSEMBLY, FRONTWING, RH	KY7316005AC PANEL ASSEMBLY, FRONTWING, RH VIN R00932->	$1,265.52	1
520	HY5316A006AD	BRACKET, WING to BODY	HY5316A006AD BRACKET, WING to BODY -> VIN R00536, Handed LH	$20.91	2
530	HY5316A005AD	BRACKET, WING to BODY	HY5316A005AD BRACKET, WING to BODY -> VIN R00536, Handed RH	$20.91	2
531	HY5316A005AE	BRACKET, WING to BODY	HY5316A005AE BRACKET, WING to BODY VIN R00537->, Universal	$20.91	4
540	703729	Screw, M6x16, Hex Flange Hd	703729 Screw, M6x16, Hex Flange Hd	$0.25	10
550	706890	BOLT/WASHER, M6x24	706890 BOLT/WASHER, M6x24	$1.35	8
560	703163	Nut, M06, hex flange head IN STOCK	703163 Nut, M06, hex flange head IN STOCK	$0.23	6
570	CG43106258AA	ウォッシャー IN STOCK	CG43106258AA ウォッシャー IN STOCK	$6.66	4
580	4G4346662AAPK	SPACER, 2mm, NYLON IN STOCK	4G4346662AAPK SPACER, 2mm, NYLON Pack of 10 IN STOCK	$4.37	2
590	8G435144AA	SPACER, C-DUCT FINISHER,LH/RH IN STOCK	8G435144AA SPACER, C-DUCT FINISHER,LH/RH IN STOCK	$3.32	2
600	HY5319G465BA	BRACKET, WASHER BOTTLERETENTION	HY5319G465BA BRACKET, WASHER BOTTLERETENTION	$55.33	1
610	703746	SCREW, M6x16, PAN FLGHEAD TORX, BLACK	703746 SCREW, M6x16, PAN FLGHEAD TORX, BLACK	$0.50	1
620	703729	Screw, M6x16, Hex Flange Hd	703729 Screw, M6x16, Hex Flange Hd	$0.25	10
630	4G4346662AAPK	SPACER, 2mm, NYLON IN STOCK	4G4346662AAPK SPACER, 2mm, NYLON Pack of 10 IN STOCK	$4.37	10
640	KY73280B84AC	LOUVRE, WING, LH	KY73280B84AC LOUVRE, WING, LH	$1,298.02	1
641	KY73280B84CB	LOUVRE, WING, LH	KY73280B84CB LOUVRE, WING, LH Carbon Gloss	$7,019.03	1
642	KY73280B84DC	LOUVRE, WING, LH	KY73280B84DC LOUVRE, WING, LH Carbon Gloss Black	$8,077.81	1
643	KY73280B84EB	LOUVRE, WING, LH	KY73280B84EB LOUVRE, WING, LH Carbon Satin Black	$8,077.77	1
650	KY73280B83AC	LOUVRE, WING, RH	KY73280B83AC LOUVRE, WING, RH	$1,298.02	1
651	KY73280B83CB	LOUVRE, WING, RH	KY73280B83CB LOUVRE, WING, RH Carbon Gloss	$6,847.85	1
652	KY73280B83DB	LOUVRE, WING, RH	KY73280B83DB LOUVRE, WING, RH Carbon Gloss Black	$7,651.29	1
653	KY73280B83EB	LOUVRE, WING, RH	KY73280B83EB LOUVRE, WING, RH Carbon Satin Black	$8,077.77	1
660	KY7316287AA	BRACKET, FRONT WING toSILL, LH	KY7316287AA BRACKET, FRONT WING toSILL, LH	$38.12	1
670	KY7316286AA	BRACKET FRONT WING toSILL, RH	KY7316286AA BRACKET FRONT WING toSILL, RH	$38.12	1
680	4G4346662AAPK	SPACER, 2mm, NYLON IN STOCK	4G4346662AAPK SPACER, 2mm, NYLON Pack of 10 IN STOCK	$4.37	4
690	8G435144AA	SPACER, C-DUCT FINISHER,LH/RH IN STOCK	8G435144AA SPACER, C-DUCT FINISHER,LH/RH IN STOCK	$3.32	4
800	KY7316612AC	ボンネットアッセンブリー	KY7316612AC ボンネットアッセンブリー When replacing a newBonnet, ensure that thecorrect Gas Struts arefitted. See below:-	$19,955.47	1
805	PY7316612AB	ボンネットアッセンブリー	PY7316612AB ボンネットアッセンブリー '770 Ultimate' Edition	$17,433.14	1
810	KY7316C826AA	ガススプリング	KY7316C826AA ガススプリング -> VIN T02429. (Only usewith KY73-16612-ABBonnet)	$318.37	2
811	KY7316C826AB	ガススプリング	KY7316C826AB ガススプリング VIN T02430->. (Only usewith KY73-16612-ACBonnet)	$100.90	2
815	HY73-16C826-AB	ガススプリング	HY73-16C826-AB ガススプリング '770 Ultimate' Edition	-	2	Enquire
820	HY5316801AE	HINGE ASSEMBLY, LH	HY5316801AE HINGE ASSEMBLY, LH	$568.13	1
830	HY5316800AE	HINGE ASSEMBLY, RH	HY5316800AE HINGE ASSEMBLY, RH	$568.13	1
840	703193	Bolt M8x55 Hex flg hd	703193 Bolt M8x55 Hex flg hd	$0.54	4
850	707136	BOLT/WASHER, M8x25, HEXFLG	707136 BOLT/WASHER, M8x25, HEXFLG	$1.76	8
860	HY53286E04AA	BALL STUD, M8	HY53286E04AA BALL STUD, M8	$2.95	2
870	707148	NUT, M20, HEX, THIN	707148 NUT, M20, HEX, THIN	$1.76	2
880	HY538K038AB	アジャスタブルストップ	HY538K038AB アジャスタブルストップ	$41.07	2
890	703131	Washer, 8.5 Flat	703131 Washer, 8.5 Flat	$0.07	4
900	HY5316K808AA	BUFFER ASSEMBLY	HY5316K808AA BUFFER ASSEMBLY	$14.80	2
910	HY53F5238AB	SPACER, BUMPSTOP	HY53F5238AB SPACER, BUMPSTOP	$10.13	2
920	AD43106046AA	WASHER, M6, PLAIN	AD43106046AA WASHER, M6, PLAIN	$0.74	2
930	HY53E804159BA	DUAL THREADED STUD, M6	HY53E804159BA DUAL THREADED STUD, M6	$1.20	2
