Centre Console - 22MY on of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

すべて見る

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Centre Console - 22MY on

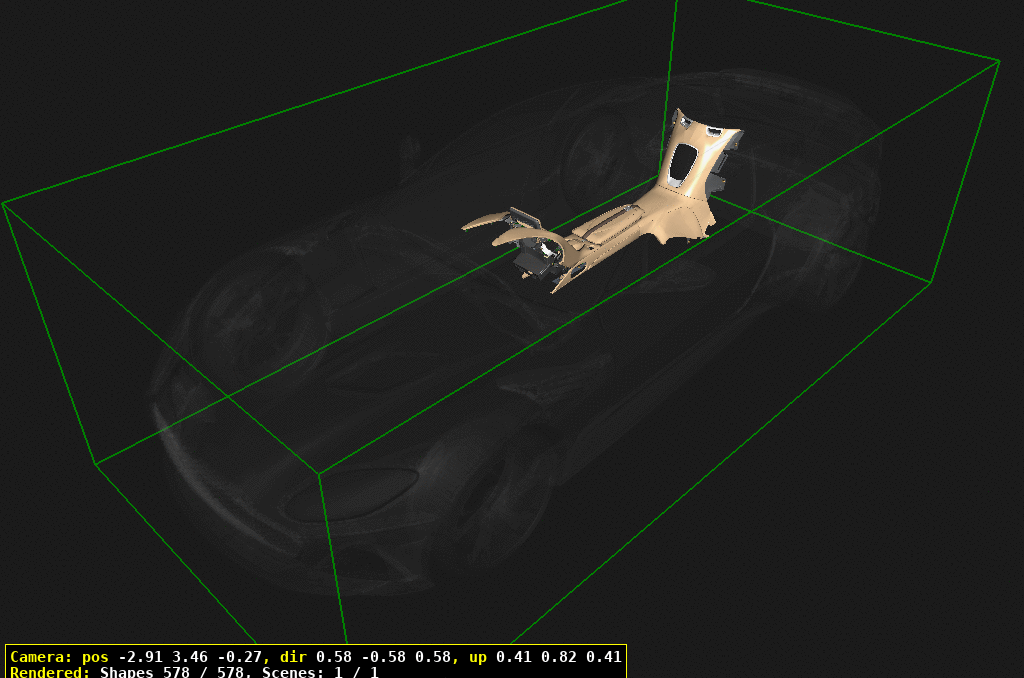

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	NY53-24405-AAW	OUTER TRIM, LH, lessSWITCH HOLE	NY53-24405-AAW OUTER TRIM, LH, lessSWITCH HOLE Haircell	-	1	Enquire
21	NY5324405EAW	OUTER TRIM, LH, lessSWITCH HOLE	NY5324405EAW OUTER TRIM, LH, lessSWITCH HOLE Semi Aniline	$896.18	1
23	NY5324407AAW	OUTER TRIM, LH, withSWITCH HOLE	NY5324407AAW OUTER TRIM, LH, withSWITCH HOLE Haircell	$894.32	1
24	NY5324407EAW	OUTER TRIM, LH, withSWITCH HOLE	NY5324407EAW OUTER TRIM, LH, withSWITCH HOLE Semi Aniline	$1,066.14	1
30	NY53-24404-AAW	OUTER TRIM, RH, lessSWITCH HOLE	NY53-24404-AAW OUTER TRIM, RH, lessSWITCH HOLE Haircell	-	1	Enquire
31	NY5324404EAW	OUTER TRIM, RH, lessSWITCH HOLE	NY5324404EAW OUTER TRIM, RH, lessSWITCH HOLE Semi Aniline	$950.76	1
33	NY5324406AAW	OUTER TRIM, RH, withSWITCH HOLE	NY5324406AAW OUTER TRIM, RH, withSWITCH HOLE Haircell	$894.32	1
34	NY5324406EAW	OUTER TRIM, RH, withSWITCH HOLE	NY5324406EAW OUTER TRIM, RH, withSWITCH HOLE Semi Aniline	$923.06	1
40	707165	TRIM FASTENER, 8.6x8x16	707165 TRIM FASTENER, 8.6x8x16	$2.51	12
50	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	8
60	HY538710034	KIT, VENEER, CENTRECONSOLE	HY538710034 KIT, VENEER, CENTRECONSOLE Satin Chopped Carbon	$2,368.04	1
62	HY53044J51EA	KIT, VENEER, CENTRECONSOLE	HY53044J51EA KIT, VENEER, CENTRECONSOLE Tamo Ash	$2,880.09	1
70	HY53045J11AC	VENEER, CENTRE CONSOLE,LH	HY53045J11AC VENEER, CENTRE CONSOLE,LH Piano Black	$1,561.95	1
71	HY53045J11BC	VENEER, CENTRE CONSOLE,LH	HY53045J11BC VENEER, CENTRE CONSOLE,LH Carbon Twill, 2x2	$2,595.59	1
77	KY53044L81AAW	CENTRE CONSOLE TRIM, LH	KY53044L81AAW CENTRE CONSOLE TRIM, LH Leather Wrapped	$604.74	1
80	HY53045J10AC	VENEER, CENTRE CONSOLE,RH	HY53045J10AC VENEER, CENTRE CONSOLE,RH Piano Black	$1,561.95	1
81	HY53045J10BC	VENEER, CENTRE CONSOLE,RH	HY53045J10BC VENEER, CENTRE CONSOLE,RH Carbon Twill, 2x2	$2,334.13	1
87	KY53044L80AAW	CENTRE CONSOLE TRIM, RH	KY53044L80AAW CENTRE CONSOLE TRIM, RH Leather Wrapped	$604.74	1
100	HY53V513K01AC	CENTRE CONSOLE SUPPORTMOULDING	HY53V513K01AC CENTRE CONSOLE SUPPORTMOULDING Includes items 110	$104.17	1
110	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	12
120	NY53-11N653-AAW	CARRIER, SWITCH	NY53-11N653-AAW CARRIER, SWITCH Haircell	-	1	Enquire
121	NY53-11N653-EAW	CARRIER, SWITCH	NY53-11N653-EAW CARRIER, SWITCH Semi Aniline	-	1	Enquire
122	NY53-11N653-PAW	CARRIER, SWITCH	NY53-11N653-PAW CARRIER, SWITCH Nappa PVC	-	1	Enquire
130	HY5314853AA	FINISHER, CENTRE STACK	HY5314853AA FINISHER, CENTRE STACK Satin Chrome	$1,116.28	1
131	HY5314853BA	FINISHER, CENTRE STACK	HY5314853BA FINISHER, CENTRE STACK Dark Chrome	$2,821.31	1
140	HY5304487AA	SUPPORT MOULDING, LOWER	HY5304487AA SUPPORT MOULDING, LOWER	$49.15	1
150	HY537T429AB	RETAINER, HEAD UNIT	HY537T429AB RETAINER, HEAD UNIT	$19.80	2
160	NY53044H94AAW	SURROUND, SAT-NAV, FRONT	NY53044H94AAW SURROUND, SAT-NAV, FRONT Haircell	$417.61	1
161	NY53044H94EAW	SURROUND, SAT-NAV, FRONT	NY53044H94EAW SURROUND, SAT-NAV, FRONT Semi Aniline	$395.55	1
170	NY53-70459-AAW	RECESS ASSEMBLY, SAT-NAV,LH	NY53-70459-AAW RECESS ASSEMBLY, SAT-NAV,LH -> 23MY, Haircell	-	1	Enquire
171	NY53-70459-EAW	RECESS ASSEMBLY, SAT-NAV,LH	NY53-70459-EAW RECESS ASSEMBLY, SAT-NAV,LH -> 23MY, Semi Aniline	-	1	Enquire
172	NY53-70459-PAW	RECESS ASSEMBLY, SAT-NAV,LH	NY53-70459-PAW RECESS ASSEMBLY, SAT-NAV,LH -> 23MY, Nappa PVC	-	1	Enquire
173	PY73-70459-DAW	RECESS ASSEMBLY, SAT-NAV,LH	PY73-70459-DAW RECESS ASSEMBLY, SAT-NAV,LH 23.5MY->, '770 Ultimate'Edition	-	1	Enquire
180	NY53-70458-AAW	RECESS ASSEMBLY, SAT-NAV,RH	NY53-70458-AAW RECESS ASSEMBLY, SAT-NAV,RH -> 23MY, Haircell	-	1	Enquire
181	NY53-70458-EAW	RECESS ASSEMBLY, SAT-NAV,RH	NY53-70458-EAW RECESS ASSEMBLY, SAT-NAV,RH -> 23MY, Semi Aniline	-	1	Enquire
182	NY53-70458-PAW	RECESS ASSEMBLY, SAT-NAV,RH	NY53-70458-PAW RECESS ASSEMBLY, SAT-NAV,RH -> 23MY, Nappa PVC	-	1	Enquire
183	PY73-70458-DAW	RECESS ASSEMBLY, SAT-NAV,RH	PY73-70458-DAW RECESS ASSEMBLY, SAT-NAV,RH 23.5MY->, '770 Ultimate'Edition	-	1	Enquire
190	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	16
200	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	2
210	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	16
220	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	6
230	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE	$0.13	2
240	6G33104101BA	SCREW, M4x9, THREADFORMING IN STOCK	6G33104101BA SCREW, M4x9, THREADFORMING IN STOCK	$0.86	4
250	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX	$0.25	2
260	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE	$0.13	4
270	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	4
280	HY5310E927AC	SUBSTRATE, SAT-NAV, REAR	HY5310E927AC SUBSTRATE, SAT-NAV, REAR	$54.22	1
290	AD43N807148AA	SCREW, M2x8, TORX	AD43N807148AA SCREW, M2x8, TORX	$0.20	6
300	MY6360220GAW	TRIM ASSEMBLY, CONTROL CSURROUND	MY6360220GAW TRIM ASSEMBLY, CONTROL CSURROUND Haircell	$238.74	1
310	MY6310A916GAW	CAP, CONTROL C SURROUND	MY6310A916GAW CAP, CONTROL C SURROUND Haircell	$185.03	1
320	HY5345864AA	CLOSING PANEL, TOUCH PAD	HY5345864AA CLOSING PANEL, TOUCH PAD	$46.58	1
330	AD43N807148AA	SCREW, M2x8, TORX	AD43N807148AA SCREW, M2x8, TORX	$0.20	6
340	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	2
350	HY5304559AC	SUPPORT BRACKET, CONSOLE,LH	HY5304559AC SUPPORT BRACKET, CONSOLE,LH	$96.50	1
360	HY5304558AC	SUPPORT BRACKET, CONSOLE,RH	HY5304558AC SUPPORT BRACKET, CONSOLE,RH	$96.50	1
370	703151	Nut/washr, M6 IN STOCK	703151 Nut/washr, M6 IN STOCK	$0.90	6
380	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	4
390	HY5311585AB	MOULDING, EIS RETAINER	HY5311585AB MOULDING, EIS RETAINER	$60.13	1
400	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE	$0.13	5
410	NY73045K06AAW	LID ASSEMBLY	NY73045K06AAW LID ASSEMBLY -> 23MY	$2,339.03	1
411	PY73045K06AAW	LID ASSEMBLY	PY73045K06AAW LID ASSEMBLY 23.5MY->, '770 Ultimate'Edition	$2,215.12	1
420	NY53045C74AAW	CONSOLE STOWAGE ASSEMBLY	NY53045C74AAW CONSOLE STOWAGE ASSEMBLY Includes items 430-520	$1,821.11	1
430	HY5311710AE	TRACK ASSEMBLY, STOWAGECOMPARTMENT LID	HY5311710AE TRACK ASSEMBLY, STOWAGECOMPARTMENT LID	$1,648.14	1
440	702629	SCREW, M6x19, PAN HEADTORX PILOT	702629 SCREW, M6x19, PAN HEADTORX PILOT	$1.24	2
450	HY53E826A80AA	FLEXITOL, M8	HY53E826A80AA FLEXITOL, M8	$23.84	2
460	6G33-VTL645-AA	SCREW, M8x45, PAN HEAD,TORX, GRADE 10.9	6G33-VTL645-AA SCREW, M8x45, PAN HEAD,TORX, GRADE 10.9	-	2	Enquire
470	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	2
480	HY53045L50AA	CAP, EMERGENCY IGNITIONSWITCH	HY53045L50AA CAP, EMERGENCY IGNITIONSWITCH	$52.49	1
490	HY53045M880AA	MAT, STOWAGE COMPARTMENT	HY53045M880AA MAT, STOWAGE COMPARTMENT	$58.90	1
500	HY53047B40BA	DIVISION BAR, CAN HOLDER	HY53047B40BA DIVISION BAR, CAN HOLDER	$22.85	1
520	NY53045C31AAW	PANEL SIDE ASSEMBLY,CONSOLE, LH	NY53045C31AAW PANEL SIDE ASSEMBLY,CONSOLE, LH Haircell	$920.22	1
521	NY53-045C31-DAW	PANEL SIDE ASSEMBLY,CONSOLE, LH	NY53-045C31-DAW PANEL SIDE ASSEMBLY,CONSOLE, LH Haircell/Alcantara	-	1	Enquire
522	NY53045C31EAW	PANEL SIDE ASSEMBLY,CONSOLE, LH	NY53045C31EAW PANEL SIDE ASSEMBLY,CONSOLE, LH Semi Aniline	$168.32	1
530	NY53045C30AAW	PANEL SIDE ASSEMBLY,CONSOLE, RH	NY53045C30AAW PANEL SIDE ASSEMBLY,CONSOLE, RH Haircell	$976.25	1
531	NY53-045C30-DAW	PANEL SIDE ASSEMBLY,CONSOLE, RH	NY53-045C30-DAW PANEL SIDE ASSEMBLY,CONSOLE, RH Haircell/Alcantara	-	1	Enquire
532	NY53045C30EAW	PANEL SIDE ASSEMBLY,CONSOLE, RH	NY53045C30EAW PANEL SIDE ASSEMBLY,CONSOLE, RH Semi Aniline	$1,658.61	1
540	NY53-55006-AAW	STRAP, CENTRE STACK	NY53-55006-AAW STRAP, CENTRE STACK Haircell	-	1	Enquire
541	NY53-55006-EAW	STRAP, CENTRE STACK	NY53-55006-EAW STRAP, CENTRE STACK Semi Aniline	-	1	Enquire
550	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	2
560	HY53237A13AB	トリンケットトレイ	HY53237A13AB トリンケットトレイ	$49.45	1
561	HY53237W12AB	トリンケットトレイ	HY53237W12AB トリンケットトレイ With e-Call/SOS	$51.97	1
570	HY53519E68AA	SURROUND ASSEMBLY, e-CALL	HY53519E68AA SURROUND ASSEMBLY, e-CALL	$113.93	1
580	4G4380899AA	ネジ、M4X5MM IN STOCK	4G4380899AA ネジ、M4X5MM IN STOCK	$0.27	2
590	KY7343548CA	BUCKLE, 'TAG-HEUER'	KY7343548CA BUCKLE, 'TAG-HEUER' -> 23MY	$897.89	1
591	PY7343548AA	バックル	PY7343548AA バックル 23.5MY->, '770 Ultimate'Edition	$759.12	1
600	4G4380899AA	ネジ、M4X5MM IN STOCK	4G4380899AA ネジ、M4X5MM IN STOCK	$0.27	1
610	HY533N440AB	CARRIER, WRIST REST	HY533N440AB CARRIER, WRIST REST	$208.62	1
620	MY635943GAW	WRIST PAD ASSEMBLY	MY635943GAW WRIST PAD ASSEMBLY Haircell	$408.97	1
630	HY53E865224AA	TRIM FASTERNER, 15x5.4	HY53E865224AA TRIM FASTERNER, 15x5.4	$1.37	3
640	701171	SCREW, M4x16	701171 SCREW, M4x16	$0.14	2
701	NY53-045E24-ABW	CONSOLE ASSEMBLY, REAR,UPPER	NY53-045E24-ABW CONSOLE ASSEMBLY, REAR,UPPER Coupe. Haircell, BaseAudio	-	1	Enquire
702	NY53-045E24-EBW	CONSOLE ASSEMBLY, REAR,UPPER	NY53-045E24-EBW CONSOLE ASSEMBLY, REAR,UPPER Coupe. Semi Aniline, BaseAudio	-	1	Enquire
703	NY53-674A32-ACW	CONSOLE ASSEMBLY, REAR,UPPER	NY53-674A32-ACW CONSOLE ASSEMBLY, REAR,UPPER Coupe. Haircell, B&OAudio	-	1	Enquire
704	NY53-674A32-ECW	CONSOLE ASSEMBLY, REAR,UPPER	NY53-674A32-ECW CONSOLE ASSEMBLY, REAR,UPPER Coupe. Semi Aniline, B&OAudio	-	1	Enquire
705	NY53-L045E24-ACW	CONSOLE ASSEMBLY, REAR,UPPER	NY53-L045E24-ACW CONSOLE ASSEMBLY, REAR,UPPER Volante, Haircell, BaseAudio	-	1	Enquire
706	NY53-L045E24-ECW	CONSOLE ASSEMBLY, REAR,UPPER	NY53-L045E24-ECW CONSOLE ASSEMBLY, REAR,UPPER Volante, Semi Aniline,Base Audio	-	1	Enquire
707	NY53L674A32ACW	CONSOLE ASSEMBLY, REAR,UPPER	NY53L674A32ACW CONSOLE ASSEMBLY, REAR,UPPER Volante. Haircell, B&OAudio	$1,068.76	1
708	NY53-L674A32-ECW	CONSOLE ASSEMBLY, REAR,UPPER	NY53-L674A32-ECW CONSOLE ASSEMBLY, REAR,UPPER Volante, Semi Aniline,B&O	-	1	Enquire
709	LY73045E24AD	CONSOLE ASSEMBLY, REAR,UPPER	LY73045E24AD CONSOLE ASSEMBLY, REAR,UPPER Volante, 22MY->, CarbonSatin	$3,738.13	1
710	NY5367482ABW	SPEAKER GRILLE, SUBWOOFER	NY5367482ABW SPEAKER GRILLE, SUBWOOFER B&O, Haircell	$2,250.04	1
716	NY5367482EBW	SPEAKER GRILLE, SUBWOOFER	NY5367482EBW SPEAKER GRILLE, SUBWOOFER B&O, Semi Aniline	$2,250.04	1
717	HY53-047A44-BC	SPEAKER GRILLE, SUBWOOFER	HY53-047A44-BC SPEAKER GRILLE, SUBWOOFER Except B&O, Black	-	1	Enquire
718	HY53047A44DC	SPEAKER GRILLE, SUBWOOFER	HY53047A44DC SPEAKER GRILLE, SUBWOOFER Except B&O, Dark Chrome	$315.09	1
720	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	4
730	701577	U NUT, ST, 1.75-2.75	701577 U NUT, ST, 1.75-2.75	$0.93	4
740	HY53611B90FA	BEZEL, SEATBELT, REAR	HY53611B90FA BEZEL, SEATBELT, REAR Satin Chrome	$144.92	2
741	HY53611B90BA	BEZEL, SEATBELT, REAR	HY53611B90BA BEZEL, SEATBELT, REAR Dark Chrome	$506.85	2
750	703076	Screw, M4 x 20 csk skt	703076 Screw, M4 x 20 csk skt	$0.20	4
760	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	4
770	NY53-045A12-ABW	CONSOLE ASSEMBLY, REAR,LOWER	NY53-045A12-ABW CONSOLE ASSEMBLY, REAR,LOWER Haircell	-	1	Enquire
771	NY73-045A12-DBW	CONSOLE ASSEMBLY, REAR,LOWER	NY73-045A12-DBW CONSOLE ASSEMBLY, REAR,LOWER Haircell/Alcantara	-	1	Enquire
772	NY53045A12EBW	CONSOLE ASSEMBLY, REAR,LOWER	NY53045A12EBW CONSOLE ASSEMBLY, REAR,LOWER Semi Aniline	$876.64	1
780	AD43C519A40AA	MACHINE SCREW, M5x13, PAN IN STOCK	AD43C519A40AA MACHINE SCREW, M5x13, PAN IN STOCK	$0.79	2
790	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	6
