Seating - Sports+ of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

すべて見る

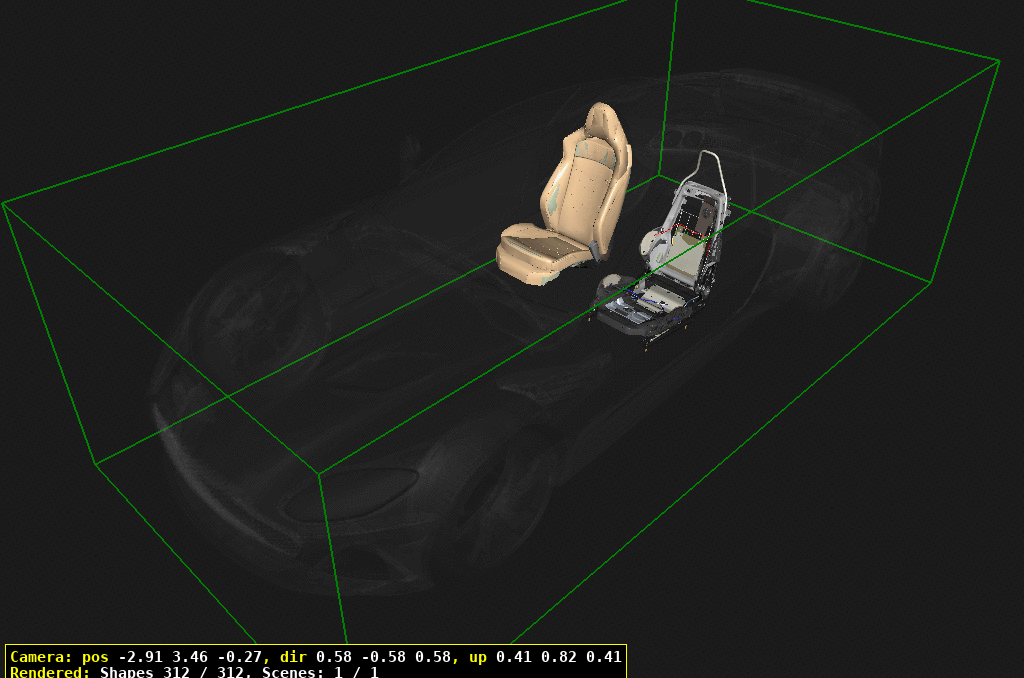

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Seating - Sports+

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~~O~~	RH Illustrated	~~O~~ RH Illustrated	-	-	Enquire
-	~~0~~	LH Illustrated	~~0~~ LH Illustrated	-	-	Enquire
10	KY7360008AAW	FRONT SEAT ASSEMBLY, RH	KY7360008AAW FRONT SEAT ASSEMBLY, RH	$38,615.03	1
11	KY7360009AAW	FRONT SEAT ASSEMBLY, LH	KY7360009AAW FRONT SEAT ASSEMBLY, LH	$36,586.74	1
20	KY634D9513BB	FOAM ASSEMBLY, SQUAB	KY634D9513BB FOAM ASSEMBLY, SQUAB -> 22MY	$258.77	2
21	KY634D9513BC	FOAM ASSEMBLY, SQUAB	KY634D9513BC FOAM ASSEMBLY, SQUAB 22MY->	$258.99	2
30	KY639515BC	FOAM ASSEMBLY, CUSHION	KY639515BC FOAM ASSEMBLY, CUSHION	$188.78	2
31	~oOo~	BATTERY, CR2032	~oOo~ BATTERY, CR2032 For OCS Service Kit,refer to Section 01-20	-	-	Enquire
40	HY5362152BCW	SHOULDER PAD ASSEMBLY	HY5362152BCW SHOULDER PAD ASSEMBLY LH, RH Seat	$393.88	1
41	HY5362153BCW	SHOULDER PAD ASSEMBLY	HY5362153BCW SHOULDER PAD ASSEMBLY RH, LH Seat	$393.88	1
50	HY5362152ACW	SHOULDER PAD ASSEMBLY	HY5362152ACW SHOULDER PAD ASSEMBLY RH, RH Seat	$393.88	1
51	HY5362153ACW	SHOULDER PAD ASSEMBLY	HY5362153ACW SHOULDER PAD ASSEMBLY LH, LH Seat	$393.88	1
60	HY5366914ACW	SEAT BACK SHELL, UPPER	HY5366914ACW SEAT BACK SHELL, UPPER Leather Trimmed	$899.69	1
61	KY53600E88PA	SEAT BACK SHELL, UPPER	KY53600E88PA SEAT BACK SHELL, UPPER Painted Piano Black	$682.00	2
62	KY53600E88NC	SEAT BACK SHELL, UPPER	KY53600E88NC SEAT BACK SHELL, UPPER Chopped Carbon Satin	$4,638.20	2
63	KY53-600E89-FD	SEAT BACK SHELL, UPPER	KY53-600E89-FD SEAT BACK SHELL, UPPER LH, Carbon 2x2 Twill	-	1	Enquire
64	KY53600E88FC	SEAT BACK SHELL, UPPER	KY53600E88FC SEAT BACK SHELL, UPPER RH, Carbon 2x2 Twill	$5,094.46	1
65	KY53044J50BB	VENEER, SEAT BACK SHELL,Matched Pair	KY53044J50BB VENEER, SEAT BACK SHELL,Matched Pair Tamo Ash	$6,441.13	1
70	KY6366915AEW	SEAT BACK SHELL, LOWER	KY6366915AEW SEAT BACK SHELL, LOWER	$3,159.39	2
80	KY7362900AAW	CUSHION COVER ASSEMBLY	KY7362900AAW CUSHION COVER ASSEMBLY RH	$7,623.98	1
81	KY7362901AAW	CUSHION COVER ASSEMBLY	KY7362901AAW CUSHION COVER ASSEMBLY LH	$7,623.98	1
90	KY7364573AAW	スクアブカバーASSY	KY7364573AAW スクアブカバーASSY LH	$7,901.24	1
91	KY7364572AAW	スクアブカバーASSY	KY7364572AAW スクアブカバーASSY RH	$7,901.24	1
100	KY6364864AA	FRONT PANEL ASSEMBLY,UPPER	KY6364864AA FRONT PANEL ASSEMBLY,UPPER -> VIN R01232	$91.63	2
101	KY63-64864-AB	FRONT PANEL ASSEMBLY,UPPER	KY63-64864-AB FRONT PANEL ASSEMBLY,UPPER VIN R01233->	-	2	Enquire
110	HY5317C988AAW	VALANCE, INNER, RH	HY5317C988AAW VALANCE, INNER, RH RH Seat	$151.38	1
111	HY5317C989AAW	VALANCE, INNER, LH	HY5317C989AAW VALANCE, INNER, LH LH Seat	$151.38	1
120	HY53600C64AAW	VALANCE ASSEMBLY, CUSHION	HY53600C64AAW VALANCE ASSEMBLY, CUSHION RH, RH Seat	$1,624.50	1
121	HY53600C65AAW	VALANCE ASSEMBLY, CUSHION	HY53600C65AAW VALANCE ASSEMBLY, CUSHION LH, LH Seat	$1,624.50	1
130	HY5364344ACW	REAR BEZEL ASSEMBLY	HY5364344ACW REAR BEZEL ASSEMBLY	$271.13	2
140	HY53621A64ABW	HANDLE, SEAT BACK RELEASE	HY53621A64ABW HANDLE, SEAT BACK RELEASE	$159.18	2
150	HY53627A25AB	GUIDE, SEAT BACK RELEASE	HY53627A25AB GUIDE, SEAT BACK RELEASE RH	$25.71	1
160	HY53627A24AB	GUIDE, SEAT BACK RELEASE	HY53627A24AB GUIDE, SEAT BACK RELEASE LH	$25.71	1
170	KY6314D696AA	HEATER PAD, SEAT SQUAB	KY6314D696AA HEATER PAD, SEAT SQUAB	$176.21	2
180	HY5314D698AB	HEATER PAD, SEAT CUSHION	HY5314D698AB HEATER PAD, SEAT CUSHION	$215.94	2
190	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head per seat	$0.68	6
200	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	2
210	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type per seat IN STOCK	$2.17	2
220	DD33487032AA	Clip, Push In, 8.0 x 16 x 1.7	DD33487032AA Clip, Push In, 8.0 x 16 x 1.7 per seat	$1.02	5
230	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	3
240	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type per seat IN STOCK	$2.17	2
250	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX per seat	$0.25	2
260	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	2
270	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	3
280	DD33487032AA	Clip, Push In, 8.0 x 16 x 1.7	DD33487032AA Clip, Push In, 8.0 x 16 x 1.7 per seat	$1.02	8
290	HY53644K79ACW	COVER, SQUAB to CUSHION	HY53644K79ACW COVER, SQUAB to CUSHION	$154.90	1
291	HY53644K79BAW	COVER, SQUAB to CUSHION	HY53644K79BAW COVER, SQUAB to CUSHION ISOfix	$411.88	1
300	~O~	バッテリー	~O~ バッテリー See Section 010501-10	-	1	Enquire
310	KY6363861AA	SUPPORT, SEAT WING, LH	KY6363861AA SUPPORT, SEAT WING, LH Sports Seat+	$62.39	1
320	KY6363860AA	SUPPORT, SEAT WING, RH	KY6363860AA SUPPORT, SEAT WING, RH Sports Seat+	$62.39	1
330	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head	$0.68	4
340	707618	SCREW, M6x20, HEX HD,THREAD FORMING	707618 SCREW, M6x20, HEX HD,THREAD FORMING	$0.86	2
350	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head	$0.68	6
360	4G43AN103011AAPK	STAR WASHER, PUSH-ON, 5mm	4G43AN103011AAPK STAR WASHER, PUSH-ON, 5mm Pack of 8	$1.22	2
370	HY53600B68AB	SEAT CLIMATE ASSEMBLY,CUSHION	HY53600B68AB SEAT CLIMATE ASSEMBLY,CUSHION Climate	$106.51	1
371	HY5363222AB	PAD, SEAT CUSHION	HY5363222AB PAD, SEAT CUSHION Heated	$57.07	1
380	KY63600B70AA	SEAT CLIMATE ASSEMBLY,SQUAB	KY63600B70AA SEAT CLIMATE ASSEMBLY,SQUAB Climate	$82.98	1
381	KY6364868AA	PAD, SEAT SQUAB	KY6364868AA PAD, SEAT SQUAB Heated	$54.63	1
400	707132	BOLT, M10x40, HEX FLG	707132 BOLT, M10x40, HEX FLG	$2.68	8
410	HY53608A15AF	SEAT FRAME, DRIVER	HY53608A15AF SEAT FRAME, DRIVER LH, LHD, AdjustableLumbar	$8,671.88	1
412	HY53608A15CF	SEAT FRAME, PASSENGER	HY53608A15CF SEAT FRAME, PASSENGER LH, RHD, AdjustableLumbar	$8,671.88	1
415	HY53608A14AF	SEAT FRAME, DRIVER	HY53608A14AF SEAT FRAME, DRIVER RH, RHD, AdjustableLumbar	$7,108.19	1
416	HY53608A14CD	SEAT FRAME, PASSENGER	HY53608A14CD SEAT FRAME, PASSENGER RH, LHD, AdjustableLumbar, -> 21MY	$7,267.26	1
417	HY53608A14CF	SEAT FRAME, PASSENGER	HY53608A14CF SEAT FRAME, PASSENGER RH, LHD, AdjustableLumbar, 21MY->	$8,671.88	1
420	HY53608A15EF	SEAT FRAME, DRIVER	HY53608A15EF SEAT FRAME, DRIVER LH, LHD, Adj.Lumbar andBolster	$7,105.53	1
421	HY53608A15GF	SEAT FRAME, PASSENGER	HY53608A15GF SEAT FRAME, PASSENGER LH, RHD, Adj.Lumbar andBolster	$8,671.88	1
422	HY53608A14EF	SEAT FRAME, DRIVER	HY53608A14EF SEAT FRAME, DRIVER RH, RHD, Adj.Lumbar andBolster	$8,671.88	1
423	HY53608A14GF	SEAT FRAME, PASSENGER	HY53608A14GF SEAT FRAME, PASSENGER RH, LHD, Adj.Lumbar andBolster	$8,671.88	1
430	HY53608A15BD	SEAT FRAME, PASSENGER	HY53608A15BD SEAT FRAME, PASSENGER LH, RHD ISOfix,Adj.Lumbar	$8,671.10	1
431	HY53608A14BD	SEAT FRAME, PASSENGER	HY53608A14BD SEAT FRAME, PASSENGER RH, LHD ISOfix,Adj.Lumbar	$8,671.10	1
440	HY53608A15FD	SEAT FRAME, PASSENGER	HY53608A15FD SEAT FRAME, PASSENGER LH, RHD ISOfix,Adj.Lumbar and Bolster	$6,947.71	1
441	HY53608A14FD	SEAT FRAME, PASSENGER	HY53608A14FD SEAT FRAME, PASSENGER RH, LHD ISOfix,Adj.Lumbar and Bolster	$8,521.95	1
450	HY53608A14DE	SEAT FRAME, PASSENGER	HY53608A14DE SEAT FRAME, PASSENGER RH, LHD, Top Tether, NoISOFIX, Adj.Lumbar, ->21MY	$6,464.14	1
451	HY53608A14DF	SEAT FRAME, PASSENGER	HY53608A14DF SEAT FRAME, PASSENGER RH, LHD, Top Tether, NoISOFIX, Adj.Lumbar,21MY->	$8,671.88	1
452	HY53608A14HF	SEAT FRAME, PASSENGER	HY53608A14HF SEAT FRAME, PASSENGER RH, LHD, Top Tether, NoISOFIX, Adj.Lumbar andBolster	$8,671.88	1
460	HY5314B684AB	WIRING HARNESS ASSEMBLY,RH	HY5314B684AB WIRING HARNESS ASSEMBLY,RH -> 21MY	$935.85	1
461	MY8314B684AA	WIRING HARNESS ASSEMBLY,RH	MY8314B684AA WIRING HARNESS ASSEMBLY,RH 21MY->	$706.59	1
462	HY5314B683AA	WIRING HARNESS ASSEMBLY,LH	HY5314B683AA WIRING HARNESS ASSEMBLY,LH -> 21MY	$913.02	1
463	MY8314B683AA	WIRING HARNESS ASSEMBLY,LH	MY8314B683AA WIRING HARNESS ASSEMBLY,LH 21MY->	$689.37	1
470	HY53629B01AA	END CAP, SEAT TRACK,FRONT	HY53629B01AA END CAP, SEAT TRACK,FRONT	$17.39	3
480	HY53629B03AA	END CAP, SEAT TRACK, REAR	HY53629B03AA END CAP, SEAT TRACK, REAR	$8.25	1
490	HY53XC471045AA	BRACKET, ECU	HY53XC471045AA BRACKET, ECU	$90.39	2
500	HY53SE14C249AA	ECU, DRIVERS SEAT	HY53SE14C249AA ECU, DRIVERS SEAT	$372.88	1
501	HY53SE14C249BA	ECU, PASSENGERS SEAT IN STOCK	HY53SE14C249BA ECU, PASSENGERS SEAT IN STOCK	$372.23	1
510	HY5363550AA	LUMBAR SUPPORT, withBOLSTERS	HY5363550AA LUMBAR SUPPORT, withBOLSTERS	$3,771.38	1
511	HY53603B16AA	LUMBAR SUPPORT, lessBOLSTERS	HY53603B16AA LUMBAR SUPPORT, lessBOLSTERS	$319.90	1
540	HY53631B86AB	FAN ASSEMBLY, SEAT SQUAB	HY53631B86AB FAN ASSEMBLY, SEAT SQUAB Climate	$282.45	1
541	HY538632AB	FAN ASSEMBLY, SEATCUSHION	HY538632AB FAN ASSEMBLY, SEATCUSHION Climate	$292.00	1
550	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.98	1
560	HY5314B426AA	SENSOR, SEAT TRACKPOSITION	HY5314B426AA SENSOR, SEAT TRACKPOSITION	$53.41	1
