Interior Trim - Upper - Coupe of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

すべて見る

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Interior Trim - Upper - Coupe

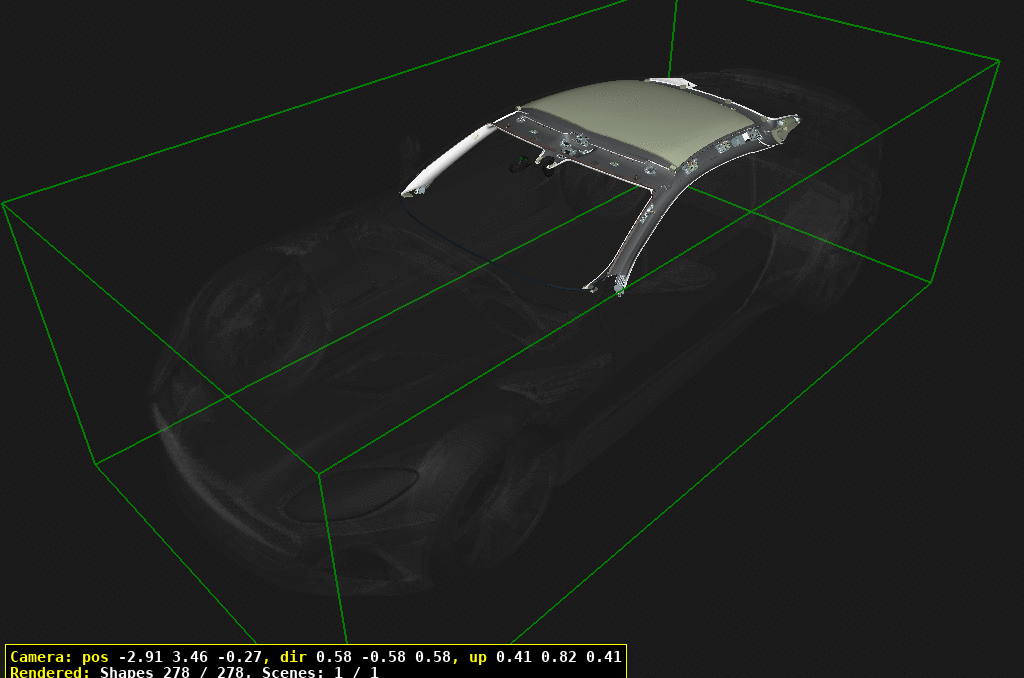

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	HY53C025B39AGW	A-PILLAR CANTRAILASSEMBLY, LH	HY53C025B39AGW A-PILLAR CANTRAILASSEMBLY, LH -> 22MY	$2,649.35	1
21	NY53C025B39AAW	A-PILLAR CANTRAILASSEMBLY, LH	NY53C025B39AAW A-PILLAR CANTRAILASSEMBLY, LH 22MY->	$2,820.15	1
30	HY53C025B38AGW	A-PILLAR CANTRAILASSEMBLY, RH	HY53C025B38AGW A-PILLAR CANTRAILASSEMBLY, RH -> 22MY	$2,728.83	1
31	NY53C025B38AAW	A-PILLAR CANTRAILASSEMBLY, RH	NY53C025B38AAW A-PILLAR CANTRAILASSEMBLY, RH 22MY->	$2,620.13	1
40	HY5368271ACW	C-PILLAR CANTRAILASSEMBLY, LH	HY5368271ACW C-PILLAR CANTRAILASSEMBLY, LH -> 22MY	$2,331.37	1
41	NY5368270AAW	C-PILLAR CANTRAILASSEMBLY, LH	NY5368270AAW C-PILLAR CANTRAILASSEMBLY, LH 22MY->	$424.29	1
50	HY5368270ACW	C-PILLAR CANTRAILASSEMBLY, RH	HY5368270ACW C-PILLAR CANTRAILASSEMBLY, RH -> 22MY	$2,331.37	1
51	NY5368271AAW	C-PILLAR CANTRAILASSEMBLY, RH	NY5368271AAW C-PILLAR CANTRAILASSEMBLY, RH 22MY->	$447.93	1
60	702629	SCREW, M6x19, PAN HEADTORX PILOT	702629 SCREW, M6x19, PAN HEADTORX PILOT	$1.23	10
70	HY5323747ABW	INSERT, AIRBAG LOGO SRS	HY5323747ABW INSERT, AIRBAG LOGO SRS -> 22MY	$38.49	4
71	NY5323747AAW	INSERT, AIRBAG LOGO SRS	NY5323747AAW INSERT, AIRBAG LOGO SRS 22MY->	$226.16	4
80	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.80	2
90	703085	Bolt, M6 x 12, VOLANTE	703085 Bolt, M6 x 12, VOLANTE	$1.44	2
100	AD4303722AA	TRIM CLIP, DIAMOND	AD4303722AA TRIM CLIP, DIAMOND Do Not Re-Use	$0.61	12
110	HY53103500AA	ガスケット、フォーム	HY53103500AA ガスケット、フォーム	$0.70	12
120	HY5352070AA	TAPE, PRE-CUT,ANTI-SQUEAK	HY5352070AA TAPE, PRE-CUT,ANTI-SQUEAK	$3.99	1
130	HY5323020AA	SEAL, CANTRAIL	HY5323020AA SEAL, CANTRAIL	$9.79	1
140	HY5313407AA	フォームブロック	HY5313407AA フォームブロック	$4.53	2
200	KY53C03408AFW	HEADER ASSEMBLY, FRONT	KY53C03408AFW HEADER ASSEMBLY, FRONT -> 22MY	$2,917.66	1
201	NY53-C03408-AAW	HEADER ASSEMBLY, FRONT	NY53-C03408-AAW HEADER ASSEMBLY, FRONT 22MY->	-	1	Enquire
210	KY5319H503AB	ベゼル、マイクロフォン	KY5319H503AB ベゼル、マイクロフォン	$17.88	1
220	HY5317E745AA	COVER, MIRROR FOOT, LH	HY5317E745AA COVER, MIRROR FOOT, LH	$9.07	1
230	HY5317E744AA	COVER, MIRROR FOOT, RH	HY5317E744AA COVER, MIRROR FOOT, RH	$9.07	1
240	1R12642790AAPK	SCRIVET, 8mm DIA, PANEL,3-10mm	1R12642790AAPK SCRIVET, 8mm DIA, PANEL,3-10mm Pack of 5	$8.24	2
250	HY53B43686AB	DAMPING PANEL, ROOF	HY53B43686AB DAMPING PANEL, ROOF	$72.80	1
260	KY5369321AEW	SUNVISOR ASSEMBLY, LH	KY5369321AEW SUNVISOR ASSEMBLY, LH -> 21MY, Leather	$1,009.43	1
261	KY5369321DEW	SUNVISOR ASSEMBLY, LH	KY5369321DEW SUNVISOR ASSEMBLY, LH -> 21MY, Alcantara	$1,031.26	1
262	MY6369321ABW	SUNVISOR ASSEMBLY, LH	MY6369321ABW SUNVISOR ASSEMBLY, LH 21MY, Leather	$1,031.10	1
263	MY6369321DCW	SUNVISOR ASSEMBLY, RH	MY6369321DCW SUNVISOR ASSEMBLY, RH 21MY->, Alcantara	$986.97	1
264	NY6369321EBW	SUNVISOR ASSEMBLY, LH	NY6369321EBW SUNVISOR ASSEMBLY, LH 22MY->, Leather	$1,017.87	1
270	KY5369320AEW	SUNVISOR ASSEMBLY, RH	KY5369320AEW SUNVISOR ASSEMBLY, RH -> 21MY, Leather	$916.94	1
271	KY5369320DEW	SUNVISOR ASSEMBLY, RH	KY5369320DEW SUNVISOR ASSEMBLY, RH -> 21MY, Alcantara	$1,121.42	1
272	MY6369320ABW	SUNVISOR ASSEMBLY, RH	MY6369320ABW SUNVISOR ASSEMBLY, RH 21MY, Leather	$1,031.10	1
273	MY6369320DCW	SUNVISOR ASSEMBLY, LH	MY6369320DCW SUNVISOR ASSEMBLY, LH 21MY->, Alcantara	$986.97	1
274	NY6369320EBW	SUNVISOR ASSEMBLY, RH	NY6369320EBW SUNVISOR ASSEMBLY, RH 22MY->, Leather	$1,017.87	1
280	HY53E805403AC	SCREW, M5x20, STAINLESS,CAP HEX HD	HY53E805403AC SCREW, M5x20, STAINLESS,CAP HEX HD	$2.34	4
290	HY53519A60AB	COVER, RAIN SENSOR	HY53519A60AB COVER, RAIN SENSOR LHD	$57.00	1
291	HY53519A60BB	COVER, RAIN SENSOR	HY53519A60BB COVER, RAIN SENSOR RHD	$57.00	1
300	HY53N31010AFW	HEADER ASSEMBLY, REAR	HY53N31010AFW HEADER ASSEMBLY, REAR -> 22MY	$921.88	1
301	NY53-N31010-ABW	HEADER ASSEMBLY, REAR	NY53-N31010-ABW HEADER ASSEMBLY, REAR 22MY->	-	1	Enquire
310	AD4303722AA	TRIM CLIP, DIAMOND	AD4303722AA TRIM CLIP, DIAMOND Do Not Re-Use	$0.61	6
320	FG43M4D4515AA	フォームストリップ	FG43M4D4515AA フォームストリップ	$0.37	6
340	HG3319G379AA	BEZEL, MICROPHONEL	HG3319G379AA BEZEL, MICROPHONEL	$98.22	2
350	HY53103500AA	ガスケット、フォーム	HY53103500AA ガスケット、フォーム	$0.70	6
360	707158	SCREW/WASHER, M3.5x13,PAN FLG	707158 SCREW/WASHER, M3.5x13,PAN FLG	$2.12	2
370	702138	SCREW, M6x16 PAN, INT LOBPIL P/T	702138 SCREW, M6x16 PAN, INT LOBPIL P/T	$0.16	1
380	KY7351916AAW	HEADLINING ASSEMBLY	KY7351916AAW HEADLINING ASSEMBLY -> 22MY, Leather	$3,307.29	1
381	KY7351916CAW	HEADLINING ASSEMBLY	KY7351916CAW HEADLINING ASSEMBLY -> 22MY, Leather /Alcantara	$3,307.29	1
382	KY7351916DAW	HEADLINING ASSEMBLY	KY7351916DAW HEADLINING ASSEMBLY -> 22MY, Alcantara	$3,307.29	1
383	KY7351916GAW	HEADLINING ASSEMBLY	KY7351916GAW HEADLINING ASSEMBLY -> 22MY, Quilted Leather	$3,307.29	1
384	NY73-51916-EAW	HEADLINING ASSEMBLY	NY73-51916-EAW HEADLINING ASSEMBLY 22MY->, Leather /Alcantara	-	1	Enquire
390	8D3319H474AA	ANTI-RATTLE HOLDER	8D3319H474AA ANTI-RATTLE HOLDER	$0.61	2
400	KY5319H503AB	ベゼル、マイクロフォン	KY5319H503AB ベゼル、マイクロフォン Cabin Temperature Sensor	$17.88	1
410	KY5313E714AA	BEZEL, AMBIENT LAMP	KY5313E714AA BEZEL, AMBIENT LAMP	$13.19	1
