Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Interior Trim - Doors

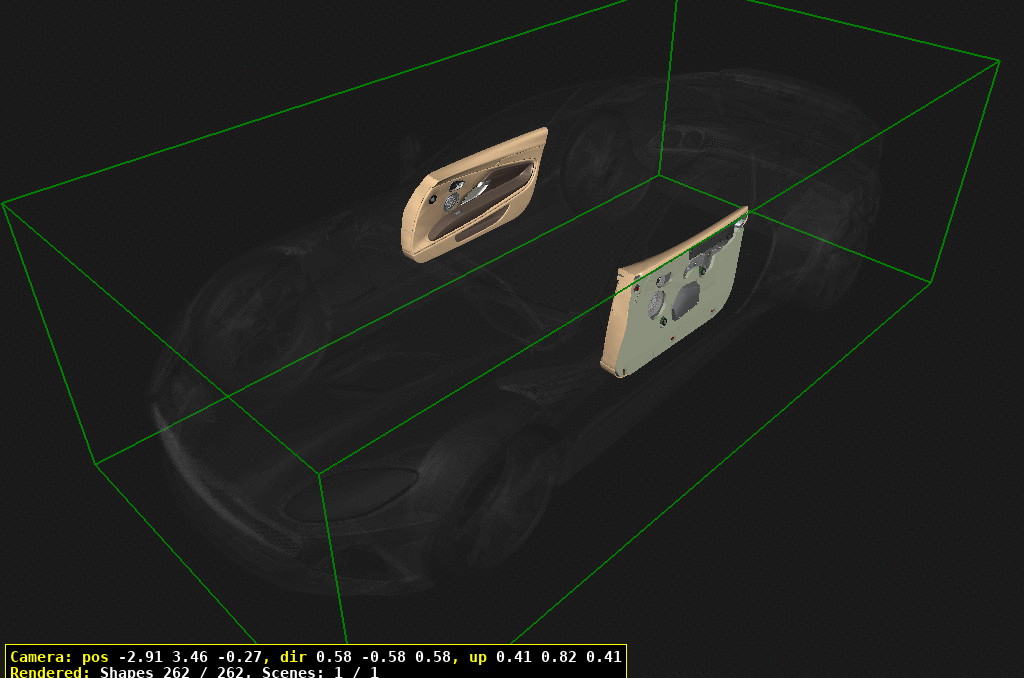

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
10	KY7323943AEW	PANEL ASSEMBLY, DOORTRIM, LH	KY7323943AEW PANEL ASSEMBLY, DOORTRIM, LH -> 22MY, Coupe	$11,857.55	1
11	LY7323943ACW	PANEL ASSEMBLY, DOORTRIM, LH	LY7323943ACW PANEL ASSEMBLY, DOORTRIM, LH -> 22MY, Volante	$11,857.35	1
12	NY73-23943-AAW	PANEL ASSEMBLY, DOORTRIM, LH	NY73-23943-AAW PANEL ASSEMBLY, DOORTRIM, LH 22MY-> 23MY, Coupe	-	1	Enquire
13	NY7323943BAW	PANEL ASSEMBLY, DOORTRIM, LH	NY7323943BAW PANEL ASSEMBLY, DOORTRIM, LH 22MY-> 23MY, Volante	$10,434.60	1
14	PY73-23943-AAW	PANEL ASSEMBLY, DOORTRIM, LH	PY73-23943-AAW PANEL ASSEMBLY, DOORTRIM, LH 23.5MY-> Coupe, '770Ultimate' Edition	-	1	Enquire
15	PY73-23943-BAW	PANEL ASSEMBLY, DOORTRIM, LH	PY73-23943-BAW PANEL ASSEMBLY, DOORTRIM, LH 23.5MY-> Volante, '770Ultimate' Edition	-	1	Enquire
20	KY7323942AEW	PANEL ASSEMBLY, DOORTRIM, RH	KY7323942AEW PANEL ASSEMBLY, DOORTRIM, RH -> 22MY, Coupe	$9,742.78	1
21	LY7323942ACW	PANEL ASSEMBLY, DOORTRIM, RH	LY7323942ACW PANEL ASSEMBLY, DOORTRIM, RH -> 22MY, Volante	$9,742.78	1
22	NY73-23942-AAW	PANEL ASSEMBLY, DOORTRIM, RH	NY73-23942-AAW PANEL ASSEMBLY, DOORTRIM, RH 22MY-> 23MY, Coupe	-	1	Enquire
23	NY7323942BAW	PANEL ASSEMBLY, DOORTRIM, RH	NY7323942BAW PANEL ASSEMBLY, DOORTRIM, RH 22MY-> 23MY, Volante	$10,434.60	1
24	PY73-23942-AAW	PANEL ASSEMBLY, DOORTRIM, RH	PY73-23942-AAW PANEL ASSEMBLY, DOORTRIM, RH 23.5MY-> Coupe, '770Ultimate' Edition	-	1	Enquire
25	PY73-23942-BAW	PANEL ASSEMBLY, DOORTRIM, RH	PY73-23942-BAW PANEL ASSEMBLY, DOORTRIM, RH 23.5MY-> Volante, '770Ultimate' Edition	-	1	Enquire
30	HY53-237B70-AB	BLOCK, SIDE IMPACT	HY53-237B70-AB BLOCK, SIDE IMPACT LH	-	1	Enquire
40	HY53237B60AA	BLOCK, SIDE IMPACT	HY53237B60AA BLOCK, SIDE IMPACT RH	$40.67	1
50	707142	SCREW, M5x12, CHEESE HEAD IN STOCK	707142 SCREW, M5x12, CHEESE HEAD IN STOCK	$0.41	1
60	HY53208A30AA	RETAINER, DOOR TRIM	HY53208A30AA RETAINER, DOOR TRIM	$4.02	3
70	HY53202W08AB	SEAL, FIXING	HY53202W08AB SEAL, FIXING	$6.05	3
80	HY5301B43AD	NVH, DOOR TRIM, LH	HY5301B43AD NVH, DOOR TRIM, LH	$55.45	1
90	HY5301B42AD	NVH, DOOR TRIM, RH	HY5301B42AD NVH, DOOR TRIM, RH	$55.45	1
100	HY53226A10BA	CUP ASSEMBLY, RELEASELEVER	HY53226A10BA CUP ASSEMBLY, RELEASELEVER Grained Plastic	$31.89	1
101	HY53226A10AA	CUP ASSEMBLY, RELEASELEVER	HY53226A10AA CUP ASSEMBLY, RELEASELEVER Leather Trimmed	$358.15	1
110	HY53226A38BA	CAP ASSEMBLY, RELEASELEVER	HY53226A38BA CAP ASSEMBLY, RELEASELEVER Grained Plastic	$31.89	1
111	HY53226A38AA	CAP ASSEMBLY, RELEASELEVER	HY53226A38AA CAP ASSEMBLY, RELEASELEVER Leather Trimmed	$368.87	1
120	JY53226A14BA	BEZEL, INTEROR HANDLE	JY53226A14BA BEZEL, INTEROR HANDLE Satin Silver	$80.26	1
121	JY53226A14CA	BEZEL, INTEROR HANDLE	JY53226A14CA BEZEL, INTEROR HANDLE Dark Chrome	$86.50	1
130	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head	$0.68	39
150	HY53-23530-AA	ライトガイド	HY53-23530-AA ライトガイド Long	-	1	Enquire
160	KY632685AB	CLIP, DOOR TRIM PANEL	KY632685AB CLIP, DOOR TRIM PANEL	$2.80	3
170	HY53237A60AA	RETAINER, TRIM FINISHER	HY53237A60AA RETAINER, TRIM FINISHER	$12.63	4
180	HY5321211AB	END CAP, DOOR TRIM, LH	HY5321211AB END CAP, DOOR TRIM, LH -> 22MY	$224.17	1
181	NY5321211AAW	END CAP, DOOR TRIM, LH	NY5321211AAW END CAP, DOOR TRIM, LH 22MY-> 23MY	$236.98	1
182	PY7321211AAW	END CAP, DOOR TRIM, LH	PY7321211AAW END CAP, DOOR TRIM, LH 23.5MY-> '770 Ultimate'Edition	$233.82	1
183	HY5321210AB	END CAP, DOOR TRIM, RH	HY5321210AB END CAP, DOOR TRIM, RH -> 22MY	$217.67	1
184	NY5321210AAW	END CAP, DOOR TRIM, RH	NY5321210AAW END CAP, DOOR TRIM, RH 22MY-> 23MY	$236.98	1
185	PY7321210AAW	END CAP, DOOR TRIM, RH	PY7321210AAW END CAP, DOOR TRIM, RH 23.5MY-> '770 Ultimate'Edition	$233.82	1
190	HY53-24150-AA	BRACKET, LIGHT GUIDE	HY53-24150-AA BRACKET, LIGHT GUIDE	-	1	Enquire
200	707142	SCREW, M5x12, CHEESE HEAD IN STOCK	707142 SCREW, M5x12, CHEESE HEAD IN STOCK	$0.41	2
210	HY5324207AB	FINISHER, DOOR PULL	HY5324207AB FINISHER, DOOR PULL LH, Silver	$448.00	1
211	HY5324207BB	FINISHER, DOOR PULL	HY5324207BB FINISHER, DOOR PULL LH, Dark Chrome	$1,116.64	1
212	HY5324206AB	FINISHER, DOOR PULL	HY5324206AB FINISHER, DOOR PULL RH, Silver	$448.00	1
213	HY5324206BB	FINISHER, DOOR PULL	HY5324206BB FINISHER, DOOR PULL RH, Dark Chrome	$1,105.90	1
220	HY53NTC7314AA	NUT, M4, NYLON, HEX FLG	HY53NTC7314AA NUT, M4, NYLON, HEX FLG For B&O Speakers	$0.50	3
230	HY530503AA	NUT, THREAD CUTTING	HY530503AA NUT, THREAD CUTTING For standard speakers	$1.37	3
250	HY53C237898AA	Bezel, Demist Pipe	HY53C237898AA Bezel, Demist Pipe	$878.81	1
260	HY5324105AC	BRACKET, DOOR PULL, LH	HY5324105AC BRACKET, DOOR PULL, LH -> 22MY	$367.02	1
261	NY5324105AAW	BRACKET, DOOR PULL, LH	NY5324105AAW BRACKET, DOOR PULL, LH 22MY->	$241.47	1
262	HY5324104AC	BRACKET, DOOR PULL, RH	HY5324104AC BRACKET, DOOR PULL, RH -> 22MY	$367.02	1
263	NY5324104AAW	BRACKET, DOOR PULL, RH	NY5324104AAW BRACKET, DOOR PULL, RH 22MY->	$241.47	1
270	HY5318978AB	GRILLE, SPEAKER	HY5318978AB GRILLE, SPEAKER Bang & Olufsen, Silver	$872.99	1
271	HY5318978BB	GRILLE, SPEAKER	HY5318978BB GRILLE, SPEAKER B&O, Black	-	1	Enquire
272	HY5340A580CC	GRILLE, SPEAKER	HY5340A580CC GRILLE, SPEAKER Standard/Premium Audio,Satin Silver	$872.99	1
273	HY5340A580BC	GRILLE, SPEAKER	HY5340A580BC GRILLE, SPEAKER Standard/Premium Audio,Black	$346.56	1
274	HY5340A580DC	GRILLE, SPEAKER	HY5340A580DC GRILLE, SPEAKER Standard/Premium Audio,Dark Chrome	$872.99	1
280	HY5320161AL	ドアトリムアッセンブリー、左側	HY5320161AL ドアトリムアッセンブリー、左側 -> 22MY, Coupe, Includesitem 360	$4,358.32	1
281	KY5320161AE	ドアトリムアッセンブリー、左側	KY5320161AE ドアトリムアッセンブリー、左側 -> 22MY, Volante,Includes item 360	$4,965.41	1
282	NY5320161AAW	ドアトリムアッセンブリー、左側	NY5320161AAW ドアトリムアッセンブリー、左側 22MY-> 23MY, Coupe,Includes item 362	$4,150.93	1
283	NY5320161BAW	ドアトリムアッセンブリー、左側	NY5320161BAW ドアトリムアッセンブリー、左側 22MY-> 23MY, Volante,Includes item 362	$4,152.62	1
284	PY73-20161-AAW	ドアトリムアッセンブリー、左側	PY73-20161-AAW ドアトリムアッセンブリー、左側 23.5MY->, Coupe, '770Ultimate' Edition	-	1	Enquire
285	PY73-20161-BAW	ドアトリムアッセンブリー、左側	PY73-20161-BAW ドアトリムアッセンブリー、左側 23.5MY->, Volante, '770Ultimate' Edition	-	1	Enquire
286	HY5320160AL	ドアトリム組立品、右側	HY5320160AL ドアトリム組立品、右側 -> 22MY, Coupe, Includesitem 350	$4,358.32	1
287	KY5320160AC	ドアトリム組立品、右側	KY5320160AC ドアトリム組立品、右側 -> 22MY, Volante,Includes item 350	$4,978.36	1
288	NY5320160AAW	ドアトリム組立品、右側	NY5320160AAW ドアトリム組立品、右側 22MY-> 23MY, Coupe,Includes item 352	$4,150.93	1
289	NY5320160BAW	ドアトリム組立品、右側	NY5320160BAW ドアトリム組立品、右側 22MY-> 23MY, Volante,Includes item 352	$4,152.62	1
290	PY73-20160-AAW	ドアトリム組立品、右側	PY73-20160-AAW ドアトリム組立品、右側 23.5MY->, Coupe, '770Ultimate' Edition	-	1	Enquire
291	PY73-20160-BAW	ドアトリム組立品、右側	PY73-20160-BAW ドアトリム組立品、右側 23.5MY->, Volante, '770Ultimate' Edition	-	1	Enquire
320	HY53202A15AD	エアダクト	HY53202A15AD エアダクト LH	$97.04	1
330	HY53202A14AD	エアダクト	HY53202A14AD エアダクト RH	$91.92	1
340	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head Air Duct to Door Trim	$0.68	3
350	HY5323718AD	DOOR POCKET ASSEMBLY, RH	HY5323718AD DOOR POCKET ASSEMBLY, RH -> 22MY	$931.12	1
351	LY73-23718-BA	DOOR POCKET ASSEMBLY, RH	LY73-23718-BA DOOR POCKET ASSEMBLY, RH Red, 'OHMSS' Edition	-	1	Enquire
352	NY5323718AAW	DOOR POCKET ASSEMBLY, RH	NY5323718AAW DOOR POCKET ASSEMBLY, RH 22MY->	$911.47	1
360	HY5323719AD	DOOR POCKET ASSEMBLY, LH	HY5323719AD DOOR POCKET ASSEMBLY, LH -> 22MY	$1,133.24	1
361	LY73-23719-BA	DOOR POCKET ASSEMBLY, LH	LY73-23719-BA DOOR POCKET ASSEMBLY, LH Red, 'OHMSS' Edition	-	1	Enquire
362	NY5323719AAW	DOOR POCKET ASSEMBLY, LH	NY5323719AAW DOOR POCKET ASSEMBLY, LH 22MY->	$911.47	1
370	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head Door Pocket to Door Trim	$0.68	7
380	HY53238A39AD	BRACKET, TRIM, UPPER	HY53238A39AD BRACKET, TRIM, UPPER LH	$581.60	1
390	HY53238A38AD	BRACKET, TRIM, UPPER	HY53238A38AD BRACKET, TRIM, UPPER RH	$581.60	1
500	HY538710129	VENEER, DOOR, MatchedPair	HY538710129 VENEER, DOOR, MatchedPair Piano Black	$5,332.70	1
501	HY538710061	VENEER, DOOR, MatchedPair	HY538710061 VENEER, DOOR, MatchedPair Satin Chopped Carbon	$4,734.72	1
502	HY538710149	VENEER, DOOR, MatchedPair	HY538710149 VENEER, DOOR, MatchedPair Tamo Ash	$5,696.65	1
503	HY53202D12FD	VENEER INSERT, RH	HY53202D12FD VENEER INSERT, RH Twill Carbon	$3,770.90	1
504	KY5323864ABW	LEATHER INSERT, RH	KY5323864ABW LEATHER INSERT, RH Caithness	$587.04	1
505	KY5323864EBW	LEATHER INSERT, RH	KY5323864EBW LEATHER INSERT, RH Balmoral	$587.04	1
506	NY5323864AAW	LEATHER INSERT, RH	NY5323864AAW LEATHER INSERT, RH 23.5MY-> '770 Ultimate'Edition	$964.63	1
507	LY73-202D12-FA	VENEER INSERT, RH	LY73-202D12-FA VENEER INSERT, RH Twill Carbon with Graphic'007' Edition	-	1	Enquire
508	HY53202D12DD	VENEER INSERT, RH	HY53202D12DD VENEER INSERT, RH 22MY->, Dark Ash Burl	$3,465.50	1
509	HY53202D13LD	VENEER INSERT, RH	HY53202D13LD VENEER INSERT, RH 23.5MY-> '770 Ultimate'Edition, Light Ash Burl	$3,406.95	1
510	HY53202D13FD	VENEER INSERT, LH	HY53202D13FD VENEER INSERT, LH Twill Carbon	$3,770.90	1
511	KY5323865ABW	LEATHER INSERT, LH	KY5323865ABW LEATHER INSERT, LH Caithness	$587.04	1
512	KY5323865EBW	LEATHER INSERT, LH	KY5323865EBW LEATHER INSERT, LH Balmoral	$587.04	1
513	NY5323865AAW	LEATHER INSERT, LH	NY5323865AAW LEATHER INSERT, LH 23.5MY-> '770 Ultimate'Edition	$964.63	1
514	LY73-202D13-FA	VENEER INSERT, LH	LY73-202D13-FA VENEER INSERT, LH Twill Carbon with Graphic'007' Edition	-	1	Enquire
515	HY53202D13DD	VENEER INSERT, LH	HY53202D13DD VENEER INSERT, LH 22MY->, Dark Ash Burl	$3,465.50	1
516	HY53202D12LD	VENEER INSERT, LH	HY53202D12LD VENEER INSERT, LH 23.5MY-> '770 Ultimate'Edition, Light Ash Burl	$3,406.95	1
550	KY7324002AC	ARMREST ASSEMBLY, DRIVERS	KY7324002AC ARMREST ASSEMBLY, DRIVERS -> 22MY, RH/RHD,Alcantara	$2,669.24	1
551	KY7324002BC	ARMREST ASSEMBLY,PASSENGER	KY7324002BC ARMREST ASSEMBLY,PASSENGER -> 22MY, RH/LHD,Alcantara	$2,669.24	1
552	KY7324002CC	ARMREST ASSEMBLY, DRIVERS	KY7324002CC ARMREST ASSEMBLY, DRIVERS -> 22MY, RH/RHD, Leather	$2,669.24	1
553	KY7324002DC	ARMREST ASSEMBLY,PASSENGER	KY7324002DC ARMREST ASSEMBLY,PASSENGER -> 22MY, RH/LHD, Leather	$2,669.24	1
554	KY7324002EC	ARMREST ASSEMBLY, DRIVERS	KY7324002EC ARMREST ASSEMBLY, DRIVERS -> 22MY, RH/RHD,Leather/Quilted	$2,669.24	1
555	KY7324002FC	ARMREST ASSEMBLY,PASSENGER	KY7324002FC ARMREST ASSEMBLY,PASSENGER -> 22MY, RH/LHD,Leather/Quilted	$2,669.24	1
556	KY7324003AC	ARMREST ASSEMBLY, DRIVERS	KY7324003AC ARMREST ASSEMBLY, DRIVERS -> 22MY, LH/LHD,Alcantara	$2,669.24	1
557	KY7324003BC	ARMREST ASSEMBLY,PASSENGER	KY7324003BC ARMREST ASSEMBLY,PASSENGER -> 22MY, LH/RHD,Alcantara	$2,669.24	1
558	KY7324003CC	ARMREST ASSEMBLY, DRIVERS	KY7324003CC ARMREST ASSEMBLY, DRIVERS -> 22MY, LH/LHD, Leather	$2,669.24	1
559	KY7324003DC	ARMREST ASSEMBLY,PASSENGER	KY7324003DC ARMREST ASSEMBLY,PASSENGER -> 22MY, LH/RHD, Leather	$2,669.24	1
560	KY7324003EC	ARMREST ASSEMBLY, DRIVERS	KY7324003EC ARMREST ASSEMBLY, DRIVERS -> 22MY, LH/LHD,Leather/Quilted	$2,669.24	1
561	KY7324003FC	ARMREST ASSEMBLY,PASSENGER	KY7324003FC ARMREST ASSEMBLY,PASSENGER -> 22MY, LH/RHD,Leather/Quilted	$2,669.24	1
562	NY7324003AAW	ARMREST ASSEMBLY, DRIVERS	NY7324003AAW ARMREST ASSEMBLY, DRIVERS 22MY-> 23MY, LH/LHD	$2,668.27	1
563	NY7324003BAW	ARMREST ASSEMBLY,PASSENGER	NY7324003BAW ARMREST ASSEMBLY,PASSENGER 22MY-> 23MY, LH/RHD	$2,668.27	1
564	NY7324002AAW	ARMREST ASSEMBLY, DRIVERS	NY7324002AAW ARMREST ASSEMBLY, DRIVERS 22MY-> 23MY, RH/RHD	$2,668.27	1
565	NY7324002BAW	ARMREST ASSEMBLY,PASSENGER	NY7324002BAW ARMREST ASSEMBLY,PASSENGER 22MY-> 23MY, RH/LHD	$2,668.27	1
566	PY7324003AAW	ARMREST ASSEMBLY, DRIVERS	PY7324003AAW ARMREST ASSEMBLY, DRIVERS 23.5MY->, LH/LHD, '770Ultimate' Edition	$2,676.73	1
567	PY7324003BAW	ARMREST ASSEMBLY,PASSENGER	PY7324003BAW ARMREST ASSEMBLY,PASSENGER 23.5MY->, LH/RHD, '770Ultimate' Edition	$2,676.73	1
568	PY7324002AAW	ARMREST ASSEMBLY, DRIVERS	PY7324002AAW ARMREST ASSEMBLY, DRIVERS 23.5MY->, RH/RHD, '770Ultimate' Edition	$2,693.06	1
569	PY7324002BAW	ARMREST ASSEMBLY,PASSENGER	PY7324002BAW ARMREST ASSEMBLY,PASSENGER 23.5MY->, RH/LHD, '770Ultimate' Edition	$2,693.06	1
