Interior Trim - Rear Cabin - Coupe of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

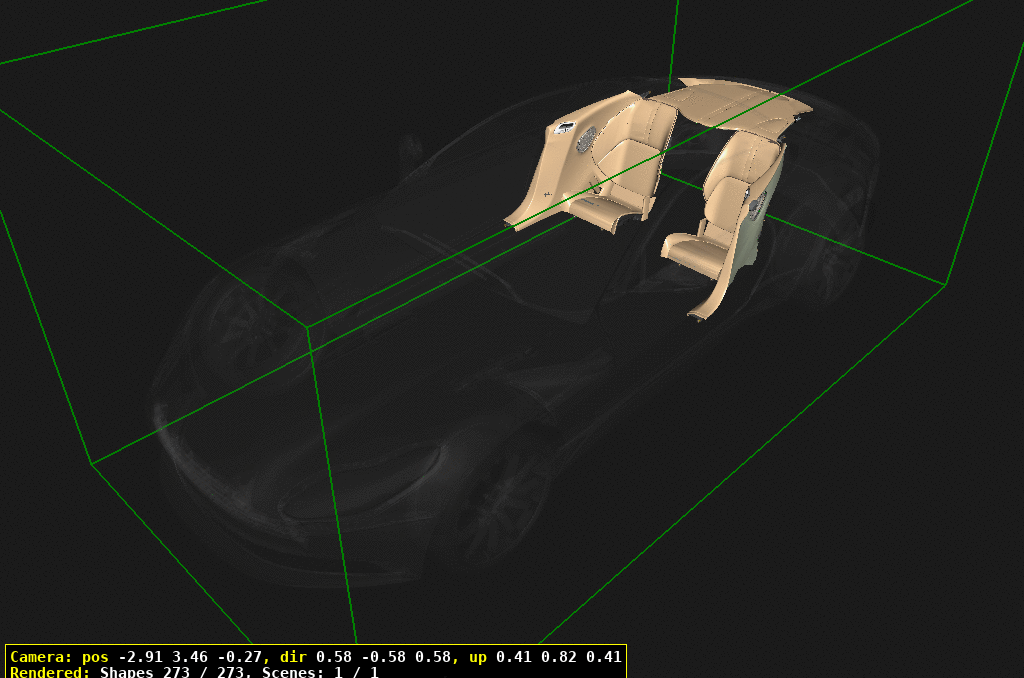

Aston Martin GT DB11 (2017-2023) - Interior Trim - Rear Cabin - Coupe

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	HY5331013AFW	TRIM PANEL, BODY SIDE, LH	HY5331013AFW TRIM PANEL, BODY SIDE, LH -> 22MY	$6,122.11	1
21	NY5331013ABW	TRIM PANEL, BODY SIDE, LH	NY5331013ABW TRIM PANEL, BODY SIDE, LH 22MY->, Haircell Leatherwith Base Audio	$2,031.02	1
23	NY53-31013-EBW	TRIM PANEL, BODY SIDE, LH	NY53-31013-EBW TRIM PANEL, BODY SIDE, LH 22MY->, Semi Aniline withBase Audio	-	1	Enquire
24	NY53-312A33-ABW	TRIM PANEL, BODY SIDE, LH	NY53-312A33-ABW TRIM PANEL, BODY SIDE, LH 22MY->, Haircell Leatherwith B&O Audio	-	1	Enquire
25	NY53-312A33-EBW	TRIM PANEL, BODY SIDE, LH	NY53-312A33-EBW TRIM PANEL, BODY SIDE, LH 22MY->, Semi Aniline withB&O Audio	-	1	Enquire
30	HY5331012AFW	TRIM PANEL, BODY SIDE, RH	HY5331012AFW TRIM PANEL, BODY SIDE, RH -> 22MY	$6,122.11	1
31	NY5331012ABW	TRIM PANEL, BODY SIDE, RH	NY5331012ABW TRIM PANEL, BODY SIDE, RH 22MY->, Haircell Leatherwith Base Audio	$2,031.02	1
32	NY53-31012-EBW	TRIM PANEL, BODY SIDE, RH	NY53-31012-EBW TRIM PANEL, BODY SIDE, RH 22MY->, Semi Aniline withBase Audio	-	1	Enquire
33	NY53-312A32-ABW	TRIM PANEL, BODY SIDE, RH	NY53-312A32-ABW TRIM PANEL, BODY SIDE, RH 22MY->, Haircell Leatherwith B&O Audio	-	1	Enquire
34	NY53-312A32-EBW	TRIM PANEL, BODY SIDE, RH	NY53-312A32-EBW TRIM PANEL, BODY SIDE, RH 22MY->, Semi Aniline withB&O Audio	-	1	Enquire
40	HY53C046A28AC	GRILLE, SPEAKER	HY53C046A28AC GRILLE, SPEAKER B&O, Silver	$970.36	2
41	HY53C046A28BC	GRILLE, SPEAKER	HY53C046A28BC GRILLE, SPEAKER B&O, Black	$970.36	2
42	HY53601B50AC	スピーカーグリル	HY53601B50AC スピーカーグリル ->18.5MY, Premium,Iridium	$203.80	2
43	HY53601B50BC	スピーカーグリル、センター	HY53601B50BC スピーカーグリル、センター Premium. Black	-	2	Enquire
44	HY53601B50CC	GRILLE, SPEAKER	HY53601B50CC GRILLE, SPEAKER 18.5MY->, Premium, SatinSilver	$191.87	2
45	HY53601B50DC	スピーカーグリル、センター	HY53601B50DC スピーカーグリル、センター Premium, Dark Chrome	$223.69	2
50	703752	Bolt and washer, M6x14	703752 Bolt and washer, M6x14	$1.42	8
60	703076	Screw, M4 x 20 csk skt	703076 Screw, M4 x 20 csk skt	$0.20	4
70	HY53611B93AA	BEZEL, SEATBELT, LH	HY53611B93AA BEZEL, SEATBELT, LH Silver	$230.78	1
71	HY53611B93BA	BEZEL, SEATBELT, LH	HY53611B93BA BEZEL, SEATBELT, LH Dark Chrome	$522.82	1
80	HY53611B92CA	BEZEL, SEATBELT, RH	HY53611B92CA BEZEL, SEATBELT, RH Silver	$338.35	1
81	HY53611B92BA	BEZEL, SEATBELT, RH	HY53611B92BA BEZEL, SEATBELT, RH Dark Chrome	$495.23	1
90	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	2
100	HY5360594ABW	SQUAB, REAR SEAT, RH	HY5360594ABW SQUAB, REAR SEAT, RH -> 22MY	$3,519.82	1
101	NY5360594AAW	SQUAB, REAR SEAT, RH	NY5360594AAW SQUAB, REAR SEAT, RH 22MY->, Haircell	$3,070.43	1
102	NY53-60594-DAW	SQUAB, REAR SEAT, RH	NY53-60594-DAW SQUAB, REAR SEAT, RH 22MY->, Alcantara	-	1	Enquire
103	NY53-60594-EAW	SQUAB, REAR SEAT, RH	NY53-60594-EAW SQUAB, REAR SEAT, RH 22MY->, Semi Aniline	-	1	Enquire
110	HY5360032ABW	SEAT BACK ASSEMBLY, REAR,RH	HY5360032ABW SEAT BACK ASSEMBLY, REAR,RH -> 22MY	$219.72	1
111	NY5360032ABW	SEAT BACK ASSEMBLY, REAR,RH	NY5360032ABW SEAT BACK ASSEMBLY, REAR,RH 22MY->, Haircell	$451.29	1
112	NY53-60032-DBW	SEAT BACK ASSEMBLY, REAR,RH	NY53-60032-DBW SEAT BACK ASSEMBLY, REAR,RH 22MY->, Alcantara	-	1	Enquire
113	NY53-60032-EAW	SEAT BACK ASSEMBLY, REAR,RH	NY53-60032-EAW SEAT BACK ASSEMBLY, REAR,RH 22MY->, Semi Aniline	-	1	Enquire
120	HY5360033ABW	SEAT BACK ASSEMBLY, REAR,LH	HY5360033ABW SEAT BACK ASSEMBLY, REAR,LH -> 22MY	$219.72	1
121	NY5360033AAW	SEAT BACK ASSEMBLY, REAR,LH	NY5360033AAW SEAT BACK ASSEMBLY, REAR,LH 22MY->, Haircell	$2,647.54	1
122	NY53-60033-DBW	SEAT BACK ASSEMBLY, REAR,LH	NY53-60033-DBW SEAT BACK ASSEMBLY, REAR,LH 22MY->, Alcantara	-	1	Enquire
123	NY5360033EAW	SEAT BACK ASSEMBLY, REAR,LH	NY5360033EAW SEAT BACK ASSEMBLY, REAR,LH 22MY->, Semi Aniline	$1,106.35	1
130	HY5360595ABW	SQUAB, REAR SEAT, LH	HY5360595ABW SQUAB, REAR SEAT, LH -> 22MY	$3,519.82	1
131	NY5360595AAW	SQUAB, REAR SEAT, LH	NY5360595AAW SQUAB, REAR SEAT, LH 22MY->, Haircell	$3,070.43	1
132	NY53-60595-DBW	SQUAB, REAR SEAT, LH	NY53-60595-DBW SQUAB, REAR SEAT, LH 22MY->, Alcantara	-	1	Enquire
133	NY5360595EAW	SQUAB, REAR SEAT, LH	NY5360595EAW SQUAB, REAR SEAT, LH 22MY->, Semi Aniline	$1,106.35	1
140	HY5360081ACW	CUSHION ASSEMBLY, REAR,LH	HY5360081ACW CUSHION ASSEMBLY, REAR,LH -> 22MY	$1,888.82	1
141	NY5360081AAW	CUSHION ASSEMBLY, REAR,LH	NY5360081AAW CUSHION ASSEMBLY, REAR,LH 22MY->, Haircell	$4,533.67	1
142	NY53-60081-DAW	CUSHION ASSEMBLY, REAR,LH	NY53-60081-DAW CUSHION ASSEMBLY, REAR,LH 22MY->, Alcantara	-	1	Enquire
143	NY5360081EAW	CUSHION ASSEMBLY, REAR,LH	NY5360081EAW CUSHION ASSEMBLY, REAR,LH 22MY->, Semi Aniline	$4,533.67	1
150	HY5360080ACW	CUSHION ASSEMBLY, REAR,RH	HY5360080ACW CUSHION ASSEMBLY, REAR,RH -> 22MY	$1,888.82	1
151	NY5360080ABW	CUSHION ASSEMBLY, REAR,RH	NY5360080ABW CUSHION ASSEMBLY, REAR,RH 22MY->, Haircell	$4,533.67	1
152	NY53-60080-DBW	CUSHION ASSEMBLY, REAR,RH	NY53-60080-DBW CUSHION ASSEMBLY, REAR,RH 22MY->, Alcantara	-	1	Enquire
153	NY5360080EBW	CUSHION ASSEMBLY, REAR,RH	NY5360080EBW CUSHION ASSEMBLY, REAR,RH 22MY->, Semi Aniline	$4,533.67	1
160	HY53613C74AAW	SLEEVE, SEATBELT BUCKLE,LH	HY53613C74AAW SLEEVE, SEATBELT BUCKLE,LH -> 22MY	$776.02	1
161	NY53-613C74-AAW	SLEEVE, SEATBELT BUCKLE	NY53-613C74-AAW SLEEVE, SEATBELT BUCKLE 22MY->, Haircell	-	1	Enquire
162	NY53-613C74-EAW	SLEEVE, SEATBELT BUCKLE	NY53-613C74-EAW SLEEVE, SEATBELT BUCKLE 22MY->, Semi Aniline	-	1	Enquire
170	HY53611D85AAW	SLEEVE, SEATBELT, ANCHOR,LH	HY53611D85AAW SLEEVE, SEATBELT, ANCHOR,LH -> 22MY	$776.02	1
171	NY53-611D84-AAW	SLEEVE, SEATBELT ANCHOR	NY53-611D84-AAW SLEEVE, SEATBELT ANCHOR 22MY->, Haircell	-	1	Enquire
172	NY53-611D84-EAW	SLEEVE, SEATBELT, ANCHOR	NY53-611D84-EAW SLEEVE, SEATBELT, ANCHOR 22MY->, Semi Aniline	-	1	Enquire
180	HY53613C75AAW	SLEEVE, SEATBELT BUCKLE,RH	HY53613C75AAW SLEEVE, SEATBELT BUCKLE,RH -> 22MY	$776.02	1
181	NY53-613C74-AAW	SLEEVE, SEATBELT BUCKLE	NY53-613C74-AAW SLEEVE, SEATBELT BUCKLE 22MY->, Haircell	-	1	Enquire
182	NY53-613C74-EAW	SLEEVE, SEATBELT BUCKLE	NY53-613C74-EAW SLEEVE, SEATBELT BUCKLE 22MY->, Semi Aniline	-	1	Enquire
190	HY53611D84AAW	SLEEVE, SEATBELT ANCHOR,RH	HY53611D84AAW SLEEVE, SEATBELT ANCHOR,RH -> 22MY	$776.02	1
191	NY53-611D84-AAW	SLEEVE, SEATBELT ANCHOR	NY53-611D84-AAW SLEEVE, SEATBELT ANCHOR 22MY->, Haircell	-	1	Enquire
192	NY53-611D84-EAW	SLEEVE, SEATBELT, ANCHOR	NY53-611D84-EAW SLEEVE, SEATBELT, ANCHOR 22MY->, Semi Aniline	-	1	Enquire
200	HY5363846ACW	LUMBAR ASSEMBLY, REARSEAT, RH	HY5363846ACW LUMBAR ASSEMBLY, REARSEAT, RH -> 22MY	$1,254.22	1
201	NY5363846AAW	LUMBAR ASSEMBLY, REARSEAT, RH	NY5363846AAW LUMBAR ASSEMBLY, REARSEAT, RH 22MY->, Haircell	$1,100.47	1
202	NY5363846EAW	LUMBAR ASSEMBLY, REARSEAT, RH	NY5363846EAW LUMBAR ASSEMBLY, REARSEAT, RH 22MY->, Semi Aniline	$1,103.69	1
210	HY5363847ABW	LUMBAR ASSEMBLY, REARSEAT, LH	HY5363847ABW LUMBAR ASSEMBLY, REARSEAT, LH -> 22MY	$1,254.22	1
211	NY5363847AAW	LUMBAR ASSEMBLY, REARSEAT, LH	NY5363847AAW LUMBAR ASSEMBLY, REARSEAT, LH 22MY->, Haircell	$1,100.47	1
212	NY5363847EAW	LUMBAR ASSEMBLY, REARSEAT, LH	NY5363847EAW LUMBAR ASSEMBLY, REARSEAT, LH 22MY->, Semi Aniline	$1,254.21	1
220	HY53600E68ACW	INSERT ASSEMBLY, SEATBACK	HY53600E68ACW INSERT ASSEMBLY, SEATBACK -> 22MY	$190.42	2
221	NY53600E68AAW	INSERT ASSEMBLY, SEATBACK	NY53600E68AAW INSERT ASSEMBLY, SEATBACK 22MY->, Haircell	$261.43	2
222	NY53600E68EAW	INSERT ASSEMBLY, SEATBACK	NY53600E68EAW INSERT ASSEMBLY, SEATBACK 22MY->, Semi Aniline	$260.98	2
230	700606	SCREW, M6x12, HEX HD IN STOCK	700606 SCREW, M6x12, HEX HD IN STOCK	$0.34	8
250	HY5363844ACW	PAD ASSEMBLY, ISOFIX,SQUAB, LOWER	HY5363844ACW PAD ASSEMBLY, ISOFIX,SQUAB, LOWER -> 22MY	$1,133.20	2
251	NY5363844AAW	PAD ASSEMBLY, ISOFIX,SQUAB, LOWER	NY5363844AAW PAD ASSEMBLY, ISOFIX,SQUAB, LOWER 22MY->, Haircell	$881.72	2
252	NY5363844EAW	PAD ASSEMBLY, ISOFIX,SQUAB, LOWER	NY5363844EAW PAD ASSEMBLY, ISOFIX,SQUAB, LOWER 22MY->, Semi Aniline	$930.89	2
260	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	4
270	HY53C31181AA	NVH, INTERIOR REARQUARTER, LH	HY53C31181AA NVH, INTERIOR REARQUARTER, LH	$18.02	1
280	HY53C31180AA	NVH, INTERIOR REARQUARTER, RH	HY53C31180AA NVH, INTERIOR REARQUARTER, RH	$18.02	1
290	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	8
400	HY5346668AHW	PACKAGE TRAY ASSEMBLY	HY5346668AHW PACKAGE TRAY ASSEMBLY -> 22MY	$4,063.46	1
401	NY53-46668-AAW	PACKAGE TRAY ASSEMBLY	NY53-46668-AAW PACKAGE TRAY ASSEMBLY 22MY->, Haircell	-	1	Enquire
402	NY5346668EAW	PACKAGE TRAY ASSEMBLY	NY5346668EAW PACKAGE TRAY ASSEMBLY 22MY->, Semi Aniline	$2,858.28	1
403	NY53-46668-PA	PACKAGE TRAY ASSEMBLY	NY53-46668-PA PACKAGE TRAY ASSEMBLY 22MY->, Nappa PVC	-	1	Enquire
410	7G43-25954-AC	SCREW/WASHER ASSEMBLY,M5x16	7G43-25954-AC SCREW/WASHER ASSEMBLY,M5x16	-	2	Enquire
420	HY53666B22ADW	TETHER COVER ASSEMBLY	HY53666B22ADW TETHER COVER ASSEMBLY -> 22MY	$710.56	2
421	NY53-666B22-AAW	TETHER COVER ASSEMBLY	NY53-666B22-AAW TETHER COVER ASSEMBLY 22MY->, Haircell	-	2	Enquire
422	NY53666B22EAW	TETHER COVER ASSEMBLY	NY53666B22EAW TETHER COVER ASSEMBLY 22MY->, Semi Aniline	$685.86	2
423	NY53-666B22-PA	TETHER COVER ASSEMBLY	NY53-666B22-PA TETHER COVER ASSEMBLY 22MY->, Nappa PVC	-	2	Enquire
430	703752	Bolt and washer, M6x14	703752 Bolt and washer, M6x14	$1.42	2
450	HY5346813ABW	PACKAGE TRAY, REAR, LH	HY5346813ABW PACKAGE TRAY, REAR, LH	$1,224.98	1
460	HY5346812ABW	PACKAGE TRAY, REAR, RH	HY5346812ABW PACKAGE TRAY, REAR, RH	$1,224.98	1
470	7G43C2437AAW	Tape, Anti squeak	7G43C2437AAW Tape, Anti squeak Cut from Roll	$145.29	4
480	AG4346660BA	FOAM BLOCK, 27x20x20mm	AG4346660BA FOAM BLOCK, 27x20x20mm	$0.45	2
