Aston Martin GT DB11 (2017-2023) - Centre Console - 22MY on

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

すべて見る

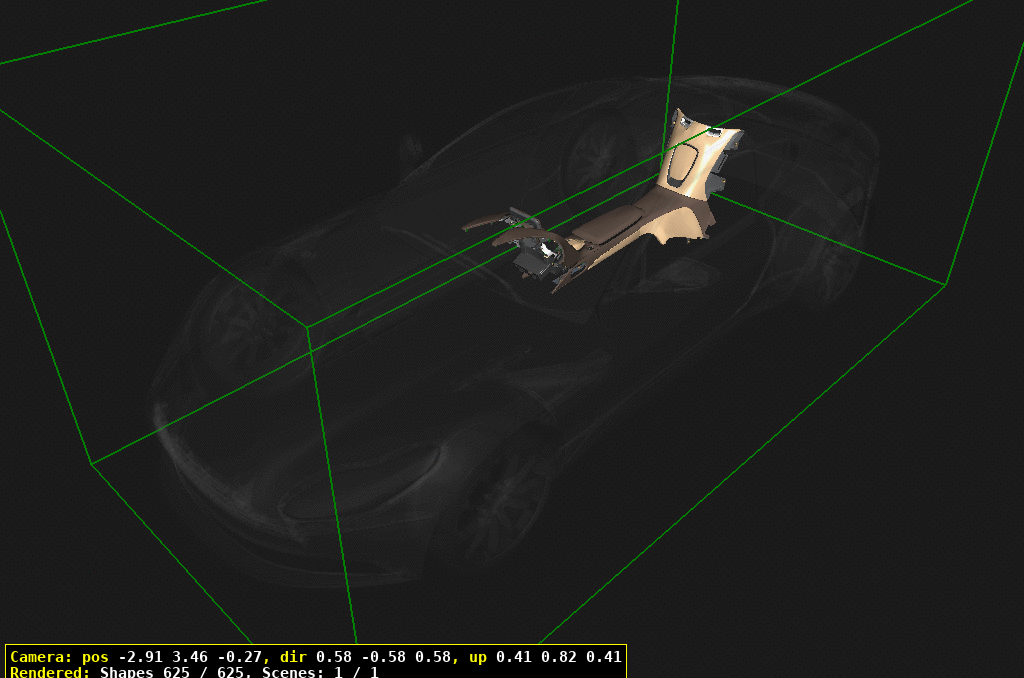

Centre Console - 22MY on of Aston Martin Aston Martin GT DB11 (2017-2023) ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
20 NY5324407AAW
OUTER TRIM, LH, withSWITCH HOLE
Haircell Leather 		$894.32 1
21 NY5324407EAW
OUTER TRIM, LH, withSWITCH HOLE
Semi Aniline Leather 		$1,066.14 1
22 NY53-24405-AAW
OUTER TRIM, LH, lessSWITCH HOLE
Haircell Leather 		- 1 Enquire
23 NY5324405EAW
OUTER TRIM, LH, lessSWITCH HOLE
Semi Aniline Leather 		$896.18 1
30 NY5324406AAW
OUTER TRIM, RH, withSWITCH HOLE
Haircell Leather 		$894.32 1
31 NY5324406EAW
OUTER TRIM, RH, withSWITCH HOLE
Semi Aniline Leather 		$923.06 1
33 NY53-24404-AAW
OUTER TRIM, RH, lessSWITCH HOLE
Haircell Leather 		- 1 Enquire
34 NY5324404EAW
OUTER TRIM, RH, lessSWITCH HOLE
Semi Aniline Leather 		$950.76 1
40 707165
TRIM FASTENER, 8.6x8x16 		$2.51 12
50 703175
Screw, M4 x 10, Torx Pan Head
IN STOCK 		$0.34 8
60 HY538710034
KIT, VENEER, CENTRECONSOLE
Satin Chopped Carbon 		$2,368.04 1
62 HY53044J51EA
KIT, VENEER, CENTRECONSOLE
Tamo Ash, Matched Pair 		$2,880.09 1
65 HY53044J51JA
KIT, VENEER, CENTRECONSOLE
Light Ash Burl, MatchedPair 		$2,423.32 1
69 KY53044L81AAW
CENTRE CONSOLE TRIM, LH
Leather Wrapped 		$604.74 1
70 HY53045J11AC
VENEER, CENTRE CONSOLE,LH
Piano Black 		$1,561.95 1
75 HY53045J11BC
VENEER, CENTRE CONSOLE,LH
Carbon, 2x2 Twill, Satin 		$2,595.59 1
89 KY53044L80AAW
CENTRE CONSOLE TRIM, RH
Leather Wrapped 		$604.74 1
90 HY53045J10AC
VENEER, CENTRE CONSOLE,RH
Piano Black 		$1,561.95 1
95 HY53045J10BC
VENEER, CENTRE CONSOLE,RH
Carbon, 2x2 Twill, Satin 		$2,334.13 1
100 HY53V513K01AC
CENTRE CONSOLE SUPPORTMOULDING
Includes items 110 		$104.17 1
110 4G43015371AA
NUT, CAPTIVE U, M4,LOCKING 		$3.93 12
120 NY53-11N653-AAW
CARRIER, SWITCH
Haircell 		- 1 Enquire
121 NY53-11N653-EAW
CARRIER, SWITCH
Semi Aniline 		- 1 Enquire
122 NY53-11N653-PAW
CARRIER, SWITCH
Nappa PVC 		- 1 Enquire
130 HY5314853AA
FINISHER, CENTRE STACK
Satin Chrome 		$1,116.28 1
131 HY5314853BA
FINISHER, CENTRE STACK
Dark Chrome 		$2,821.31 1
140 HY5304487AA
SUPPORT MOULDING, LOWER 		$49.15 1
150 HY537T429AB
RETAINER, HEAD UNIT 		$19.80 2
160 NY53044H94AAW
SURROUND, SAT-NAV, FRONT
Haircell 		$417.61 1
161 NY53044H94EAW
SURROUND, SAT-NAV, FRONT
Semi Aniline 		$395.55 1
162 NY53-044H94-PAW
SURROUND, SAT-NAV, FRONT
Nappa PVC 		- 1 Enquire
170 NY53-70459-AAW
RECESS ASSEMBLY, SAT-NAV,LH
Haircell 		- 1 Enquire
171 NY53-70459-EAW
RECESS ASSEMBLY, SAT-NAV,LH
Semi Aniline 		- 1 Enquire
172 NY53-70459-PAW
RECESS ASSEMBLY, SAT-NAV,LH
Nappa PVC 		- 1 Enquire
180 NY53-70458-AAW
RECESS ASSEMBLY, SAT-NAV,RH
Haircell 		- 1 Enquire
181 NY53-70458-EAW
RECESS ASSEMBLY, SAT-NAV,RH
Semi Aniline 		- 1 Enquire
182 NY53-70458-PAW
RECESS ASSEMBLY, SAT-NAV,RH
Nappa PVC 		- 1 Enquire
190 4G43015371AA
NUT, CAPTIVE U, M4,LOCKING 		$3.93 16
200 701573
Screw and Washer assy, M4x16 Pan hd 		$0.41 2
210 703175
Screw, M4 x 10, Torx Pan Head
IN STOCK 		$0.34 16
220 703175
Screw, M4 x 10, Torx Pan Head
IN STOCK 		$0.34 6
230 703068
SCREW, 4.2x9, LARGEFLANGE 		$0.13 2
240 6G33104101BA
SCREW, M4x9, THREADFORMING
IN STOCK 		$0.86 4
250 703027
SCREW, M4x10, PAN HD TORX 		$0.25 2
260 703068
SCREW, 4.2x9, LARGEFLANGE 		$0.13 4
270 703175
Screw, M4 x 10, Torx Pan Head
IN STOCK 		$0.34 4
280 HY5310E927AC
SUBSTRATE, SAT-NAV, REAR 		$54.22 1
290 AD43N807148AA
SCREW, M2x8, TORX 		$0.20 6
300 MY6360220GAW
TRIM ASSEMBLY, CONTROL CSURROUND
Haircell 		$238.74 1
310 MY6310A916GAW
CAP, CONTROL C SURROUND
Haircell 		$185.03 1
320 HY5345864AA
CLOSING PANEL, TOUCH PAD 		$46.58 1
330 AD43N807148AA
SCREW, M2x8, TORX 		$0.20 6
340 703175
Screw, M4 x 10, Torx Pan Head
IN STOCK 		$0.34 2
350 HY5304559AC
SUPPORT BRACKET, CONSOLE,LH 		$96.50 1
360 HY5304558AC
SUPPORT BRACKET, CONSOLE,RH 		$96.50 1
370 703151
Nut/washr, M6
IN STOCK 		$0.90 6
380 701573
Screw and Washer assy, M4x16 Pan hd 		$0.41 4
390 HY5311585AB
MOULDING, EIS RETAINER 		$60.13 1
400 703068
SCREW, 4.2x9, LARGEFLANGE 		$0.13 5
410 NY53045K06AAW
LID ASSEMBLY 		$1,092.93 1
420 NY53045C74AAW
CONSOLE STOWAGE ASSEMBLY
Haircell, Includes items430-520 		$1,821.11 1
421 NY53-045C74-EAW
CONSOLE STOWAGE ASSEMBLY
Semi Aniline, Includesitems 430-520 		- 1 Enquire
430 HY5311710AE
TRACK ASSEMBLY, STOWAGECOMPARTMENT LID 		$1,648.14 1
440 702629
SCREW, M6x19, PAN HEADTORX PILOT 		$1.24 2
450 HY53E826A80AA
FLEXITOL, M8 		$23.84 2
460 6G33-VTL645-AA
SCREW, M8x45, PAN HEAD,TORX, GRADE 10.9 		- 2 Enquire
470 703085
Bolt, M6 x 12, VOLANTE
IN STOCK 		$1.46 2
480 HY53045L50AA
CAP, EMERGENCY IGNITIONSWITCH 		$52.49 1
500 HY53045M880AA
MAT, STOWAGE COMPARTMENT 		$58.90 1
510 HY53047B40BA
DIVISION BAR, CAN HOLDER 		$22.85 1
560 NY53045C31AAW
PANEL SIDE ASSEMBLY,CONSOLE, LH
Haircell 		$920.22 1
561 NY53-045C31-DAW
PANEL SIDE ASSEMBLY,CONSOLE, LH
Haircell/Alcantara 		- 1 Enquire
562 NY53045C31EAW
PANEL SIDE ASSEMBLY,CONSOLE, LH
Semi Aniline 		$168.32 1
570 NY53045C30AAW
PANEL SIDE ASSEMBLY,CONSOLE, RH
Haircell 		$976.25 1
571 NY53-045C30-DAW
PANEL SIDE ASSEMBLY,CONSOLE, RH
Haircell/Alcantara 		- 1 Enquire
572 NY53045C30EAW
PANEL SIDE ASSEMBLY,CONSOLE, RH
Semi Aniline 		$1,658.61 1
580 NY53-55006-AAW
STRAP, CENTRE STACK
Haircell 		- 1 Enquire
581 NY53-55006-EAW
STRAP, CENTRE STACK
Semi Aniline 		- 1 Enquire
590 701447
Screw M4x12 Pan collar
IN STOCK 		$0.56 2
600 HY53237A13AB
トリンケットトレイ
Less eCall/SOS 		$49.45 1
601 HY53237W12AB
トリンケットトレイ
With eCall/SOS 		$51.97 1
610 HY53519E68AA
SURROUND ASSEMBLY, e-CALL 		$113.93 1
620 4G4380899AA
ネジ、M4X5MM
IN STOCK 		$0.27 2
680 4G4303836AB
BUMPON, RECTANGLE BLACK
IN STOCK 		$2.59 2
690 4G4380899AA
ネジ、M4X5MM
IN STOCK 		$0.27 1
700 HY53E865224AA
TRIM FASTERNER, 15x5.4 		$1.37 3
710 HY533N440AB
CARRIER, WRIST REST 		$208.62 1
720 MY635943GAW
WRIST PAD ASSEMBLY 		$408.97 1
730 701171
SCREW, M4x16 		$0.14 2
800 NY53-045E24-ABW
CONSOLE ASSEMBLY, REAR,UPPER
Coupe, Haircell. BaseAudio. Includes items810-860 		- 1 Enquire
801 NY53-045E24-EBW
CONSOLE ASSEMBLY, REAR,UPPER
Coupe, Semi Aniline. BaseAudio. Includes items810-860 		- 1 Enquire
802 NY53-674A32-ACW
CONSOLE ASSEMBLY, REAR,UPPER
Coupe, Haircell. B&OAudio. Includes items810-860 		- 1 Enquire
803 NY53-674A32-ECW
CONSOLE ASSEMBLY, REAR,UPPER
Coupe, Semi Aniline. B&OAudio. Includes items810-860 		- 1 Enquire
804 NY53-L045E24-ACW
CONSOLE ASSEMBLY, REAR,UPPER
Volante, Haircell. BaseAudio. Includes items810-860 		- 1 Enquire
805 NY53-L045E24-ECW
CONSOLE ASSEMBLY, REAR,UPPER
Volante, Semi Aniline.Base Audio. Includesitems 810-860 		- 1 Enquire
806 NY53L674A32ACW
CONSOLE ASSEMBLY, REAR,UPPER
Volante, Haircell. B&OAudio. Includes items810-860 		$1,068.76 1
807 NY53-L674A32-ECW
CONSOLE ASSEMBLY, REAR,UPPER
Volante, Semi Aniline.B&O Audio. Includes items810-860 		- 1 Enquire
810 NY5367482ABW
SPEAKER GRILLE, SUBWOOFER
B&O, Haircell 		$2,250.04 1
811 NY5367482EBW
SPEAKER GRILLE, SUBWOOFER
B&O, Semi Aniline 		$2,250.04 1
812 HY53047A44CC
SPEAKER GRILLE, SUBWOOFER
Base Audio, Silver 		$192.14 1
813 HY53047A44DC
SPEAKER GRILLE, SUBWOOFER
Base Audio, Dark Chrome 		$315.09 1
820 701447
Screw M4x12 Pan collar
IN STOCK 		$0.56 4
830 701577
U NUT, ST, 1.75-2.75 		$0.93 4
840 HY53611B90FA
BEZEL, SEATBELT, REAR
Satin Chrome 		$144.92 2
841 HY53611B90BA
BEZEL, SEATBELT, REAR
Dark Chrome 		$506.85 2
850 703076
Screw, M4 x 20 csk skt 		$0.20 4
860 4G43015371AA
NUT, CAPTIVE U, M4,LOCKING 		$3.93 4
870 NY53-045A12-ABW
CONSOLE ASSEMBLY, REAR,LOWER
Haircell 		- 1 Enquire
871 NY53045A12EBW
CONSOLE ASSEMBLY, REAR,LOWER
Semi Aniline 		$876.64 1
880 AD43C519A40AA
MACHINE SCREW, M5x13, PAN
IN STOCK 		$0.79 2
890 703749
Nut, M5 Hex flg hd
IN STOCK 		$1.28 6
