Aston Martin GT DB11 (2017-2023) - Instrument Panel - to 22MY

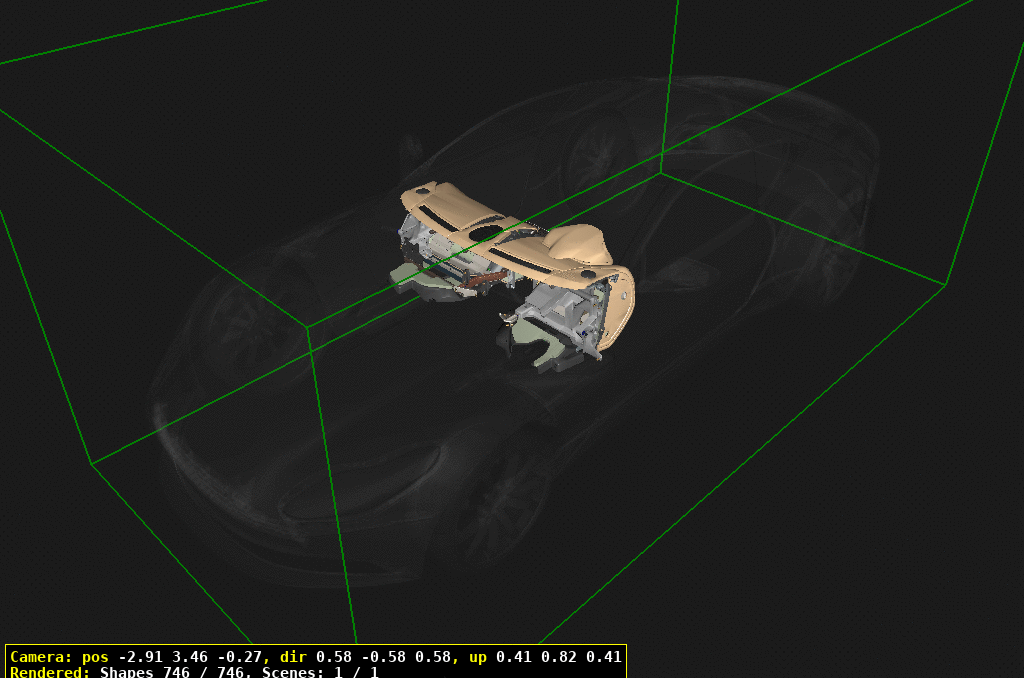

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	1	Enquire
20	HY53044B51DE	CROSS-CAR BEAM ASSEMBLY	HY53044B51DE CROSS-CAR BEAM ASSEMBLY LHD, includes item 280.See Service BulletinSB-01-1011	$4,246.30	1
21	HY53044B51CE	CROSS-CAR BEAM ASSEMBLY	HY53044B51CE CROSS-CAR BEAM ASSEMBLY RHD, See Service BulletinSB-01-1011	$4,246.30	1
30	HY533E718AA	LOCATING PIN, STEERINGCOLUMN	HY533E718AA LOCATING PIN, STEERINGCOLUMN When fitted	$12.07	2
40	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	8
50	HY53043D45AB	BRACKET, HVAC UNITSUPPORT	HY53043D45AB BRACKET, HVAC UNITSUPPORT	$46.04	1
60	707126	BOLT, M8x50, HEX FLG	707126 BOLT, M8x50, HEX FLG	$0.90	4
70	703187	ボルト、M8 X 25、六角フランジヘッド	703187 ボルト、M8 X 25、六角フランジヘッド	$0.74	4
80	703195	SCREW, M6x40, HEX HEAD IN STOCK	703195 SCREW, M6x40, HEX HEAD IN STOCK	$1.08	2
90	HY53N606544AA	BOLT, M8x55, BLACK	HY53N606544AA BOLT, M8x55, BLACK	$1.37	2
100	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	2
110	HY536542BB	BRACKET, DRIVER END PANEL	HY536542BB BRACKET, DRIVER END PANEL LHD	$103.22	1
111	HY536542AB	BRACKET, DRIVER END PANEL	HY536542AB BRACKET, DRIVER END PANEL RHD	$103.22	1
120	HY5318K587BB	BRACE, CCB PLENUM	HY5318K587BB BRACE, CCB PLENUM LHD	$62.21	1
121	HY5318K587AB	BRACE, CCB PLENUM	HY5318K587AB BRACE, CCB PLENUM RHD	$62.21	1
130	6G33E826A80DA	FLEXITOL ADJUSTER NUT, M8	6G33E826A80DA FLEXITOL ADJUSTER NUT, M8	$4.38	2
140	HY53044J04AB	BRACKET, DRIVER KNEEENERGY ABSORPTION	HY53044J04AB BRACKET, DRIVER KNEEENERGY ABSORPTION	$69.75	2
150	703187	ボルト、M8 X 25、六角フランジヘッド	703187 ボルト、M8 X 25、六角フランジヘッド	$0.74	8
160	HY53042K50BA	BRACKET, TUNNEL MOUNT,LHS	HY53042K50BA BRACKET, TUNNEL MOUNT,LHS LHD, Includes item 180	$257.73	1
161	HY53042K50AA	BRACKET, TUNNEL MOUNT,RHS	HY53042K50AA BRACKET, TUNNEL MOUNT,RHS RHD, Includes item 180	$277.09	1
170	6G33E826A80DA	FLEXITOL ADJUSTER NUT, M8	6G33E826A80DA FLEXITOL ADJUSTER NUT, M8	$4.38	1
180	HY53042K51BB	BRACKET, TUNNEL MOUNT,RHS	HY53042K51BB BRACKET, TUNNEL MOUNT,RHS LHD, Includes item 200	$253.94	1
181	HY53042K51AB	BRACKET, TUNNEL MOUNT,LHS	HY53042K51AB BRACKET, TUNNEL MOUNT,LHS RHD, Includes item 200	$277.09	1
200	6G33E826A80DA	FLEXITOL ADJUSTER NUT, M8	6G33E826A80DA FLEXITOL ADJUSTER NUT, M8	$4.38	1
210	HY5318K529AB	MOUNTING PIN, HVAC toBULKHEAD	HY5318K529AB MOUNTING PIN, HVAC toBULKHEAD	$11.93	1
220	HY533114AB	GASKET, HVAC PIN	HY533114AB GASKET, HVAC PIN	$3.22	2
230	HY53C8A254AA	BLANKING PLATE, GASKET	HY53C8A254AA BLANKING PLATE, GASKET	$26.50	1
240	HY533F659AA	SUPPORT ADAPTOR, STEERINGCOLUMN	HY533F659AA SUPPORT ADAPTOR, STEERINGCOLUMN	$449.24	1
250	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	4
260	HY53E826A80AA	FLEXITOL, M8	HY53E826A80AA FLEXITOL, M8	$23.84	2
270	HY5318659AB	CUP LOCATOR, PLENUM IP	HY5318659AB CUP LOCATOR, PLENUM IP	$31.02	3
280	HY53204A45DB	BRACKET, KNEE BAG SUPPORT	HY53204A45DB BRACKET, KNEE BAG SUPPORT Federal, Passenger SideSee Service BulletinSB-01-1011	$97.45	1
300	HY5304790BDW	IP UPPER MAIN ASSEMBLY	HY5304790BDW IP UPPER MAIN ASSEMBLY LHD, Caithness, PremiumAudio	$1,455.01	1
301	HY5304790FDW	IP UPPER MAIN ASSEMBLY	HY5304790FDW IP UPPER MAIN ASSEMBLY LHD, Balmoral, PremiumAudio	$9,989.31	1
302	HY5304790UDW	IP UPPER MAIN ASSEMBLY	HY5304790UDW IP UPPER MAIN ASSEMBLY LHD, Strathmore, PremiumAudio	$1,424.83	1
303	HY5304790ADW	IP UPPER MAIN ASSEMBLY	HY5304790ADW IP UPPER MAIN ASSEMBLY RHD, Caithness, PremiumAudio	$11,308.64	1
304	HY5304790EDW	IP UPPER MAIN ASSEMBLY	HY5304790EDW IP UPPER MAIN ASSEMBLY RHD, Balmoral, PremiumAudio	$9,989.31	1
305	HY5304790TDW	IP UPPER MAIN ASSEMBLY	HY5304790TDW IP UPPER MAIN ASSEMBLY RHD, Strathmore, PremiumAudio	$9,989.31	1
306	HY5304790DAW	IP UPPER MAIN ASSEMBLY	HY5304790DAW IP UPPER MAIN ASSEMBLY LHD, Caithness, BaseAudio	$9,655.96	1
307	HY5304790HAW	IP UPPER MAIN ASSEMBLY	HY5304790HAW IP UPPER MAIN ASSEMBLY LHD, Balmoral, Base Audio	$9,655.96	1
308	HY5304790WAW	IP UPPER MAIN ASSEMBLY	HY5304790WAW IP UPPER MAIN ASSEMBLY LHD, Strathmore, BaseAudio	$9,985.97	1
309	HY5304790CAW	IP UPPER MAIN ASSEMBLY	HY5304790CAW IP UPPER MAIN ASSEMBLY RHD, Caithness, BaseAudio	$9,655.96	1
310	HY5304790GAW	IP UPPER MAIN ASSEMBLY	HY5304790GAW IP UPPER MAIN ASSEMBLY RHD, Balmoral, Base Audio	$9,655.96	1
311	HY5304790VAW	IP UPPER MAIN ASSEMBLY	HY5304790VAW IP UPPER MAIN ASSEMBLY RHD, Strathmore, BaseAudio	$9,989.31	1
320	~*~	FUSES	*~~** FUSES Part 300-311 includesitems 330-420	-	-	Enquire
330	HY5348181AB	NVH, IP TOP PAD	HY5348181AB NVH, IP TOP PAD Premium Audio	$109.20	1
331	HY5348181BA	NVH, IP TOP PAD	HY5348181BA NVH, IP TOP PAD Base Audio	$101.24	1
340	HY5340412AA	SCREW, 4.5x12, TORX HD	HY5340412AA SCREW, 4.5x12, TORX HD	$0.45	4
350	HY5340412AA	SCREW, 4.5x12, TORX HD	HY5340412AA SCREW, 4.5x12, TORX HD	$0.45	20
360	HY5319643AA	FOAM SEAL, HVAC DUCT	HY5319643AA FOAM SEAL, HVAC DUCT	$6.81	2
370	HY5304432AB	DUCT, WINDSCREEN DEFROST,RH	HY5304432AB DUCT, WINDSCREEN DEFROST,RH	$180.03	1
380	HY5304433AB	DUCT, WINDSCREEN DEFROST,LH	HY5304433AB DUCT, WINDSCREEN DEFROST,LH	$180.03	1
390	HY53018W51AA	INFILL, DEFROST DUCT, LH	HY53018W51AA INFILL, DEFROST DUCT, LH	$61.40	1
400	HY53018W50AA	INFILL, DEFROST DUCT, RH	HY53018W50AA INFILL, DEFROST DUCT, RH	$61.40	1
410	HY530410AA	SCREW, 5.2x32 ST	HY530410AA SCREW, 5.2x32 ST	$1.90	12
420	HY53E603123AA	SCREW, 4x12, TORX HD	HY53E603123AA SCREW, 4x12, TORX HD	$0.75	10
430	702514	Screw, flg, M6 x 16 torx IN STOCK	702514 Screw, flg, M6 x 16 torx IN STOCK	$2.87	2
440	HY5340412AA	SCREW, 4.5x12, TORX HD	HY5340412AA SCREW, 4.5x12, TORX HD	$0.45	2
450	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	4
460	HY53044M26AA	BRACKET, IP UPPER CENTRESUPPORT	HY53044M26AA BRACKET, IP UPPER CENTRESUPPORT Metal. -> VIN L10071	$234.29	1
461	HY53044M26BA	BRACKET, IP UPPER CENTRESUPPORT	HY53044M26BA BRACKET, IP UPPER CENTRESUPPORT Plastic. VIN L10072->	$14.44	1
470	HY53V19E659AB	SUPPORT BRACKET, SIDEDEMIST DUCT, LH	HY53V19E659AB SUPPORT BRACKET, SIDEDEMIST DUCT, LH Aluminium. -> VIN L09470	$87.21	1
471	HY53V19E659BA	SUPPORT BRACKET, SIDEDEMIST DUCT, LH	HY53V19E659BA SUPPORT BRACKET, SIDEDEMIST DUCT, LH Plastic. VIN L09471->	$20.03	1
480	HY53V19E658AB	SUPPORT BRACKET, SIDEDEMIST DUCT, RH	HY53V19E658AB SUPPORT BRACKET, SIDEDEMIST DUCT, RH Aluminium. -> VIN L09470	$87.21	1
481	HY53V19E658BA	SUPPORT BRACKET, SIDEDEMIST DUCT, RH	HY53V19E658BA SUPPORT BRACKET, SIDEDEMIST DUCT, RH Plastic. VIN L09471->	$20.03	1
490	HY5318C490AA	GRILLE, WINDSCREENDEFROST	HY5318C490AA GRILLE, WINDSCREENDEFROST	$104.07	2
500	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	20
510	707626	エッジクリップ	707626 エッジクリップ	$2.98	2
520	4G432K175AA	CLIP, EXHAUST HEATSHIELD	4G432K175AA CLIP, EXHAUST HEATSHIELD	-	1	Enquire
530	HY534073ABA	SUPPORT, PASSENGER AIRBAG	HY534073ABA SUPPORT, PASSENGER AIRBAG LHD	$68.82	1
531	HY534073AAA	SUPPORT, PASSENGER AIRBAG	HY534073AAA SUPPORT, PASSENGER AIRBAG RHD	$68.82	1
540	HY53E603123AA	SCREW, 4x12, TORX HD	HY53E603123AA SCREW, 4x12, TORX HD	$0.75	12
550	HY53043C39AA	BEZEL, OUTER, LH	HY53043C39AA BEZEL, OUTER, LH Satin Chrome	$366.88	1
551	HY53043C39BA	BEZEL, OUTER, LH	HY53043C39BA BEZEL, OUTER, LH Dark Chrome	$627.50	1
552	HY53043C39CA	BEZEL, OUTER, LH	HY53043C39CA BEZEL, OUTER, LH Champagne	$366.73	1
560	SEE REMARKS COLUMN ->	AIR REGISTER, OUTER, LH	SEE REMARKS COLUMN -> AIR REGISTER, OUTER, LH For Chrome Rotaries referto Bulletin I.PSB.2019.433 for details	-	1	Enquire
561	JY53046B31AB	AIR REGISTER, OUTER	JY53046B31AB AIR REGISTER, OUTER Black Rotaries	$256.94	1
570	SEE REMARKS COLUMN.->	AIR REGISTER, CENTRE	SEE REMARKS COLUMN.-> AIR REGISTER, CENTRE For Chrome Rotaries referto Bulletin I.PSB.2019.433 for details	-	1	Enquire
571	JY53046B32AB	AIR REGISTER, CENTRE	JY53046B32AB AIR REGISTER, CENTRE Black Rotaries	$318.84	1
580	SEE REMARKS COLUMN, ->	AIR REGISTER, OUTER, RH	SEE REMARKS COLUMN, -> AIR REGISTER, OUTER, RH For Chrome Rotaries referto Bulletin I.PSB.2019.433 for details	-	1	Enquire
581	JY53046B30AB	AIR REGISTER, OUTER	JY53046B30AB AIR REGISTER, OUTER Black Rotaries	$256.94	1
590	HY5319F648AA	BEZEL, CENTRE	HY5319F648AA BEZEL, CENTRE Satin Chrome	$293.51	1
591	HY5319F648BA	BEZEL, CENTRE	HY5319F648BA BEZEL, CENTRE Dark Chrome	$759.96	1
592	HY5319F648CA	BEZEL, CENTRE	HY5319F648CA BEZEL, CENTRE Champagne	$469.92	1
600	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	8
610	HY53C046A26BA	スピーカーグリル、センター	HY53C046A26BA スピーカーグリル、センター B&O	-	1	Enquire
611	HY53601B50BC	スピーカーグリル、センター	HY53601B50BC スピーカーグリル、センター Except B&O, Black	-	1	Enquire
612	HY53601B50DC	スピーカーグリル、センター	HY53601B50DC スピーカーグリル、センター Except B&O, Dark Chrome	$223.69	1
650	HY53043C38AA	BEZEL, OUTER, RH	HY53043C38AA BEZEL, OUTER, RH Satin Chrome	$366.88	1
651	HY53043C38BA	BEZEL, OUTER, RH	HY53043C38BA BEZEL, OUTER, RH Dark Chrome	$627.50	1
652	HY53043C38CA	BEZEL, OUTER, RH	HY53043C38CA BEZEL, OUTER, RH Champagne	$366.73	1
660	697564	Push-on Fix	697564 Push-on Fix	$0.11	3
670	1R12642790AAPK	SCRIVET, 8mm DIA, PANEL,3-10mm IN STOCK	1R12642790AAPK SCRIVET, 8mm DIA, PANEL,3-10mm Pack of 5 IN STOCK	$8.30	7
680	HY53016C46BA	CLOSURE PANEL, LOWER,DRIVER	HY53016C46BA CLOSURE PANEL, LOWER,DRIVER LHD	$130.72	1
681	HY53016C46AA	CLOSURE PANEL, LOWER,DRIVER	HY53016C46AA CLOSURE PANEL, LOWER,DRIVER RHD	$130.72	1
690	HY53016C47BA	CLOSURE PANEL, LOWER,PASSENGER	HY53016C47BA CLOSURE PANEL, LOWER,PASSENGER LHD	$138.07	1
691	HY53016C47AA	CLOSURE PANEL, LOWER,PASSENGER	HY53016C47AA CLOSURE PANEL, LOWER,PASSENGER RHD	$138.07	1
700	702293	BOLT, M6x12, TX HD IN STOCK	702293 BOLT, M6x12, TX HD IN STOCK	$0.45	10
710	HY53044E36BEW	TUNNEL SIDE PANEL,DRIVERS, LOWER	HY53044E36BEW TUNNEL SIDE PANEL,DRIVERS, LOWER LHD, Caithness Leather	$761.94	1
711	HY53044E36FEW	TUNNEL SIDE PANEL,DRIVERS, LOWER	HY53044E36FEW TUNNEL SIDE PANEL,DRIVERS, LOWER LHD, Balmoral Leather	$903.26	1
712	HY53044E36UEW	TUNNEL SIDE PANEL,DRIVERS, LOWER	HY53044E36UEW TUNNEL SIDE PANEL,DRIVERS, LOWER LHD, Strathmore Leather	$512.91	1
713	HY53044E36AEW	TUNNEL SIDE PANEL,DRIVERS, LOWER	HY53044E36AEW TUNNEL SIDE PANEL,DRIVERS, LOWER RHD, Caithness Leather	$878.80	1
714	HY53044E36EEW	TUNNEL SIDE PANEL,DRIVERS, LOWER	HY53044E36EEW TUNNEL SIDE PANEL,DRIVERS, LOWER RHD, Balmoral Leather	$786.44	1
715	HY53044E36TEW	TUNNEL SIDE PANEL,DRIVERS, LOWER	HY53044E36TEW TUNNEL SIDE PANEL,DRIVERS, LOWER RHD, Strathmore Leather	$512.91	1
720	KY6360K51BA	PLATE, KNEE PROTECTOR	KY6360K51BA PLATE, KNEE PROTECTOR LHD, Driver	$198.91	1
721	HY5360K51AB	PLATE, KNEE PROTECTOR	HY5360K51AB PLATE, KNEE PROTECTOR RHD, Driver	$133.92	1
730	HY53044E37BEW	TUNNEL SIDE PANEL,DRIVERS, LOWER	HY53044E37BEW TUNNEL SIDE PANEL,DRIVERS, LOWER LHD, Caithness Leather	$780.82	1
731	HY53044E37FEW	TUNNEL SIDE PANEL,DRIVERS, LOWER	HY53044E37FEW TUNNEL SIDE PANEL,DRIVERS, LOWER LHD, Balmoral Leather	$923.83	1
732	HY53044E37UEW	TUNNEL SIDE PANEL,PASSENGER, LOWER	HY53044E37UEW TUNNEL SIDE PANEL,PASSENGER, LOWER LHD, Strathmore Leather	$513.80	1
733	HY53044E37AEW	TUNNEL SIDE PANEL,DRIVERS, LOWER	HY53044E37AEW TUNNEL SIDE PANEL,DRIVERS, LOWER RHD, Caithness Leather	$897.69	1
734	HY53044E37EEW	TUNNEL SIDE PANEL,DRIVERS, LOWER	HY53044E37EEW TUNNEL SIDE PANEL,DRIVERS, LOWER RHD, Balmoral Leather	$806.96	1
735	HY53044E37TEW	TUNNEL SIDE PANEL,PASSENGER, LOWER	HY53044E37TEW TUNNEL SIDE PANEL,PASSENGER, LOWER RHD, Strathmore Leather	$513.80	1
740	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	4
750	HY5310C986BA	BEZEL, EPB	HY5310C986BA BEZEL, EPB LHD	$15.92	1
751	HY5310C986AA	BEZEL, EPB	HY5310C986AA BEZEL, EPB RHD	$21.31	1
760	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	8
770	HY5304317BBW	END PANEL with BONNETSWITCH HOLE, LH	HY5304317BBW END PANEL with BONNETSWITCH HOLE, LH LHD, Caithness Leather	$588.34	1
771	HY5304317FBW	END PANEL with BONNETSWITCH HOLE, LH	HY5304317FBW END PANEL with BONNETSWITCH HOLE, LH LHD, Balmoral Leather	$721.77	1
772	HY5304317UBW	END PANEL with BONNETSWITCH HOLE, LH	HY5304317UBW END PANEL with BONNETSWITCH HOLE, LH LHD, Strathmore Leather	$420.54	1
773	HY5304317AAW	END PANEL with PAD SWITCHHOLE, LH	HY5304317AAW END PANEL with PAD SWITCHHOLE, LH RHD, Caithness Leather	$705.17	1
774	HY5304317CAW	END PANEL without PADSWITCH HOLE, LH	HY5304317CAW END PANEL without PADSWITCH HOLE, LH RHD, Caithness Leather	$598.83	1
775	HY5304317EAW	END PANEL with PAD SWITCHHOLE, LH	HY5304317EAW END PANEL with PAD SWITCHHOLE, LH RHD, Balmoral Leather	$604.92	1
776	HY5304317GAW	END PANEL without PADSWITCH HOLE, LH	HY5304317GAW END PANEL without PADSWITCH HOLE, LH RHD, Balmoral Leather	$615.39	1
777	HY5304317TAW	END PANEL with PAD SWITCHHOLE, LH	HY5304317TAW END PANEL with PAD SWITCHHOLE, LH RHD, Strathmore Leather	$420.54	1
778	HY5304317VAW	END PANEL without PADSWITCH HOLE, LH	HY5304317VAW END PANEL without PADSWITCH HOLE, LH RHD, Strathmore Leather	$431.04	1
780	HY5304316AAW	END PANEL with PAD SWITCHHOLE, RH	HY5304316AAW END PANEL with PAD SWITCHHOLE, RH LHD, Caithness Leather	$705.17	1
781	HY5304316CAW	END PANEL without PADSWITCH HOLE, RH	HY5304316CAW END PANEL without PADSWITCH HOLE, RH LHD, Caithness Leather	$598.83	1
782	HY5304316EAW	END PANEL with PAD SWITCHHOLE, RH	HY5304316EAW END PANEL with PAD SWITCHHOLE, RH LHD, Balmoral Leather	$604.92	1
783	HY5304316GAW	END PANEL without PADSWITCH HOLE, RH	HY5304316GAW END PANEL without PADSWITCH HOLE, RH LHD, Balmoral Leather	$732.26	1
784	HY5304316TAW	END PANEL with PAD SWITCHHOLE, RH	HY5304316TAW END PANEL with PAD SWITCHHOLE, RH LHD, Strathmore Leather	$420.54	1
785	HY5304316VAW	END PANEL without PADSWITCH HOLE, RH	HY5304316VAW END PANEL without PADSWITCH HOLE, RH LHD, Strathmore Leather	$431.04	1
786	HY5304316BBW	END PANEL with BONNETSWITCH HOLE, RH	HY5304316BBW END PANEL with BONNETSWITCH HOLE, RH RHD, Caithness Leather	$705.17	1
787	HY5304316FBW	END PANEL with BONNETSWITCH HOLE, RH	HY5304316FBW END PANEL with BONNETSWITCH HOLE, RH RHD, Balmoral Leather	$604.92	1
788	HY5304316UBW	END PANEL with BONNETSWITCH HOLE, RH	HY5304316UBW END PANEL with BONNETSWITCH HOLE, RH RHD, Strathmore Leather	$420.54	1
790	KY6360K52BA	PLATE, KNEE PROTECTOR	KY6360K52BA PLATE, KNEE PROTECTOR LHD, Passenger, RoW	$198.91	1
791	HY5360K52AA	PLATE, KNEE PROTECTOR	HY5360K52AA PLATE, KNEE PROTECTOR RHD, Passenger	$119.84	1
800	HY532C356BB	BRACKET ASSEMBLY, MASTERLIGHT SWITCH	HY532C356BB BRACKET ASSEMBLY, MASTERLIGHT SWITCH LHD	$118.71	1
801	HY532C356AB	BRACKET ASSEMBLY, MASTERLIGHT SWITCH	HY532C356AB BRACKET ASSEMBLY, MASTERLIGHT SWITCH RHD	$118.71	1
810	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	2	Enquire
820	HY53044B80BA	SUPPORT PLATE, PASSENGERKNEE PROTECTOR	HY53044B80BA SUPPORT PLATE, PASSENGERKNEE PROTECTOR LHD	$116.28	1
821	HY53044B80AA	SUPPORT PLATE, PASSENGERKNEE PROTECTOR	HY53044B80AA SUPPORT PLATE, PASSENGERKNEE PROTECTOR RHD	$116.28	1
830	HY5313ZE4AA	WASHER, STAR LOCK, 4.0mm	HY5313ZE4AA WASHER, STAR LOCK, 4.0mm	$0.45	2
840	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	2
850	HY53C043K93BEW	TRIM PANEL, PASSENGERSSIDE, LOWER	HY53C043K93BEW TRIM PANEL, PASSENGERSSIDE, LOWER LHD, Caithness Leather,RoW	$1,436.52	1
851	HY53C043K93CAW	TRIM PANEL, PASSENGERSSIDE, LOWER	HY53C043K93CAW TRIM PANEL, PASSENGERSSIDE, LOWER LHD, Caithness Leather,Federal	$1,436.50	1
852	HY53C043K93FEW	TRIM PANEL, PASSENGERSSIDE, LOWER	HY53C043K93FEW TRIM PANEL, PASSENGERSSIDE, LOWER LHD, Balmoral Leather,RoW	$1,712.88	1
853	HY53C043K93GAW	TRIM PANEL, PASSENGERSSIDE, LOWER	HY53C043K93GAW TRIM PANEL, PASSENGERSSIDE, LOWER LHD, Balmoral Leather,Federal	$1,822.30	1
854	HY53C043K93UEW	TRIM PANEL, PASSENGERSSIDE, LOWER	HY53C043K93UEW TRIM PANEL, PASSENGERSSIDE, LOWER LHD, Strathmore Leather,RoW	$954.51	1
855	HY53C043K93VAW	TRIM PANEL, PASSENGERSSIDE, LOWER	HY53C043K93VAW TRIM PANEL, PASSENGERSSIDE, LOWER LHD, Strathmore Leather,Federal	$1,043.17	1
856	HY53C043K93AEW	TRIM PANEL, PASSENGERSSIDE, LOWER	HY53C043K93AEW TRIM PANEL, PASSENGERSSIDE, LOWER RHD, Caithness Leather	$1,030.05	1
857	HY53C043K93EEW	TRIM PANEL, PASSENGERSSIDE, LOWER	HY53C043K93EEW TRIM PANEL, PASSENGERSSIDE, LOWER RHD, Balmoral Leather	$1,712.88	1
858	HY53C043K93TEW	TRIM PANEL, PASSENGERSSIDE, LOWER	HY53C043K93TEW TRIM PANEL, PASSENGERSSIDE, LOWER RHD, Strathmore Leather	$954.51	1
860	HY53044G70BEW	TRIM PANEL, DRIVERS SIDE,LOWER	HY53044G70BEW TRIM PANEL, DRIVERS SIDE,LOWER -> 20MY, LHD, CaithnessLeather, With AIRBAGStamp	$1,568.88	1
861	LY53044G70BAW	TRIM PANEL, DRIVERS SIDE,LOWER	LY53044G70BAW TRIM PANEL, DRIVERS SIDE,LOWER 20MY->, LHD, CaithnessLeather, With AIRBAGStamp	$1,567.66	1
863	HY53044G70FEW	TRIM PANEL, DRIVERS SIDE,LOWER	HY53044G70FEW TRIM PANEL, DRIVERS SIDE,LOWER -> 20MY, LHD BalmoralLeather, With AIRBAGStamp	$1,740.40	1
864	LY53-044G70-FAW	TRIM PANEL, DRIVERS SIDE,LOWER	LY53-044G70-FAW TRIM PANEL, DRIVERS SIDE,LOWER 20MY->, LHD, BalmoralLeather, With AIRBAGStamp	-	1	Enquire
866	HY53044G70UEW	TRIM PANEL, DRIVERS SIDE,LOWER	HY53044G70UEW TRIM PANEL, DRIVERS SIDE,LOWER -> 20MY, LHD, StrathmoreLeather, With AIRBAGStamp	$1,011.37	1
867	LY53044G70UAW	TRIM PANEL, DRIVERS SIDE,LOWER	LY53044G70UAW TRIM PANEL, DRIVERS SIDE,LOWER 20MY->, LHD, StrathmoreLeather, With AIRBAGStamp	$1,630.80	1
870	HY53044G70AEW	TRIM PANEL, DRIVERS SIDE,LOWER	HY53044G70AEW TRIM PANEL, DRIVERS SIDE,LOWER -> 20MY, RHD, CaithnessLeather, With AIRBAGStamp	$1,685.77	1
871	LY53044G70AAW	TRIM PANEL, DRIVERS SIDE,LOWER	LY53044G70AAW TRIM PANEL, DRIVERS SIDE,LOWER 20MY->, RHD, CaithnessLeather, With AIRBAGStamp	$1,567.66	1
873	HY53044G70EEW	TRIM PANEL, DRIVERS SIDE,LOWER	HY53044G70EEW TRIM PANEL, DRIVERS SIDE,LOWER -> 20MY, RHD, BalmoralLeather, With AIRBAGStamp	$1,623.53	1
874	LY53-044G70-EAW	TRIM PANEL, DRIVERS SIDE,LOWER	LY53-044G70-EAW TRIM PANEL, DRIVERS SIDE,LOWER 20MY->, RHD, BalmoralLeather, With AIRBAGStamp	-	1	Enquire
876	HY53044G70TEW	TRIM PANEL, DRIVERS SIDE,LOWER	HY53044G70TEW TRIM PANEL, DRIVERS SIDE,LOWER -> 20MY, RHD, StrathmoreLeather, With AIRBAGStamp	$1,011.37	1
877	LY53-044G70-TAW	TRIM PANEL, DRIVERS SIDE,LOWER	LY53-044G70-TAW TRIM PANEL, DRIVERS SIDE,LOWER 20MY->, RHD, StrathmoreLeather, With AIRBAGStamp	-	1	Enquire
880	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	2
890	HY5314002BA	BRACKET, KNEE BAGDEFLECTOR	HY5314002BA BRACKET, KNEE BAGDEFLECTOR LHD	$77.37	1
900	1R12642790AAPK	SCRIVET, 8mm DIA, PANEL,3-10mm IN STOCK	1R12642790AAPK SCRIVET, 8mm DIA, PANEL,3-10mm Pack of 5 IN STOCK	$8.30	1
901	KY73844872AA	SCRIVET, 8mm Dia, PANEL6-14mm	KY73844872AA SCRIVET, 8mm Dia, PANEL6-14mm LHD, VIN M10252->	$2.35	1
905	702514	Screw, flg, M6 x 16 torx IN STOCK	702514 Screw, flg, M6 x 16 torx IN STOCK	$2.87	3
920	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	2
930	HY53046B74AAW	TRIM PANEL, IP CENTRE,UPPER	HY53046B74AAW TRIM PANEL, IP CENTRE,UPPER Caithness Leather	$2,252.21	1
931	HY53046B74EAW	TRIM PANEL, IP CENTRE,UPPER	HY53046B74EAW TRIM PANEL, IP CENTRE,UPPER Balmoral Leather	$2,308.51	1
932	HY53046B74TAW	TRIM PANEL, IP CENTREUPPER	HY53046B74TAW TRIM PANEL, IP CENTREUPPER Strathmore Leather	$2,308.51	1
940	HY5362552AA	SUPPORT BRACKET, HUSHPANEL	HY5362552AA SUPPORT BRACKET, HUSHPANEL	$54.88	1
941	JY5362552BA	サポートブラケット	JY5362552BA サポートブラケット 18.5MY-> LHD	$70.69	1
942	JY5362552AA	サポートブラケット	JY5362552AA サポートブラケット 18.5MY-> RHD	$70.69	1
950	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
960	HY5300390AA	HUSH PANEL INFILL,PASSENGER	HY5300390AA HUSH PANEL INFILL,PASSENGER	$826.72	1
970	1R12642790AAPK	SCRIVET, 8mm DIA, PANEL,3-10mm IN STOCK	1R12642790AAPK SCRIVET, 8mm DIA, PANEL,3-10mm Pack of 5 IN STOCK	$8.30	3
990	HY5318C863CB	SPEAKER GRILLE, TWEETER,LH	HY5318C863CB SPEAKER GRILLE, TWEETER,LH Except B&O	$60.34	1
1000	HY5318C862CB	SPEAKER GRILLE, TWEETER,RH	HY5318C862CB SPEAKER GRILLE, TWEETER,RH Except B&O	$60.34	1
1010	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	11
1020	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head	$0.68	1
1030	9D3341883AB	PLATE, SWITCH BEZEL	9D3341883AB PLATE, SWITCH BEZEL	$3.72	1
1100	HY53C04606ACW	BEZEL, CLUSTER SURROUND	HY53C04606ACW BEZEL, CLUSTER SURROUND Caithness Leather	$718.13	1
1101	HY53C04606ECW	BEZEL, CLUSTER SURROUND	HY53C04606ECW BEZEL, CLUSTER SURROUND Balmoral Leather	$718.13	1
1102	HY53C04606TCW	BEZEL, CLUSTER SURROUND	HY53C04606TCW BEZEL, CLUSTER SURROUND Strathmore Leather	$718.13	1
1110	HY53E603123AA	SCREW, 4x12, TORX HD	HY53E603123AA SCREW, 4x12, TORX HD	$0.75	6
1120	707612	SCREW, M4x12, PAN HD FLGTORX	707612 SCREW, M4x12, PAN HD FLGTORX	$0.77	6
1130	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX	$0.25	4
1140	707139	SCREW, M3x6, PAN SKT HD	707139 SCREW, M3x6, PAN SKT HD	$0.23	4
1150	702289	SCREW, M4x16, THREAD FORM IN STOCK	702289 SCREW, M4x16, THREAD FORM IN STOCK	$0.68	4
1160	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	4
1170	HY53045F44AA	CLUSTER JEWELLERY RING	HY53045F44AA CLUSTER JEWELLERY RING Satin Chrome	$324.34	1
1171	HY53045F44BA	CLUSTER JEWELLERY RING	HY53045F44BA CLUSTER JEWELLERY RING Dark Chrome	$684.89	1
1172	HY53045F44CA	CLUSTER JEWELLERY RING	HY53045F44CA CLUSTER JEWELLERY RING Champagne	$413.42	1
1180	HY53045A02ABW	インストルメントクラスターフード	HY53045A02ABW インストルメントクラスターフード Caithness Leather	$1,361.22	1
1181	HY53045A02EBW	インストルメントクラスターフード	HY53045A02EBW インストルメントクラスターフード Balmoral Leather	$1,395.24	1
1182	HY53045A02TBW	インストルメントクラスターフード	HY53045A02TBW インストルメントクラスターフード Strathmore Leather	$1,395.24	1
1190	HY53046B03AC	INNER MOULDING, CLUSTERHOUSING, LH	HY53046B03AC INNER MOULDING, CLUSTERHOUSING, LH	$41.17	1
1200	HY53046B02AC	INNER MOULDING, CLUSTERHOUSING, RH	HY53046B02AC INNER MOULDING, CLUSTERHOUSING, RH	$41.17	1
1210	HY53045F34AB	CLUSTER JEWELLERY RING,OUTER	HY53045F34AB CLUSTER JEWELLERY RING,OUTER	$43.20	1
1220	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX	$0.25	2
