Aston Martin GT DB11 (2017-2023) - Exterior Trim - Volante

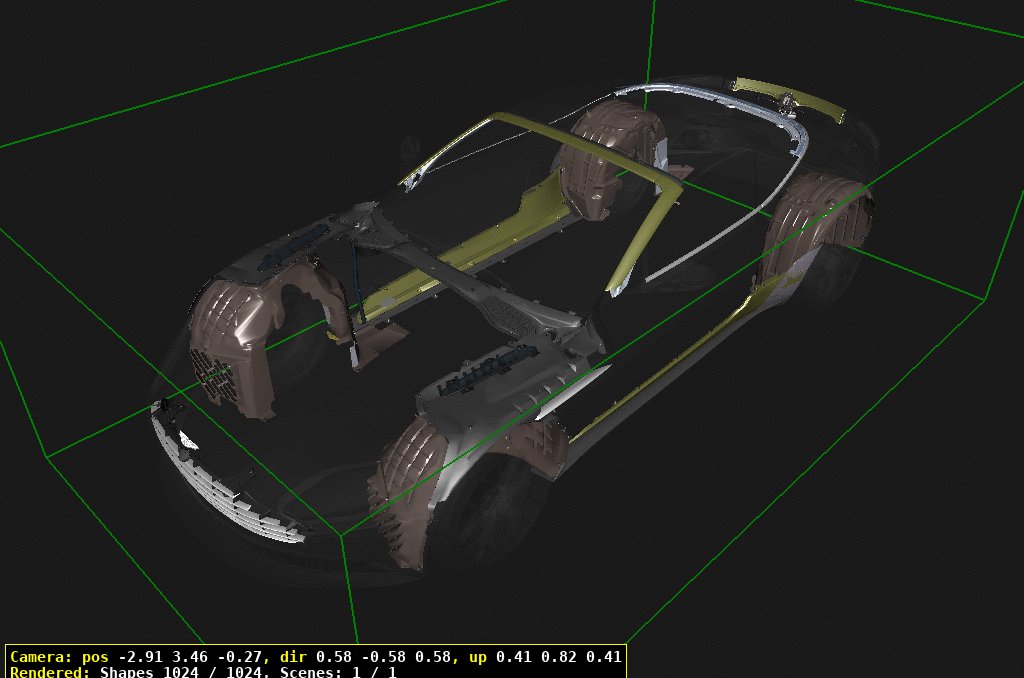

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	1	Enquire
20	JY538A100AA	ラジエターグリル	JY538A100AA ラジエターグリル Bright	$2,070.69	1
21	JY538A100BA	ラジエターグリル	JY538A100BA ラジエターグリル Dark	$2,070.69	1
30	707163	SCREW, 4.8x25, TORX XS/C	707163 SCREW, 4.8x25, TORX XS/C	$0.81	10
40	DG43219005AA	SCREW, ST 4.2x16, PAN HD	DG43219005AA SCREW, ST 4.2x16, PAN HD	$1.53	6
50	703104	Screw, M4 x 16, air intake duct IN STOCK	703104 Screw, M4 x 16, air intake duct IN STOCK	$1.08	12
60	HY5315A861AA	HOLDER, PDC, LH	HY5315A861AA HOLDER, PDC, LH	$39.95	1
70	HY5315A864AA	HOLDER, PDC, RH	HY5315A864AA HOLDER, PDC, RH	$39.95	1
80	HY5317794AA	FINISHER, BUMPER	HY5317794AA FINISHER, BUMPER Bright	$584.92	1
81	HY5317794BA	FINISHER, BUMPER	HY5317794BA FINISHER, BUMPER Dark	$570.50	1
90	HY53MA046AAA	BEZEL, FRONT CAMERA	HY53MA046AAA BEZEL, FRONT CAMERA	$35.62	1
100	703163	Nut, M06, hex flange head IN STOCK	703163 Nut, M06, hex flange head IN STOCK	$0.23	12
110	HY5316C695AB	BONNET VENT, OUTER, LH	HY5316C695AB BONNET VENT, OUTER, LH Black	$99.16	1
111	HY5316C695BB	BONNET VENT, OUTER, LH	HY5316C695BB BONNET VENT, OUTER, LH Titanium	$153.92	1
120	HY5316C694AB	BONNET VENT, OUTER, RH	HY5316C694AB BONNET VENT, OUTER, RH Black	$99.16	1
121	HY5316C694BB	BONNET VENT, OUTER, RH	HY5316C694BB BONNET VENT, OUTER, RH Titanium	$153.92	1
300	702587	TRIM CLIP, 8.0mm x 1.5	702587 TRIM CLIP, 8.0mm x 1.5	$1.31	4
310	KY53E865273AA	EDGE CLIP, 5x12mm	KY53E865273AA EDGE CLIP, 5x12mm	$2.23	2
320	HY53280B84AB	メッシュ、サイドストレーキ、左側	HY53280B84AB メッシュ、サイドストレーキ、左側	$82.36	1
330	HY53280B83AB	メッシュ、サイドストレーキ、右側	HY53280B83AB メッシュ、サイドストレーキ、右側	$82.36	1
340	HY53280B63AA	SIDE STRAKE, LH	HY53280B63AA SIDE STRAKE, LH Bright	$888.33	1
341	HY53280B63BA	SIDE STRAKE, LH	HY53280B63BA SIDE STRAKE, LH Dark	$758.46	1
342	HY53280B63CA	SIDE STRAKE, LH	HY53280B63CA SIDE STRAKE, LH Carbon	$1,252.09	1
350	HY53280B62AA	SIDE STRAKE, RH	HY53280B62AA SIDE STRAKE, RH Bright	$888.33	1
351	HY53280B62BA	SIDE STRAKE, RH	HY53280B62BA SIDE STRAKE, RH Dark	$758.46	1
352	HY53280B62CB	SIDE STRAKE, RH	HY53280B62CB SIDE STRAKE, RH Carbon	$1,283.65	1
360	707147	NUT, M5, HEX FLG	707147 NUT, M5, HEX FLG	$0.45	2
370	707515	SCREW, M5x16, PAN TX,BLACK	707515 SCREW, M5x16, PAN TX,BLACK Black	$4.94	4
380	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	4
390	703743	SCREW/WASHER, M6x18	703743 SCREW/WASHER, M6x18	-	6	Enquire
400	703169	M6, NUT, HEX FLG IN STOCK	703169 M6, NUT, HEX FLG IN STOCK	$1.04	2
410	KY53L03065AD	FINISHER, HEADER SURROUND	KY53L03065AD FINISHER, HEADER SURROUND Body Colour	$1,063.36	1
411	KY53L03065BD	FINISHER, HEADER SURROUND	KY53L03065BD FINISHER, HEADER SURROUND Black	$1,754.75	1
412	LY73L03065AE	FINISHER, HEADER SURROUND	LY73L03065AE FINISHER, HEADER SURROUND Carbon	$3,371.49	1
415	GG3334402AA	FASTENER, STARLOCK,PUSH-ON	GG3334402AA FASTENER, STARLOCK,PUSH-ON Header Finisher	$0.25	4
420	703612	Nut and Washer, M6 Hex IN STOCK	703612 Nut and Washer, M6 Hex IN STOCK	$0.83	14
430	KY5303402AD	FINISHER, HEADER LATCHBAR	KY5303402AD FINISHER, HEADER LATCHBAR	$692.40	1
440	KY53L519A37AD	FINISHER ASSEMBLY,A-PILLAR, LH	KY53L519A37AD FINISHER ASSEMBLY,A-PILLAR, LH Body Colour	$1,064.02	1
441	KY53L519A37BD	FINISHER ASSEMBLY,A-PILLAR, LH	KY53L519A37BD FINISHER ASSEMBLY,A-PILLAR, LH Black	$1,396.07	1
442	LY73L519A37AC	FINISHER ASSEMBLY,A-PILLAR, LH	LY73L519A37AC FINISHER ASSEMBLY,A-PILLAR, LH Carbon	$2,689.74	1
450	KY53L519A36AD	FINISHER ASSEMBLY,A-PILLAR, RH	KY53L519A36AD FINISHER ASSEMBLY,A-PILLAR, RH Body Colour	$1,064.02	1
451	KY53L519A36BD	FINISHER ASSEMBLY,A-PILLAR, RH	KY53L519A36BD FINISHER ASSEMBLY,A-PILLAR, RH Black	$1,396.07	1
452	LY73L519A36AC	FINISHER ASSEMBLY,A-PILLAR, RH	LY73L519A36AC FINISHER ASSEMBLY,A-PILLAR, RH Carbon	$2,689.74	1
460	KY5351707AC	SEAL CARRIER, A-PILLAR,LH	KY5351707AC SEAL CARRIER, A-PILLAR,LH	$120.70	1
470	KY5351706AB	SEAL CARRIER, A-PILLAR,RH	KY5351706AB SEAL CARRIER, A-PILLAR,RH -> VIN M05576	$147.77	1
471	KY5351706AC	SEAL CARRIER, A-PILLAR,RH	KY5351706AC SEAL CARRIER, A-PILLAR,RH VIN M05577->	$120.70	1
480	AD43C519A40AA	MACHINE SCREW, M5x13, PAN IN STOCK	AD43C519A40AA MACHINE SCREW, M5x13, PAN IN STOCK	$0.79	8
490	6G33L02564BA	FIRTREE FIXING,4.0x0.76-5.94	6G33L02564BA FIRTREE FIXING,4.0x0.76-5.94	$0.88	4
500	703143	BOLT/WASHER, M6x12.0	703143 BOLT/WASHER, M6x12.0	$1.90	2
510	KY53L23262AA	FINISHER, DOOR WAIST, LH	KY53L23262AA FINISHER, DOOR WAIST, LH Bright	$539.24	1
511	KY53L23262BA	FINISHER, DOOR WAIST, LH	KY53L23262BA FINISHER, DOOR WAIST, LH Black	$526.07	1
520	KY53L23263AA	FINISHER, DOOR WAIST, RH	KY53L23263AA FINISHER, DOOR WAIST, RH Bright	$539.24	1
521	KY53L23263BA	FINISHER, DOOR WAIST, RH	KY53L23263BA FINISHER, DOOR WAIST, RH Black	$539.24	1
530	KY53L501A46AC	FINISHER, TONNEAU, INNER	KY53L501A46AC FINISHER, TONNEAU, INNER	$1,483.68	1
540	HY5310609AC	敷居アップリケ、左側	HY5310609AC 敷居アップリケ、左側	$1,129.54	1
550	HY5310608AB	敷居アップリケ、右側	HY5310608AB 敷居アップリケ、右側 -> VIN L00118	$1,129.54	1
551	HY5310608AC	敷居アップリケ、右側	HY5310608AC 敷居アップリケ、右側 VIN L00119->	$951.94	1
560	701573	Screw and Washer assy, M4x16 Pan hd	701573 Screw and Washer assy, M4x16 Pan hd	$0.41	8
570	8G336078574AA	WASHER, 22.2x12.9x1.5,NYLON	8G336078574AA WASHER, 22.2x12.9x1.5,NYLON	$0.77	8
590	HY53200B15AC	BRACKET, SILL APPLIQUE,LH	HY53200B15AC BRACKET, SILL APPLIQUE,LH	$17.05	1
600	HY53200B14BA	BRACKET, SILL APPLIQUE,RH	HY53200B14BA BRACKET, SILL APPLIQUE,RH	$17.05	1
610	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	4
620	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	4
630	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	4
640	HY5310611AC	SILL BLADE, LH	HY5310611AC SILL BLADE, LH Black	$955.95	1
641	HY5310611BB	SILL BLADE, LH	HY5310611BB SILL BLADE, LH Graphite. -> VIN L07132	$716.33	1
642	HY5310611BC	SILL BLADE, LH	HY5310611BC SILL BLADE, LH Graphite. VIN L07133->	$933.77	1
643	HY5310611CA	SILL BLADE, LH	HY5310611CA SILL BLADE, LH Carbon	$3,186.93	1
650	HY5310610AC	SILL BLADE, RH	HY5310610AC SILL BLADE, RH Black	$955.95	1
651	HY5310610BC	SILL BLADE, RH	HY5310610BC SILL BLADE, RH Graphite	$933.77	1
652	HY5310610CA	SILL BLADE, RH	HY5310610CA SILL BLADE, RH Carbon	$3,186.93	1
660	703266	Screw, torx M6 x 10 IN STOCK	703266 Screw, torx M6 x 10 IN STOCK	$1.58	12
670	FD43E830667AAPK	WASHER, 25mm ODx6.4mm ID IN STOCK	FD43E830667AAPK WASHER, 25mm ODx6.4mm ID Pack of 10 IN STOCK	$6.66	2
680	6G430516BBA	Screw, M6 IN STOCK	6G430516BBA Screw, M6 IN STOCK	$5.77	8
690	8G435144AA	SPACER, C-DUCT FINISHER,LH/RH IN STOCK	8G435144AA SPACER, C-DUCT FINISHER,LH/RH Not used with Carbon SillBlades (items 642 & 652) IN STOCK	$3.32	8
700	9G33334177AA	NUTPLATE	9G33334177AA NUTPLATE	$31.69	4
710	HY5310626AA	ペイントプロテクションフィルム	HY5310626AA ペイントプロテクションフィルム RH	$27.02	1
720	HY5310630AA	ペイントプロテクションフィルム	HY5310630AA ペイントプロテクションフィルム RH, Upper	$50.89	1
730	HY5310627AA	ペイントプロテクションフィルム	HY5310627AA ペイントプロテクションフィルム LH	$27.02	1
740	HY5310624AA	ペイントプロテクションフィルム IN STOCK	HY5310624AA ペイントプロテクションフィルム RH, Lower IN STOCK	$74.75	1
750	HY5310625AA	ペイントプロテクションフィルム IN STOCK	HY5310625AA ペイントプロテクションフィルム LH, Lower IN STOCK	$74.75	1
760	HY5310631AA	ペイントプロテクションフィルム	HY5310631AA ペイントプロテクションフィルム LH, Upper	$33.05	1
770	HY5310639AA	ペイントプロテクションフィルム	HY5310639AA ペイントプロテクションフィルム LH, Sill Blade	$70.81	1
780	HY5310638AA	ペイントプロテクションフィルム	HY5310638AA ペイントプロテクションフィルム RH, Sill Blade	$70.81	1
790	KY53L1228495AA	FINISHER, WAIST, REAR, LH	KY53L1228495AA FINISHER, WAIST, REAR, LH Bright	$367.90	1
791	KY53L1228495BA	FINISHER, WAIST, REAR, LH	KY53L1228495BA FINISHER, WAIST, REAR, LH Black	$367.90	1
800	KY53L1228494AA	FINISHER, WAIST, REAR, RH	KY53L1228494AA FINISHER, WAIST, REAR, RH Bright	$367.90	1
801	KY53L1228494BA	FINISHER, WAIST, REAR, RH	KY53L1228494BA FINISHER, WAIST, REAR, RH Black	$367.90	1
810	702294	Screw, M6x16 Pan Hd 6 lobe IN STOCK	702294 Screw, M6x16 Pan Hd 6 lobe IN STOCK	$0.27	1
820	KY53L501A47AC	FINISHER, TONNEAU, OUTER	KY53L501A47AC FINISHER, TONNEAU, OUTER Bright	$3,128.46	1
821	KY53L501A47BC	FINISHER, TONNEAU, OUTER	KY53L501A47BC FINISHER, TONNEAU, OUTER Black	$3,358.00	1
830	KY53F512A0AB	SEAL, TONNEAU FINISHER	KY53F512A0AB SEAL, TONNEAU FINISHER	$332.94	1
840	KY53L10631AA	PROTECTIVE FILM, LH	KY53L10631AA PROTECTIVE FILM, LH	$72.25	1
850	KY53L10630AA	PROTECTIVE FILM, RH	KY53L10630AA PROTECTIVE FILM, RH	$72.25	1
900	HY53292670AE	LEAF SCREEN MAIN BODYASSEMBLY	HY53292670AE LEAF SCREEN MAIN BODYASSEMBLY	$392.39	1
910	HY533811AA	DRAIN TUBE, LEAFSCREEN	HY533811AA DRAIN TUBE, LEAFSCREEN	$45.84	2
920	HY53020E47AC	LEAF SCREEN, END, LH	HY53020E47AC LEAF SCREEN, END, LH	$44.50	1
930	HY53020E46AC	LEAF SCREEN, END, RH	HY53020E46AC LEAF SCREEN, END, RH	$44.50	1
940	4G436510059PK	Firtree clip, pad wear lead attch IN STOCK	4G436510059PK Firtree clip, pad wear lead attch Pack of 100 IN STOCK	$74.51	2
950	HY5302298BB	LEAF SCREEN INLET BLANK	HY5302298BB LEAF SCREEN INLET BLANK LHD, -> VIN L09712	$86.64	1
951	HY5302298DA	LEAF SCREEN INLET BLANK	HY5302298DA LEAF SCREEN INLET BLANK LHD, VIN L09713->	$86.66	1
952	HY5302298AB	LEAF SCREEN INLET BLANK	HY5302298AB LEAF SCREEN INLET BLANK RHD, -> VIN L09767	$86.64	1
953	HY5302298CA	LEAF SCREEN INLET BLANK	HY5302298CA LEAF SCREEN INLET BLANK RHD, VIN L09768->	$84.54	1
960	HY53018B86BA	DUCT, HVAC, UPPER	HY53018B86BA DUCT, HVAC, UPPER LHD	$39.38	1
961	HY53-018B86-AB	DUCT, HVAC, UPPER	HY53-018B86-AB DUCT, HVAC, UPPER RHD	-	1	Enquire
970	HY53E865015AA	CLIP, FIRTREE	HY53E865015AA CLIP, FIRTREE	$2.23	4
980	JY53AFU1900AA	FIRTREE CABLE TIE	JY53AFU1900AA FIRTREE CABLE TIE V8	$2.35	1
1000	HY53404E00AC	MECHANICAL MOTOR ASSEMBLY	HY53404E00AC MECHANICAL MOTOR ASSEMBLY	$512.39	1
1010	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	4
1020	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg Spoiler IN STOCK	$1.83	2
1030	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg IN STOCK	$1.83	4
1040	703741	SCREW, M6x35, PAN TX	703741 SCREW, M6x35, PAN TX	$2.30	2
1050	HY5344298AD	GUIDE ASSEMBLY, SPOILER	HY5344298AD GUIDE ASSEMBLY, SPOILER	$142.24	2
1060	HY5314F266AE	DEPLOYMENT MECHANISMASSEMBLY, ACTIVE AERO	HY5314F266AE DEPLOYMENT MECHANISMASSEMBLY, ACTIVE AERO	$1,380.87	1
1070	KY53442A92AB	スポイラーブレード	KY53442A92AB スポイラーブレード	$422.64	1
1080	AD4346660AA	パッド、フォーム	AD4346660AA パッド、フォーム	$1.69	1
1100	HY53407A74AA	BADGE, AM WINGS	HY53407A74AA BADGE, AM WINGS White/Green	$510.28	2
1101	HY53407A74BA	BADGE, AM WINGS	HY53407A74BA BADGE, AM WINGS Carbon	$1,718.86	1
1102	HY53407A74CA	BADGE, AM WINGS	HY53407A74CA BADGE, AM WINGS Black Chrome	$568.86	1
1110	6G439710417	PLAQUE, FINAL INSPECTION	6G439710417 PLAQUE, FINAL INSPECTION 'Hand Built in Britain'	$255.68	1
1111	KY53-974663-AA	PLAQUE, FINAL INSPECTION	KY53-974663-AA PLAQUE, FINAL INSPECTION 'AMR'	-	1	Enquire
1120	No Longer Available	Engine Assembly, 6.0 ltr V12, New	No Longer Available Engine Assembly, 6.0 ltr V12, New Gold. Use HY53-001B46-AB	-	1	Enquire
1121	HY53001B46AB	BADGE, AM WINGS, MANIFOLD	HY53001B46AB BADGE, AM WINGS, MANIFOLD Chrome/Enamel	$330.48	1
1130	JY53001B40AA	BADGE, 'ASTON MARTIN'SCRIPT	JY53001B40AA BADGE, 'ASTON MARTIN'SCRIPT Chrome (Illustrated)	$842.33	1
1131	JY53001B40BA	BADGE, 'ASTON MARTIN'SCRIPT	JY53001B40BA BADGE, 'ASTON MARTIN'SCRIPT Carbon	$4,705.69	1
1132	JY53001B40CA	BADGE, 'ASTON MARTIN'SCRIPT	JY53001B40CA BADGE, 'ASTON MARTIN'SCRIPT Black Chrome	$849.77	1
1133	KY73001B40AA	BADGE, REAR SCRIPT	KY73001B40AA BADGE, REAR SCRIPT Chrome, -> VIN M11711	$971.53	1
1134	KY73001B40DA	BADGE, REAR SCRIPT	KY73001B40DA BADGE, REAR SCRIPT Chrome, VIN M11712->	$201.03	1
1135	KY73001B40EA	BADGE, REAR SCRIPT IN STOCK	KY73001B40EA BADGE, REAR SCRIPT Black Chrome IN STOCK	$201.03	1
1200	HY53166565AB	WHEELARCH LINER, CENTRE,LH	HY53166565AB WHEELARCH LINER, CENTRE,LH	$236.33	1
1210	HY53166564AB	WHEELARCH LINER, CENTRE,RH	HY53166564AB WHEELARCH LINER, CENTRE,RH	$236.33	1
1220	703742	Fastener, 6.5 x 6, Push In IN STOCK	703742 Fastener, 6.5 x 6, Push In IN STOCK	$0.41	16
1230	HY53166563AC	WHEELARCH LINER, FRONT,LH	HY53166563AC WHEELARCH LINER, FRONT,LH	$279.25	1
1240	HY53166562AC	WHEELARCH LINER, FRONT,RH	HY53166562AC WHEELARCH LINER, FRONT,RH	$339.48	1
1250	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	32
1260	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	8
1270	HY53282A09AA	BRACKET, REINFORCEMENT,LH	HY53282A09AA BRACKET, REINFORCEMENT,LH	$37.56	1
1280	HY53282A08AA	BRACKET, REINFORCEMENT,RH	HY53282A08AA BRACKET, REINFORCEMENT,RH	$37.56	1
1290	HY53166567AD	WHEELARCH LINER, REAR, LH	HY53166567AD WHEELARCH LINER, REAR, LH	$381.27	1
1300	HY53166566AD	WHEELARCH LINER, REAR, RH	HY53166566AD WHEELARCH LINER, REAR, RH	$381.27	1
1400	KY5354279L23AB	WHEELARCH LINER, REAR, LH	KY5354279L23AB WHEELARCH LINER, REAR, LH	$595.52	1
1410	KY5354279L22AB	WHEELARCH LINER, REAR, RH	KY5354279L22AB WHEELARCH LINER, REAR, RH -> VIN M11124	$595.52	1
1411	KY5354279L22AC	WHEELARCH LINER, REAR, RH	KY5354279L22AC WHEELARCH LINER, REAR, RH VIN M11125->	$474.39	1
1420	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	26
1430	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	8
1440	702514	Screw, flg, M6 x 16 torx IN STOCK	702514 Screw, flg, M6 x 16 torx IN STOCK	$2.87	4
1450	ED33FA0115AA	SCREW/WASHER, PATCH	ED33FA0115AA SCREW/WASHER, PATCH	$8.23	4
