Interior Trim - Rear Cabin - Volante of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

Aston Martin GT DB11 (2017-2023) - Interior Trim - Rear Cabin - Volante

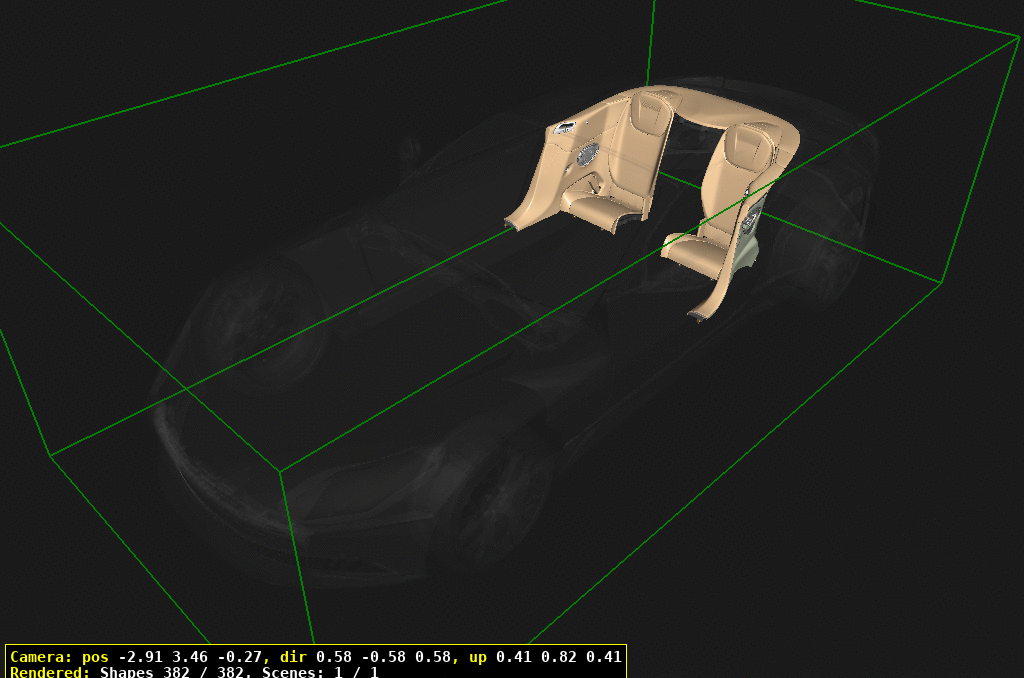

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	HY5360081ACW	CUSHION ASSEMBLY, REAR,LH	HY5360081ACW CUSHION ASSEMBLY, REAR,LH	$1,888.82	1
30	HY5360080ACW	CUSHION ASSEMBLY, REAR,RH	HY5360080ACW CUSHION ASSEMBLY, REAR,RH	$1,888.82	1
40	KY5363847ADW	SQUAB ASSEMBLY, REAR, LH	KY5363847ADW SQUAB ASSEMBLY, REAR, LH -> 22MY	$1,594.12	1
41	NY53L63847ABW	LUMBAR ASSEMBLY, REAR, LH	NY53L63847ABW LUMBAR ASSEMBLY, REAR, LH 22MY->, Haircell	$438.05	1
42	NY53-L63847-DBW	LUMBAR ASSEMBLY, REAR, LH	NY53-L63847-DBW LUMBAR ASSEMBLY, REAR, LH 22MY->, Alcantara	-	1	Enquire
43	NY53-L63847-EBW	LUMBAR ASSEMBLY, REAR, LH	NY53-L63847-EBW LUMBAR ASSEMBLY, REAR, LH 22MY->, Semi Aniline	-	1	Enquire
50	KY5363846ADW	SQUAB ASSEMBLY, REAR, RH	KY5363846ADW SQUAB ASSEMBLY, REAR, RH -> 22MY	$1,594.12	1
51	NY53L63846ABW	LUMBAR ASSEMBLY, REAR, RH	NY53L63846ABW LUMBAR ASSEMBLY, REAR, RH 22MY->, Haircell	$438.05	1
52	NY53-L63846-DBW	LUMBAR ASSEMBLY, REAR, RH	NY53-L63846-DBW LUMBAR ASSEMBLY, REAR, RH 22MY->, Alcantara	-	1	Enquire
53	NY53-L63846-EBW	LUMBAR ASSEMBLY, REAR, RH	NY53-L63846-EBW LUMBAR ASSEMBLY, REAR, RH 22MY->, Semi Aniline	-	1	Enquire
60	HY5345904AA	PIPE CLIP, SINGLE, 6mm	HY5345904AA PIPE CLIP, SINGLE, 6mm	$1.76	4
70	KY53-C31181-AA	NVH, REAR QUARTER, LH	KY53-C31181-AA NVH, REAR QUARTER, LH	-	1	Enquire
80	KY53-C31180-AA	NVH, REAR QUARTER, RH	KY53-C31180-AA NVH, REAR QUARTER, RH	-	1	Enquire
90	HY53613C74AAW	SLEEVE, SEATBELT BUCKLE,LH	HY53613C74AAW SLEEVE, SEATBELT BUCKLE,LH	$776.02	1
100	HY53611D84AAW	SLEEVE, SEATBELT ANCHOR,RH	HY53611D84AAW SLEEVE, SEATBELT ANCHOR,RH	$776.02	1
110	HY53611D85AAW	SLEEVE, SEATBELT, ANCHOR,LH	HY53611D85AAW SLEEVE, SEATBELT, ANCHOR,LH	$776.02	1
120	HY53613C75AAW	SLEEVE, SEATBELT BUCKLE,RH	HY53613C75AAW SLEEVE, SEATBELT BUCKLE,RH	$776.02	1
130	KY5363844ABW	PAD ASSEMBLY, ISOFIXSQUAB, LOWER	KY5363844ABW PAD ASSEMBLY, ISOFIXSQUAB, LOWER -> 22MY	$68.46	2
131	NY53L63844ABW	PAD ASSEMBLY, ISOFIXSQUAB, LOWER	NY53L63844ABW PAD ASSEMBLY, ISOFIXSQUAB, LOWER 22MY->, Haircell	$355.74	2
132	NY53-L63844-EBW	PAD ASSEMBLY, ISOFIXSQUAB, LOWER	NY53-L63844-EBW PAD ASSEMBLY, ISOFIXSQUAB, LOWER 22MY->, Semi Aniline	-	2	Enquire
140	KY53465T10ABW	PANEL ASSEMBLY, HEADREST	KY53465T10ABW PANEL ASSEMBLY, HEADREST -> 22MY	$693.08	2
141	NY53465T10AAW	PANEL ASSEMBLY, HEADREST	NY53465T10AAW PANEL ASSEMBLY, HEADREST 22MY->, Haircell	$680.13	2
142	NY53-465T10-EAW	PANEL ASSEMBLY, HEADREST	NY53-465T10-EAW PANEL ASSEMBLY, HEADREST 22MY->, Semi Aniline	-	2	Enquire
150	DD33487032AA	Clip, Push In, 8.0 x 16 x 1.7	DD33487032AA Clip, Push In, 8.0 x 16 x 1.7	$1.02	4
160	HY53611B93AA	BEZEL, SEATBELT, LH	HY53611B93AA BEZEL, SEATBELT, LH Satin Silver	$230.78	1
161	HY53611B93BA	BEZEL, SEATBELT, LH	HY53611B93BA BEZEL, SEATBELT, LH Dark Chrome	$522.82	1
170	HY53611B92AA	BEZEL, SEATBELT, RH	HY53611B92AA BEZEL, SEATBELT, RH Satin Silver	$203.08	1
171	HY53611B92BA	BEZEL, SEATBELT, RH	HY53611B92BA BEZEL, SEATBELT, RH Dark Chrome	$495.23	1
180	703076	Screw, M4 x 20 csk skt	703076 Screw, M4 x 20 csk skt	$0.20	4
190	KY53L31013AFW	TRIM PANEL, BODY SIDE, LH	KY53L31013AFW TRIM PANEL, BODY SIDE, LH -> 22MY, Includes items210-220	$4,809.11	1
191	NY53-L31013-AAW	TRIM PANEL, BODY SIDE, LH	NY53-L31013-AAW TRIM PANEL, BODY SIDE, LH 22MY->, Haircell Leather	-	1	Enquire
192	NY53L31013EAW	TRIM PANEL, BODY SIDE, LH	NY53L31013EAW TRIM PANEL, BODY SIDE, LH 22MY-> Semi Aniline	$1,138.05	1
200	KY53L31012AFW	TRIM PANEL, BODY SIDE, RH	KY53L31012AFW TRIM PANEL, BODY SIDE, RH -> 22MY, Includes items210-220	$3,951.49	1
201	NY53-L31012-AAW	TRIM PANEL, BODY SIDE, RH	NY53-L31012-AAW TRIM PANEL, BODY SIDE, RH 22MY->, Haircell Leather	-	1	Enquire
202	NY53L31012EAW	TRIM PANEL, BODY SIDE, RH	NY53L31012EAW TRIM PANEL, BODY SIDE, RH 22MY-> Semi Aniline	$1,138.05	1
210	HY53C046A28AC	GRILLE, SPEAKER	HY53C046A28AC GRILLE, SPEAKER B&O. Silver	$970.36	2
211	HY53C046A28BC	GRILLE, SPEAKER	HY53C046A28BC GRILLE, SPEAKER B&O. Black	$970.36	2
212	HY53601B50CC	GRILLE, SPEAKER	HY53601B50CC GRILLE, SPEAKER Premium. Satin Silver	$191.87	2
213	HY53601B50BC	スピーカーグリル、センター	HY53601B50BC スピーカーグリル、センター Premium. Black	-	2	Enquire
214	HY53601B50DC	スピーカーグリル、センター	HY53601B50DC スピーカーグリル、センター Premium. Dark Chrome	$223.69	2
220	8D3313B716AB	LENS & BEZEL ASSEMBLY	8D3313B716AB LENS & BEZEL ASSEMBLY	$32.25	2
230	701445	SCREW, 4x8, PAN HD	701445 SCREW, 4x8, PAN HD	$0.25	4
240	FG43M4D4515AA	フォームストリップ	FG43M4D4515AA フォームストリップ	$0.38	2
250	KY53L31113ADW	TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, LH	KY53L31113ADW TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, LH -> 22MY	$1,318.89	1
251	NY53-L31113-ABW	TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, LH	NY53-L31113-ABW TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, LH 22MY->, Haircell Leatherwith Base Audio	-	1	Enquire
252	NY53L31113EBW	TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, LH	NY53L31113EBW TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, LH 22MY->, Semi Aniline withBase Audio	$282.14	1
253	NY53-L312A33-AAW	TRIM PANEL, BODY SIDE, LH	NY53-L312A33-AAW TRIM PANEL, BODY SIDE, LH 22MY->, Haircell Leatherwith B&O Audio	-	1	Enquire
254	NY53-L312A33-EAW	TRIM PANEL, BODY SIDE, LH	NY53-L312A33-EAW TRIM PANEL, BODY SIDE, LH 22MY->, Semi Aniline withB&O Audio	-	1	Enquire
260	KY53L31112ADW	TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, RH	KY53L31112ADW TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, RH -> 22MY	$1,318.89	1
261	NY53-L31112-ABW	TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, RH	NY53-L31112-ABW TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, RH 22MY->, Haircell Leatherwith Base Audio	-	1	Enquire
262	NY53L31112EBW	TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, RH	NY53L31112EBW TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, RH 22MY->, Semi Aniline withBase Audio	$282.14	1
263	NY53-L312A32-AAW	TRIM PANEL, BODY SIDE, RH	NY53-L312A32-AAW TRIM PANEL, BODY SIDE, RH 22MY->, Haircell Leatherwith B&O Audio	-	1	Enquire
264	NY53-L312A32-EAW	TRIM PANEL, BODY SIDE, RH	NY53-L312A32-EAW TRIM PANEL, BODY SIDE, RH 22MY->, Semi Aniline withB&O Audio	-	1	Enquire
270	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	4
280	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 IN STOCK	$4.49	2
290	KY53D1161AB	NVH, REAR QUARTER, LH	KY53D1161AB NVH, REAR QUARTER, LH	$57.93	1
300	KY53D1160AB	NVH, REAR QUARTER, RH	KY53D1160AB NVH, REAR QUARTER, RH	$57.93	1
310	703152PK	Screw and Washer M6x20 Hex IN STOCK	703152PK Screw and Washer M6x20 Hex IN STOCK	$6.95	6
320	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	4
330	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 IN STOCK	$4.49	6
340	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	4
360	6G3368D11AA	Screw, M5 x 20 Cap Head	6G3368D11AA Screw, M5 x 20 Cap Head	$1.08	2
370	KY5319G268AB	TOP HAT	KY5319G268AB TOP HAT Satin Silver	$143.33	2
371	KY5319G268BB	TOP HAT	KY5319G268BB TOP HAT Dark Chrome	$312.55	2
380	KY5317B072AB	EMERGENCY TOOL, ROOF	KY5317B072AB EMERGENCY TOOL, ROOF Manual Winder Tool	$15.20	1
390	703025	Bolt, flg M6 x 25 IN STOCK	703025 Bolt, flg M6 x 25 IN STOCK	$0.34	4
500	KY53L1900ADW	TONNEAU TRIM ASSEMBLY	KY53L1900ADW TONNEAU TRIM ASSEMBLY -> 22MY	$1,662.29	1
501	NY53-L1900-ABW	TONNEAU TRIM ASSEMBLY	NY53-L1900-ABW TONNEAU TRIM ASSEMBLY 22MY->, Haircell	-	1	Enquire
502	NY53L1900EBW	TONNEAU TRIM ASSEMBLY	NY53L1900EBW TONNEAU TRIM ASSEMBLY 22MY->, Semi Aniline	$4,363.76	1
503	NY53-L1900-PB	TONNEAU TRIM ASSEMBLY	NY53-L1900-PB TONNEAU TRIM ASSEMBLY 22MY->, Nappa PVC	-	1	Enquire
510	702295	Nut M5 Hex flng pc8 IN STOCK	702295 Nut M5 Hex flng pc8 IN STOCK	$0.18	6
520	KY53L40408AA	MOULDING, BACK PANEL TRIM	KY53L40408AA MOULDING, BACK PANEL TRIM	$245.51	1
530	701581PK	Firtree Flat HD	701581PK Firtree Flat HD Pack of 20	$11.69	6
540	703177	SCREW, M5x30, PAN HEAD TX	703177 SCREW, M5x30, PAN HEAD TX	$1.53	2
550	697564	Push-on Fix	697564 Push-on Fix	$0.11	2
560	KY53539A41ABW	TRIM PANEL, B-FLAP, LH	KY53539A41ABW TRIM PANEL, B-FLAP, LH -> 22MY. Includes item620	$926.78	1
561	NY53-539A41-AAW	TRIM PANEL, B-FLAP, LH	NY53-539A41-AAW TRIM PANEL, B-FLAP, LH 22MY->, Haircell.Includes item 620	-	1	Enquire
562	NY53-539A41-EAW	TRIM PANEL, B-FLAP, LH	NY53-539A41-EAW TRIM PANEL, B-FLAP, LH 22MY->, Semi Aniline.Includes item 620	-	1	Enquire
563	NY53-539A41-PA	TRIM PANEL, B-FLAP, LH	NY53-539A41-PA TRIM PANEL, B-FLAP, LH 22MY->, Nappa PVC.Includes item 620	-	1	Enquire
570	KY53539A40ABW	TRIM PANEL, B-FLAP, RH	KY53539A40ABW TRIM PANEL, B-FLAP, RH -> 22MY. Includes item620	$926.78	1
571	NY53-539A40-AAW	TRIM PANEL, B-FLAP, RH	NY53-539A40-AAW TRIM PANEL, B-FLAP, RH 22MY->, Haircell.Includes item 620	-	1	Enquire
572	NY53-539A40-EAW	TRIM PANEL, B-FLAP, RH	NY53-539A40-EAW TRIM PANEL, B-FLAP, RH 22MY->, Semi Aniline.Includes item 620	-	1	Enquire
573	NY53-539A40-PA	TRIM PANEL, B-FLAP, RH	NY53-539A40-PA TRIM PANEL, B-FLAP, RH 22MY->, Nappa PVC.Includes item 620	-	1	Enquire
580	6G430516BBA	Screw, M6 IN STOCK	6G430516BBA Screw, M6 IN STOCK	$5.77	4
590	KY53539A45AC	CARRIER, B-FLAP, LH	KY53539A45AC CARRIER, B-FLAP, LH	$73.89	1
600	KY53539A44AC	CARRIER, B-FLAP, RH	KY53539A44AC CARRIER, B-FLAP, RH	$76.10	1
610	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	4
620	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 2 per Cover Assembly IN STOCK	$4.49	4
