Exterior Trim - Coupe

Aston Martin GT DB11 (2017-2023)

自分の役割を見つける

Aston Martin GT DB11 (2017-2023) - Exterior Trim - Coupe

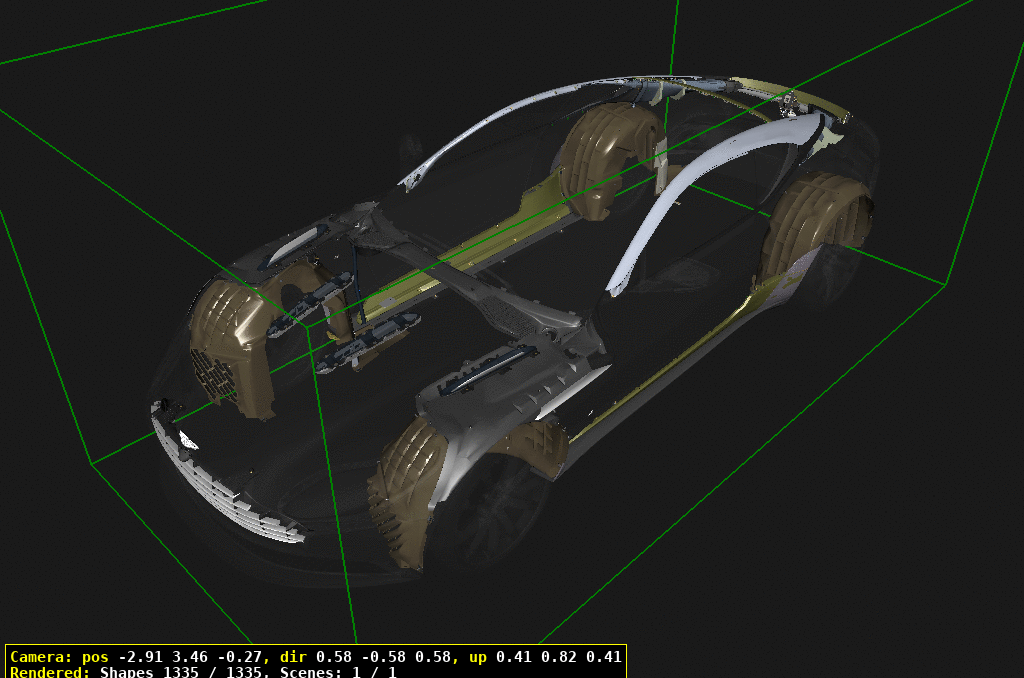

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

すべて見る
Exterior Trim - Coupe of Aston Martin Aston Martin GT DB11 (2017-2023) ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
- ~O~
バッテリー 		- 1 Enquire
20 HY538A100AB
ラジエターグリル
V12, Bright 		$4,462.24 1
21 HY538A100BB
ラジエターグリル
V12, Dark 		$1,768.42 1
22 JY538A100AA
ラジエターグリル
V8, Bright 		$2,070.69 1
23 JY538A100BA
ラジエターグリル
V8, Dark 		$2,070.69 1
30 707163
SCREW, 4.8x25, TORX XS/C 		$0.81 10
40 DG43219005AA
SCREW, ST 4.2x16, PAN HD 		$1.53 6
50 703104
Screw, M4 x 16, air intake duct
IN STOCK 		$1.08 12
60 HY5315A861AA
HOLDER, PDC, LH 		$39.95 1
70 HY5315A864AA
HOLDER, PDC, RH 		$39.95 1
80 HY5317794AA
FINISHER, BUMPER
Bright 		$584.92 1
81 HY5317794BA
FINISHER, BUMPER
Dark 		$570.50 1
90 HY53MA046AAA
BEZEL, FRONT CAMERA 		$35.62 1
100 703163
Nut, M06, hex flange head
IN STOCK 		$0.23 12
110 HY5316C695AB
BONNET VENT, OUTER, LH
Black, used less Blade 		$99.16 1
111 HY5316C695BB
BONNET VENT, OUTER, LH
Titanium, used less Blade 		$153.92 1
120 HY5316C694AB
BONNET VENT, OUTER, RH
Black, used less Blade 		$99.16 1
121 HY5316C694BB
BONNET VENT, OUTER, RH
Titanium, used less Blade 		$153.92 1
140 703163
Nut, M06, hex flange head
IN STOCK 		$0.23 12
150 HY5316C691AB
BONNET VENT, OUTER, LH
Black, used with Blade 		$288.81 1
160 HY5316C690AB
BONNET VENT, OUTER, RH
Black, used with Blade 		$288.81 1
170 HY5316A857AB
BLADE, BONNET VENT, LH
Bright 		$737.99 1
171 HY5316A857BB
BLADE, BONNET VENT, LH
Black 		$643.36 1
172 HY5316A857CA
BLADE, BONNET VENT, LH
Carbon 		$1,252.09 1
180 HY5316A856AB
BLADE, BONNET VENT, RH
Bright 		$737.99 1
181 HY5316A856BB
BLADE, BONNET VENT, RH
Black 		$643.36 1
182 MY8316A856DC
BLADE, BONNET VENT, RH
Carbon 		$1,735.05 1
190 HY5316A759AB
BONNET VENT, LH
Black 		$243.47 1
200 HY5316A758AB
BONNET VENT, RH
Black 		$243.47 1
210 HY53106010AA
NUT, M6, DURALOCK, FLG 		$1.10 12
220 697517PK
Washer M6x1.6, Black
Pack of 20 		$22.98 18
230 HY5302419AA
WATER SHEDDER, LH 		$51.54 1
240 HY5302418AA
WATER SHEDDER, RH 		$51.54 1
280 HY53280B84AB
メッシュ、サイドストレーキ、左側 		$82.36 1
290 HY53280B83AB
メッシュ、サイドストレーキ、右側 		$82.36 1
300 HY53280B63AA
SIDE STRAKE, LH
Bright 		$888.33 1
301 HY53280B63BA
SIDE STRAKE, LH
Dark 		$758.46 1
302 HY53280B63CA
SIDE STRAKE, LH
Carbon 		$1,252.09 1
310 HY53280B62AA
SIDE STRAKE, RH
Bright 		$888.33 1
311 HY53280B62BA
SIDE STRAKE, RH
Dark 		$758.46 1
312 HY53280B62CB
SIDE STRAKE, RH
Carbon 		$1,283.65 1
320 707147
NUT, M5, HEX FLG 		$0.45 2
330 707515
SCREW, M5x16, PAN TX,BLACK
Black 		$4.94 4
340 7G4310609EAAPK
CLIP, SPRING, M6, U TYPE1.5-4.0
Pack of 10
IN STOCK 		$12.50 4
350 703743
SCREW/WASHER, M6x18 		- 6 Enquire
360 703169
M6, NUT, HEX FLG
IN STOCK 		$1.04 2
370 HY53F20563BA
FINISHER, DOOR WAIST, LH 		$178.22 1
380 HY53F20562BA
FINISHER, DOOR WAIST, RH 		$178.22 1
390 HY53519A37KA
MOULDING, CANTRAIL, LH
Primed 		$3,864.35 1
391 KY73519A37AC
MOULDING, CANTRAIL, LH
Carbon Gloss 		$6,536.27 1
400 HY53205A29AA
SEAL, CANTRAIL, LH 		$191.24 1
410 HY53519A36KA
MOULDING, CANTRAIL, RH
Primed 		$3,864.35 1
411 KY73519A36AC
MOULDING, CANTRAIL, RH
Carbon Gloss 		$6,536.27 1
420 HY53205A28AA
SEAL, CANTRAIL, RH 		$191.24 1
430 AD43C519A40AA
MACHINE SCREW, M5x13, PAN
IN STOCK 		$0.79 20
440 703143
BOLT/WASHER, M6x12.0 		$1.90 2
450 HY53519E47AA
COVER, CHMSL, LH 		$20.39 1
460 HY53519E46AA
COVER, CHMSL, RH 		$20.39 1
470 703085
Bolt, M6 x 12, VOLANTE
IN STOCK 		$1.46 4
480 702520PK
CLIP, 8.5x16x1.7, TRIMPUSH-IN
Pack of 20
IN STOCK 		$22.71 10
490 HY53519E45AB
COVER, REAR ROOF, CHMSL
Primed 		$690.91 1
491 HY53519E45BB
COVER, REAR ROOF, CHMSL
Black 		$1,220.47 1
492 KY73519E45AA
COVER, REAR ROOF, CHMSL
Carbon Gloss 		$5,907.23 1
500 HY5310609AC
敷居アップリケ、左側 		$1,129.54 1
510 HY5310608AB
敷居アップリケ、右側
-> VIN L00118 		$1,129.54 1
511 HY5310608AC
敷居アップリケ、右側
VIN L00119 -> 		$951.94 1
520 707623
SCREW/WASHER, M6x16
IN STOCK 		$1.04 8
530 8G336078574AA
WASHER, 22.2x12.9x1.5,NYLON 		$0.77 8
540 6G33AC608054AA
SCREW, ST4.2x25 CSK 		$2.43 2
550 HY53200B15AC
BRACKET, SILL APPLIQUE,LH 		$17.05 1
560 HY53200B14BA
BRACKET, SILL APPLIQUE,RH 		$17.05 1
570 703203
Screw, Flange Head M6x20
IN STOCK 		$0.34 4
580 6G33FA0115ABPK
Screw, M8 x 21
Pack of 20
IN STOCK 		$24.50 4
590 7G4310609EAAPK
CLIP, SPRING, M6, U TYPE1.5-4.0
Pack of 10
IN STOCK 		$12.50 4
600 HY5310611AC
SILL BLADE, LH
Black 		$955.95 1
601 HY5310611BB
SILL BLADE, LH
Graphite. -> VIN L07132 		$716.33 1
602 HY5310611BC
SILL BLADE, LH
Graphite. VIN L07133-> 		$933.77 1
603 HY5310611CA
SILL BLADE, LH
Carbon 		$3,186.93 1
610 HY5310610AC
SILL BLADE, RH
Black 		$955.95 1
611 HY5310610BC
SILL BLADE, RH
Graphite 		$933.77 1
612 HY5310610CA
SILL BLADE, RH
Carbon 		$3,186.93 1
630 FD43E830667AAPK
WASHER, 25mm ODx6.4mm ID
Pack of 10
IN STOCK 		$6.66 2
640 6G430516BBA
Screw, M6
IN STOCK 		$5.77 8
650 8G435144AA
SPACER, C-DUCT FINISHER,LH/RH
Not used with Carbon SillBlades (items 602 & 612)
IN STOCK 		$3.32 8
660 9G33334177AA
NUTPLATE 		$31.69 4
670 HY5310626AA
ペイントプロテクションフィルム
RH, Gloss 		$27.02 1
671 HY5310626BA
ペイントプロテクションフィルム
RH, Matt 		$21.93 1
680 HY5310627AA
ペイントプロテクションフィルム
LH, Gloss 		$27.02 1
681 HY5310627BA
ペイントプロテクションフィルム
LH, Matt 		$21.93 1
690 HY5310630AA
ペイントプロテクションフィルム
RH, Upper, Gloss 		$50.89 1
691 HY5310630BA
ペイントプロテクションフィルム
RH, Upper, Matt 		$55.45 1
700 HY5310631AA
ペイントプロテクションフィルム
LH, Upper, Gloss 		$33.05 1
701 HY5310631BA
ペイントプロテクションフィルム
LH, Upper, Matt 		$55.45 1
710 HY5310624AA
ペイントプロテクションフィルム
RH, Lower, Gloss
IN STOCK 		$74.75 1
711 HY5310624BA
ペイントプロテクションフィルム
RH, Lower, Matt 		$122.51 1
720 HY5310625AA
ペイントプロテクションフィルム
LH, Lower, Gloss
IN STOCK 		$74.75 1
721 HY5310625BA
ペイントプロテクションフィルム
LH, Lower, Matt 		$122.51 1
730 HY5310638AA
ペイントプロテクションフィルム
RH, Sill Blade, Gloss 		$70.81 1
731 HY5310638BA
ペイントプロテクションフィルム
RH, Sill Blade, Matt 		$84.29 1
740 HY5310639AA
ペイントプロテクションフィルム
LH, Sill Blade, Gloss 		$70.81 1
741 HY5310639BA
ペイントプロテクションフィルム
LH, Sill Blade, Matt 		$84.29 1
800 HY53292670AE
LEAF SCREEN MAIN BODYASSEMBLY 		$392.39 1
810 HY533811AA
DRAIN TUBE, LEAFSCREEN 		$45.84 2
820 HY53020E47AC
LEAF SCREEN, END, LH 		$44.50 1
830 HY53020E46AC
LEAF SCREEN, END, RH 		$44.50 1
840 4G436510059PK
Firtree clip, pad wear lead attch
Pack of 100
IN STOCK 		$74.51 2
850 HY5302298BB
LEAF SCREEN INLET BLANK
LHD, -> VIN L09712 		$86.64 1
851 HY5302298DA
LEAF SCREEN INLET BLANK
LHD, VIN L09713-> 		$86.66 1
852 HY5302298AB
LEAF SCREEN INLET BLANK
RHD, -> VIN L09767 		$86.64 1
853 HY5302298CA
LEAF SCREEN INLET BLANK
RHD, VIN L09768-> 		$84.54 1
860 HY53018B86BA
DUCT, HVAC, UPPER
LHD 		$39.38 1
861 HY53018B86AA
DUCT, UPPER HVAC
RHD 		$34.13 1
870 HY53E865015AA
CLIP, FIRTREE 		$2.23 4
880 JY53AFU1900AA
FIRTREE CABLE TIE
V8 only 		$2.35 1
900 HY53404E00AC
MECHANICAL MOTOR ASSEMBLY 		$512.39 1
910 701553
Screw, M6 x 16 pan hd, hood release handle to bracket
IN STOCK 		$0.31 4
920 702944
Nut, M6 flg
IN STOCK 		$1.83 2
930 703612
Nut and Washer, M6 Hex
IN STOCK 		$0.83 8
940 702944
Nut, M6 flg
IN STOCK 		$1.83 4
950 702946
Bolt, M6 x 35mm
IN STOCK 		$1.35 2
960 HY5344298AD
GUIDE ASSEMBLY, SPOILER 		$142.24 2
970 701447
Screw M4x12 Pan collar
IN STOCK 		$0.56 10
980 HY53442A85AD
DUCT, DEPLOYMENTMECHANISM, LH
Includes item 990 		$197.12 1
990 HY5344229AD
GASKET, DUCT, LH 		$61.69 1
1000 HY53442A84AD
DUCT, DEPLOYMENTMECHANISM, RH
Includes item 1010 		$197.12 1
1010 HY5344228AD
GASKET, DUCT, RH 		$61.69 1
1020 HY5344226AC
GRILLE ASSEMBLY, ACTIVEAERO 		$80.21 1
1030 HY5314F266AE
DEPLOYMENT MECHANISMASSEMBLY, ACTIVE AERO 		$1,380.87 1
1040 HY53442A92AC
スポイラーブレード 		$348.50 1
1100 HY53014A37AE
FINISHER, BODYSIDE WAIST,LH
Includes item 1120 		$713.10 1
1110 HY53014A36AE
FINISHER, BODYSIDE WAIST,RH
Includes item 1120 		$713.10 1
1120 AD4360009CAB
CLIP, TRIM, 12x16
3 per finisher 		$3.45 6
1130 HY5301928AB
SEAL, C-DUCT INLET 		$29.98 2
1140 HY53278D68BA
DUCT, BODYSIDE, RH 		$203.57 1
1150 HY53278D69AC
DUCT, BODYSIDE, LH 		$209.41 1
1160 HY5327943AD
FINISHER, UPPER, C-DUCT,LH 		$71.96 1
1170 HY5327942AD
FINISHER, UPPER, C-DUCT,RH 		$70.20 1
1180 3781850
Grommet, Battery Vent
IN STOCK 		$11.25 2
1190 HY53E620012AA
NUT, M6, COUPLING 		$1.60 2
1200 HY53019A31AB
SUPPORT, BODYSIDE VENTSEAL, LH 		$99.61 1
1210 HY53019A30AB
SUPPORT, BODYSIDE VENTSEAL, RH 		$99.61 1
1220 HY5388276AC
バス 		$2.10 10
1230 HY530605AA
SCREW, M5x16x11.8, HEXFLG 		$1.06 12
1240 8G435144AA
SPACER, C-DUCT FINISHER,LH/RH
IN STOCK 		$3.32 2
1250 HY5300810AA
WASHER, M5x20x1,STAINLESS STEEL 		$0.45 2
1260 702212
SNAPSAC, 6.8mm, PUSH-ON 		$0.57 6
1270 HY5301999AA
SEAL, INLET DECKLID DUCT,LH 		$178.20 1
1280 HY5301998AA
SEAL, INLET DECKLID DUCT,RH 		$188.14 1
1290 AD43-MXC1800-AA
Fastener, Firtree, Button Head 		- 4 Enquire
1300 HY53018A49AC
DUCT, BODYSIDE EXIT, LH 		$147.88 1
1310 HY53018A48AC
DUCT, BODYSIDE EXIT, RH 		$156.11 1
1400 HY53407A74AA
BADGE, AM WINGS
White/Green 		$510.28 2
1401 HY53407A74BA
BADGE, AM WINGS
Carbon 		$1,718.86 2
1402 HY53407A74CA
BADGE, AM WINGS
Black Chrome 		$568.86 2
1420 6G439710417
PLAQUE, FINAL INSPECTION
'Hand Built in England' 		$255.68 1
1421 KY53-974663-AA
PLAQUE, FINAL INSPECTION
'AMR' 		- 1 Enquire
1430 No Longer Available
Engine Assembly, 6.0 ltr V12, New
Gold. Use HY53-001B46-AB 		- 1 Enquire
1431 HY53001B46AB
BADGE, AM WINGS, MANIFOLD
Chrome/Enamel 		$330.48 1
1440 JY53001B40AA
BADGE, 'ASTON MARTIN'SCRIPT
Chrome (Illustrated) 		$842.33 1
1441 JY53001B40BA
BADGE, 'ASTON MARTIN'SCRIPT
Carbon 		$4,705.69 1
1442 JY53001B40CA
BADGE, 'ASTON MARTIN'SCRIPT
Black Chrome 		$849.77 1
1444 KY73001B40AA
BADGE, REAR SCRIPT
Chrome, -> VIN M11711 		$971.53 1
1445 KY73001B40DA
BADGE, REAR SCRIPT
Chrome, VIN M11712-> 		$201.03 1
1446 KY73001B40EA
BADGE, REAR SCRIPT
Black Chrome
IN STOCK 		$201.03 1
1500 HY53166565AB
WHEELARCH LINER, CENTRE,LH 		$236.33 1
1510 HY53166564AB
WHEELARCH LINER, CENTRE,RH 		$236.33 1
1520 703742
Fastener, 6.5 x 6, Push In
IN STOCK 		$0.41 16
1530 HY53166563AC
WHEELARCH LINER, FRONT,LH
RoW 		$279.25 1
1531 HY53166563AD
WHEELARCH LINER, FRONT,LH
Federal 		$342.66 1
1540 HY53166562AC
WHEELARCH LINER, FRONT,RH
RoW 		$339.48 1
1541 HY53166562AD
WHEELARCH LINER, FRONT,RH
Federal 		$342.66 1
1550 6G33FA0115ABPK
Screw, M8 x 21
Pack of 20
IN STOCK 		$24.50 32
1560 7G4310609EAAPK
CLIP, SPRING, M6, U TYPE1.5-4.0
Pack of 10
IN STOCK 		$12.50 8
1570 HY53282A09AA
BRACKET, REINFORCEMENT,LH 		$37.56 1
1580 HY53282A08AA
BRACKET, REINFORCEMENT,RH 		$37.56 1
1590 HY53166567AD
WHEELARCH LINER, REAR, LH 		$381.27 1
1600 HY53166566AD
WHEELARCH LINER, REAR, RH 		$381.27 1
1650 HY5354279D23AC
WHEELARCH LINER, REAR, LH 		$595.11 1
1660 HY5354279D22AC
WHEELARCH LINER, REAR, RH
-> VIN L11075 		$595.11 1
1661 HY5354279D22AD
WHEELARCH LINER, REAR, RH
VIN L11076-> 		$484.42 1
1670 6G33FA0115ABPK
Screw, M8 x 21
Pack of 20
IN STOCK 		$24.50 24
1680 7G4310609EAAPK
CLIP, SPRING, M6, U TYPE1.5-4.0
Pack of 10
IN STOCK 		$12.50 8
1690 702514
Screw, flg, M6 x 16 torx
IN STOCK 		$2.87 4
1700 ED33FA0115AA
SCREW/WASHER, PATCH 		$8.23 4

探しているものが見つかりませんか?

オリジナルパーツ チューニングパーツ 助けが必要ですか?お電話ください

カートを見る/チェックアウト
