Occupant Restraining Device - Coupe of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

Aston Martin GT DB11 (2017-2023) - Occupant Restraining Device - Coupe

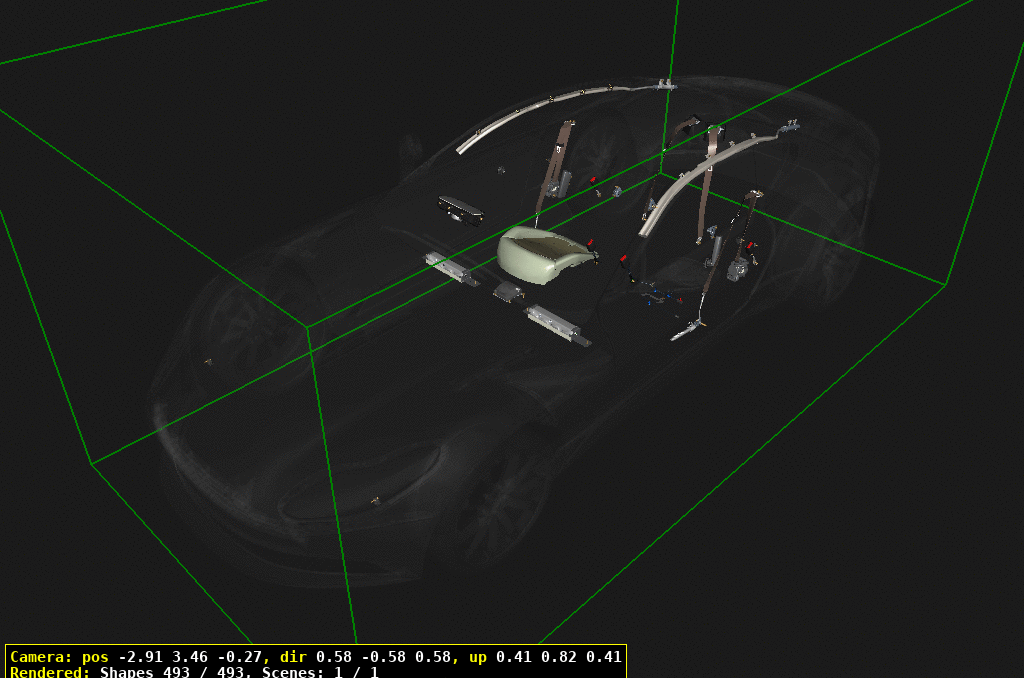

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	HY53611B70AFW	SEATBELT, DRIVERS, LHD	HY53611B70AFW SEATBELT, DRIVERS, LHD Warm Charcoal	$1,111.43	1
21	HY53611B70BDW	SEATBELT, DRIVERS, LHD	HY53611B70BDW SEATBELT, DRIVERS, LHD Flint, -> 21MY	$1,021.03	1
22	HY53611B70CDW	SEATBELT, DRIVERS, LHD	HY53611B70CDW SEATBELT, DRIVERS, LHD Champagne	$1,051.66	1
23	HY53611B70DFW	SEATBELT, DRIVERS, LHD	HY53611B70DFW SEATBELT, DRIVERS, LHD Spice Red	$1,111.05	1
24	HY53611B70EEW	SEATBELT, DRIVERS, LHD	HY53611B70EEW SEATBELT, DRIVERS, LHD Mocha	$1,110.78	1
25	HY53611B70FFW	SEATBELT, DRIVERS, LHD	HY53611B70FFW SEATBELT, DRIVERS, LHD Graphite	$1,111.34	1
26	HY53611B69AFW	SEATBELT, PASSENGER, RHD	HY53611B69AFW SEATBELT, PASSENGER, RHD Warm Charcoal	$1,110.42	1
27	HY53611B69BDW	SEATBELT, PASSENGER, RHD	HY53611B69BDW SEATBELT, PASSENGER, RHD Flint, -> 21MY	$905.20	1
28	HY53611B69CDW	SEATBELT, PASSENGER, RHD	HY53611B69CDW SEATBELT, PASSENGER, RHD Champagne	$1,110.30	1
29	HY53611B69DDW	SEATBELT, PASSENGER, RHD	HY53611B69DDW SEATBELT, PASSENGER, RHD Spice Red	$1,110.30	1
30	HY53611B69EDW	SEATBELT, PASSENGER, RHD	HY53611B69EDW SEATBELT, PASSENGER, RHD Mocha	$1,110.30	1
31	HY53611B69FDW	SEATBELT, PASSENGER, RHD	HY53611B69FDW SEATBELT, PASSENGER, RHD Graphite	$1,083.21	1
40	HY53611B68AEW	SEATBELT, PASSENGER, LHD	HY53611B68AEW SEATBELT, PASSENGER, LHD Warm Charcoal	$1,021.03	1
41	HY53611B68BDW	SEATBELT, PASSENGER, LHD	HY53611B68BDW SEATBELT, PASSENGER, LHD Flint, -> 21MY	$1,110.30	1
42	HY53611B68CDW	SEATBELT, PASSENGER, LHD	HY53611B68CDW SEATBELT, PASSENGER, LHD Champagne	$1,110.30	1
43	HY53611B68DFW	SEATBELT, PASSENGER, LHD	HY53611B68DFW SEATBELT, PASSENGER, LHD Spice Red	$1,111.05	1
44	HY53611B68EEW	SEATBELT, PASSENGER, LHD	HY53611B68EEW SEATBELT, PASSENGER, LHD Mocha	$1,110.80	1
45	HY53611B68FEW	SEATBELT, PASSENGER, LHD	HY53611B68FEW SEATBELT, PASSENGER, LHD Graphite	$1,110.32	1
46	HY53611B71AFW	SEATBELT, DRIVERS, RHD	HY53611B71AFW SEATBELT, DRIVERS, RHD Warm Charcoal	$1,110.32	1
47	HY53611B71BDW	SEATBELT, DRIVERS, RHD	HY53611B71BDW SEATBELT, DRIVERS, RHD Flint, -> 21MY	$1,110.30	1
48	HY53611B71CDW	SEATBELT, DRIVERS, RHD	HY53611B71CDW SEATBELT, DRIVERS, RHD Champagne	$1,110.30	1
49	HY53611B71DFW	SEATBELT, DRIVERS, RHD	HY53611B71DFW SEATBELT, DRIVERS, RHD Spice Red	$765.17	1
50	HY53611B71EEW	SEATBELT, DRIVERS, RHD	HY53611B71EEW SEATBELT, DRIVERS, RHD Mocha	$1,110.30	1
51	HY53611B71FDW	SEATBELT, DRIVERS, RHD	HY53611B71FDW SEATBELT, DRIVERS, RHD Graphite	$1,110.30	1
60	HY53610E54AF	BUCKLE, SEATBELT	HY53610E54AF BUCKLE, SEATBELT	$103.69	2
70	HY5324858AA	D LOOP ASSEMBLY, SEATBELT	HY5324858AA D LOOP ASSEMBLY, SEATBELT	$46.19	2
80	703121	SCREW, M8x2,0 HEX FLG IN STOCK	703121 SCREW, M8x2,0 HEX FLG IN STOCK	$0.49	4
90	HY53100179AA	BOLT, 7/16" x 22mm x 13AF	HY53100179AA BOLT, 7/16" x 22mm x 13AF	$6.04	2
100	HY53100179BB	BOLT, 7/16" x 58mm x 13AF	HY53100179BB BOLT, 7/16" x 58mm x 13AF	$11.19	2
110	HY53373230AA	SPACER, SILL PRETENSIONER	HY53373230AA SPACER, SILL PRETENSIONER	$5.77	2
150	HY53611B74ACW	SEATBELT, REAR	HY53611B74ACW SEATBELT, REAR Warm Charcoal	$161.77	2
152	HY53611B74BBW	SEATBELT, REAR	HY53611B74BBW SEATBELT, REAR Flint, -> 21MY	$1,110.30	2
154	HY53611B74CBW	SEATBELT, REAR	HY53611B74CBW SEATBELT, REAR Champagne	$1,110.30	2
156	HY53611B74DCW	SEATBELT, REAR	HY53611B74DCW SEATBELT, REAR Spice Red	$1,110.32	2
158	HY53611B74EBW	SEATBELT, REAR	HY53611B74EBW SEATBELT, REAR Mocha	$1,110.30	2
160	HY53611B74FBW	SEATBELT, REAR	HY53611B74FBW SEATBELT, REAR Graphite	$1,110.30	2
170	HY53613K21AB	BUCKLE, SEATBELT	HY53613K21AB BUCKLE, SEATBELT -> 21MY	$97.71	2
171	NY53613K21AB	BUCKLE, SEATBELT	NY53613K21AB BUCKLE, SEATBELT 21MY->, with SeatbeltReminder	$87.75	2
180	HY53100179AA	BOLT, 7/16" x 22mm x 13AF	HY53100179AA BOLT, 7/16" x 22mm x 13AF	$6.04	6
190	HY537090AA	NVH, REAR SEATBELT	HY537090AA NVH, REAR SEATBELT	$20.73	2
200	HY53044H31AE	AIRBAG ASSEMBLY,PASSENGER	HY53044H31AE AIRBAG ASSEMBLY,PASSENGER -> 22MY	$864.21	1
201	HY53044H31AF	AIRBAG ASSEMBLY,PASSENGER	HY53044H31AF AIRBAG ASSEMBLY,PASSENGER 22MY->	$838.99	1
220	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic	$0.79	4
230	FD33611D10AE	エアバッグ、サイド、左側	FD33611D10AE エアバッグ、サイド、左側	$351.36	1
231	HY538990BD	CHUTE, AIRBAG, LH	HY538990BD CHUTE, AIRBAG, LH Not Illustrated	$17.91	1
240	HY53611D11AB	エアバッグ、サイド、右側	HY53611D11AB エアバッグ、サイド、右側	$380.13	1
241	HY538990AD	CHUTE, AIRBAG, LH	HY538990AD CHUTE, AIRBAG, LH Not Illustrated	$17.91	1
250	HY53A14K159AD	MODULE ASSEMBLY, SIDECURTAIN, LH	HY53A14K159AD MODULE ASSEMBLY, SIDECURTAIN, LH	$788.22	1
260	HY53A14K158AD	MODULE ASSEMBLY, SIDECURTAIN, RH	HY53A14K158AD MODULE ASSEMBLY, SIDECURTAIN, RH	$788.22	1
270	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic	$0.79	4
280	703152PK	Screw and Washer M6x20 Hex IN STOCK	703152PK Screw and Washer M6x20 Hex Pack of 10 IN STOCK	$6.95	10
290	HY535147AJ	INFLATABLE KNEE BOLSTER	HY535147AJ INFLATABLE KNEE BOLSTER LH, LHD, RoW. See ServiceBulletin SB-01-1011	$575.94	1
291	HY535147AJ	INFLATABLE KNEE BOLSTER	HY535147AJ INFLATABLE KNEE BOLSTER LH & RH, LHD, Federal.See Service BulletinSB-01-1011	$575.94	1
300	HY535148AJ	INFLATABLE KNEE BOLSTER	HY535148AJ INFLATABLE KNEE BOLSTER RH, RHD. See ServiceBulletin SB-01-1011	$584.51	1
310	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	4
400	HY53SE14B342AA	SENSOR, SIDE IMPACTPRESSURE	HY53SE14B342AA SENSOR, SIDE IMPACTPRESSURE	$50.28	2
410	703199	Bolt M6x30 hex flg hd IN STOCK	703199 Bolt M6x30 hex flg hd IN STOCK	$0.79	4
420	702840	Nut & Washer M6 Hex Flg	702840 Nut & Washer M6 Hex Flg	$0.36	2
430	702839PK	Screw and Washer M6x20 Hex IN STOCK	702839PK Screw and Washer M6x20 Hex IN STOCK	$6.86	1
440	HY5314C246AE	CONTROLLER, OCCUPANTRESTRAINTS	HY5314C246AE CONTROLLER, OCCUPANTRESTRAINTS	$1,182.62	1
450	HY53SE14B006AA	SENSOR, ACCELEROMETER	HY53SE14B006AA SENSOR, ACCELEROMETER	$42.38	4
460	AD4314C288BB	SENSOR, SEAT BELTREMINDER	AD4314C288BB SENSOR, SEAT BELTREMINDER LHD	$47.39	1
470	AD4314C288BB	SENSOR, SEAT BELTREMINDER	AD4314C288BB SENSOR, SEAT BELTREMINDER RHD	$47.39	1
500	HY537410016	OCS SERVICE ASSEMBLY	HY537410016 OCS SERVICE ASSEMBLY No Ventilation, includesitem 510	$782.67	1
501	HY537410017	OCS SERVICE ASSEMBLY	HY537410017 OCS SERVICE ASSEMBLY With Ventilation,includes item 510	$782.67	1
502	KY637410018	OCS SERVICE KIT ASSEMBLY	KY637410018 OCS SERVICE KIT ASSEMBLY No Ventilation, Sports+Seat, includes item 510	$547.02	1
503	KY637410019	OCS SERVICE KIT ASSEMBLY	KY637410019 OCS SERVICE KIT ASSEMBLY With Ventilation, Sports+Seat, includes item 510	$563.78	1
510	HY5314B685AB	リンクリード	HY5314B685AB リンクリード	$37.98	1
700	HY53F601B87AA	ANCHOR BRACKET, ISOFIX,LOWER, OUTER	HY53F601B87AA ANCHOR BRACKET, ISOFIX,LOWER, OUTER -> 22MY	$36.07	2
710	HY53F601B86AA	ANCHOR BRACKET, ISOFIX,LOWER, INNER	HY53F601B86AA ANCHOR BRACKET, ISOFIX,LOWER, INNER -> 22MY	$41.17	2
720	703121	SCREW, M8x2,0 HEX FLG IN STOCK	703121 SCREW, M8x2,0 HEX FLG -> 22MY IN STOCK	$0.49	8
