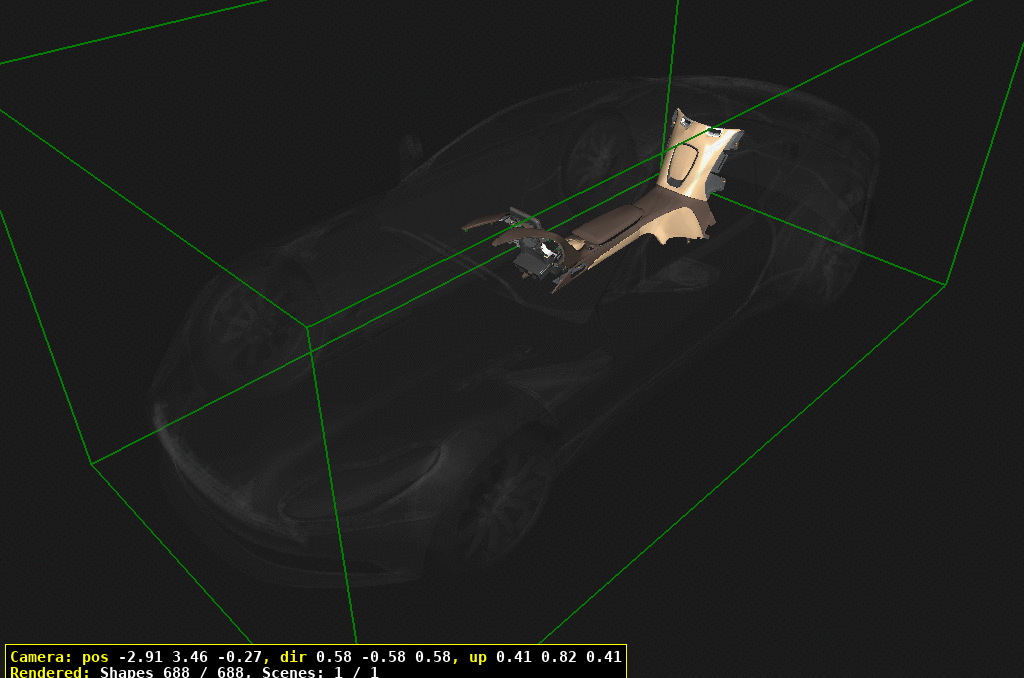

Aston Martin GT DB11 (2017-2023) - Centre Console - to 22MY

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	HY5324405BDW	OUTER TRIM, LH, withSWITCH HOLE	HY5324405BDW OUTER TRIM, LH, withSWITCH HOLE Caithness Leather	$1,066.27	1
21	HY5324405FDW	OUTER TRIM, LH, withSWITCH HOLE	HY5324405FDW OUTER TRIM, LH, withSWITCH HOLE Balmoral Leather	$1,553.81	1
22	HY5324405UDW	OUTER TRIM, LH, withSWITCH HOLE	HY5324405UDW OUTER TRIM, LH, withSWITCH HOLE Strathmore Leather	$958.68	1
23	HY5324405ADW	OUTER TRIM, LH, lessSWITCH HOLE	HY5324405ADW OUTER TRIM, LH, lessSWITCH HOLE Caithness Leather	$1,508.36	1
24	HY5324405EDW	OUTER TRIM, LH, lessSWITCH HOLE	HY5324405EDW OUTER TRIM, LH, lessSWITCH HOLE Balmoral Leather	$1,488.91	1
25	HY5324405TDW	OUTER TRIM, LH, lessSWITCH HOLE	HY5324405TDW OUTER TRIM, LH, lessSWITCH HOLE Strathmore Leather	$958.68	1
30	HY5324404BDW	OUTER TRIM, RH, withSWITCH HOLE	HY5324404BDW OUTER TRIM, RH, withSWITCH HOLE Caithness Leather	$1,471.61	1
31	HY5324404FDW	OUTER TRIM, RH, withSWITCH HOLE	HY5324404FDW OUTER TRIM, RH, withSWITCH HOLE Balmoral Leather	$1,553.81	1
32	HY5324404UDW	OUTER TRIM, RH, withSWITCH HOLE	HY5324404UDW OUTER TRIM, RH, withSWITCH HOLE Strathmore Leather	$1,072.00	1
33	HY5324404ADW	OUTER TRIM, RH, lessSWITCH HOLE	HY5324404ADW OUTER TRIM, RH, lessSWITCH HOLE Caithness Leather	$1,508.36	1
34	HY5324404EDW	OUTER TRIM, RH, lessSWITCH HOLE	HY5324404EDW OUTER TRIM, RH, lessSWITCH HOLE Balmoral Leather	$1,553.86	1
35	HY5324404TDW	OUTER TRIM, RH, lessSWITCH HOLE	HY5324404TDW OUTER TRIM, RH, lessSWITCH HOLE Strathmore Leather	$1,072.00	1
40	707165	TRIM FASTENER, 8.6x8x16	707165 TRIM FASTENER, 8.6x8x16	$2.51	12
50	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	8
60	HY538710034	KIT, VENEER, CENTRECONSOLE	HY538710034 KIT, VENEER, CENTRECONSOLE Satin Chopped Carbon	$2,368.04	1
61	HY538710050	KIT, VENEER, CENTRECONSOLE	HY538710050 KIT, VENEER, CENTRECONSOLE -> 19MY, Gloss ChoppedCarbon	$2,023.26	1
62	HY53044J51EA	KIT, VENEER, CENTRECONSOLE	HY53044J51EA KIT, VENEER, CENTRECONSOLE Tamo Ash, Matched Pair	$2,880.09	1
63	HY53044J51FA	KIT, VENEER, CENTRECONSOLE	HY53044J51FA KIT, VENEER, CENTRECONSOLE -> 19MY, Tan Lacewood,Matched Pair	$3,282.68	1
64	HY53044J51HA	KIT, VENEER, CENTRECONSOLE	HY53044J51HA KIT, VENEER, CENTRECONSOLE -> 19MY, Dark Ash Burl,Matched Pair	$3,407.26	1
65	HY53044J51JA	KIT, VENEER, CENTRECONSOLE	HY53044J51JA KIT, VENEER, CENTRECONSOLE Light Ash Burl, MatchedPair	$2,423.32	1
69	KY53044L81AAW	CENTRE CONSOLE TRIM, LH	KY53044L81AAW CENTRE CONSOLE TRIM, LH Leather Wrapped	$604.74	1
70	HY53045J11AC	VENEER, CENTRE CONSOLE,LH	HY53045J11AC VENEER, CENTRE CONSOLE,LH Piano Black	$1,561.95	1
71	HY53045J11CC	VENEER, CENTRE CONSOLE,LH	HY53045J11CC VENEER, CENTRE CONSOLE,LH -> 19MY, Cuprum Carbon,Satin	$2,467.15	1
75	HY53045J11BC	VENEER, CENTRE CONSOLE,LH	HY53045J11BC VENEER, CENTRE CONSOLE,LH Carbon, 2x2 Twill, Satin	$2,595.59	1
89	KY53044L80AAW	CENTRE CONSOLE TRIM, RH	KY53044L80AAW CENTRE CONSOLE TRIM, RH Leather Wrapped	$604.74	1
90	HY53045J10AC	VENEER, CENTRE CONSOLE,RH	HY53045J10AC VENEER, CENTRE CONSOLE,RH Piano Black	$1,561.95	1
91	HY53045J10CC	VENEER, CENTRE CONSOLE,RH	HY53045J10CC VENEER, CENTRE CONSOLE,RH -> 19MY, Cuprum Carbon,Satin	$2,467.15	1
95	HY53045J10BC	VENEER, CENTRE CONSOLE,RH	HY53045J10BC VENEER, CENTRE CONSOLE,RH Carbon, 2x2 Twill, Satin	$2,334.13	1
100	HY53V513K01AC	CENTRE CONSOLE SUPPORTMOULDING	HY53V513K01AC CENTRE CONSOLE SUPPORTMOULDING Includes items 110	$104.17	1
110	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	12
120	HY5311N653ACW	CARRIER, SWITCH	HY5311N653ACW CARRIER, SWITCH Caithness Leather	$863.08	1
121	HY5311N653ECW	CARRIER, SWITCH	HY5311N653ECW CARRIER, SWITCH Balmoral Leather	$879.89	1
122	HY5311N653TCW	CARRIER, SWITCH	HY5311N653TCW CARRIER, SWITCH Strathmore Leather	$678.25	1
130	HY5314853AA	FINISHER, CENTRE STACK	HY5314853AA FINISHER, CENTRE STACK Satin Chrome	$1,116.28	1
131	HY5314853BA	FINISHER, CENTRE STACK	HY5314853BA FINISHER, CENTRE STACK Dark Chrome	$2,821.31	1
132	HY5314853CA	FINISHER, CENTRE STACK	HY5314853CA FINISHER, CENTRE STACK Champagne	$1,381.95	1
140	HY5304487AA	SUPPORT MOULDING, LOWER	HY5304487AA SUPPORT MOULDING, LOWER	$49.15	1
150	HY537T429AB	RETAINER, HEAD UNIT	HY537T429AB RETAINER, HEAD UNIT	$19.80	2
160	HY53044H94ACW	SURROUND, SAT-NAV, FRONT	HY53044H94ACW SURROUND, SAT-NAV, FRONT Caithness Leather	$648.03	1
161	HY53044H94ECW	SURROUND, SAT-NAV, FRONT	HY53044H94ECW SURROUND, SAT-NAV, FRONT Balmoral Leather	$371.93	1
162	HY53044H94TCW	SURROUND, SAT-NAV, FRONT	HY53044H94TCW SURROUND, SAT-NAV, FRONT Strathmore Leather	$391.06	1
170	HY5370459AAW	RECESS ASSEMBLY, SAT-NAV,LH	HY5370459AAW RECESS ASSEMBLY, SAT-NAV,LH Caithness Leather	$283.29	1
171	HY5370459EAW	RECESS ASSEMBLY, SAT-NAV,LH	HY5370459EAW RECESS ASSEMBLY, SAT-NAV,LH Balmoral Leather	$419.15	1
172	HY5370459TAW	RECESS ASSEMBLY, SAT-NAV,LH	HY5370459TAW RECESS ASSEMBLY, SAT-NAV,LH Strathmore Leather	$216.09	1
180	HY5370458AAW	RECESS ASSEMBLY, SAT-NAV,RH	HY5370458AAW RECESS ASSEMBLY, SAT-NAV,RH Caithness Leather	$243.99	1
181	HY5370458EAW	RECESS ASSEMBLY, SAT-NAV,RH	HY5370458EAW RECESS ASSEMBLY, SAT-NAV,RH Balmoral Leather	$247.02	1
182	HY5370458TAW	RECESS ASSEMBLY, SAT-NAV,RH	HY5370458TAW RECESS ASSEMBLY, SAT-NAV,RH Strathmore Leather	$216.09	1
190	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	16
200	701573	Screw and Washer assy, M4x16 Pan hd	701573 Screw and Washer assy, M4x16 Pan hd	$0.41	2
210	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	16
220	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	6
230	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE	$0.13	2
240	6G33104101BA	SCREW, M4x9, THREADFORMING IN STOCK	6G33104101BA SCREW, M4x9, THREADFORMING IN STOCK	$0.86	4
250	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX	$0.25	2
260	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE	$0.13	4
270	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	4
280	HY5310E927AC	SUBSTRATE, SAT-NAV, REAR	HY5310E927AC SUBSTRATE, SAT-NAV, REAR	$54.22	1
290	AD43N807148AA	SCREW, M2x8, TORX	AD43N807148AA SCREW, M2x8, TORX	$0.20	6
300	HY5360220ABW	TRIM ASSEMBLY, CONTROL CSURROUND	HY5360220ABW TRIM ASSEMBLY, CONTROL CSURROUND Caithness Leather	$387.02	1
301	HY5360220EBW	TRIM ASSEMBLY, CONTROL CSURROUND	HY5360220EBW TRIM ASSEMBLY, CONTROL CSURROUND Balmoral Leather	$331.69	1
302	HY5360220TBW	TRIM ASSEMBLY, CONTROL CSURROUND	HY5360220TBW TRIM ASSEMBLY, CONTROL CSURROUND Strathmore Leather	$272.76	1
310	HY5310A916ADW	CAP, CONTROL C SURROUND	HY5310A916ADW CAP, CONTROL C SURROUND Caithness Leather	$272.39	1
311	HY5310A916EDW	CAP, CONTROL C SURROUND	HY5310A916EDW CAP, CONTROL C SURROUND Balmoral Leather	$383.51	1
312	HY53-10A916-TDW	CAP, CONTROL C SURROUND	HY53-10A916-TDW CAP, CONTROL C SURROUND Strathmore Leather	-	1	Enquire
320	HY5345864AA	CLOSING PANEL, TOUCH PAD	HY5345864AA CLOSING PANEL, TOUCH PAD	$46.58	1
330	AD43N807148AA	SCREW, M2x8, TORX	AD43N807148AA SCREW, M2x8, TORX	$0.20	6
340	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head IN STOCK	$0.34	2
350	HY5304559AC	SUPPORT BRACKET, CONSOLE,LH	HY5304559AC SUPPORT BRACKET, CONSOLE,LH	$96.50	1
360	HY5304558AC	SUPPORT BRACKET, CONSOLE,RH	HY5304558AC SUPPORT BRACKET, CONSOLE,RH	$96.50	1
370	703151	Nut/washr, M6 IN STOCK	703151 Nut/washr, M6 IN STOCK	$0.90	6
380	701573	Screw and Washer assy, M4x16 Pan hd	701573 Screw and Washer assy, M4x16 Pan hd	$0.41	4
390	HY5311585AB	MOULDING, EIS RETAINER	HY5311585AB MOULDING, EIS RETAINER	$60.13	1
400	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE	$0.13	5
410	HY53045K06ACW	LID ASSEMBLY	HY53045K06ACW LID ASSEMBLY	$3,339.60	1
420	HY53045C74BK	CONSOLE STOWAGE ASSEMBLY	HY53045C74BK CONSOLE STOWAGE ASSEMBLY Includes items 430-520	$4,724.35	1
430	HY5311710AE	TRACK ASSEMBLY, STOWAGECOMPARTMENT LID	HY5311710AE TRACK ASSEMBLY, STOWAGECOMPARTMENT LID	$1,648.14	1
435	HY53046B50AB	ELBOW PAD ASSEMBLY	HY53046B50AB ELBOW PAD ASSEMBLY	$1,267.23	1
436	7G43C2437AAW	Tape, Anti squeak	7G43C2437AAW Tape, Anti squeak	$145.29	A/R
440	702629	SCREW, M6x19, PAN HEADTORX PILOT	702629 SCREW, M6x19, PAN HEADTORX PILOT	$1.24	2
450	HY53E826A80AA	FLEXITOL, M8	HY53E826A80AA FLEXITOL, M8	$23.84	2
460	6G33-VTL645-AA	SCREW, M8x45, PAN HEAD,TORX, GRADE 10.9	6G33-VTL645-AA SCREW, M8x45, PAN HEAD,TORX, GRADE 10.9	-	2	Enquire
470	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	2
480	HY53045L50AA	CAP, EMERGENCY IGNITIONSWITCH	HY53045L50AA CAP, EMERGENCY IGNITIONSWITCH	$52.49	1
490	HY53045A88ACW	MOULDING ASSEMBLY,CONSOLE, REAR	HY53045A88ACW MOULDING ASSEMBLY,CONSOLE, REAR	$931.93	1
500	HY53045M880AA	MAT, STOWAGE COMPARTMENT	HY53045M880AA MAT, STOWAGE COMPARTMENT	$58.90	1
510	HY53047B40BA	DIVISION BAR, CAN HOLDER	HY53047B40BA DIVISION BAR, CAN HOLDER	$22.85	1
530	HY53046C48AB	SUPPORT, CONSOLE ARMREST	HY53046C48AB SUPPORT, CONSOLE ARMREST	$49.53	1
540	HY53046B94AB	INSERT, CUP HOLDER	HY53046B94AB INSERT, CUP HOLDER	$74.87	1
550	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	4
560	HY53045C31ACW	PANEL SIDE ASSEMBLY,CONSOLE, LH	HY53045C31ACW PANEL SIDE ASSEMBLY,CONSOLE, LH	$1,648.73	1
570	HY53045C30ACW	PANEL SIDE ASSEMBLY,CONSOLE, RH	HY53045C30ACW PANEL SIDE ASSEMBLY,CONSOLE, RH	$1,689.90	1
580	HY5355006AAW	STRAP, CENTRE STACK	HY5355006AAW STRAP, CENTRE STACK Caithness Leather	$253.63	1
581	HY5355006EAW	STRAP, CENTRE STACK	HY5355006EAW STRAP, CENTRE STACK Balmoral Leather	$231.16	1
582	HY5355006TAW	STRAP, CENTRE STACK	HY5355006TAW STRAP, CENTRE STACK Strathmore Leather	$223.94	1
590	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	2
600	HY53237A13AB	トリンケットトレイ	HY53237A13AB トリンケットトレイ Less eCall/SOS	$49.45	1
601	HY53237W12AB	トリンケットトレイ	HY53237W12AB トリンケットトレイ With eCall/SOS	$51.97	1
610	HY53519E68AA	SURROUND ASSEMBLY, e-CALL	HY53519E68AA SURROUND ASSEMBLY, e-CALL	$113.93	1
620	4G4380899AA	ネジ、M4X5MM IN STOCK	4G4380899AA ネジ、M4X5MM IN STOCK	$0.27	2
630	HY535943ABW	WRIST PAD ASSEMBLY	HY535943ABW WRIST PAD ASSEMBLY Caithness Leather	$396.00	1
631	HY535943EBW	WRIST PAD ASSEMBLY	HY535943EBW WRIST PAD ASSEMBLY Balmoral Leather	$548.10	1
632	HY535943TBW	PAD ASSEMBLY, TOP, WRISTREST	HY535943TBW PAD ASSEMBLY, TOP, WRISTREST Strathmore Leather	$548.10	1
640	HY53E865224AA	TRIM FASTERNER, 15x5.4	HY53E865224AA TRIM FASTERNER, 15x5.4	$1.37	3
650	HY533N440AB	CARRIER, WRIST REST	HY533N440AB CARRIER, WRIST REST	$208.62	1
660	701171	SCREW, M4x16	701171 SCREW, M4x16	$0.14	2
670	4G4380899AA	ネジ、M4X5MM IN STOCK	4G4380899AA ネジ、M4X5MM IN STOCK	$0.27	1
680	4G4303836AB	BUMPON, RECTANGLE BLACK IN STOCK	4G4303836AB BUMPON, RECTANGLE BLACK IN STOCK	$2.59	2
700	HY53045E24AEW	CONSOLE ASSEMBLY, REAR,UPPER	HY53045E24AEW CONSOLE ASSEMBLY, REAR,UPPER -> 18.5MY, Coupe.Includes items 710-760	$3,228.25	1
701	HY53045E24AFW	CONSOLE ASSEMBLY, REAR,UPPER	HY53045E24AFW CONSOLE ASSEMBLY, REAR,UPPER 18.5MY->, Coupe. Includesitems 710-760	$3,644.54	1
705	KY53045E24ADW	CONSOLE ASSEMBLY, REAR,UPPER	KY53045E24ADW CONSOLE ASSEMBLY, REAR,UPPER Volante. Includes items710-760	$1,914.27	1
710	HY5367482ACW	SPEAKER GRILLE, SUBWOOFER	HY5367482ACW SPEAKER GRILLE, SUBWOOFER B&O	$2,264.34	1
711	HY53047A44CA	SPEAKER GRILLE, SUBWOOFER	HY53047A44CA SPEAKER GRILLE, SUBWOOFER Except B&O, Silver	-	1	Enquire
712	HY53-047A44-BC	SPEAKER GRILLE, SUBWOOFER	HY53-047A44-BC SPEAKER GRILLE, SUBWOOFER Except B&O, Black	-	1	Enquire
713	HY53047A44DC	SPEAKER GRILLE, SUBWOOFER	HY53047A44DC SPEAKER GRILLE, SUBWOOFER Except B&O, Dark Chrome	$315.09	1
720	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	4
730	701577	U NUT, ST, 1.75-2.75	701577 U NUT, ST, 1.75-2.75	$0.93	4
740	HY53611B90FA	BEZEL, SEATBELT, REAR	HY53611B90FA BEZEL, SEATBELT, REAR Satin Chrome	$144.92	2
741	HY53611B90BA	BEZEL, SEATBELT, REAR	HY53611B90BA BEZEL, SEATBELT, REAR Dark Chrome	$506.85	2
742	HY53611B90CA	BEZEL, SEATBELT, REAR	HY53611B90CA BEZEL, SEATBELT, REAR Champagne	$380.35	2
750	703076	Screw, M4 x 20 csk skt	703076 Screw, M4 x 20 csk skt	$0.20	4
760	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	4
770	HY53-045A12-ACW	CONSOLE ASSEMBLY, REAR,LOWER	HY53-045A12-ACW CONSOLE ASSEMBLY, REAR,LOWER	-	1	Enquire
780	AD43C519A40AA	MACHINE SCREW, M5x13, PAN IN STOCK	AD43C519A40AA MACHINE SCREW, M5x13, PAN IN STOCK	$0.79	2
790	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	6
