Sealing - Coupe of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

Aston Martin GT DB11 (2017-2023) - Sealing - Coupe

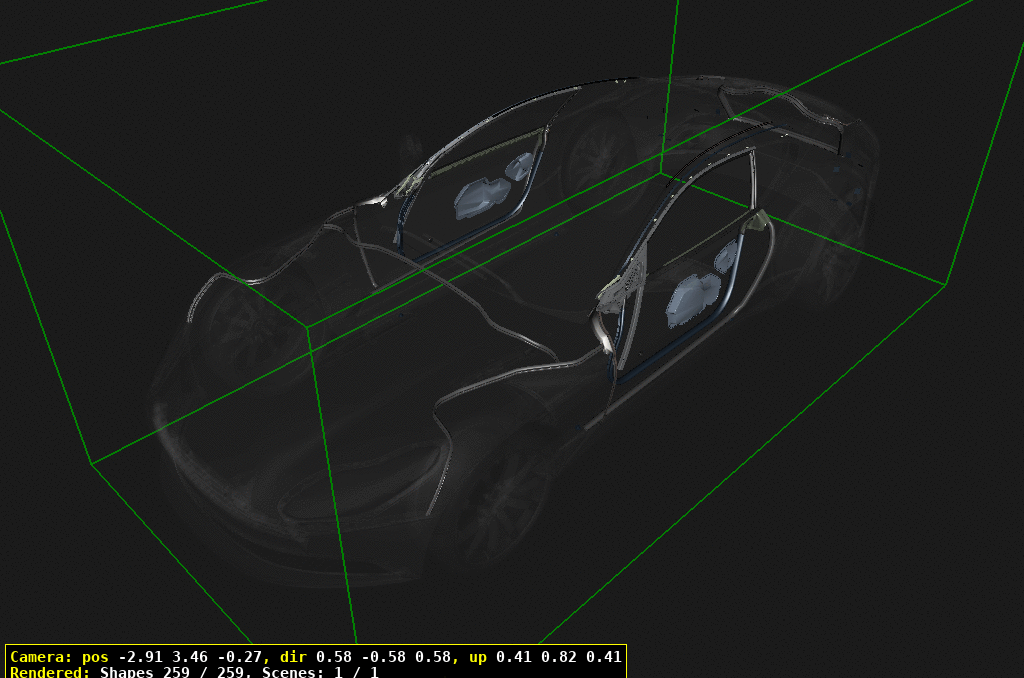

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量
20	HY53C20708AC	PRIMARY SEAL, DOOR,UPPER, RH	HY53C20708AC PRIMARY SEAL, DOOR,UPPER, RH	$440.69	1
30	HY53C25324AC	WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, RH	HY53C25324AC WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, RH	$220.31	1
40	HY53C20556AB	WEATHERSTRIP, MARGIN,DOOR	HY53C20556AB WEATHERSTRIP, MARGIN,DOOR	$38.44	2
50	HY53C25325AC	WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, LH	HY53C25325AC WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, LH	$220.31	1
60	4G43L25324BA	CLIP, WEATHERSTRIPRETENTION	4G43L25324BA CLIP, WEATHERSTRIPRETENTION	$3.20	2
70	HY53C215K45AA	WEATHERSTRIP ASSEMBLY,DOOR WINDOW, LH	HY53C215K45AA WEATHERSTRIP ASSEMBLY,DOOR WINDOW, LH	$260.48	1
80	HY53C20708BD	PRIMARY SEAL, DOOR,LOWER, LH/RH	HY53C20708BD PRIMARY SEAL, DOOR,LOWER, LH/RH -> VIN L11687	$81.29	2
81	HY53C20708BE	PRIMARY SEAL, DOOR, LOWER	HY53C20708BE PRIMARY SEAL, DOOR, LOWER VIN L11688->	$85.87	2
90	HY53C215K44AA	WEATHERSTRIP ASSEMBLY,DOOR WINDOW, RH	HY53C215K44AA WEATHERSTRIP ASSEMBLY,DOOR WINDOW, RH	$260.48	1
100	HY53C20709AC	PRIMARY SEAL, DOOR,UPPER, LH	HY53C20709AC PRIMARY SEAL, DOOR,UPPER, LH	$440.69	1
110	HY5316770AA	WEATHERSTRIP ASSEMBLY,ROOF DITCH	HY5316770AA WEATHERSTRIP ASSEMBLY,ROOF DITCH	$29.50	2
120	HY53C20570AC	WEATHERSTRIP, DOOR INNERWAIST, RH	HY53C20570AC WEATHERSTRIP, DOOR INNERWAIST, RH	$312.18	1
130	HY53C20571AC	WEATHERSTRIP, DOOR INNERWAIST, LH	HY53C20571AC WEATHERSTRIP, DOOR INNERWAIST, LH	$312.18	1
140	HY53C20563BA	SEAL, DOOR WAIST, LH	HY53C20563BA SEAL, DOOR WAIST, LH	$110.32	1
150	HY53C20562BA	SEAL, DOOR WAIST, RH	HY53C20562BA SEAL, DOOR WAIST, RH	$113.62	1
160	6G33451B04AA	PLUG, 26mm	6G33451B04AA PLUG, 26mm	$0.57	2
170	HY5316770BA	WEATHERSTRIP, ROOF DITCH,CHMSL	HY5316770BA WEATHERSTRIP, ROOF DITCH,CHMSL	$10.19	2
180	703149	ねじ M6X16 六角穴付き IN STOCK	703149 ねじ M6X16 六角穴付き IN STOCK	$1.28	1
190	HY53C20290AD	MOULDING ASSEMBLY, FRONTTRIM, RH	HY53C20290AD MOULDING ASSEMBLY, FRONTTRIM, RH	$173.48	1
200	HY53C20291AD	MOULDING ASSEMBLY, FRONTTRIM, LH	HY53C20291AD MOULDING ASSEMBLY, FRONTTRIM, LH	$168.43	1
210	4G432273AA	GROMMET, 25mm	4G432273AA GROMMET, 25mm	$2.12	2
220	4G434210021	Plug, Trans Conv Drn Acc	4G434210021 Plug, Trans Conv Drn Acc	$6.72	1
230	HY53C237A04AB	WATER SHEDDER,DOOR, RH(LARGE)	HY53C237A04AB WATER SHEDDER,DOOR, RH(LARGE)	$34.08	1
240	HY53C237A05BC	WATER SHEDDER,DOOR, LH(SMALL)	HY53C237A05BC WATER SHEDDER,DOOR, LH(SMALL)	$27.36	1
250	HY53C237A05AC	WATER SHEDDER,DOOR, LH(LARGE)	HY53C237A05AC WATER SHEDDER,DOOR, LH(LARGE)	$41.05	1
260	HY53C237A04BC	WATER SHEDDER,DOOR, RH(SMALL)	HY53C237A04BC WATER SHEDDER,DOOR, RH(SMALL)	$27.36	1
270	HY53C43720AE	WEATHERSTRIP, LUGGAGECOMPARTMENT	HY53C43720AE WEATHERSTRIP, LUGGAGECOMPARTMENT	$443.73	1
280	HY5303828AD	WEATHERSTRIP ASSEMBLY,DECKLID, RH	HY5303828AD WEATHERSTRIP ASSEMBLY,DECKLID, RH Includes item 430	$255.34	1
290	HY5303829AD	WEATHERSTRIP ASSEMBLY,DECKLID, LH	HY5303829AD WEATHERSTRIP ASSEMBLY,DECKLID, LH Includes item 430	$256.38	1
300	HY5316K816AA	WEATHERSTRIP, HOOD, REAR	HY5316K816AA WEATHERSTRIP, HOOD, REAR	$67.17	1
310	HY5316A014AA	WEATHERSTRIP, HOOD, SIDE	HY5316A014AA WEATHERSTRIP, HOOD, SIDE	$49.53	2
320	HY5323712AA	FINISHER PANEL, DOORAPERATURE, B-PILLAR, RH	HY5323712AA FINISHER PANEL, DOORAPERATURE, B-PILLAR, RH	$26.21	1
330	HY5323713AA	FINISHER PANEL, DOORAPERATURE, B-PILLAR, LH	HY5323713AA FINISHER PANEL, DOORAPERATURE, B-PILLAR, LH	$26.21	1
340	6G43F78410AA	Sealing Pad, Al Butyl 35 x 35 IN STOCK	6G43F78410AA Sealing Pad, Al Butyl 35 x 35 IN STOCK	$2.93	A/R
350	HY53C47775AA	FOAM STRIP, A-PILLAR	HY53C47775AA FOAM STRIP, A-PILLAR	$3.74	4
360	HY53010D25AB	WEATHERSTRIP, LEAF SCREENEND to HOOD, LH	HY53010D25AB WEATHERSTRIP, LEAF SCREENEND to HOOD, LH	$42.36	1
370	HY53010D24AB	WEATHERSTRIP, LEAF SCREENEND to HOOD, RH	HY53010D24AB WEATHERSTRIP, LEAF SCREENEND to HOOD, RH	$37.56	1
390	HY5323020AA	SEAL, CANTRAIL	HY5323020AA SEAL, CANTRAIL	$9.86	2
400	HY5321899AA	FOAM WASHER, A-PILLAR	HY5321899AA FOAM WASHER, A-PILLAR	$3.34	22
430	6G33L02564BA	FIRTREE FIXING,4.0x0.76-5.94	6G33L02564BA FIRTREE FIXING,4.0x0.76-5.94	$0.88	6
