Bumpers of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

Aston Martin GT DB11 (2017-2023) - バンパー

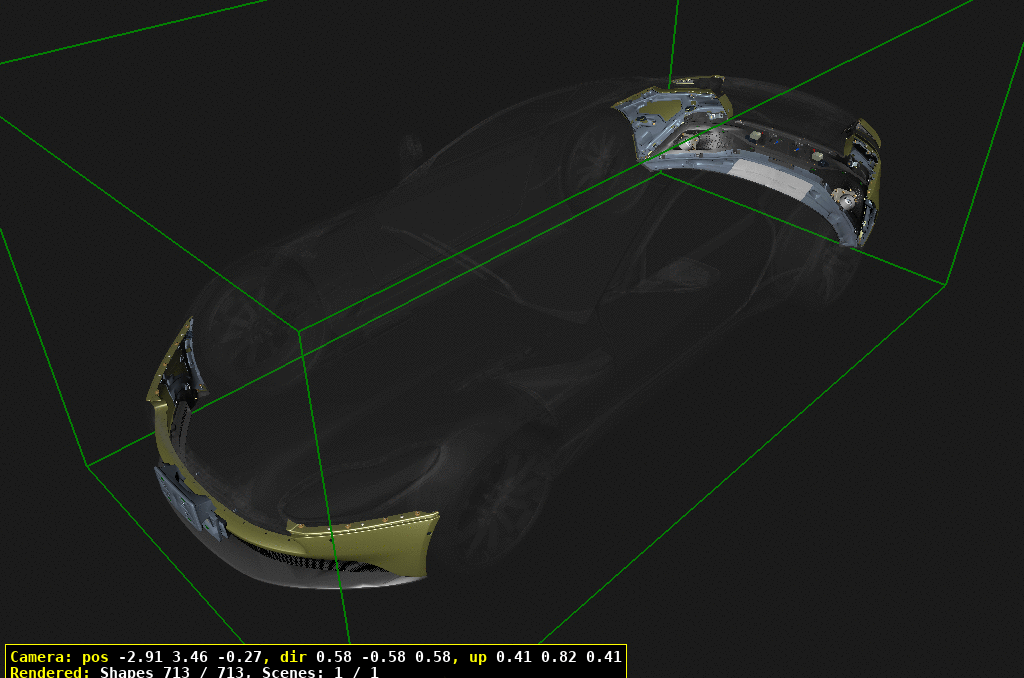

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	HY5317D957AD	フロントバンパーアッセンブリー	HY5317D957AD フロントバンパーアッセンブリー RoW	$2,647.40	1
21	HY5317D957BD	フロントバンパーアッセンブリー	HY5317D957BD フロントバンパーアッセンブリー Federal	$2,405.32	1
30	HY5317626AC	フロントスプリッター	HY5317626AC フロントスプリッター Black	$1,313.77	1
31	HY5317626BC	フロントスプリッター	HY5317626BC フロントスプリッター Graphite	$1,193.51	1
32	HY5317626CB	フロントスプリッター	HY5317626CB フロントスプリッター Carbon	$5,644.23	1
40	HY538N337AC	AUXILIARY RADIATOR DUCT,FRONT, LH	HY538N337AC AUXILIARY RADIATOR DUCT,FRONT, LH	$54.05	1
50	HY538N336AC	AUXILIARY RADIATOR DUCT,FRONT, RH	HY538N336AC AUXILIARY RADIATOR DUCT,FRONT, RH	$57.47	1
60	HY538156AA	MESH, FRONT BUMPER	HY538156AA MESH, FRONT BUMPER	$510.25	1
70	702514	Screw, flg, M6 x 16 torx IN STOCK	702514 Screw, flg, M6 x 16 torx IN STOCK	$2.87	6
80	703734	BOLT/WASHER, M6x25	703734 BOLT/WASHER, M6x25 -> VIN L01207	$1.28	8
90	8G336078574AA	WASHER, 22.2x12.9x1.5,NYLON	8G336078574AA WASHER, 22.2x12.9x1.5,NYLON -> VIN L01207	$0.77	8
100	HY5317E826AC	SUPPORT CABLE, SPLITTER	HY5317E826AC SUPPORT CABLE, SPLITTER	$34.65	2
110	703752	Bolt and washer, M6x14	703752 Bolt and washer, M6x14	$1.42	4
120	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	2
130	4G4317F773ABPK	Retainer, Bumper Grille	4G4317F773ABPK Retainer, Bumper Grille Pack of 10	$4.92	7
140	703266	Screw, torx M6 x 10 IN STOCK	703266 Screw, torx M6 x 10 IN STOCK	$1.58	10
150	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	6
160	HY5306435BA	FIXING, TOLERANCECOMPENSATING	HY5306435BA FIXING, TOLERANCECOMPENSATING VIN L01208->	$11.05	8
170	704327	ナットおよびワッシャ	704327 ナットおよびワッシャ VIN L01208->	$5.43	8
200	HY5317E955AL	INSERT ASSEMBLY, REARBUMPER	HY5317E955AL INSERT ASSEMBLY, REARBUMPER RoW. Black	$4,789.44	1
201	HY5317E955CK	INSERT ASSEMBLY, REARBUMPER	HY5317E955CK INSERT ASSEMBLY, REARBUMPER RoW. Graphite. -> 18.5MY	$4,789.44	1
202	HY5317E955CL	INSERT ASSEMBLY, REARBUMPER	HY5317E955CL INSERT ASSEMBLY, REARBUMPER RoW. Graphite. 18.5MY->	$4,789.44	1
203	HY5317E955EB	INSERT ASSEMBLY, REARBUMPER	HY5317E955EB INSERT ASSEMBLY, REARBUMPER RoW. Carbon	$7,608.48	1
204	HY5317E955BL	INSERT ASSEMBLY, REARBUMPER	HY5317E955BL INSERT ASSEMBLY, REARBUMPER Federal. Black.(Illustrated)	$4,789.44	1
205	HY5317E955DK	INSERT ASSEMBLY, REARBUMPER	HY5317E955DK INSERT ASSEMBLY, REARBUMPER -> 18.5MY, Federal.Graphite	$4,789.44	1
206	HY5317E955DL	INSERT ASSEMBLY, REARBUMPER	HY5317E955DL INSERT ASSEMBLY, REARBUMPER 18.5MY->, Federal.Graphite	$4,789.44	1
207	HY5317E955FB	INSERT ASSEMBLY, REARBUMPER	HY5317E955FB INSERT ASSEMBLY, REARBUMPER Federal. Carbon	$6,882.90	1
208	HY5317E955GL	INSERT ASSEMBLY, REARBUMPER	HY5317E955GL INSERT ASSEMBLY, REARBUMPER China. Black	$4,789.47	1
209	HY5317E955HL	INSERT ASSEMBLY, REARBUMPER	HY5317E955HL INSERT ASSEMBLY, REARBUMPER China. Graphite	$4,471.92	1
230	HY5301949AB	MESH, REAR BUMPER, LH	HY5301949AB MESH, REAR BUMPER, LH	$604.54	1
240	HY5301948AB	MESH, REAR BUMPER, RH	HY5301948AB MESH, REAR BUMPER, RH	$549.25	1
250	HY535K239AB	FINISHER, TAILPIPE, LH	HY535K239AB FINISHER, TAILPIPE, LH Bright	$783.48	1
251	HY535K239BB	FINISHER, TAILPIPE, LH	HY535K239BB FINISHER, TAILPIPE, LH Black	$1,425.10	1
252	HY535K239CB	FINISHER, TAILPIPE, LH	HY535K239CB FINISHER, TAILPIPE, LH Matt Black	$1,487.41	1
260	HY535K238AB	FINISHER, TAILPIPE, RH	HY535K238AB FINISHER, TAILPIPE, RH Bright	$783.48	1
261	HY535K238BB	FINISHER, TAILPIPE, RH	HY535K238BB FINISHER, TAILPIPE, RH Black	$1,425.10	1
262	HY535K238CB	FINISHER, TAILPIPE, RH	HY535K238CB FINISHER, TAILPIPE, RH Matt Black	$1,487.41	1
270	HY5315A282AE	COVER, REAR CORNER, LH	HY5315A282AE COVER, REAR CORNER, LH RoW	$942.71	1
271	HY5315A282BE	COVER, REAR CORNER, LH	HY5315A282BE COVER, REAR CORNER, LH Federal	$1,168.93	1
272	JY5315A282AF	COVER, REAR CORNER, LH	JY5315A282AF COVER, REAR CORNER, LH RoW. Blindspot Monitoring	$1,121.13	1
273	JY5315A282BF	COVER, REAR CORNER, LH	JY5315A282BF COVER, REAR CORNER, LH Federal. BlindspotMonitoring	$1,130.06	1
280	HY5315A281AD	COVER, REAR CORNER, RH	HY5315A281AD COVER, REAR CORNER, RH -> VIN L02821, RoW	-	1	Enquire
281	HY5315A281AE	COVER, REAR CORNER, RH	HY5315A281AE COVER, REAR CORNER, RH VIN L02822->, RoW	$973.57	1
282	HY5315A281BE	COVER, REAR CORNER, RH	HY5315A281BE COVER, REAR CORNER, RH Federal	$1,198.14	1
284	JY5315A281AF	COVER, REAR CORNER, RH	JY5315A281AF COVER, REAR CORNER, RH RoW. Blindspot Monitoring	$1,121.13	1
285	JY5315A281BF	COVER, REAR CORNER, RH	JY5315A281BF COVER, REAR CORNER, RH Federal. BlindspotMonitoring	$1,130.06	1
290	704327	ナットおよびワッシャ	704327 ナットおよびワッシャ	$5.43	6
300	HY535B282AA	WASHER, EXHAUSTINSULATION	HY535B282AA WASHER, EXHAUSTINSULATION	$0.29	12
310	702514	Screw, flg, M6 x 16 torx IN STOCK	702514 Screw, flg, M6 x 16 torx IN STOCK	$2.87	10
320	HY5319G759AB	BRACKET, TAILPIPE, LH	HY5319G759AB BRACKET, TAILPIPE, LH	$19.51	1
330	HY5319G758AB	BRACKET, TAILPIPE, RH	HY5319G758AB BRACKET, TAILPIPE, RH	$19.51	1
340	HY53F17B681AA	BRACKET, CENTRE, REARBUMPER	HY53F17B681AA BRACKET, CENTRE, REARBUMPER	$264.32	1
350	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	18
360	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	22
370	4G43-E826280-AD	Nut, M6, Flexax Tolerance	4G43-E826280-AD Nut, M6, Flexax Tolerance	-	2	Enquire
380	4G4317F773ABPK	Retainer, Bumper Grille	4G4317F773ABPK Retainer, Bumper Grille Pack of 10	$4.92	6
390	6G3351756AAPK	MACHINE SCREW, M5x13, PANHD IN STOCK	6G3351756AAPK MACHINE SCREW, M5x13, PANHD Pack of 10 IN STOCK	$5.77	4
400	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	2
410	8G336078574AA	WASHER, 22.2x12.9x1.5,NYLON	8G336078574AA WASHER, 22.2x12.9x1.5,NYLON	$0.77	4
420	703152PK	Screw and Washer M6x20 Hex IN STOCK	703152PK Screw and Washer M6x20 Hex Pack of 10 IN STOCK	$6.95	16
430	706346	Screw, ST 4.8 x 19	706346 Screw, ST 4.8 x 19	$0.22	2
440	HY53E603123AA	SCREW, 4x12, TORX HD	HY53E603123AA SCREW, 4x12, TORX HD Federal	$0.75	4
450	6G437210059	Clip, Over-Rider IN STOCK	6G437210059 Clip, Over-Rider IN STOCK	$1.17	2
460	703144	BOLT, M6x45, PAN IN STOCK	703144 BOLT, M6x45, PAN IN STOCK	$3.13	2
470	4G4313520AA	シール	4G4313520AA シール	-	6	Enquire
480	703198	BOLT, M6x40, HEX IN STOCK	703198 BOLT, M6x40, HEX IN STOCK	$0.79	2
490	FD43E830667AAPK	WASHER, 25mm ODx6.4mm ID IN STOCK	FD43E830667AAPK WASHER, 25mm ODx6.4mm ID Pack of 10 IN STOCK	$6.66	2
500	HY5317C911AA	COVER, OVERRIDER, LH	HY5317C911AA COVER, OVERRIDER, LH Black. Federal	$62.87	1
501	HY5317C911BA	COVER, OVERRIDER, LH	HY5317C911BA COVER, OVERRIDER, LH Graphite. Federal	$60.65	1
510	HY5317C910AA	COVER, OVERRIDER, RH	HY5317C910AA COVER, OVERRIDER, RH Black. Federal	$62.87	1
511	HY5317C910BA	COVER, OVERRIDER, RH	HY5317C910BA COVER, OVERRIDER, RH Graphite. Federal	$60.65	1
520	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	8
530	HY5313A465AB	FINISHER, TLS to REARLAMP, LH	HY5313A465AB FINISHER, TLS to REARLAMP, LH Coupe	$65.42	1
531	KY5313A465AB	FINISHER, TLS to REARLAMP, LH	KY5313A465AB FINISHER, TLS to REARLAMP, LH Volante	$59.32	1
540	HY5313A466AB	FINISHER, TLS to REARLAMP, RH	HY5313A466AB FINISHER, TLS to REARLAMP, RH Coupe	$67.06	1
541	KY5313A466AB	FINISHER, TLS to REARLAMP, RH	KY5313A466AB FINISHER, TLS to REARLAMP, RH Volante	$50.91	1
550	HY5317G953AA	BRACKET, REAR BUMPER, LH	HY5317G953AA BRACKET, REAR BUMPER, LH	$44.42	1
560	HY5317G952AA	BRACKET, REAR BUMPER, RH	HY5317G952AA BRACKET, REAR BUMPER, RH	$44.42	1
570	HY5313A537CA	INFILL STRUCTUREASSEMBLY, LH	HY5313A537CA INFILL STRUCTUREASSEMBLY, LH Adjustable	$57.57	1
580	HY5313A536BA	INFILL STRUCTUREASSEMBLY, RH	HY5313A536BA INFILL STRUCTUREASSEMBLY, RH Adjustable	$59.30	1
590	HY5313A539AD	INSERT, REAR LAMP, LH	HY5313A539AD INSERT, REAR LAMP, LH Coupe	$143.91	1
591	KY5313A539AA	INSERT, REAR LAMP, LH	KY5313A539AA INSERT, REAR LAMP, LH Volante	$370.11	1
600	HY5313A538BA	INSERT, REAR LAMP, RH	HY5313A538BA INSERT, REAR LAMP, RH Coupe	$155.06	1
601	KY5313A538AA	INSERT, REAR LAMP, RH	KY5313A538AA INSERT, REAR LAMP, RH Volante	$370.11	1
610	HY539927AA	Sクリップ IN STOCK	HY539927AA Sクリップ Cover to Reinforcement IN STOCK	$2.80	8
620	HY5310140AA	フォームブロック	HY5310140AA フォームブロック RoW only	$23.73	2
700	HY5317A835EA	PLINTH, LICENCE PLATE	HY5317A835EA PLINTH, LICENCE PLATE Japan	$245.89	1
710	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	2
720	1R12642790AAPK	SCRIVET, 8mm DIA, PANEL,3-10mm IN STOCK	1R12642790AAPK SCRIVET, 8mm DIA, PANEL,3-10mm Pack of 5 IN STOCK	$8.30	2
730	HY5317A835DC	PLINTH, LICENCE PLATE	HY5317A835DC PLINTH, LICENCE PLATE China	$197.68	1
740	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	4
750	1R12642790AAPK	SCRIVET, 8mm DIA, PANEL,3-10mm IN STOCK	1R12642790AAPK SCRIVET, 8mm DIA, PANEL,3-10mm Pack of 5 IN STOCK	$8.30	2
760	HY5317A835CA	PLINTH, LICENCE PLATE	HY5317A835CA PLINTH, LICENCE PLATE Swiss	$197.89	1
770	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	2
780	1R12642790AAPK	SCRIVET, 8mm DIA, PANEL,3-10mm IN STOCK	1R12642790AAPK SCRIVET, 8mm DIA, PANEL,3-10mm Pack of 5 IN STOCK	$8.30	2
790	HY5317A835BA	PLINTH, LICENCE PLATE	HY5317A835BA PLINTH, LICENCE PLATE Federal	$234.25	1
800	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	4
810	6G430516BBA	Screw, M6 IN STOCK	6G430516BBA Screw, M6 IN STOCK	$5.77	6
820	HY5317A835AA	PLINTH, LICENCE PLATE	HY5317A835AA PLINTH, LICENCE PLATE RoW	-	1	Enquire
830	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	2
840	1R12642790AAPK	SCRIVET, 8mm DIA, PANEL,3-10mm IN STOCK	1R12642790AAPK SCRIVET, 8mm DIA, PANEL,3-10mm Pack of 5 IN STOCK	$8.30	2
900	AD4313418BA	Bracket assy, licence plate	AD4313418BA Bracket assy, licence plate Japan	$95.21	2
910	702943	Rivet, 3.2x6.5, Blind Aluminium	702943 Rivet, 3.2x6.5, Blind Aluminium	$0.07	4
920	6G3317B389AE	BRACKET, LICENCE PLATE	6G3317B389AE BRACKET, LICENCE PLATE Federal	$51.32	1
930	CD3317B389DC	BRACKET, LICENCE PLATE	CD3317B389DC BRACKET, LICENCE PLATE China, -> 18MY	$45.29	1
931	CD3317B389DD	BRACKET, LICENCE PLATE	CD3317B389DD BRACKET, LICENCE PLATE China, 18MY->	$60.54	1
940	702511PK	J Nut IN STOCK	702511PK J Nut China, -> 18MY. Pack of10 IN STOCK	$8.59	4
950	697592	SCREW, No.10x19, FLG ABS.T.	697592 SCREW, No.10x19, FLG ABS.T.	-	2	Enquire
960	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	2
