Aston Martin GT DB11 (2017-2023) - Seating

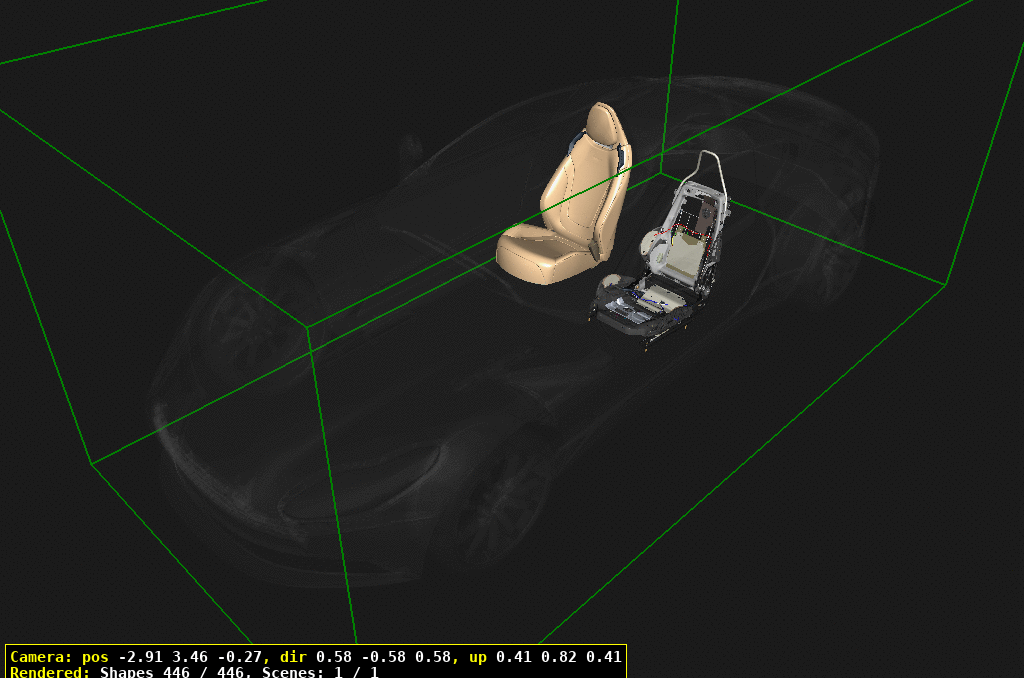

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~*~	FUSES	*~~** FUSES	-	-	Enquire
2	HY5360008AAW	FRONT SEAT ASSEMBLY, RH	HY5360008AAW FRONT SEAT ASSEMBLY, RH Order with VIN	$38,119.98	1
3	HY5360009AAW	FRONT SEAT ASSEMBLY, LH	HY5360009AAW FRONT SEAT ASSEMBLY, LH Order with VIN	$38,120.21	1
20	HY534D9513AC	FOAM ASSEMBLY, SQUAB	HY534D9513AC FOAM ASSEMBLY, SQUAB	$250.99	2
22	KY634D9513BC	FOAM ASSEMBLY, SQUAB	KY634D9513BC FOAM ASSEMBLY, SQUAB Sports+ Seat	$258.99	2
30	HY539515AA	FOAM ASSEMBLY, CUSHION	HY539515AA FOAM ASSEMBLY, CUSHION -> 21MY	$174.03	2
31	HY539515AB	FOAM ASSEMBLY, CUSHION	HY539515AB FOAM ASSEMBLY, CUSHION 21MY->	$178.13	2
32	KY639515BC	FOAM ASSEMBLY, CUSHION	KY639515BC FOAM ASSEMBLY, CUSHION Sports+ Seat	$188.78	2
40	~o~	バッテリー	~o~ バッテリー For OCS Service Kit,refer to Section 01-20	-	-	Enquire
50	HY5362152BCW	SHOULDER PAD ASSEMBLY	HY5362152BCW SHOULDER PAD ASSEMBLY LH, RH Seat	$393.88	1
51	HY5362153BCW	SHOULDER PAD ASSEMBLY	HY5362153BCW SHOULDER PAD ASSEMBLY RH, LH Seat	$393.88	1
60	HY5362152ACW	SHOULDER PAD ASSEMBLY	HY5362152ACW SHOULDER PAD ASSEMBLY RH, RH Seat	$393.88	1
61	HY5362153ACW	SHOULDER PAD ASSEMBLY	HY5362153ACW SHOULDER PAD ASSEMBLY LH, LH Seat	$393.88	1
70	HY5366914ACW	SEAT BACK SHELL, UPPER	HY5366914ACW SEAT BACK SHELL, UPPER Leather Trimmed	$899.69	2
71	KY53600E88PA	SEAT BACK SHELL, UPPER	KY53600E88PA SEAT BACK SHELL, UPPER Painted Piano Black	$682.00	2
72	KY53-600E88-DB	SEAT BACK SHELL, VENEER	KY53-600E88-DB SEAT BACK SHELL, VENEER -> 19MY, Dark Ash Burl	-	2	Enquire
73	KY53-600E88-KB	SEAT BACK SHELL, VENEER	KY53-600E88-KB SEAT BACK SHELL, VENEER -> 19MY, Carbon Cuprum	-	2	Enquire
74	KY53-600E89-FD	SEAT BACK SHELL, UPPER	KY53-600E89-FD SEAT BACK SHELL, UPPER LH, Carbon 2x2 Twill	-	1	Enquire
75	KY53600E88FC	SEAT BACK SHELL, UPPER	KY53600E88FC SEAT BACK SHELL, UPPER RH, Carbon 2x2 Twill	$5,094.46	1
76	KY53-600E88-MB	SEAT BACK SHELL, VENEER	KY53-600E88-MB SEAT BACK SHELL, VENEER Alutex	-	2	Enquire
77	KY53600E88NC	SEAT BACK SHELL, UPPER	KY53600E88NC SEAT BACK SHELL, UPPER Chopped Carbon Satin	$4,638.20	2
78	KY53044J50BB	VENEER, SEAT BACK SHELL,Matched Pair	KY53044J50BB VENEER, SEAT BACK SHELL,Matched Pair Tamo Ash	$6,441.13	1
79	KY53-044J50-CB	VENEER, SEAT BACK SHELL,Matched Pair	KY53-044J50-CB VENEER, SEAT BACK SHELL,Matched Pair -> 19.5MY, Tan Lacewood	-	1	Enquire
80	KY53044J50LB	VENEER, SEAT BACK SHELL,Matched Pair	KY53044J50LB VENEER, SEAT BACK SHELL,Matched Pair Light Ash Burl	$4,207.50	1
90	HY5366915AFW	SEAT BACK SHELL, LOWER	HY5366915AFW SEAT BACK SHELL, LOWER	$3,159.39	2
91	KY6366915AEW	SEAT BACK SHELL, LOWER	KY6366915AEW SEAT BACK SHELL, LOWER Sport+ Seat	$3,159.39	2
100	HY5362901AAW	CUSHION COVER ASSEMBLY	HY5362901AAW CUSHION COVER ASSEMBLY LH	$7,615.79	1
101	HY5362900AAW	CUSHION COVER ASSEMBLY	HY5362900AAW CUSHION COVER ASSEMBLY RH	$7,615.79	1
110	HY5364573AAW	スクアブカバーASSY	HY5364573AAW スクアブカバーASSY LH	$7,842.12	1
111	HY5364572AAW	スクアブカバーASSY	HY5364572AAW スクアブカバーASSY RH	$7,842.12	1
120	HY53612A94AAW	HEADREST SUPPORT ASSEMBLY	HY53612A94AAW HEADREST SUPPORT ASSEMBLY	$1,677.19	2
130	HY53-60528-ABW	FINISHER ASSEMBLY, SEATBACK	HY53-60528-ABW FINISHER ASSEMBLY, SEATBACK	-	2	Enquire
131	NY73-60528-AAW	FINISHER ASSEMBLY, SEATBACK	NY73-60528-AAW FINISHER ASSEMBLY, SEATBACK Sports+ Seat	-	2	Enquire
140	HY53-045H52-ABW	SUBSTRATE ASSEMBLY,HEADREST	HY53-045H52-ABW SUBSTRATE ASSEMBLY,HEADREST	-	2	Enquire
150	HY5317C988AAW	VALANCE, INNER, RH	HY5317C988AAW VALANCE, INNER, RH RH Seat	$151.38	1
151	HY5317C989AAW	VALANCE, INNER, LH	HY5317C989AAW VALANCE, INNER, LH LH Seat	$151.38	1
160	HY53600C64AAW	VALANCE ASSEMBLY, CUSHION	HY53600C64AAW VALANCE ASSEMBLY, CUSHION RH, RH Seat	$1,624.50	1
161	HY53600C65AAW	VALANCE ASSEMBLY, CUSHION	HY53600C65AAW VALANCE ASSEMBLY, CUSHION LH, LH Seat	$1,624.50	1
170	HY5364344ACW	REAR BEZEL ASSEMBLY	HY5364344ACW REAR BEZEL ASSEMBLY	$271.13	2
180	HY5361186ACW	FRONT PANEL ASSEMBLY,UPPER	HY5361186ACW FRONT PANEL ASSEMBLY,UPPER	$641.26	2
190	HY53621A64ABW	HANDLE, SEAT BACK RELEASE	HY53621A64ABW HANDLE, SEAT BACK RELEASE	$159.18	2
200	HY53627A24AB	GUIDE, SEAT BACK RELEASE	HY53627A24AB GUIDE, SEAT BACK RELEASE LH	$25.71	1
201	HY53627A25AB	GUIDE, SEAT BACK RELEASE	HY53627A25AB GUIDE, SEAT BACK RELEASE RH	$25.71	1
220	HY5314D696AB	HEATER PAD, SEAT SQUAB	HY5314D696AB HEATER PAD, SEAT SQUAB	$83.01	2
221	KY6314D696AA	HEATER PAD, SEAT SQUAB	KY6314D696AA HEATER PAD, SEAT SQUAB Sports+ Seat	$176.21	2
230	HY5314D698AB	HEATER PAD, SEAT CUSHION	HY5314D698AB HEATER PAD, SEAT CUSHION	$215.94	2
240	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head per seat	$0.68	6
250	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head per seat IN STOCK	$0.34	2
260	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING per seat	$3.93	2
270	DD33487032AA	Clip, Push In, 8.0 x 16 x 1.7	DD33487032AA Clip, Push In, 8.0 x 16 x 1.7 per seat	$1.02	5
280	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	3
290	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type per seat IN STOCK	$2.17	2
300	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX per seat	$0.25	2
310	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	2
320	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head per seat	$0.68	2
330	707146	SCREW, M5x16	707146 SCREW, M5x16 per seat	$0.81	4
340	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head per seat	$0.68	11
350	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	3
360	707618	SCREW, M6x20, HEX HD,THREAD FORMING	707618 SCREW, M6x20, HEX HD,THREAD FORMING per seat	$0.86	2
370	DD33487032AA	Clip, Push In, 8.0 x 16 x 1.7	DD33487032AA Clip, Push In, 8.0 x 16 x 1.7 per seat	$1.02	8
380	HY53-61622-ABW	PIPING INSERT ASSEMBLY	HY53-61622-ABW PIPING INSERT ASSEMBLY	-	2	Enquire
390	HY53644K79ACW	COVER, SQUAB to CUSHION	HY53644K79ACW COVER, SQUAB to CUSHION	$154.90	1
391	HY53644K79BAW	COVER, SQUAB to CUSHION	HY53644K79BAW COVER, SQUAB to CUSHION ISOfix, -> 19MY	$411.88	1
400	~O~	バッテリー	~O~ バッテリー See Section 010501-10	-	1	Enquire
410	KY6363861AA	SUPPORT, SEAT WING, LH	KY6363861AA SUPPORT, SEAT WING, LH Sports+ Seat	$62.39	1
420	KY6363860AA	SUPPORT, SEAT WING, RH	KY6363860AA SUPPORT, SEAT WING, RH Sports+ Seat	$62.39	1
430	707121	SCREW, M5x12	707121 SCREW, M5x12 Sports+ Seat	$0.54	4
440	HY53600B68AB	SEAT CLIMATE ASSEMBLY,CUSHION	HY53600B68AB SEAT CLIMATE ASSEMBLY,CUSHION Climate	$106.51	1
441	HY5363222AB	PAD, SEAT CUSHION	HY5363222AB PAD, SEAT CUSHION Heated	$57.07	1
450	HY53600B70AB	SEAT CLIMATE ASSEMBLY,SQUAB	HY53600B70AB SEAT CLIMATE ASSEMBLY,SQUAB Climate	$125.23	1
451	KY63600B70AA	SEAT CLIMATE ASSEMBLY,SQUAB	KY63600B70AA SEAT CLIMATE ASSEMBLY,SQUAB Climate, Sports+ Seat	$82.98	1
452	HY5364868AB	PAD, SEAT SQUAB	HY5364868AB PAD, SEAT SQUAB Heated	$59.96	1
453	KY6364868AA	PAD, SEAT SQUAB	KY6364868AA PAD, SEAT SQUAB Heated, Sports+ Seat	$54.63	1
500	707132	BOLT, M10x40, HEX FLG	707132 BOLT, M10x40, HEX FLG	$2.68	8
510	HY53608A15AF	SEAT FRAME, DRIVER	HY53608A15AF SEAT FRAME, DRIVER LH, LHD, Standard	$8,671.88	1
511	HY53608A15BC	SEAT FRAME, PASSENGER	HY53608A15BC SEAT FRAME, PASSENGER -> VIN L04738, LH, RHD,ISOfix	$8,285.08	1
512	HY53608A15BD	SEAT FRAME, PASSENGER	HY53608A15BD SEAT FRAME, PASSENGER VIN L04739-> 21MY, LH,RHD, ISOfix	$8,671.10	1
513	HY53608A15BF	SEAT FRAME, PASSENGER	HY53608A15BF SEAT FRAME, PASSENGER 22MY->, LH, RHD, ISOfix	$8,671.88	1
514	HY53608A15CB	SEAT FRAME, PASSENGER	HY53608A15CB SEAT FRAME, PASSENGER -> VIN L05162, LH, RHD,Standard	-	1	Enquire
515	HY53608A15CD	SEAT FRAME, PASSENGER	HY53608A15CD SEAT FRAME, PASSENGER VIN L05163->, 21MY, LH,RHD, Standard	$7,630.61	1
516	HY53608A15CF	SEAT FRAME, PASSENGER	HY53608A15CF SEAT FRAME, PASSENGER 22MY->, LH, RHD, Standard	$8,671.88	1
517	HY53608A15EE	SEAT FRAME, DRIVER	HY53608A15EE SEAT FRAME, DRIVER LH, LHD, AdjustableBolster	$5,792.69	1
518	HY53608A15FD	SEAT FRAME, PASSENGER	HY53608A15FD SEAT FRAME, PASSENGER -> 21MY, LH, RHD, ISOfix& Adjustable Bolster	$6,947.71	1
519	HY53608A15FF	SEAT FRAME, PASSENGER	HY53608A15FF SEAT FRAME, PASSENGER 22MY->, LH, RHD, ISOfix &Adjustable Bolster	$8,671.88	1
520	HY53608A15GC	SEAT FRAME, PASSENGER	HY53608A15GC SEAT FRAME, PASSENGER -> VIN L04851, LH, RHD,Adjustable Bolster	$8,830.78	1
521	HY53608A15GF	SEAT FRAME, PASSENGER	HY53608A15GF SEAT FRAME, PASSENGER VIN L04852->, LH, RHD,Adjustable Bolster	$8,671.88	-
550	HY53608A14AF	SEAT FRAME, DRIVER	HY53608A14AF SEAT FRAME, DRIVER RH, RHD, Standard	$7,108.19	1
551	HY53608A14BB	SEAT FRAME, PASSENGER	HY53608A14BB SEAT FRAME, PASSENGER -> VIN L01850, RH, LHD,ISOfix	$7,426.60	1
552	HY53608A14BC	SEAT FRAME, PASSENGER	HY53608A14BC SEAT FRAME, PASSENGER VIN L01851-> L05268, RH,LHD, ISOfix	$7,426.63	1
553	HY53608A14BD	SEAT FRAME, PASSENGER	HY53608A14BD SEAT FRAME, PASSENGER VIN L05269-> 21MY, RH,LHD, ISOfix	$8,671.10	1
554	HY53608A14BF	SEAT FRAME, PASSENGER	HY53608A14BF SEAT FRAME, PASSENGER 22MY->, RH, LHD, ISOfix	$8,667.04	1
555	HY53608A14CD	SEAT FRAME, PASSENGER	HY53608A14CD SEAT FRAME, PASSENGER -> 21MY, RH, LHD,Standard	$7,267.26	1
556	HY53608A14CF	SEAT FRAME, PASSENGER	HY53608A14CF SEAT FRAME, PASSENGER 22MY->, RH, LHD, Standard	$8,671.88	1
557	HY53608A14DC	SEAT FRAME, PASSENGER	HY53608A14DC SEAT FRAME, PASSENGER -> VIN L04689, RH, LHD,with Top Tether	$8,285.08	1
558	HY53608A14DE	SEAT FRAME, PASSENGER	HY53608A14DE SEAT FRAME, PASSENGER VIN L04690-> 21MY, RH,LHD, with Top Tether	$6,464.14	1
559	HY53608A14DF	SEAT FRAME, PASSENGER	HY53608A14DF SEAT FRAME, PASSENGER 22MY->, RH, LHD, with TopTether	$8,671.88	1
560	HY53608A14EC	SEAT FRAME, DRIVER	HY53608A14EC SEAT FRAME, DRIVER -> VIN L04847, RH, RHD,Adjustable Bolster	$8,844.63	1
561	HY53608A14EF	SEAT FRAME, DRIVER	HY53608A14EF SEAT FRAME, DRIVER VIN L04848->, RH, RHD,Adjustable Bolster	$8,671.88	1
562	HY53608A14FD	SEAT FRAME, PASSENGER	HY53608A14FD SEAT FRAME, PASSENGER -> 21MY, RH, LHD, ISOfix& Adjustable Bolster	$8,521.95	1
563	HY53608A14FF	SEAT FRAME, PASSENGER	HY53608A14FF SEAT FRAME, PASSENGER 22MY->, RH, LHD, ISOfix &Adjustable Bolster	$8,671.88	1
564	HY53608A14GF	SEAT FRAME, PASSENGER	HY53608A14GF SEAT FRAME, PASSENGER RH, LHD, AdjustableBolster	$8,671.88	1
565	HY53608A14HC	SEAT FRAME, PASSENGER	HY53608A14HC SEAT FRAME, PASSENGER -> VIN L05165, RH, LHD,with Top Tether &Adjustable Bolster	$9,430.58	1
566	HY53608A14HF	SEAT FRAME, PASSENGER	HY53608A14HF SEAT FRAME, PASSENGER VIN L05166->, RH, LHD,with Top Tether &Adjustable Bolster	$8,671.88	1
600	HY5314B684AB	WIRING HARNESS ASSEMBLY,RH	HY5314B684AB WIRING HARNESS ASSEMBLY,RH -> 21MY	$935.85	1
601	MY8314B684AA	WIRING HARNESS ASSEMBLY,RH	MY8314B684AA WIRING HARNESS ASSEMBLY,RH 21MY->	$706.59	1
602	HY5314B683AA	WIRING HARNESS ASSEMBLY,LH	HY5314B683AA WIRING HARNESS ASSEMBLY,LH -> 21MY	$913.02	1
603	MY8314B683AA	WIRING HARNESS ASSEMBLY,LH	MY8314B683AA WIRING HARNESS ASSEMBLY,LH 21MY->	$689.37	1
610	HY53629B01AA	END CAP, SEAT TRACK,FRONT	HY53629B01AA END CAP, SEAT TRACK,FRONT	$17.39	3
620	HY53629B03AA	END CAP, SEAT TRACK, REAR	HY53629B03AA END CAP, SEAT TRACK, REAR	$8.25	1
630	HY53XC471045AA	BRACKET, ECU	HY53XC471045AA BRACKET, ECU	$90.39	2
640	HY53SE14C249AA	ECU, DRIVERS SEAT	HY53SE14C249AA ECU, DRIVERS SEAT	$372.88	1
650	HY53SE14C249BA	ECU, PASSENGERS SEAT IN STOCK	HY53SE14C249BA ECU, PASSENGERS SEAT IN STOCK	$372.23	1
700	HY5363550AA	LUMBAR SUPPORT, withBOLSTERS	HY5363550AA LUMBAR SUPPORT, withBOLSTERS	$3,771.38	1
701	HY53603B16AA	LUMBAR SUPPORT, lessBOLSTERS	HY53603B16AA LUMBAR SUPPORT, lessBOLSTERS	$319.90	1
730	HY53631B86AB	FAN ASSEMBLY, SEAT SQUAB	HY53631B86AB FAN ASSEMBLY, SEAT SQUAB Climate	$282.45	1
740	HY538632AB	FAN ASSEMBLY, SEATCUSHION	HY538632AB FAN ASSEMBLY, SEATCUSHION Climate	$292.00	1
750	HY5314B426AA	SENSOR, SEAT TRACKPOSITION	HY5314B426AA SENSOR, SEAT TRACKPOSITION	$53.41	1
